Toyota Prius(PLUG-IN HBD)

2012-05 → 2016-04 · chassis ZVW35 · catalogue 224520 · Europe

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

6 part groups · 2 illustrations

Illustrations

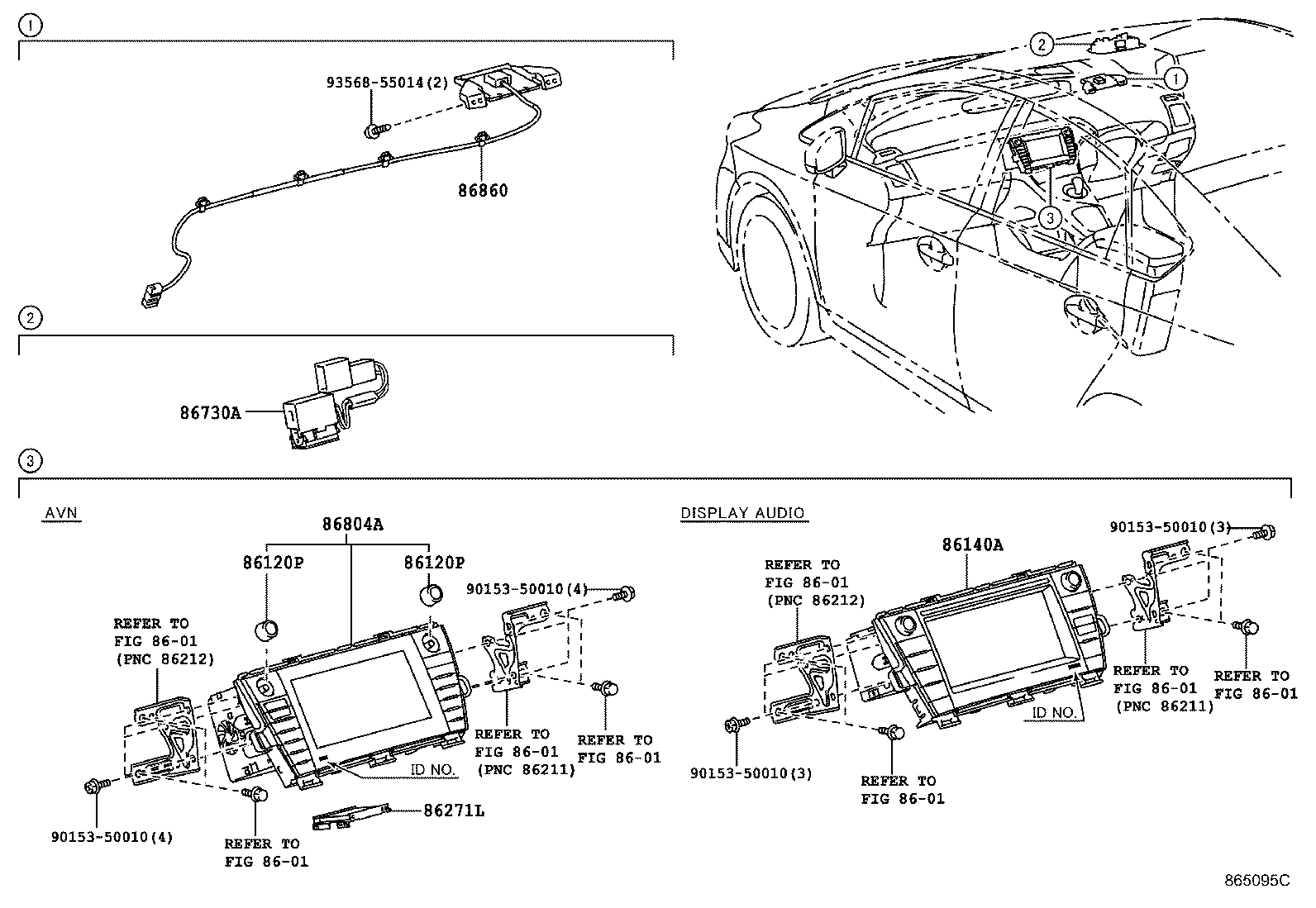

Figure 864789D 864789D 2012-05 → — Figure 865095C 865095C 2012-05 → —

Part groups

PNCDescription
86120P Knob, Navigation Receiver Switch
86140A Receiver Assy, Radio & Display
86271L Hard Disc
86730A Microphone Assy, Telephone
86804A Sub-assy, Navigation Computer
86860 Antenna Assy, Navigation
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
