Toyota Prius(PLUG-IN HBD)

2012-05 → 2016-04 · chassis ZVW35 · catalogue 224520 · Europe

Supported model Data version 2016-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

7 part groups · 2 illustrations

Illustrations

864793 2012-05 → —

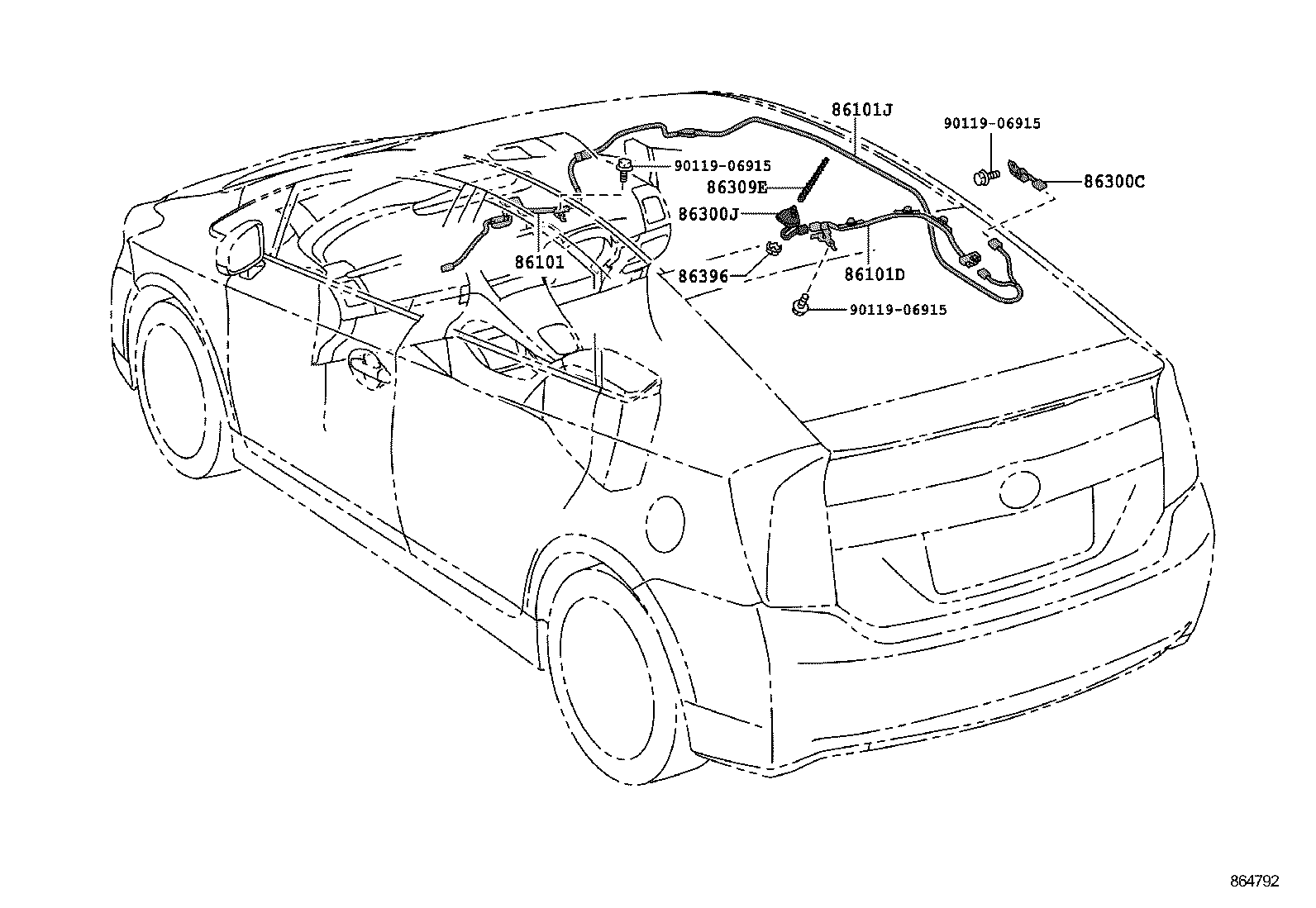

864792 2012-05 → —

Part groups

PNC	Description
86101	Cord Sub-assy, Antenna
86101D	Cord Sub-assy, Antenna, NO.3
86101J	Cord Sub-assy, Antenna, NO.2
86300C	Antenna Assy, Amplifier, NO.2
86300J	Antenna Assy, Roof
86309E	Pole Sub-assy, Roof Antenna
86396	Nut, Antenna

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
