Toyota Prius(PLUG-IN HBD)

2012-05 → 2016-04 · chassis ZVW35 · catalogue 224520 · Europe

Supported model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

18 part groups · 6 illustrations

Illustrations

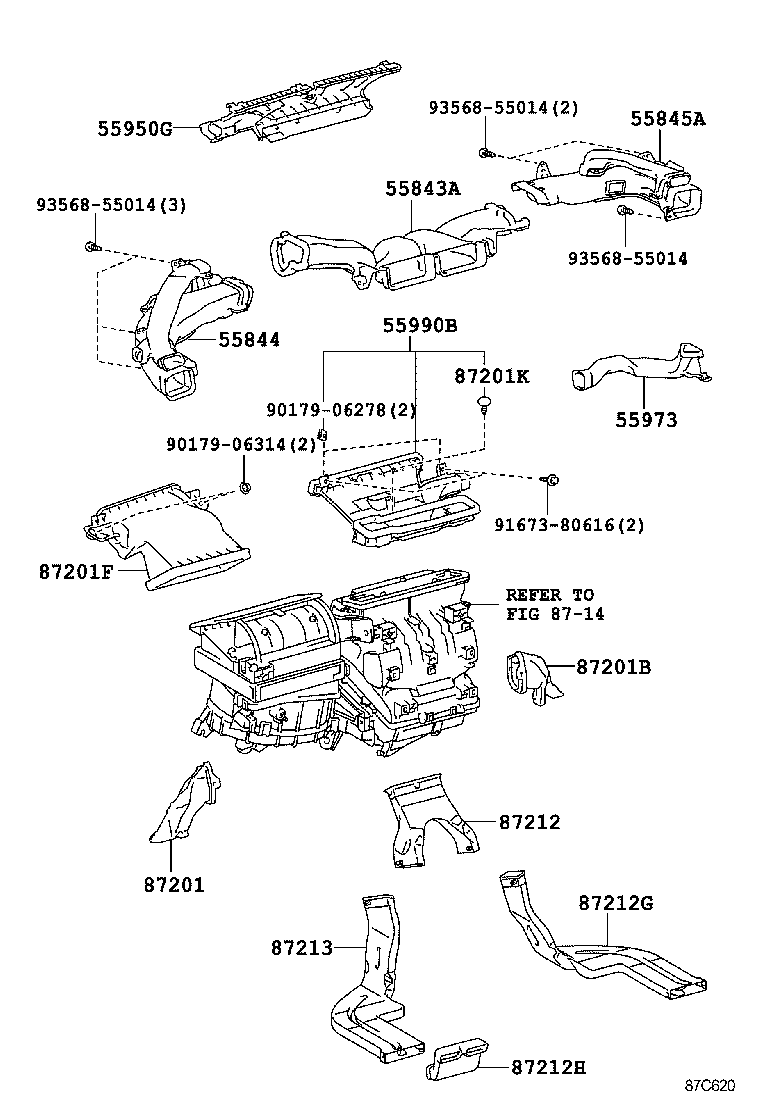

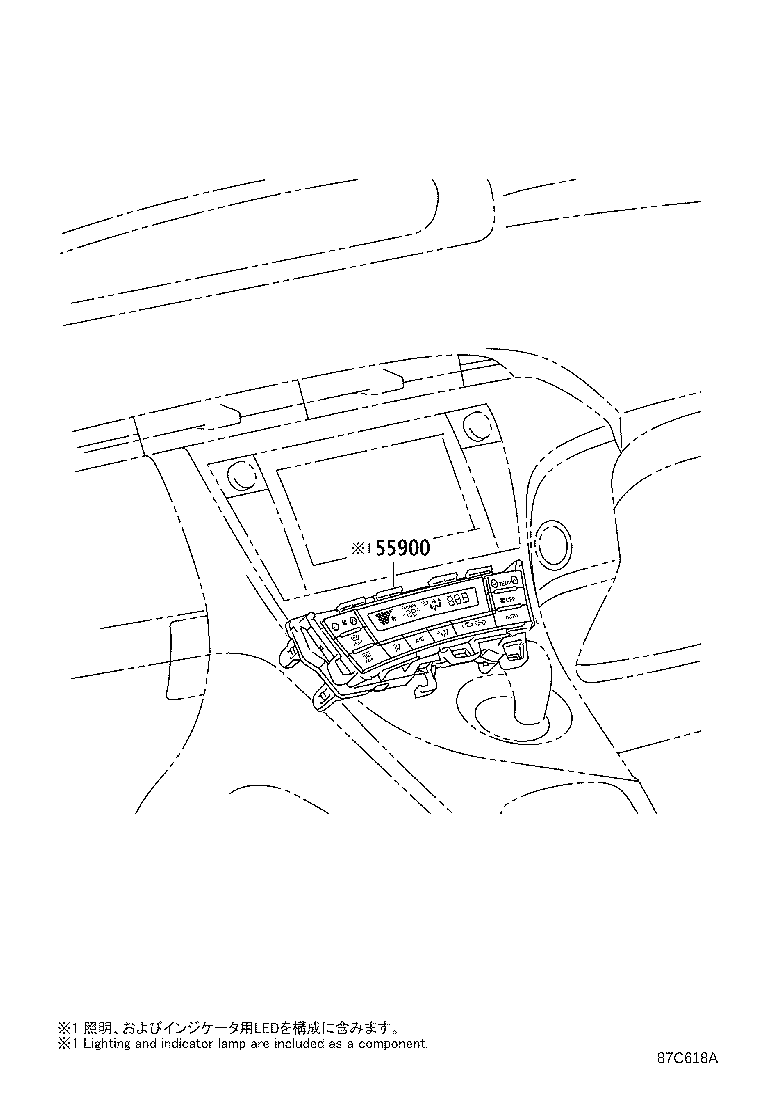

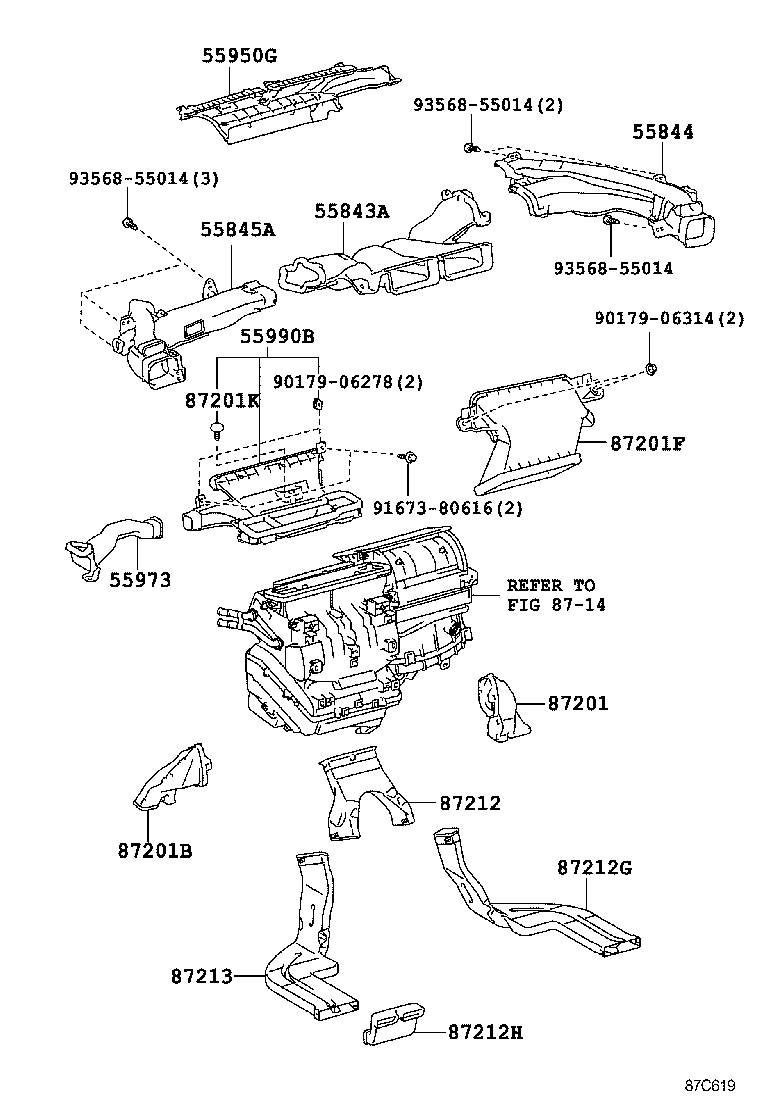

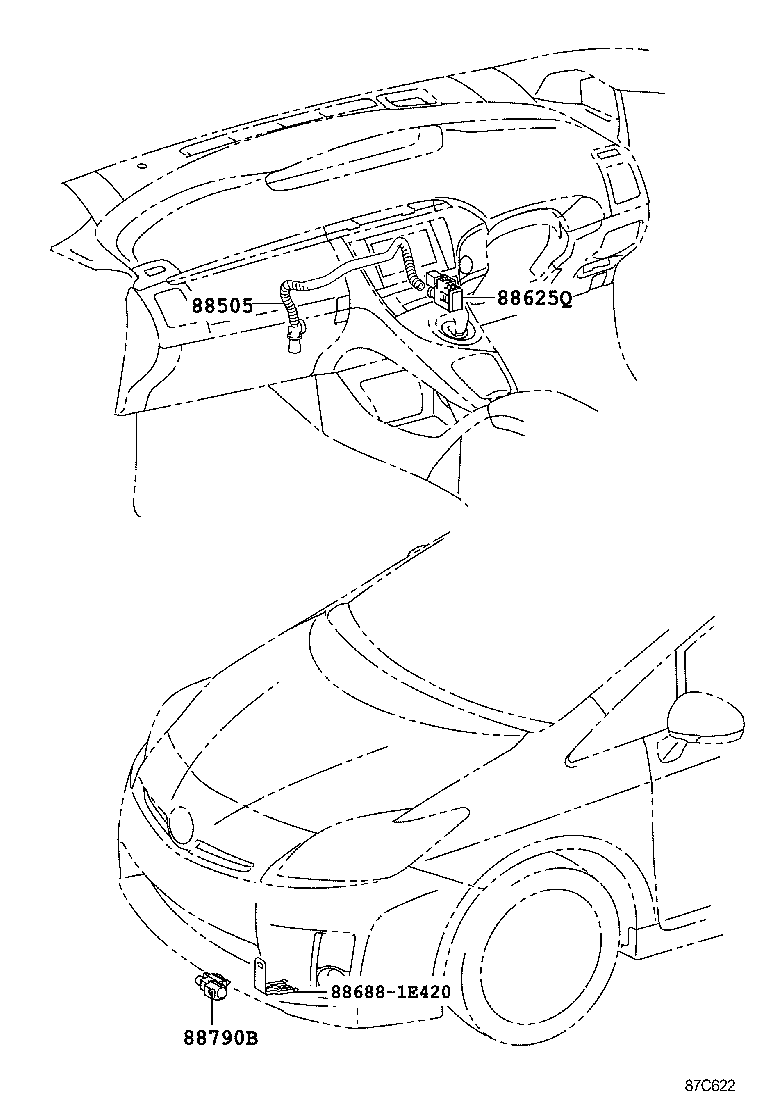

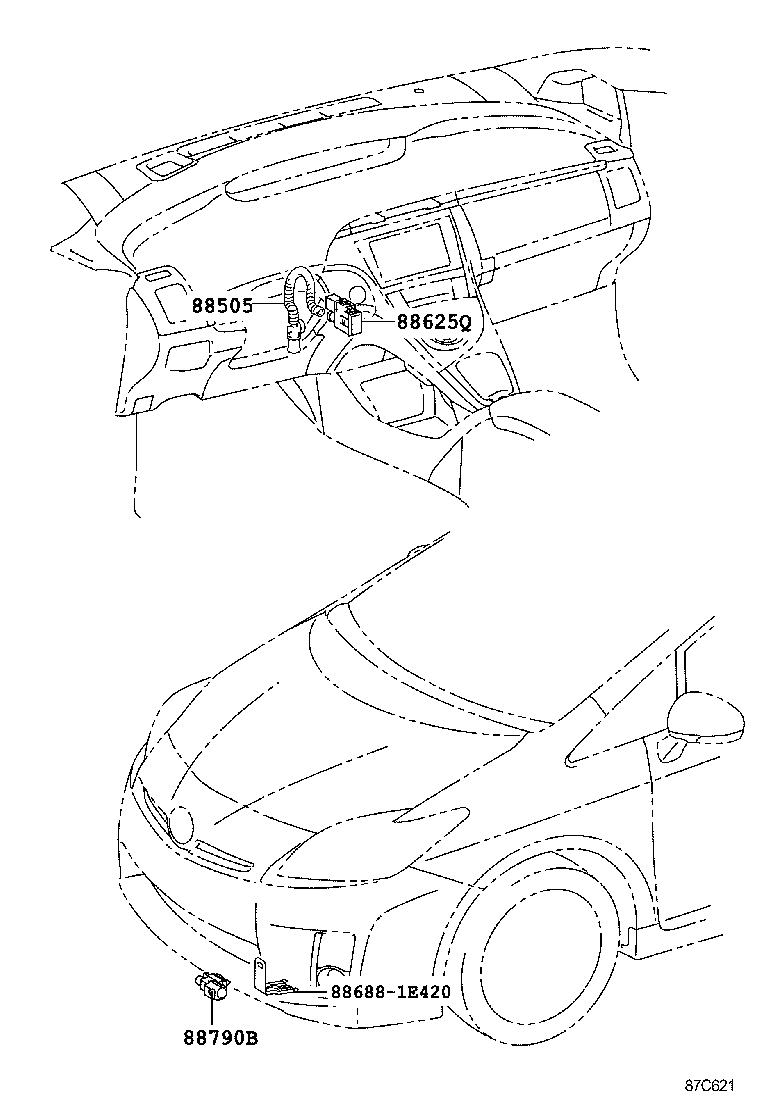

Figure 87C617A 87C617A 2012-05 → — Figure 87C618A 87C618A 2012-05 → — Figure 87C619 87C619 2012-05 → — Figure 87C620 87C620 2012-05 → — Figure 87C621 87C621 2012-05 → — Figure 87C622 87C622 2012-05 → —

Part groups

PNCDescription
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55900 Control Assy, Air Conditioner
55950G Nozzle Assy, Defroster
55973 Duct, Side Defroster Nozzle, NO.3
55990B Nozzle Assy, Defroster, Lower
87201 Duct Sub-assy, Air, NO.1
87201B Duct Sub-assy, Air, NO.2
87201F Duct Sub-assy, Air, NO.3
87201K Clip (FOR AIR DUCT)
87212 Duct, Air, Rear NO.1
87212G Duct, Air, Rear NO.3
87212H Duct, Air, Rear NO.4
87213 Duct, Air, Rear NO.2
88505 Duct Sub-assy,Air Conditioner
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88790B Thermistor Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
