Toyota Prius Phv

2016-09 → 2022-11 · chassis ZVW52 · catalogue 224530 · Europe

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

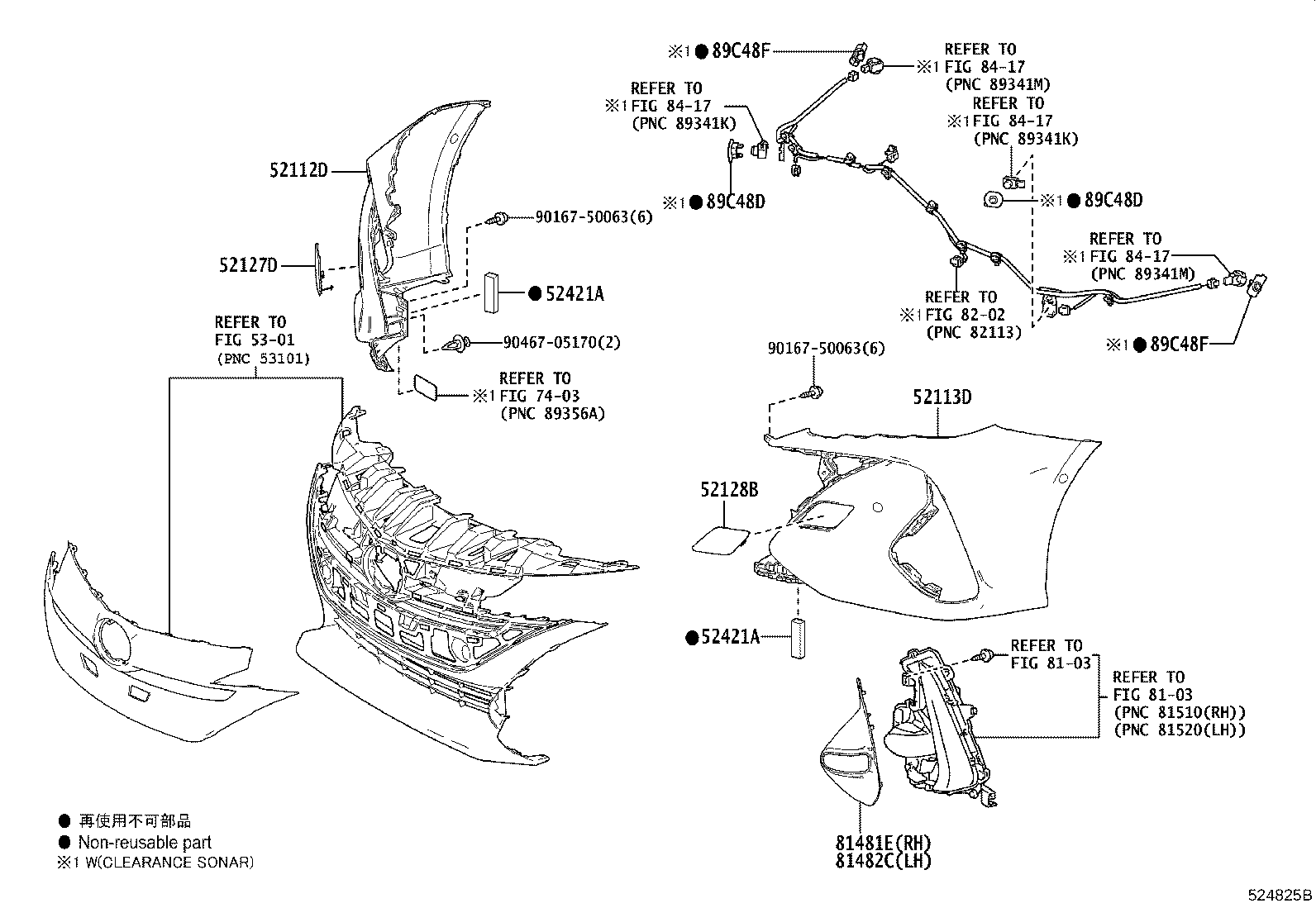

Exploded illustration 524825B 89C48F — RETAINER, ULTRASONIC SENSOR, FRONT SIDE (26 parts) 89C48D — RETAINER, ULTRASONIC SENSOR, FRONT CORNER (38 parts) 89C48F — RETAINER, ULTRASONIC SENSOR, FRONT SIDE (26 parts) 8417 — not listed in this catalogue 8103 — not listed in this catalogue 52112D — EXTENSION, FRONT BUMPER, RH (5 parts) 52127D — COVER, FRONT BUMPER HOLE, RH (2 parts) 52421A — PAD, FRONT BUMPER (2 parts) 52421A — PAD, FRONT BUMPER (2 parts) 81481E — COVER, FOG LAMP, RH (2 parts) 81482C — COVER, FOG LAMP, LH (2 parts) 9016750063 — not listed in this catalogue 9016750063 — not listed in this catalogue 9046705170 — not listed in this catalogue 52113D — EXTENSION, FRONT BUMPER, LH (5 parts) 52128B — COVER, FRONT BUMPER HOLE, LH (2 parts) 7403 — not listed in this catalogue 8202 — not listed in this catalogue 8417 — not listed in this catalogue 8417 — not listed in this catalogue 5301 — not listed in this catalogue 8103 — not listed in this catalogue 89C48D — RETAINER, ULTRASONIC SENSOR, FRONT CORNER (38 parts) 8417 — not listed in this catalogue
524825B · 12 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
84 parts on this figure
Part number Description Fitment Price
52112D — Extension, Front Bumper, RH
52112-47901 Extension, Front Bumper, RH
2016-09 → 2019-04 ended
ZVW52 —
52112-47902 note Extension, Front Bumper, RH
2016-09 → 2019-04 ended
ZVW52 —
52112-47901 Extension, Front Bumper, RH
2019-05 → —
ZVW52 —
52112-47902 note Extension, Front Bumper, RH
2019-05 → —
ZVW52 —
52112-47902 note Extension, Front Bumper, RH
2019-05 → —
ZVW52 —
52113D — Extension, Front Bumper, LH
52113-47901 note Extension, Front Bumper, LH
2016-09 → 2019-04 ended
ZVW52 —
52113-47902 note Extension, Front Bumper, LH
2016-09 → 2019-04 ended
ZVW52 —
52113-47901 note Extension, Front Bumper, LH
2019-05 → —
ZVW52 —
52113-47902 note Extension, Front Bumper, LH
2019-05 → —
ZVW52 —
52113-47902 note Extension, Front Bumper, LH
2019-05 → —
ZVW52 —
52127D — Cover, Front Bumper Hole, RH
52127-47909 Cover, Front Bumper Hole, RH
2016-09 → 2019-04 ended
ZVW52 —
52127-47909 Cover, Front Bumper Hole, RH
2019-05 → —
ZVW52 —
52128B — Cover, Front Bumper Hole, LH
52128-47908 Cover, Front Bumper Hole, LH
2016-09 → 2019-04 ended
ZVW52 —
52128-47908 Cover, Front Bumper Hole, LH
2019-05 → —
ZVW52 —
52421A — Pad, Front Bumper
52421-47010 Pad, Front Bumper
2016-09 → 2019-04 ended
ZVW52 —
52421-47010 Pad, Front Bumper
2019-05 → —
ZVW52 —
81481E — Cover, Fog Lamp, RH
81481-47130 Cover, Fog Lamp, RH
2016-09 → 2019-04 ended
ZVW52 —
81481-47130 Cover, Fog Lamp, RH
2019-05 → —
ZVW52 —
81482C — Cover, Fog Lamp, LH
81482-47130 Cover, Fog Lamp, LH
2016-09 → 2019-04 ended
ZVW52 —
81482-47130 Cover, Fog Lamp, LH
2019-05 → —
ZVW52 —
89C48D — Retainer, Ultrasonic Sensor, Front Corner
89348-12070-A0 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → 2019-04 ended
ZVW52 —
89348-12070-A1 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → 2019-04 ended
ZVW52 —
89348-12070-B7 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → 2019-04 ended
ZVW52 —
89348-12070-D3 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → 2019-04 ended
ZVW52 —
89348-12070-E3 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → 2019-04 ended
ZVW52 —
89348-12070-H2 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → 2019-04 ended
ZVW52 —
89348-12140-A0 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → 2019-04 ended
ZVW52 —
89348-12140-A1 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → 2019-04 ended
ZVW52 —
89348-12140-B7 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → 2019-04 ended
ZVW52 —
89348-12140-D3 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → 2019-04 ended
ZVW52 —
89348-12140-E3 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → 2019-04 ended
ZVW52 —
89348-12140-H2 note Retainer, Ultrasonic Sensor, Front Corner
2018-12 → 2019-04 ended
ZVW52 —
89348-47020-A0 note Retainer, Ultrasonic Sensor, Front Corner
2016-09 → 2018-11 ended
ZVW52 —
89348-47020-A1 note Retainer, Ultrasonic Sensor, Front Corner
2016-09 → 2018-11 ended
ZVW52 —
89348-47020-B1 note Retainer, Ultrasonic Sensor, Front Corner
2016-09 → 2018-11 ended
ZVW52 —
89348-47020-D0 note Retainer, Ultrasonic Sensor, Front Corner
2016-09 → 2018-11 ended
ZVW52 —
89348-47020-E0 note Retainer, Ultrasonic Sensor, Front Corner
2016-09 → 2018-11 ended
ZVW52 —
89348-47020-H1 note Retainer, Ultrasonic Sensor, Front Corner
2016-09 → 2018-11 ended
ZVW52 —
89348-47030-A0 note Retainer, Ultrasonic Sensor, Front Corner
2016-09 → 2018-11 ended
ZVW52 —
89348-47030-A1 note Retainer, Ultrasonic Sensor, Front Corner
2016-09 → 2018-11 ended
ZVW52 —
89348-47030-B1 note Retainer, Ultrasonic Sensor, Front Corner
2016-09 → 2018-11 ended
ZVW52 —
89348-47030-D0 note Retainer, Ultrasonic Sensor, Front Corner
2016-09 → 2018-11 ended
ZVW52 —
89348-47030-E0 note Retainer, Ultrasonic Sensor, Front Corner
2016-09 → 2018-11 ended
ZVW52 —
89348-47030-H1 note Retainer, Ultrasonic Sensor, Front Corner
2016-09 → 2018-11 ended
ZVW52 —
89348-12070-22 note Retainer, Ultrasonic Sensor, Front Corner
2019-05 → —
ZVW52 —
89348-12070-A0 note Retainer, Ultrasonic Sensor, Front Corner
2019-05 → —
ZVW52 —
89348-12070-A1 note Retainer, Ultrasonic Sensor, Front Corner
2019-05 → 2020-07 ended
ZVW52 —
89348-12070-A4 note Retainer, Ultrasonic Sensor, Front Corner
2020-07 → —
ZVW52 —
89348-12070-B7 note Retainer, Ultrasonic Sensor, Front Corner
2019-05 → —
ZVW52 —
89348-12070-D4 note Retainer, Ultrasonic Sensor, Front Corner
2019-05 → —
ZVW52 —
89348-12070-H2 note Retainer, Ultrasonic Sensor, Front Corner
2019-05 → —
ZVW52 —
89348-12140-22 note Retainer, Ultrasonic Sensor, Front Corner
2019-05 → —
ZVW52 —
89348-12140-A0 note Retainer, Ultrasonic Sensor, Front Corner
2019-05 → —
ZVW52 —
89348-12140-A1 note Retainer, Ultrasonic Sensor, Front Corner
2019-05 → 2020-07 ended
ZVW52 —
89348-12140-A4 note Retainer, Ultrasonic Sensor, Front Corner
2020-07 → —
ZVW52 —
89348-12140-B7 note Retainer, Ultrasonic Sensor, Front Corner
2019-05 → —
ZVW52 —
89348-12140-D4 note Retainer, Ultrasonic Sensor, Front Corner
2019-05 → —
ZVW52 —
89348-12140-H2 note Retainer, Ultrasonic Sensor, Front Corner
2019-05 → —
ZVW52 —
89C48F — Retainer, Ultrasonic Sensor, Front Side
89348-47040-A0 note Retainer, Ultrasonic Sensor, Front Side
2016-09 → 2019-04 ended
ZVW52 —
89348-47040-A1 note Retainer, Ultrasonic Sensor, Front Side
2016-09 → 2019-04 ended
ZVW52 —
89348-47040-B1 note Retainer, Ultrasonic Sensor, Front Side
2016-09 → 2019-04 ended
ZVW52 —
89348-47040-D0 note Retainer, Ultrasonic Sensor, Front Side
2016-09 → 2019-04 ended
ZVW52 —
89348-47040-E0 note Retainer, Ultrasonic Sensor, Front Side
2016-09 → 2019-04 ended
ZVW52 —
89348-47040-H1 note Retainer, Ultrasonic Sensor, Front Side
2016-09 → 2019-04 ended
ZVW52 —
89348-47050-A0 note Retainer, Ultrasonic Sensor, Front Side
2016-09 → 2019-04 ended
ZVW52 —
89348-47050-A1 note Retainer, Ultrasonic Sensor, Front Side
2016-09 → 2019-04 ended
ZVW52 —
89348-47050-B1 note Retainer, Ultrasonic Sensor, Front Side
2016-09 → 2019-04 ended
ZVW52 —
89348-47050-D0 note Retainer, Ultrasonic Sensor, Front Side
2016-09 → 2019-04 ended
ZVW52 —
89348-47050-E0 note Retainer, Ultrasonic Sensor, Front Side
2016-09 → 2019-04 ended
ZVW52 —
89348-47050-H1 note Retainer, Ultrasonic Sensor, Front Side
2016-09 → 2019-04 ended
ZVW52 —
89348-47040-A0 note Retainer, Ultrasonic Sensor, Front Side
2019-05 → —
ZVW52 —
89348-47040-A1 note Retainer, Ultrasonic Sensor, Front Side
2019-05 → 2020-07 ended
ZVW52 —
89348-47040-A4 note Retainer, Ultrasonic Sensor, Front Side
2020-07 → —
ZVW52 —
89348-47040-B1 note Retainer, Ultrasonic Sensor, Front Side
2019-05 → —
ZVW52 —
89348-47040-C0 note Retainer, Ultrasonic Sensor, Front Side
2019-05 → —
ZVW52 —
89348-47040-D7 note Retainer, Ultrasonic Sensor, Front Side
2019-05 → —
ZVW52 —
89348-47040-H1 note Retainer, Ultrasonic Sensor, Front Side
2019-05 → —
ZVW52 —
89348-47050-A0 note Retainer, Ultrasonic Sensor, Front Side
2019-05 → —
ZVW52 —
89348-47050-A1 note Retainer, Ultrasonic Sensor, Front Side
2019-05 → 2020-07 ended
ZVW52 —
89348-47050-A4 note Retainer, Ultrasonic Sensor, Front Side
2020-07 → —
ZVW52 —
89348-47050-B1 note Retainer, Ultrasonic Sensor, Front Side
2019-05 → —
ZVW52 —
89348-47050-C0 note Retainer, Ultrasonic Sensor, Front Side
2019-05 → —
ZVW52 —
89348-47050-D7 note Retainer, Ultrasonic Sensor, Front Side
2019-05 → —
ZVW52 —
89348-47050-H1 note Retainer, Ultrasonic Sensor, Front Side
2019-05 → —
ZVW52 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
