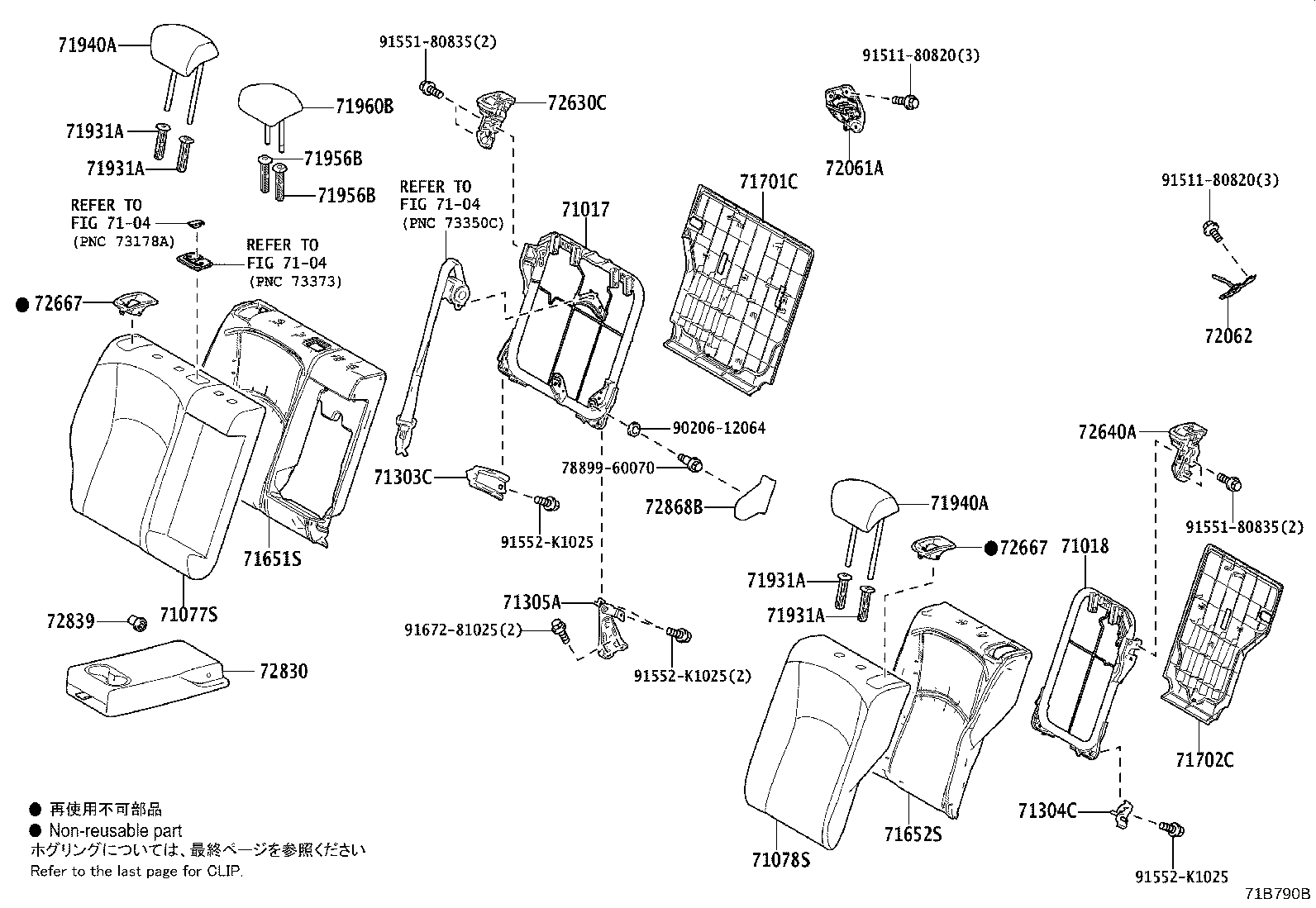

Exploded illustration 71B790B 72061A — BASE SUB-ASSY, REAR SEATBACK LOCK, RH (2 parts) 71303C — HINGE SUB-ASSY, REAR SEATBACK, RH (2 parts) 71017 — FRAME SUB-ASSY, REAR SEATBACK, RH (2 parts) 71077S — COVER, REAR SEATBACK, RH (FOR SEPARATE TYPE) (24 parts) 72830 — ARMREST ASSY, REAR SEAT, CENTER (16 parts) 72839 — SHIM, REAR SEAT ARMREST HINGE (1 parts) 71931A — SUPPORT, REAR SEAT HEADREST (12 parts) 71956B — SUPPORT, REAR SEAT HEADREST (6 parts) 71956B — SUPPORT, REAR SEAT HEADREST (6 parts) 71931A — SUPPORT, REAR SEAT HEADREST (12 parts) 71940A — HEADREST ASSY, REAR SEAT (24 parts) 71931A — SUPPORT, REAR SEAT HEADREST (12 parts) 71931A — SUPPORT, REAR SEAT HEADREST (12 parts) 71940A — HEADREST ASSY, REAR SEAT (24 parts) 72630C — LOCK ASSY, REAR SEATBACK, RH (4 parts) 72868B — COVER, CENTER ARMREST HINGE (2 parts) 72667 — BEZEL, REAR SEATBACK LOCK, UPPER (5 parts) 72667 — BEZEL, REAR SEATBACK LOCK, UPPER (5 parts) 71960B — HEADREST ASSY, REAR SEAT, CENTER (16 parts) 71701C — BOARD SUB-ASSY, REAR SEATBACK, RH (2 parts) 9155180835 — not listed in this catalogue 9155180835 — not listed in this catalogue 71651S — PAD, REAR SEATBACK, RH(FOR SEPARATE TYPE) (2 parts) 71305A — HINGE SUB-ASSY, REAR SEATBACK, CENTER (2 parts) 71304C — HINGE SUB-ASSY, REAR SEATBACK, LH (2 parts) 72062 — BASE SUB-ASSY, REAR SEATBACK LOCK, LH (2 parts) 7104 — not listed in this catalogue 7104 — not listed in this catalogue 71018 — FRAME SUB-ASSY, REAR SEATBACK, LH (2 parts) 71078S — COVER, REAR SEATBACK, LH(FOR SEPARATE TYPE) (24 parts) 71652S — PAD, REAR SEATBACK, LH(FOR SEPARATE TYPE) (2 parts) 71702C — BOARD SUB-ASSY, REAR SEATBACK, LH (2 parts) 72640A — LOCK ASSY, REAR SEATBACK, LH (4 parts) 7889960070 — not listed in this catalogue 9020612064 — not listed in this catalogue 9151180820 — not listed in this catalogue 9151180820 — not listed in this catalogue 9167281025 — not listed in this catalogue 91552K1025 — not listed in this catalogue 91552K1025 — not listed in this catalogue 91552K1025 — not listed in this catalogue 7104 — not listed in this catalogue
71B790B · 29 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
160 parts on this figure
Part number Description Fitment Price
71017 — Frame Sub-assy, Rear Seatback, RH
71017-47230 Frame Sub-assy, Rear Seatback, RH
2016-09 → 2019-04 ended
ZVW52 —
71017-47160 Frame Sub-assy, Rear Seatback, RH
2019-05 → —
ZVW52 —
71018 — Frame Sub-assy, Rear Seatback, LH
71018-47100 Frame Sub-assy, Rear Seatback, LH
2016-09 → 2019-04 ended
ZVW52 —
71018-47100 Frame Sub-assy, Rear Seatback, LH
2019-05 → —
ZVW52 —
71077S — Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71077-47640-B4 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2016-09 → 2016-10 ended
ZVW52 —
71077-47640-B5 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2016-10 → 2019-04 ended
ZVW52 —
71077-47640-C5 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2016-09 → 2016-10 ended
ZVW52 —
71077-47640-C6 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2016-10 → 2019-04 ended
ZVW52 —
71077-47690-B4 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2016-09 → 2016-10 ended
ZVW52 —
71077-47690-B5 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2016-10 → 2019-04 ended
ZVW52 —
71077-47690-C4 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2016-09 → 2016-10 ended
ZVW52 —
71077-47690-C5 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2016-10 → 2019-04 ended
ZVW52 —
71077-47830-B5 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2019-05 → —
ZVW52 —
71077-47830-C8 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2019-05 → —
ZVW52 —
71077-47850-26 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2019-05 → 2020-07 ended
ZVW52 RHD —
71077-47850-26 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2020-07 → 2021-06 ended
ZVW52 RHD —
71077-47850-26 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2019-05 → —
ZVW52 LHD —
71077-47850-26 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2021-06 → —
ZVW52 RHD —
71077-47850-26 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2020-07 → —
ZVW52 LHD —
71077-47850-26 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2020-07 → —
ZVW52 LHD —
71077-47850-B8 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2019-05 → —
ZVW52 LHD —
71077-47850-B8 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2021-06 → —
ZVW52 RHD —
71077-47850-B8 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2020-07 → —
ZVW52 LHD —
71077-47850-B8 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2020-07 → —
ZVW52 LHD —
71077-47850-B8 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2020-07 → 2021-06 ended
ZVW52 RHD —
71077-47850-B8 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2019-05 → 2020-07 ended
ZVW52 RHD —
71077-47A00-B1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2021-06 → —
ZVW52 LHD —
71077-47A00-C4 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2021-06 → —
ZVW52 LHD —
71078S — Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71078-47430-B4 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2016-09 → 2016-10 ended
ZVW52 —
71078-47430-B5 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2016-10 → 2019-04 ended
ZVW52 —
71078-47430-C5 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2016-09 → 2016-10 ended
ZVW52 —
71078-47430-C6 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2016-10 → 2019-04 ended
ZVW52 —
71078-47480-B4 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2016-09 → 2016-10 ended
ZVW52 —
71078-47480-B5 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2016-10 → 2019-04 ended
ZVW52 —
71078-47480-C4 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2016-09 → 2016-10 ended
ZVW52 —
71078-47480-C5 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2016-10 → 2019-04 ended
ZVW52 —
71078-47550-B3 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2019-05 → —
ZVW52 —
71078-47550-C8 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2019-05 → —
ZVW52 —
71078-47560-B4 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2020-07 → 2021-06 ended
ZVW52 RHD —
71078-47560-B4 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2021-06 → —
ZVW52 RHD —
71078-47560-B4 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2019-05 → 2020-07 ended
ZVW52 RHD —
71078-47560-B4 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2019-05 → —
ZVW52 LHD —
71078-47560-B4 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2020-07 → —
ZVW52 LHD —
71078-47560-B4 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2020-07 → —
ZVW52 LHD —
71078-47560-C4 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2021-06 → —
ZVW52 RHD —
71078-47560-C4 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2020-07 → —
ZVW52 LHD —
71078-47560-C4 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2020-07 → —
ZVW52 LHD —
71078-47560-C4 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2019-05 → —
ZVW52 LHD —
71078-47560-C4 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2019-05 → 2020-07 ended
ZVW52 RHD —
71078-47560-C4 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2020-07 → 2021-06 ended
ZVW52 RHD —
71078-47610-B1 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2021-06 → —
ZVW52 LHD —
71078-47610-C4 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2021-06 → —
ZVW52 LHD —
71303C — Hinge Sub-assy, Rear Seatback, RH
71303-47030 Hinge Sub-assy, Rear Seatback, RH
2016-09 → 2019-04 ended
ZVW52 —
71303-47030 Hinge Sub-assy, Rear Seatback, RH
2019-05 → —
ZVW52 —
71304C — Hinge Sub-assy, Rear Seatback, LH
71304-47030 Hinge Sub-assy, Rear Seatback, LH
2016-09 → 2019-04 ended
ZVW52 —
71304-47030 Hinge Sub-assy, Rear Seatback, LH
2019-05 → —
ZVW52 —
71305A — Hinge Sub-assy, Rear Seatback, Center
71305-47050 Hinge Sub-assy, Rear Seatback, Center
2016-09 → 2019-04 ended
ZVW52 —
71305-47040 Hinge Sub-assy, Rear Seatback, Center
2019-05 → —
ZVW52 —
71651S — Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71651-47230 Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
2016-09 → 2019-04 ended
ZVW52 —
71651-47190 Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
2019-05 → —
ZVW52 —
71652S — Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71652-47160 Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
2016-09 → 2019-04 ended
ZVW52 —
71652-47110 Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
2019-05 → —
ZVW52 —
71701C — Board Sub-assy, Rear Seatback, RH
71701-47030 Board Sub-assy, Rear Seatback, RH
2016-09 → 2019-04 ended
ZVW52 —
71701-47020 Board Sub-assy, Rear Seatback, RH
2019-05 → —
ZVW52 —
71702C — Board Sub-assy, Rear Seatback, LH
71702-47020 Board Sub-assy, Rear Seatback, LH
2016-09 → 2019-04 ended
ZVW52 —
71702-47020 Board Sub-assy, Rear Seatback, LH
2019-05 → —
ZVW52 —
71931A — Support, Rear Seat Headrest
71930-47050-B0 note Support, Rear Seat Headrest
2016-09 → 2019-04 ended
ZVW52 —
71930-47050-C0 note Support, Rear Seat Headrest
2016-09 → 2016-10 ended
ZVW52 —
71930-47050-C5 note Support, Rear Seat Headrest
2016-10 → 2019-04 ended
ZVW52 —
71931-47030-B0 note Support, Rear Seat Headrest
2016-09 → 2019-04 ended
ZVW52 —
71931-47030-C0 note Support, Rear Seat Headrest
2016-09 → 2016-10 ended
ZVW52 —
71931-47030-C4 note Support, Rear Seat Headrest
2016-10 → 2019-04 ended
ZVW52 —
71930-47050-B0 note Support, Rear Seat Headrest
2019-05 → —
ZVW52 —
71930-47050-B9 note Support, Rear Seat Headrest
2019-05 → —
ZVW52 —
71930-47050-C5 note Support, Rear Seat Headrest
2019-05 → —
ZVW52 —
71931-47030-B0 note Support, Rear Seat Headrest
2019-05 → —
ZVW52 —
71931-47030-C4 note Support, Rear Seat Headrest
2019-05 → —
ZVW52 —
71931-47030-P0 note Support, Rear Seat Headrest
2019-05 → —
ZVW52 —
71940A — Headrest Assy, Rear Seat
71940-47510-B0 note Headrest Assy, Rear Seat
2016-09 → 2019-04 ended
ZVW52 —
71940-47510-B1 note Headrest Assy, Rear Seat
2016-09 → 2019-04 ended
ZVW52 —
71940-47540-B0 note Headrest Assy, Rear Seat
2016-09 → 2017-11 ended
ZVW52 —
71940-47540-C3 note Headrest Assy, Rear Seat
2016-09 → 2017-11 ended
ZVW52 —
71940-47650-B0 note Headrest Assy, Rear Seat
2017-11 → 2019-03 ended
ZVW52 —
71940-47650-B2 note Headrest Assy, Rear Seat
2019-03 → 2019-04 ended
ZVW52 —
71940-47650-B3 note Headrest Assy, Rear Seat
2019-03 → 2019-04 ended
ZVW52 —
71940-47650-C0 note Headrest Assy, Rear Seat
2017-11 → 2019-03 ended
ZVW52 —
71940-47510-B5 note Headrest Assy, Rear Seat
2019-05 → —
ZVW52 —
71940-47510-C3 note Headrest Assy, Rear Seat
2019-05 → —
ZVW52 —
71940-47650-B1 note Headrest Assy, Rear Seat
2021-06 → —
ZVW52 LHD —
71940-47650-B4 note Headrest Assy, Rear Seat
2020-07 → 2021-06 ended
ZVW52 RHD —
71940-47650-B4 note Headrest Assy, Rear Seat
2019-05 → 2020-07 ended
ZVW52 RHD —
71940-47650-B4 note Headrest Assy, Rear Seat
2019-05 → —
ZVW52 LHD —
71940-47650-B4 note Headrest Assy, Rear Seat
2020-07 → —
ZVW52 LHD —
71940-47650-B4 note Headrest Assy, Rear Seat
2020-07 → —
ZVW52 LHD —
71940-47650-B4 note Headrest Assy, Rear Seat
2021-06 → —
ZVW52 RHD —
71940-47650-C0 note Headrest Assy, Rear Seat
2021-06 → —
ZVW52 LHD —
71940-47650-C1 note Headrest Assy, Rear Seat
2021-06 → —
ZVW52 RHD —
71940-47650-C1 note Headrest Assy, Rear Seat
2020-07 → 2021-06 ended
ZVW52 RHD —
71940-47650-C1 note Headrest Assy, Rear Seat
2020-07 → —
ZVW52 LHD —
71940-47650-C1 note Headrest Assy, Rear Seat
2020-07 → —
ZVW52 LHD —
71940-47650-C1 note Headrest Assy, Rear Seat
2019-05 → —
ZVW52 LHD —
71940-47650-C1 note Headrest Assy, Rear Seat
2019-05 → 2020-07 ended
ZVW52 RHD —
71956B — Support, Rear Seat Headrest
71930-47050-B0 note Support, Rear Seat Headrest
2019-05 → —
ZVW52 —
71930-47050-B9 note Support, Rear Seat Headrest
2019-05 → —
ZVW52 —
71930-47050-C5 note Support, Rear Seat Headrest
2019-05 → —
ZVW52 —
71931-47030-B0 note Support, Rear Seat Headrest
2019-05 → —
ZVW52 —
71931-47030-C4 note Support, Rear Seat Headrest
2019-05 → —
ZVW52 —
71931-47030-P0 note Support, Rear Seat Headrest
2019-05 → —
ZVW52 —
71960B — Headrest Assy, Rear Seat, Center
71960-47290-B9 note Headrest Assy, Rear Seat, Center
2019-05 → —
ZVW52 —
71960-47290-C5 note Headrest Assy, Rear Seat, Center
2019-05 → —
ZVW52 —
71960-47340-B3 note Headrest Assy, Rear Seat, Center
2021-06 → —
ZVW52 LHD —
71960-47340-B3 note Headrest Assy, Rear Seat, Center
2021-06 → —
ZVW52 RHD —
71960-47340-B3 note Headrest Assy, Rear Seat, Center
2020-07 → —
ZVW52 LHD —
71960-47340-B3 note Headrest Assy, Rear Seat, Center
2020-07 → —
ZVW52 LHD —
71960-47340-B3 note Headrest Assy, Rear Seat, Center
2019-05 → —
ZVW52 LHD —
71960-47340-B3 note Headrest Assy, Rear Seat, Center
2020-07 → 2021-06 ended
ZVW52 RHD —
71960-47340-B3 note Headrest Assy, Rear Seat, Center
2019-05 → 2020-07 ended
ZVW52 RHD —
71960-47340-C2 note Headrest Assy, Rear Seat, Center
2019-05 → —
ZVW52 LHD —
71960-47340-C2 note Headrest Assy, Rear Seat, Center
2021-06 → —
ZVW52 LHD —
71960-47340-C2 note Headrest Assy, Rear Seat, Center
2021-06 → —
ZVW52 RHD —
71960-47340-C2 note Headrest Assy, Rear Seat, Center
2020-07 → —
ZVW52 LHD —
71960-47340-C2 note Headrest Assy, Rear Seat, Center
2020-07 → —
ZVW52 LHD —
71960-47340-C2 note Headrest Assy, Rear Seat, Center
2020-07 → 2021-06 ended
ZVW52 RHD —
71960-47340-C2 note Headrest Assy, Rear Seat, Center
2019-05 → 2020-07 ended
ZVW52 RHD —
72061A — Base Sub-assy, Rear Seatback Lock, RH
72061-47010 Base Sub-assy, Rear Seatback Lock, RH
2016-09 → 2019-04 ended
ZVW52 —
72061-47010 Base Sub-assy, Rear Seatback Lock, RH
2019-05 → —
ZVW52 —
72062 — Base Sub-assy, Rear Seatback Lock, LH
72062-47010 Base Sub-assy, Rear Seatback Lock, LH
2016-09 → 2019-04 ended
ZVW52 —
72062-47010 Base Sub-assy, Rear Seatback Lock, LH
2019-05 → —
ZVW52 —
72630C — Lock Assy, Rear Seatback, RH
72630-47050-C0 note Lock Assy, Rear Seatback, RH
2016-09 → 2016-12 ended
ZVW52 —
72630-47050-C2 note Lock Assy, Rear Seatback, RH
2016-12 → 2019-04 ended
ZVW52 —
72630-47050-B5 note Lock Assy, Rear Seatback, RH
2019-05 → —
ZVW52 —
72630-47050-C2 note Lock Assy, Rear Seatback, RH
2019-05 → —
ZVW52 —
72640A — Lock Assy, Rear Seatback, LH
72640-47050-C0 note Lock Assy, Rear Seatback, LH
2016-09 → 2016-12 ended
ZVW52 —
72640-47050-C2 note Lock Assy, Rear Seatback, LH
2016-12 → 2019-04 ended
ZVW52 —
72640-47050-B5 note Lock Assy, Rear Seatback, LH
2019-05 → —
ZVW52 —
72640-47050-C2 note Lock Assy, Rear Seatback, LH
2019-05 → —
ZVW52 —
72667 — Bezel, Rear Seatback Lock, Upper
72667-47010-C0 note Bezel, Rear Seatback Lock, Upper
2016-09 → 2016-12 ended
ZVW52 —
72667-47010-C1 note Bezel, Rear Seatback Lock, Upper
2016-12 → 2019-04 ended
ZVW52 —
72667-47010 Bezel, Rear Seatback Lock, Upper
2019-05 → 2020-07 ended
ZVW52 —
72667-47010-B5 note Bezel, Rear Seatback Lock, Upper
2020-07 → —
ZVW52 —
72667-47010-C1 note Bezel, Rear Seatback Lock, Upper
2020-07 → —
ZVW52 —
72830 — Armrest Assy, Rear Seat, Center
72830-47260-B5 note Armrest Assy, Rear Seat, Center
2019-05 → —
ZVW52 —
72830-47260-C8 note Armrest Assy, Rear Seat, Center
2019-05 → —
ZVW52 —
72830-47280-B4 note Armrest Assy, Rear Seat, Center
2020-07 → —
ZVW52 LHD —
72830-47280-B4 note Armrest Assy, Rear Seat, Center
2021-06 → —
ZVW52 LHD —
72830-47280-B4 note Armrest Assy, Rear Seat, Center
2021-06 → —
ZVW52 RHD —
72830-47280-B4 note Armrest Assy, Rear Seat, Center
2020-07 → —
ZVW52 LHD —
72830-47280-B4 note Armrest Assy, Rear Seat, Center
2019-05 → —
ZVW52 LHD —
72830-47280-B4 note Armrest Assy, Rear Seat, Center
2020-07 → 2021-06 ended
ZVW52 RHD —
72830-47280-B4 note Armrest Assy, Rear Seat, Center
2019-05 → 2020-07 ended
ZVW52 RHD —
72830-47280-C9 note Armrest Assy, Rear Seat, Center
2019-05 → —
ZVW52 LHD —
72830-47280-C9 note Armrest Assy, Rear Seat, Center
2020-07 → 2021-06 ended
ZVW52 RHD —
72830-47280-C9 note Armrest Assy, Rear Seat, Center
2020-07 → —
ZVW52 LHD —
72830-47280-C9 note Armrest Assy, Rear Seat, Center
2020-07 → —
ZVW52 LHD —
72830-47280-C9 note Armrest Assy, Rear Seat, Center
2019-05 → 2020-07 ended
ZVW52 RHD —
72830-47280-C9 note Armrest Assy, Rear Seat, Center
2021-06 → —
ZVW52 RHD —
72830-47280-C9 note Armrest Assy, Rear Seat, Center
2021-06 → —
ZVW52 LHD —
72839 — Shim, Rear Seat Armrest Hinge
72839-22010 Shim, Rear Seat Armrest Hinge
2019-05 → —
ZVW52 —
72868B — Cover, Center Armrest Hinge
72868-47050-B0 note Cover, Center Armrest Hinge
2019-05 → —
ZVW52 —
72868-47050-C1 note Cover, Center Armrest Hinge
2019-05 → —
ZVW52 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
