Toyota Prius Phv
2016-09 → 2022-11 · chassis ZVW52 · catalogue 224530 · Europe
Supported model
Data version 2023-12

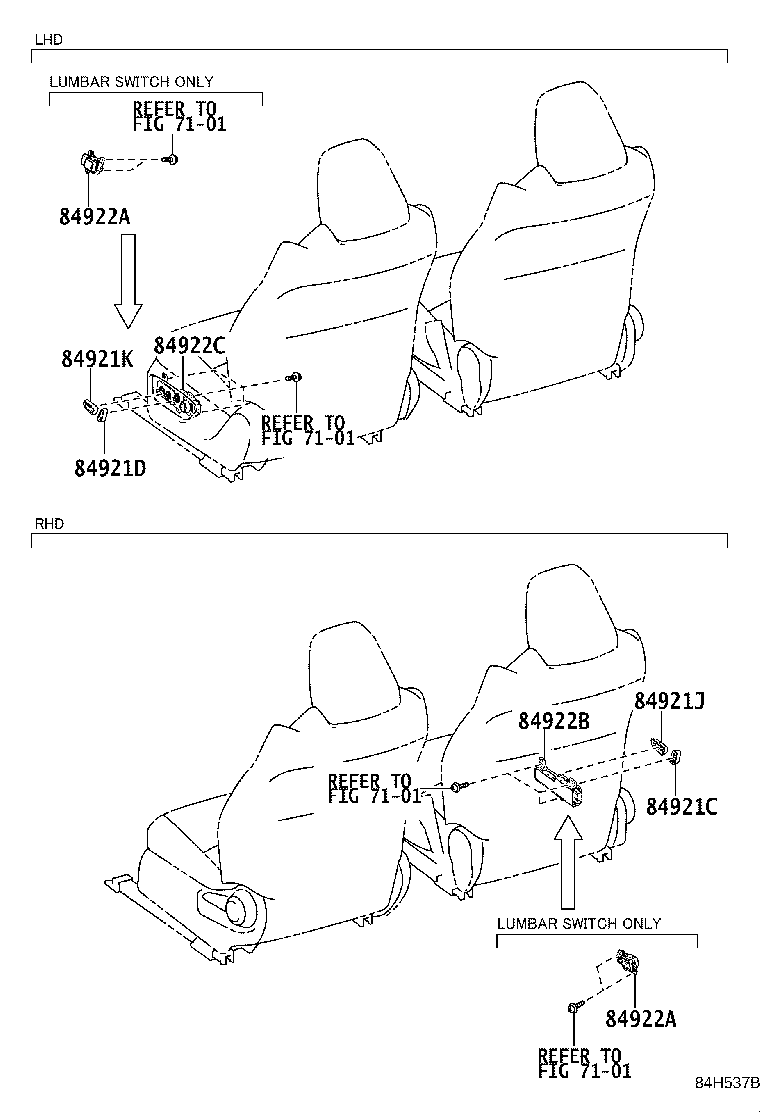

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84921C — Knob, Power Seat Switch, RH | ||||
| 84921-33200-C0 note |
Knob, Power Seat Switch, RH
2020-07 → —
|
ZVW52 RHD | — | |
| 84921D — Knob, Power Seat Switch, LH | ||||
| 84921-33180-C0 note |
Knob, Power Seat Switch, LH
2020-07 → —
|
ZVW52 LHD | — | |
| 84921J — Knob, Power Seat Switch, RH | ||||
| 84921-33190-C0 note |
Knob, Power Seat Switch, RH
2020-07 → —
|
ZVW52 RHD | — | |
| 84921K — Knob, Power Seat Switch, LH | ||||
| 84921-33170-C0 note |
Knob, Power Seat Switch, LH
2020-07 → —
|
ZVW52 LHD | — | |
| 84922A — Switch, Front Power Seat(FOR LUMBAR) | ||||
| 84920-47010 |
Switch, Front Power Seat(FOR LUMBAR)
2016-09 → 2018-01
ended
|
ZVW52 LHD | — | |
| 84920-47020 |
Switch, Front Power Seat(FOR LUMBAR)
2016-09 → 2018-01
ended
|
ZVW52 RHD | — | |
| 84920-47030-C0 note |
Switch, Front Power Seat(FOR LUMBAR)
2018-01 → 2019-04
ended
|
ZVW52 | — | |
| 84920-47030-C0 note |
Switch, Front Power Seat(FOR LUMBAR)
2019-05 → 2023-03
ended
|
ZVW52 LHD | — | |
| 84920-47030-C0 note |
Switch, Front Power Seat(FOR LUMBAR)
2019-05 → —
|
ZVW52 | — | |
| 84922B — Switch, Front Power Seat, RH | ||||
| 84922-33220-C0 note |
Switch, Front Power Seat, RH
2020-07 → —
|
ZVW52 RHD | — | |
| 84922C — Switch, Front Power Seat, LH | ||||
| 84922-33210-C0 note |
Switch, Front Power Seat, LH
2020-07 → —
|
ZVW52 LHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
