Toyota Prius Phv
2016-09 → 2022-11 · chassis ZVW52 · catalogue 224530 · Europe
Supported model
Data version 2023-12

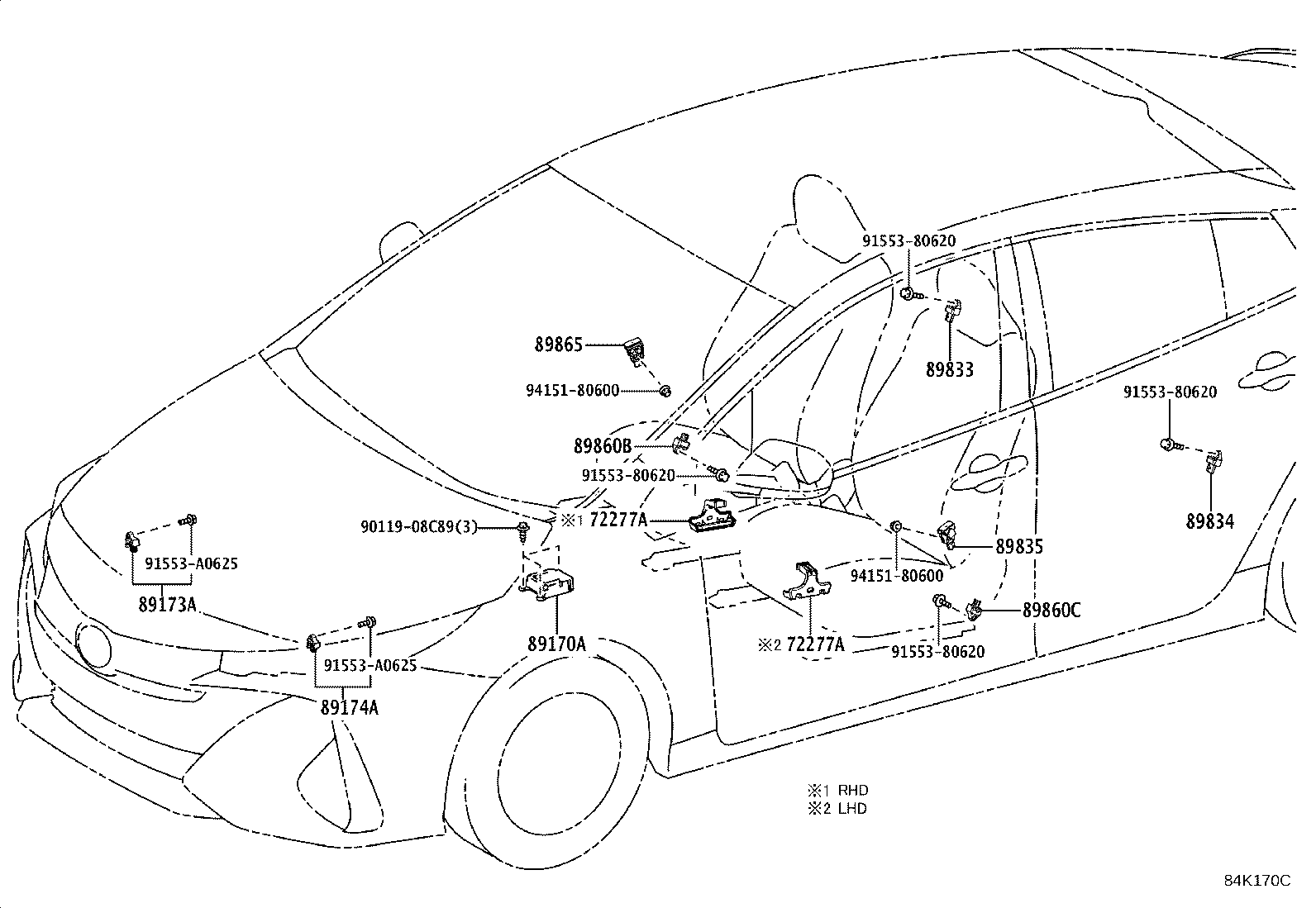

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 72277A — Protector, Seat Slide Position Sensor | ||||
| 72277-47050 |
Protector, Seat Slide Position Sensor
2016-09 → 2019-04
ended
|
ZVW52 | — | |
| 72277-47050 |
Protector, Seat Slide Position Sensor
2019-05 → —
|
ZVW52 | — | |
| 89170A — Computer Assy, Airbag | ||||
| 89170-47700 |
Computer Assy, Airbag
2016-09 → 2017-12
ended
|
ZVW52 LHD | — | |
| 89170-47701 |
Computer Assy, Airbag
2018-01 → 2018-12
ended
|
ZVW52 LHD | — | |
| 89170-47710 |
Computer Assy, Airbag
2016-09 → 2017-12
ended
|
ZVW52 RHD | — | |
| 89170-47711 |
Computer Assy, Airbag
2018-01 → 2018-12
ended
|
ZVW52 RHD | — | |
| 89170-47880 |
Computer Assy, Airbag
2018-12 → 2019-04
ended
|
ZVW52 LHD | — | |
| 89170-47890 |
Computer Assy, Airbag
2018-12 → 2019-04
ended
|
ZVW52 RHD | — | |
| 89170-47830 |
Computer Assy, Airbag
2019-05 → —
|
ZVW52 LHD | — | |
| 89170-47840 |
Computer Assy, Airbag
2019-05 → —
|
ZVW52 RHD | — | |
| 89173A — Sensor, Airbag, Front RH | ||||
| 89173-49495 |
Sensor, Airbag, Front RH
2016-09 → 2019-04
ended
|
ZVW52 | — | |
| 89173-49495 |
Sensor, Airbag, Front RH
2019-05 → —
|
ZVW52 | — | |
| 89174A — Sensor, Airbag, Front LH | ||||
| 89173-49495 |
Sensor, Airbag, Front LH
2016-09 → 2019-04
ended
|
ZVW52 | — | |
| 89173-49495 |
Sensor, Airbag, Front LH
2019-05 → —
|
ZVW52 | — | |
| 89833 — Sensor, Airbag, Rear RH | ||||
| 89831-28040 |
Sensor, Airbag, Rear RH
2016-09 → 2019-04
ended
|
ZVW52 | — | |
| 89831-28040 |
Sensor, Airbag, Rear RH
2019-05 → —
|
ZVW52 | — | |
| 89834 — Sensor, Airbag, Rear LH | ||||
| 89831-28040 |
Sensor, Airbag, Rear LH
2016-09 → 2019-04
ended
|
ZVW52 | — | |
| 89831-28040 |
Sensor, Airbag, Rear LH
2019-05 → —
|
ZVW52 | — | |
| 89835 — Sensor, Door Side Airbag, LH | ||||
| 8983A-47010 |
Sensor, Door Side Airbag, LH
2016-09 → 2019-04
ended
|
ZVW52 | — | |
| 8983A-47010 |
Sensor, Door Side Airbag, LH
2019-05 → —
|
ZVW52 | — | |
| 89860B — Sensor Assy, Side Airbag, RH, NO.2 | ||||
| 89831-47050 |
Sensor Assy, Side Airbag, RH, NO.2
2016-09 → 2019-04
ended
|
ZVW52 | — | |
| 89831-47050 |
Sensor Assy, Side Airbag, RH, NO.2
2019-05 → —
|
ZVW52 | — | |
| 89860C — Sensor Assy, Side Airbag, LH, NO.2 | ||||
| 89831-47050 |
Sensor Assy, Side Airbag, LH, NO.2
2016-09 → 2019-04
ended
|
ZVW52 | — | |
| 89831-47050 |
Sensor Assy, Side Airbag, LH, NO.2
2019-05 → —
|
ZVW52 | — | |
| 89865 — Sensor, Door Side Airbag, RH | ||||
| 8983A-47010 |
Sensor, Door Side Airbag, RH
2016-09 → 2019-04
ended
|
ZVW52 | — | |
| 8983A-47010 |
Sensor, Door Side Airbag, RH
2019-05 → —
|
ZVW52 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
