Toyota Prius Phv
2016-09 → 2022-11 · chassis ZVW52 · catalogue 224530 · Europe
Supported model
Data version 2023-12

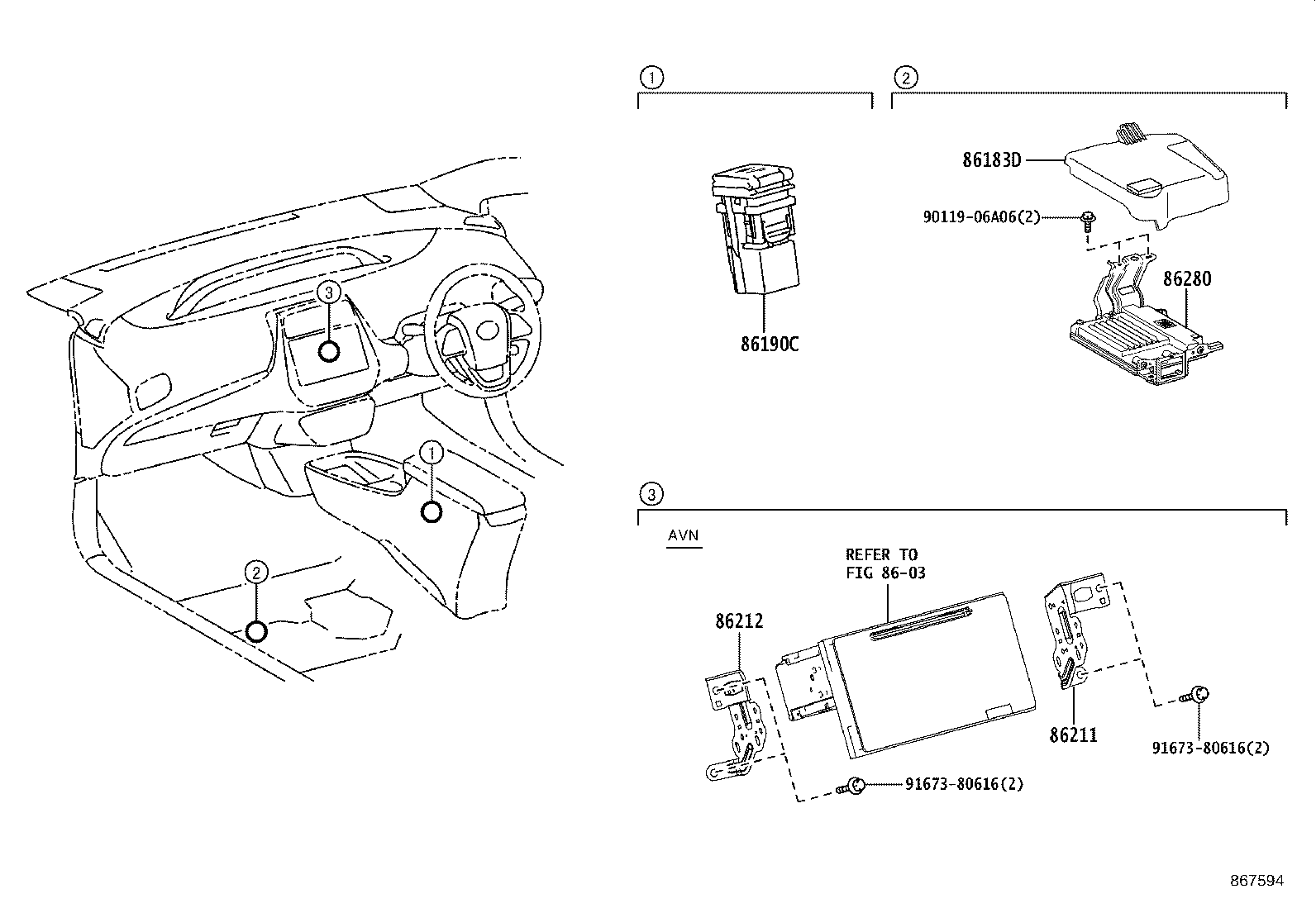

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86183D — Cover, Audio Amplifier | ||||
| 86183-47120 note |
Cover, Audio Amplifier
2016-09 → 2019-04
ended
|
ZVW52 LHD | — | |
| 86183-47120 note |
Cover, Audio Amplifier
2016-09 → 2019-04
ended
|
ZVW52 | — | |
| 86183-12020 note |
Cover, Audio Amplifier
2019-05 → 2020-07
ended
|
ZVW52 LHD | — | |
| 86183-12020 note |
Cover, Audio Amplifier
2019-05 → —
|
ZVW52 | — | |
| 86190C — Adapter Assy, Stereo Jack, NO.1 | ||||
| 86190-42040 |
Adapter Assy, Stereo Jack, NO.1
2016-09 → 2019-04
ended
|
ZVW52 | — | |
| 86190-42040 note |
Adapter Assy, Stereo Jack, NO.1
2016-09 → 2019-04
ended
|
ZVW52 | — | |
| 86190-12040 |
Adapter Assy, Stereo Jack, NO.1
2019-05 → 2020-07
ended
|
ZVW52 | — | |
| 86190-12040 note |
Adapter Assy, Stereo Jack, NO.1
2019-05 → 2020-07
ended
|
ZVW52 LHD | — | |
| 86190-42030 |
Adapter Assy, Stereo Jack, NO.1
2020-07 → 2020-08
ended
|
ZVW52 | — | |
| 86190-42030 note |
Adapter Assy, Stereo Jack, NO.1
2020-07 → 2020-08
ended
|
ZVW52 LHD | — | |
| 86190-42031 note |
Adapter Assy, Stereo Jack, NO.1
2020-09 → 2023-03
ended
|
ZVW52 LHD | — | |
| 86190-42031 |
Adapter Assy, Stereo Jack, NO.1
2020-09 → —
|
ZVW52 | — | |
| 86211 — Bracket, Radio, NO.1 | ||||
| 86211-47130 note |
Bracket, Radio, NO.1
2016-09 → 2019-04
ended
|
ZVW52 LHD | — | |
| 86211-47160 |
Bracket, Radio, NO.1
2016-09 → 2019-04
ended
|
ZVW52 | — | |
| 86211-47130 |
Bracket, Radio, NO.1
2019-05 → —
|
ZVW52 | — | |
| 86211-47140 note |
Bracket, Radio, NO.1
2020-07 → —
|
ZVW52 LHD | — | |
| 86212 — Bracket, Radio, NO.2 | ||||
| 86212-47130 note |
Bracket, Radio, NO.2
2016-09 → 2019-04
ended
|
ZVW52 LHD | — | |
| 86212-47160 |
Bracket, Radio, NO.2
2016-09 → 2019-04
ended
|
ZVW52 | — | |
| 86212-47130 |
Bracket, Radio, NO.2
2019-05 → —
|
ZVW52 | — | |
| 86212-47140 note |
Bracket, Radio, NO.2
2020-07 → —
|
ZVW52 LHD | — | |
| 86280 — Amplifier Assy, Stereo Component | ||||
| 86280-47050 note |
Amplifier Assy, Stereo Component
2016-09 → 2017-10
ended
|
ZVW52 | — | |
| 86280-47050 note |
Amplifier Assy, Stereo Component
2016-09 → 2017-10
ended
|
ZVW52 LHD | — | |
| 86280-47051 note |
Amplifier Assy, Stereo Component
2017-11 → 2019-04
ended
|
ZVW52 | — | |
| 86280-47051 note |
Amplifier Assy, Stereo Component
2017-11 → 2019-04
ended
|
ZVW52 LHD | — | |
| 86280-47100 note |
Amplifier Assy, Stereo Component
2019-05 → 2020-07
ended
|
ZVW52 LHD | — | |
| 86280-47100 note |
Amplifier Assy, Stereo Component
2019-05 → —
|
ZVW52 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
