Toyota Prius Phv
2016-09 → 2022-11 · chassis ZVW52 · catalogue 224530 · Europe
Supported model
Data version 2023-12

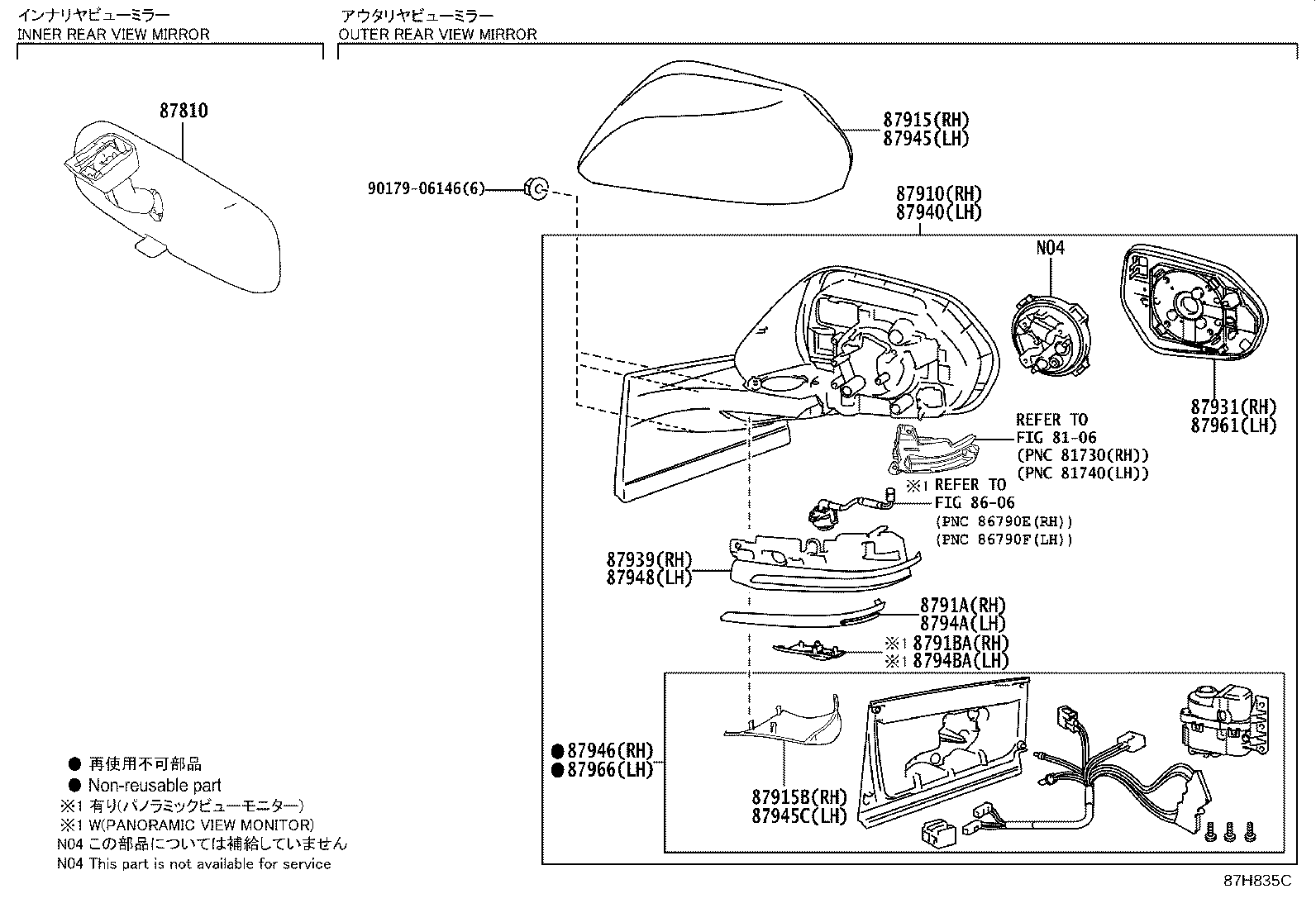

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87810 — Mirror Assy, Inner Rear View | ||||
| 87810-0WQ50 |
Mirror Assy, Inner Rear View
2016-09 → 2018-12
ended
|
ZVW52 | — | |
| 87810-0WS60 |
Mirror Assy, Inner Rear View
2018-12 → 2019-04
ended
|
ZVW52 | — | |
| 87810-0WS60 |
Mirror Assy, Inner Rear View
2019-05 → —
|
ZVW52 | — | |
| 87810-28140 note |
Mirror Assy, Inner Rear View
2020-07 → —
|
ZVW52 LHD | — | |
| 87810-28140 note |
Mirror Assy, Inner Rear View
2020-07 → —
|
ZVW52 RHD | — | |
| 87910 — Mirror Assy, Outer Rear View, RH | ||||
| 87910-47390 note |
Mirror Assy, Outer Rear View, RH
2016-09 → 2019-04
ended
|
ZVW52 LHD | — | |
| 87910-47390 note |
Mirror Assy, Outer Rear View, RH
2016-09 → 2019-04
ended
|
ZVW52 LHD | — | |
| 87910-47450 note |
Mirror Assy, Outer Rear View, RH
2016-09 → 2019-04
ended
|
ZVW52 RHD | — | |
| 87910-47550 note |
Mirror Assy, Outer Rear View, RH
2016-09 → 2019-04
ended
|
ZVW52 RHD | — | |
| 87910-47560 note |
Mirror Assy, Outer Rear View, RH
2016-09 → 2019-04
ended
|
ZVW52 LHD | — | |
| 87910-47390 note |
Mirror Assy, Outer Rear View, RH
2019-05 → —
|
ZVW52 LHD | — | |
| 87910-47400 note |
Mirror Assy, Outer Rear View, RH
2019-05 → 2020-07
ended
|
ZVW52 LHD | — | |
| 87910-47400 note |
Mirror Assy, Outer Rear View, RH
2020-07 → —
|
ZVW52 LHD | — | |
| 87910-47450 note |
Mirror Assy, Outer Rear View, RH
2019-05 → —
|
ZVW52 RHD | — | |
| 87910-47550 note |
Mirror Assy, Outer Rear View, RH
2019-05 → —
|
ZVW52 RHD | — | |
| 87910-47560 note |
Mirror Assy, Outer Rear View, RH
2019-05 → —
|
ZVW52 LHD | — | |
| 87910-47580 note |
Mirror Assy, Outer Rear View, RH
2019-05 → —
|
ZVW52 RHD | — | |
| 87910-47590 note |
Mirror Assy, Outer Rear View, RH
2019-05 → —
|
ZVW52 LHD | — | |
| 87915 — Cover, Outer Mirror, RH | ||||
| 87915-47070-A0 note |
Cover, Outer Mirror, RH
2016-09 → 2019-04
ended
|
ZVW52 | — | |
| 87915-47070-A0 note |
Cover, Outer Mirror, RH
2016-09 → 2019-04
ended
|
ZVW52 LHD | — | |
| 87915-47070-A1 note |
Cover, Outer Mirror, RH
2016-09 → 2019-04
ended
|
ZVW52 | — | |
| 87915-47070-A1 note |
Cover, Outer Mirror, RH
2016-09 → 2019-04
ended
|
ZVW52 LHD | — | |
| 87915-47070-B1 note |
Cover, Outer Mirror, RH
2016-09 → 2019-04
ended
|
ZVW52 LHD | — | |
| 87915-47070-B1 note |
Cover, Outer Mirror, RH
2016-09 → 2019-04
ended
|
ZVW52 | — | |
| 87915-47070-D0 note |
Cover, Outer Mirror, RH
2016-09 → 2019-04
ended
|
ZVW52 | — | |
| 87915-47070-D0 note |
Cover, Outer Mirror, RH
2016-09 → 2019-04
ended
|
ZVW52 LHD | — | |
| 87915-47070-E0 note |
Cover, Outer Mirror, RH
2018-01 → 2019-04
ended
|
ZVW52 | — | |
| 87915-47070-E0 note |
Cover, Outer Mirror, RH
2016-09 → 2018-01
ended
|
ZVW52 RHD | — | |
| 87915-47070-H1 note |
Cover, Outer Mirror, RH
2016-09 → 2019-04
ended
|
ZVW52 | — | |
| 87915-47070-H1 note |
Cover, Outer Mirror, RH
2016-09 → 2019-04
ended
|
ZVW52 LHD | — | |
| 87915-33030-A0 note |
Cover, Outer Mirror, RH
2020-07 → —
|
ZVW52 | — | |
| 87915-33030-A1 note |
Cover, Outer Mirror, RH
2020-07 → —
|
ZVW52 | — | |
| 87915-33030-B2 note |
Cover, Outer Mirror, RH
2020-07 → —
|
ZVW52 | — | |
| 87915-33030-C0 note |
Cover, Outer Mirror, RH
2020-07 → —
|
ZVW52 | — | |
| 87915-33030-D1 note |
Cover, Outer Mirror, RH
2020-07 → —
|
ZVW52 | — | |
| 87915-33030-H1 note |
Cover, Outer Mirror, RH
2020-07 → —
|
ZVW52 | — | |
| 87915-47070-A0 note |
Cover, Outer Mirror, RH
2019-05 → 2020-07
ended
|
ZVW52 | — | |
| 87915-47070-A1 note |
Cover, Outer Mirror, RH
2019-05 → 2020-07
ended
|
ZVW52 | — | |
| 87915-47070-B1 note |
Cover, Outer Mirror, RH
2019-05 → 2020-07
ended
|
ZVW52 | — | |
| 87915-47070-C0 note |
Cover, Outer Mirror, RH
2019-05 → 2020-07
ended
|
ZVW52 | — | |
| 87915-47070-D3 note |
Cover, Outer Mirror, RH
2019-05 → 2020-07
ended
|
ZVW52 | — | |
| 87915-47070-H1 note |
Cover, Outer Mirror, RH
2019-05 → 2020-07
ended
|
ZVW52 | — | |
| 87915B — Cover, Outer Mirror, Lower RH | ||||
| 87939-47370 |
Cover, Outer Mirror, Lower RH
2016-09 → 2019-04
ended
|
ZVW52 RHD | — | |
| 87939-47390 |
Cover, Outer Mirror, Lower RH
2016-09 → 2019-04
ended
|
ZVW52 LHD | — | |
| 87939-47390 note |
Cover, Outer Mirror, Lower RH
2016-09 → 2019-04
ended
|
ZVW52 LHD | — | |
| 87939-47530 note |
Cover, Outer Mirror, Lower RH
2016-09 → 2019-04
ended
|
ZVW52 LHD | — | |
| 87939-47560 note |
Cover, Outer Mirror, Lower RH
2016-09 → 2019-04
ended
|
ZVW52 RHD | — | |
| 87939-47370 |
Cover, Outer Mirror, Lower RH
2019-05 → —
|
ZVW52 RHD | — | |
| 87939-47390 |
Cover, Outer Mirror, Lower RH
2019-05 → —
|
ZVW52 LHD | — | |
| 87939-47530 note |
Cover, Outer Mirror, Lower RH
2019-05 → —
|
ZVW52 LHD | — | |
| 87939-47530 note |
Cover, Outer Mirror, Lower RH
2019-05 → —
|
ZVW52 LHD | — | |
| 87939-47560 note |
Cover, Outer Mirror, Lower RH
2019-05 → —
|
ZVW52 RHD | — | |
| 87939-47560 note |
Cover, Outer Mirror, Lower RH
2019-05 → —
|
ZVW52 RHD | — | |
| 8791A — Cover, Outer Mirror, RH NO.2 | ||||
| 8791B-47360 |
Cover, Outer Mirror, RH NO.2
2016-09 → 2019-04
ended
|
ZVW52 | — | |
| 8791B-47360 |
Cover, Outer Mirror, RH NO.2
2019-05 → —
|
ZVW52 | — | |
| 8791BA — Cover, Outer Mirror, RH NO.3 | ||||
| 8791A-47580 note |
Cover, Outer Mirror, RH NO.3
2019-05 → —
|
ZVW52 | — | |
| 87931 — Outer Mirror, RH | ||||
| 87931-47390 |
Outer Mirror, RH
2016-09 → 2019-04
ended
|
ZVW52 LHD | — | |
| 87931-47390 note |
Outer Mirror, RH
2016-09 → 2019-04
ended
|
ZVW52 LHD | — | |
| 87931-47400 note |
Outer Mirror, RH
2016-09 → 2019-04
ended
|
ZVW52 LHD | — | |
| 87931-47450 |
Outer Mirror, RH
2016-09 → 2019-04
ended
|
ZVW52 RHD | — | |
| 87931-47460 note |
Outer Mirror, RH
2016-09 → 2019-04
ended
|
ZVW52 RHD | — | |
| 87931-47390 |
Outer Mirror, RH
2019-05 → —
|
ZVW52 LHD | — | |
| 87931-47400 note |
Outer Mirror, RH
2019-05 → 2020-07
ended
|
ZVW52 LHD | — | |
| 87931-47400 note |
Outer Mirror, RH
2019-05 → —
|
ZVW52 LHD | — | |
| 87931-47400 note |
Outer Mirror, RH
2019-05 → —
|
ZVW52 LHD | — | |
| 87931-47400 note |
Outer Mirror, RH
2020-07 → —
|
ZVW52 LHD | — | |
| 87931-47450 |
Outer Mirror, RH
2019-05 → —
|
ZVW52 RHD | — | |
| 87931-47460 note |
Outer Mirror, RH
2019-05 → —
|
ZVW52 RHD | — | |
| 87931-47460 note |
Outer Mirror, RH
2019-05 → —
|
ZVW52 RHD | — | |
| 87939 — Cover, Outer Mirror Hole, RH | ||||
| 87939-47360 |
Cover, Outer Mirror Hole, RH
2016-09 → 2019-04
ended
|
ZVW52 | — | |
| 87939-47360 note |
Cover, Outer Mirror Hole, RH
2016-09 → 2019-04
ended
|
ZVW52 LHD | — | |
| 87939-47550 note |
Cover, Outer Mirror Hole, RH
2016-09 → 2019-04
ended
|
ZVW52 | — | |
| 87939-47360 |
Cover, Outer Mirror Hole, RH
2019-05 → —
|
ZVW52 | — | |
| 87939-47550 note |
Cover, Outer Mirror Hole, RH
2019-05 → —
|
ZVW52 | — | |
| 87939-47580 note |
Cover, Outer Mirror Hole, RH
2019-05 → —
|
ZVW52 | — | |
| 87940 — Mirror Assy, Outer Rear View, LH | ||||
| 87940-47380 note |
Mirror Assy, Outer Rear View, LH
2016-09 → 2019-04
ended
|
ZVW52 LHD | — | |
| 87940-47380 note |
Mirror Assy, Outer Rear View, LH
2016-09 → 2019-04
ended
|
ZVW52 LHD | — | |
| 87940-47440 note |
Mirror Assy, Outer Rear View, LH
2016-09 → 2019-04
ended
|
ZVW52 RHD | — | |
| 87940-47550 note |
Mirror Assy, Outer Rear View, LH
2016-09 → 2019-04
ended
|
ZVW52 RHD | — | |
| 87940-47560 note |
Mirror Assy, Outer Rear View, LH
2016-09 → 2019-04
ended
|
ZVW52 LHD | — | |
| 87940-47130 note |
Mirror Assy, Outer Rear View, LH
2019-05 → —
|
ZVW52 RHD | — | |
| 87940-47380 note |
Mirror Assy, Outer Rear View, LH
2019-05 → —
|
ZVW52 LHD | — | |
| 87940-47390 note |
Mirror Assy, Outer Rear View, LH
2019-05 → 2020-07
ended
|
ZVW52 LHD | — | |
| 87940-47390 note |
Mirror Assy, Outer Rear View, LH
2020-07 → —
|
ZVW52 LHD | — | |
| 87940-47440 note |
Mirror Assy, Outer Rear View, LH
2019-05 → —
|
ZVW52 RHD | — | |
| 87940-47480 note |
Mirror Assy, Outer Rear View, LH
2019-05 → —
|
ZVW52 LHD | — | |
| 87940-47550 note |
Mirror Assy, Outer Rear View, LH
2019-05 → —
|
ZVW52 RHD | — | |
| 87940-47560 note |
Mirror Assy, Outer Rear View, LH
2019-05 → —
|
ZVW52 LHD | — | |
| 87945 — Cover, Outer Mirror, LH | ||||
| 87945-47060-A0 note |
Cover, Outer Mirror, LH
2016-09 → 2019-04
ended
|
ZVW52 | — | |
| 87945-47060-A0 note |
Cover, Outer Mirror, LH
2016-09 → 2019-04
ended
|
ZVW52 LHD | — | |
| 87945-47060-A1 note |
Cover, Outer Mirror, LH
2016-09 → 2019-04
ended
|
ZVW52 | — | |
| 87945-47060-A1 note |
Cover, Outer Mirror, LH
2016-09 → 2019-04
ended
|
ZVW52 LHD | — | |
| 87945-47060-B1 note |
Cover, Outer Mirror, LH
2016-09 → 2019-04
ended
|
ZVW52 | — | |
| 87945-47060-B1 note |
Cover, Outer Mirror, LH
2016-09 → 2019-04
ended
|
ZVW52 LHD | — | |
| 87945-47060-D0 note |
Cover, Outer Mirror, LH
2016-09 → 2019-04
ended
|
ZVW52 | — | |
| 87945-47060-D0 note |
Cover, Outer Mirror, LH
2016-09 → 2019-04
ended
|
ZVW52 LHD | — | |
| 87945-47060-E0 note |
Cover, Outer Mirror, LH
2016-09 → 2018-01
ended
|
ZVW52 RHD | — | |
| 87945-47060-E0 note |
Cover, Outer Mirror, LH
2018-01 → 2019-04
ended
|
ZVW52 | — | |
| 87945-47060-H1 note |
Cover, Outer Mirror, LH
2016-09 → 2019-04
ended
|
ZVW52 | — | |
| 87945-47060-H1 note |
Cover, Outer Mirror, LH
2016-09 → 2019-04
ended
|
ZVW52 LHD | — | |
| 87945-33030-A0 note |
Cover, Outer Mirror, LH
2020-07 → —
|
ZVW52 | — | |
| 87945-33030-A1 note |
Cover, Outer Mirror, LH
2020-07 → —
|
ZVW52 | — | |
| 87945-33030-B2 note |
Cover, Outer Mirror, LH
2020-07 → —
|
ZVW52 | — | |
| 87945-33030-C0 note |
Cover, Outer Mirror, LH
2020-07 → —
|
ZVW52 | — | |
| 87945-33030-D1 note |
Cover, Outer Mirror, LH
2020-07 → —
|
ZVW52 | — | |
| 87945-33030-H1 note |
Cover, Outer Mirror, LH
2020-07 → —
|
ZVW52 | — | |
| 87945-47060-A0 note |
Cover, Outer Mirror, LH
2019-05 → 2020-07
ended
|
ZVW52 | — | |
| 87945-47060-A1 note |
Cover, Outer Mirror, LH
2019-05 → 2020-07
ended
|
ZVW52 | — | |
| 87945-47060-B1 note |
Cover, Outer Mirror, LH
2019-05 → 2020-07
ended
|
ZVW52 | — | |
| 87945-47060-C0 note |
Cover, Outer Mirror, LH
2019-05 → 2020-07
ended
|
ZVW52 | — | |
| 87945-47060-D3 note |
Cover, Outer Mirror, LH
2019-05 → 2020-07
ended
|
ZVW52 | — | |
| 87945-47060-H1 note |
Cover, Outer Mirror, LH
2019-05 → 2020-07
ended
|
ZVW52 | — | |
| 87945C — Cover, Outer Mirror, Lower LH | ||||
| 87948-47360 |
Cover, Outer Mirror, Lower LH
2016-09 → 2019-04
ended
|
ZVW52 RHD | — | |
| 87948-47380 |
Cover, Outer Mirror, Lower LH
2016-09 → 2019-04
ended
|
ZVW52 LHD | — | |
| 87948-47380 note |
Cover, Outer Mirror, Lower LH
2016-09 → 2019-04
ended
|
ZVW52 LHD | — | |
| 87948-47530 note |
Cover, Outer Mirror, Lower LH
2016-09 → 2019-04
ended
|
ZVW52 LHD | — | |
| 87948-47560 note |
Cover, Outer Mirror, Lower LH
2016-09 → 2019-04
ended
|
ZVW52 RHD | — | |
| 87948-47360 |
Cover, Outer Mirror, Lower LH
2019-05 → —
|
ZVW52 RHD | — | |
| 87948-47380 |
Cover, Outer Mirror, Lower LH
2019-05 → —
|
ZVW52 LHD | — | |
| 87948-47530 note |
Cover, Outer Mirror, Lower LH
2019-05 → —
|
ZVW52 LHD | — | |
| 87948-47530 note |
Cover, Outer Mirror, Lower LH
2019-05 → —
|
ZVW52 LHD | — | |
| 87948-47560 note |
Cover, Outer Mirror, Lower LH
2019-05 → —
|
ZVW52 RHD | — | |
| 87948-47560 note |
Cover, Outer Mirror, Lower LH
2019-05 → —
|
ZVW52 RHD | — | |
| 87946 — Retractor, Outer Mirror, RH | ||||
| 87946-47370 |
Retractor, Outer Mirror, RH
2016-09 → 2019-04
ended
|
ZVW52 RHD | — | |
| 87946-47390 |
Retractor, Outer Mirror, RH
2016-09 → 2019-04
ended
|
ZVW52 LHD | — | |
| 87946-47390 note |
Retractor, Outer Mirror, RH
2016-09 → 2019-04
ended
|
ZVW52 LHD | — | |
| 87946-47550 note |
Retractor, Outer Mirror, RH
2016-09 → 2019-04
ended
|
ZVW52 RHD | — | |
| 87946-47560 note |
Retractor, Outer Mirror, RH
2016-09 → 2019-04
ended
|
ZVW52 LHD | — | |
| 87946-47370 |
Retractor, Outer Mirror, RH
2019-05 → —
|
ZVW52 RHD | — | |
| 87946-47390 |
Retractor, Outer Mirror, RH
2019-05 → —
|
ZVW52 LHD | — | |
| 87946-47400 note |
Retractor, Outer Mirror, RH
2020-07 → —
|
ZVW52 LHD | — | |
| 87946-47400 note |
Retractor, Outer Mirror, RH
2019-05 → 2020-07
ended
|
ZVW52 LHD | — | |
| 87946-47550 note |
Retractor, Outer Mirror, RH
2019-05 → —
|
ZVW52 RHD | — | |
| 87946-47560 note |
Retractor, Outer Mirror, RH
2019-05 → —
|
ZVW52 LHD | — | |
| 87946-47580 note |
Retractor, Outer Mirror, RH
2019-05 → —
|
ZVW52 RHD | — | |
| 87946-47590 note |
Retractor, Outer Mirror, RH
2019-05 → —
|
ZVW52 LHD | — | |
| 87948 — Cover, Outer Mirror Hole, LH | ||||
| 87948-47250 |
Cover, Outer Mirror Hole, LH
2016-09 → 2019-04
ended
|
ZVW52 | — | |
| 87948-47250 note |
Cover, Outer Mirror Hole, LH
2016-09 → 2019-04
ended
|
ZVW52 LHD | — | |
| 87948-47550 note |
Cover, Outer Mirror Hole, LH
2016-09 → 2019-04
ended
|
ZVW52 | — | |
| 87948-47130 note |
Cover, Outer Mirror Hole, LH
2019-05 → —
|
ZVW52 | — | |
| 87948-47250 |
Cover, Outer Mirror Hole, LH
2019-05 → —
|
ZVW52 | — | |
| 87948-47550 note |
Cover, Outer Mirror Hole, LH
2019-05 → —
|
ZVW52 | — | |
| 8794A — Cover, Outer Mirror, LH NO.2 | ||||
| 8794B-47250 |
Cover, Outer Mirror, LH NO.2
2016-09 → 2019-04
ended
|
ZVW52 | — | |
| 8794B-47250 |
Cover, Outer Mirror, LH NO.2
2019-05 → —
|
ZVW52 | — | |
| 8794BA — Cover, Outer Mirror, LH NO.3 | ||||
| 8794A-47130 note |
Cover, Outer Mirror, LH NO.3
2019-05 → —
|
ZVW52 | — | |
| 87961 — Mirror Outer, LH | ||||
| 87961-47380 |
Mirror Outer, LH
2016-09 → 2019-04
ended
|
ZVW52 LHD | — | |
| 87961-47380 note |
Mirror Outer, LH
2016-09 → 2019-04
ended
|
ZVW52 LHD | — | |
| 87961-47390 note |
Mirror Outer, LH
2016-09 → 2019-04
ended
|
ZVW52 LHD | — | |
| 87961-47440 |
Mirror Outer, LH
2016-09 → 2019-04
ended
|
ZVW52 RHD | — | |
| 87961-47450 note |
Mirror Outer, LH
2016-09 → 2019-04
ended
|
ZVW52 RHD | — | |
| 87961-47380 |
Mirror Outer, LH
2019-05 → —
|
ZVW52 LHD | — | |
| 87961-47390 note |
Mirror Outer, LH
2019-05 → 2020-07
ended
|
ZVW52 LHD | — | |
| 87961-47390 note |
Mirror Outer, LH
2020-07 → —
|
ZVW52 LHD | — | |
| 87961-47390 note |
Mirror Outer, LH
2019-05 → —
|
ZVW52 LHD | — | |
| 87961-47390 note |
Mirror Outer, LH
2019-05 → —
|
ZVW52 LHD | — | |
| 87961-47440 |
Mirror Outer, LH
2019-05 → —
|
ZVW52 RHD | — | |
| 87961-47450 note |
Mirror Outer, LH
2019-05 → —
|
ZVW52 RHD | — | |
| 87961-47450 note |
Mirror Outer, LH
2019-05 → —
|
ZVW52 RHD | — | |
| 87966 — Retractor, Outer Mirror, LH | ||||
| 87966-47360 |
Retractor, Outer Mirror, LH
2016-09 → 2019-04
ended
|
ZVW52 RHD | — | |
| 87966-47380 |
Retractor, Outer Mirror, LH
2016-09 → 2019-04
ended
|
ZVW52 LHD | — | |
| 87966-47380 note |
Retractor, Outer Mirror, LH
2016-09 → 2019-04
ended
|
ZVW52 LHD | — | |
| 87966-47550 note |
Retractor, Outer Mirror, LH
2016-09 → 2019-04
ended
|
ZVW52 RHD | — | |
| 87966-47560 note |
Retractor, Outer Mirror, LH
2016-09 → 2019-04
ended
|
ZVW52 LHD | — | |
| 87966-47130 note |
Retractor, Outer Mirror, LH
2019-05 → —
|
ZVW52 RHD | — | |
| 87966-47360 |
Retractor, Outer Mirror, LH
2019-05 → —
|
ZVW52 RHD | — | |
| 87966-47380 |
Retractor, Outer Mirror, LH
2019-05 → —
|
ZVW52 LHD | — | |
| 87966-47390 note |
Retractor, Outer Mirror, LH
2019-05 → 2020-07
ended
|
ZVW52 LHD | — | |
| 87966-47390 note |
Retractor, Outer Mirror, LH
2020-07 → —
|
ZVW52 LHD | — | |
| 87966-47480 note |
Retractor, Outer Mirror, LH
2019-05 → —
|
ZVW52 LHD | — | |
| 87966-47550 note |
Retractor, Outer Mirror, LH
2019-05 → —
|
ZVW52 RHD | — | |
| 87966-47560 note |
Retractor, Outer Mirror, LH
2019-05 → —
|
ZVW52 LHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
