Toyota Prius Phv

2016-09 → 2022-11 · chassis ZVW52 · catalogue 224530 · Europe

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

19 part groups · 9 illustrations

Illustrations

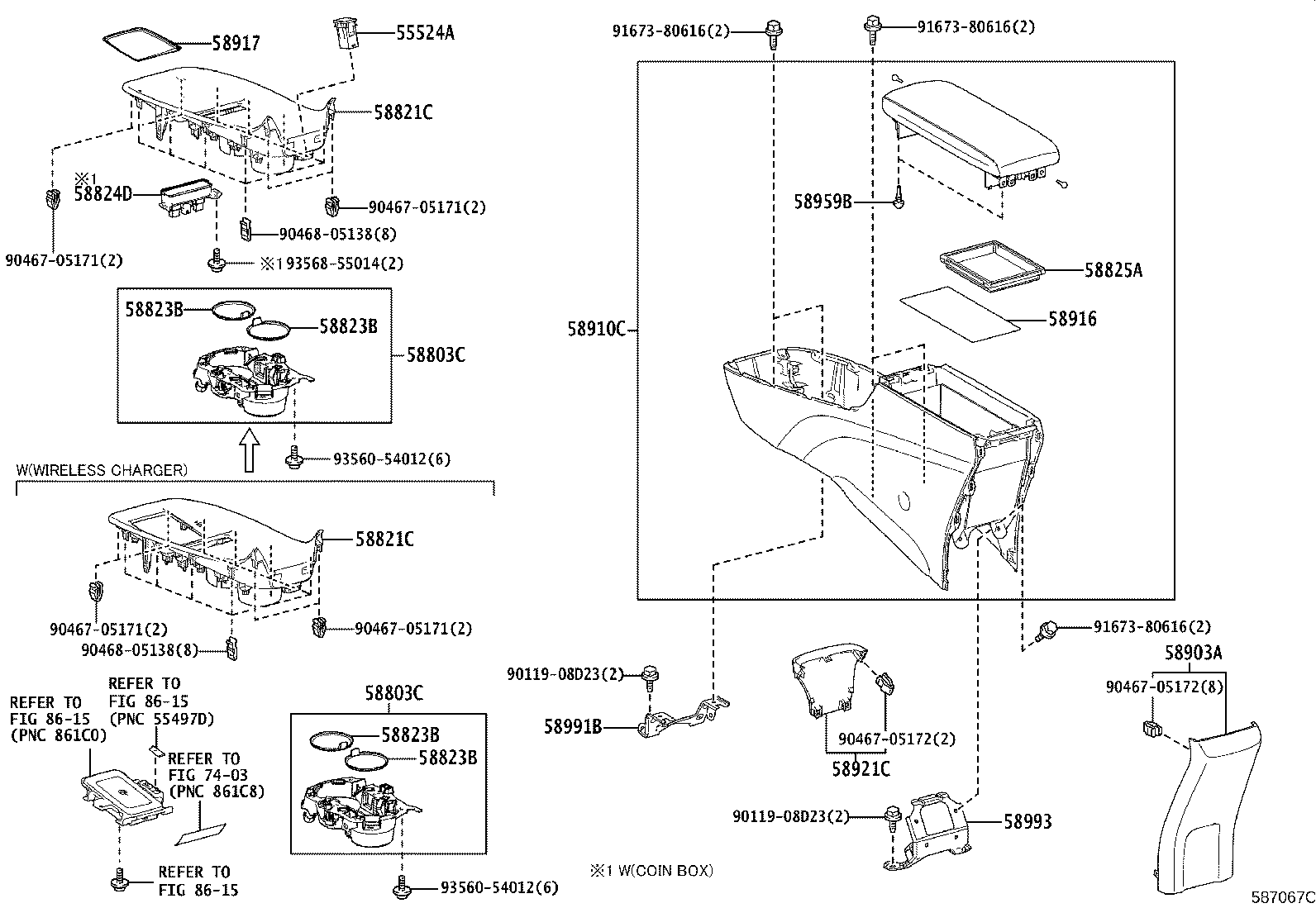

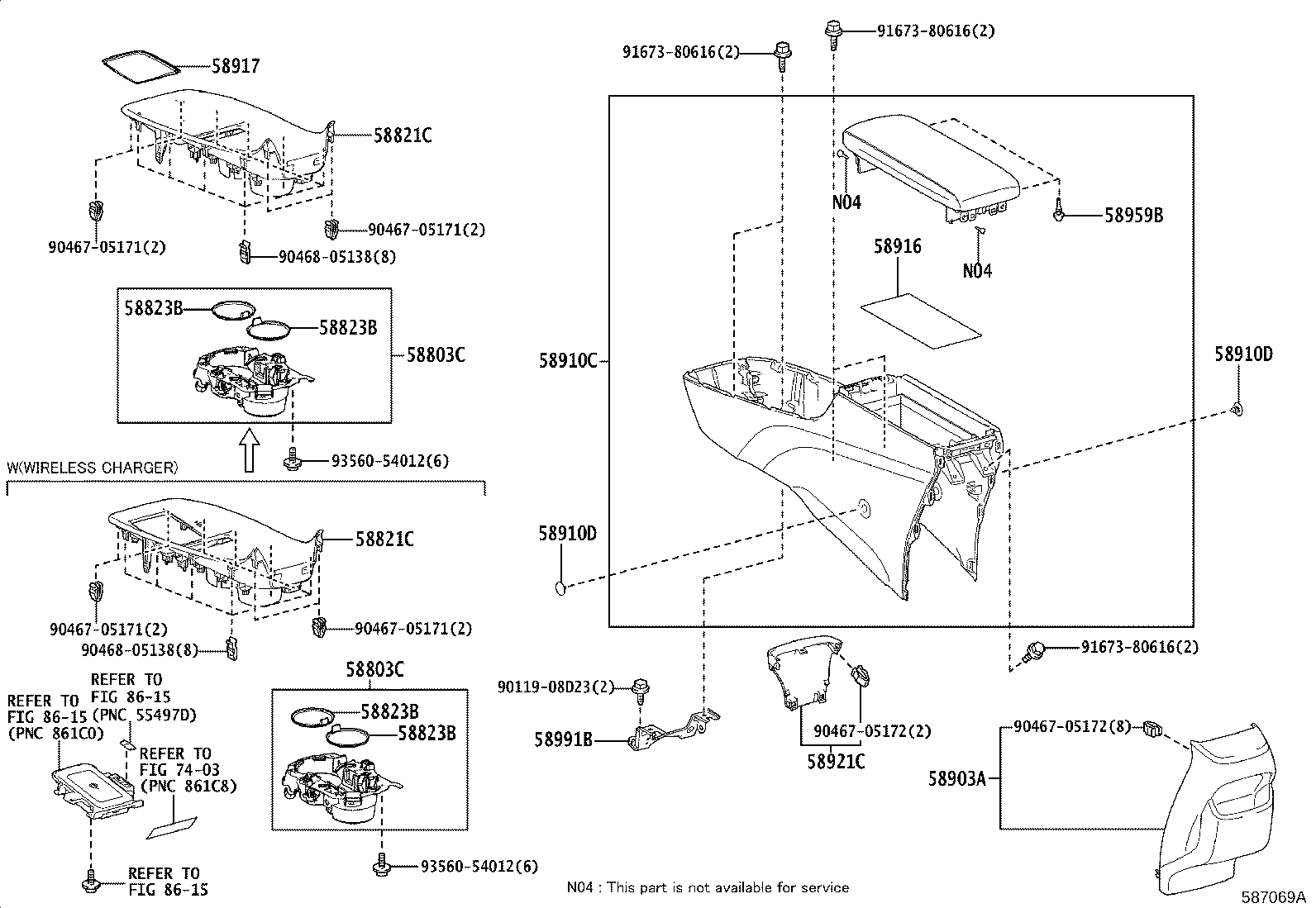

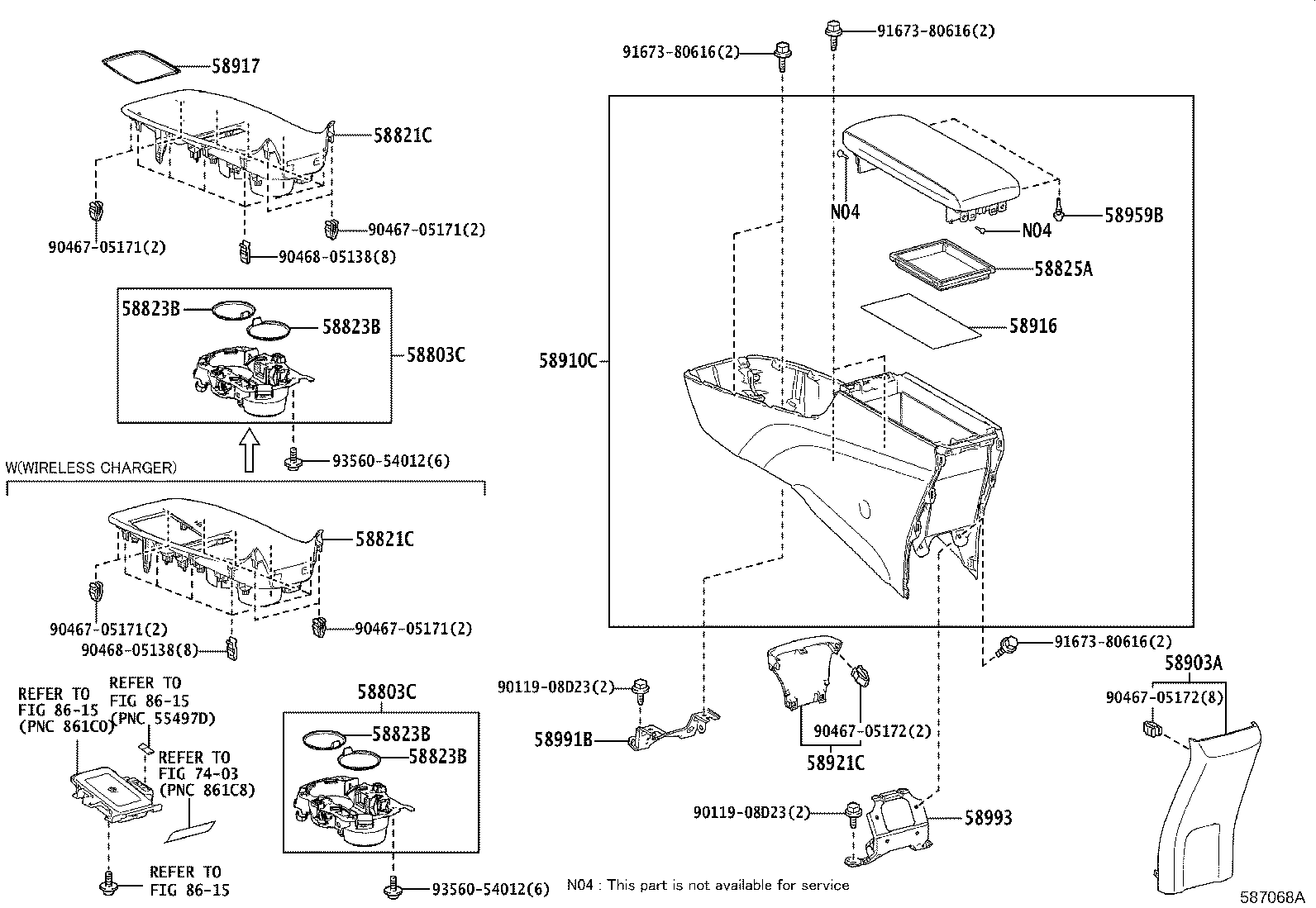

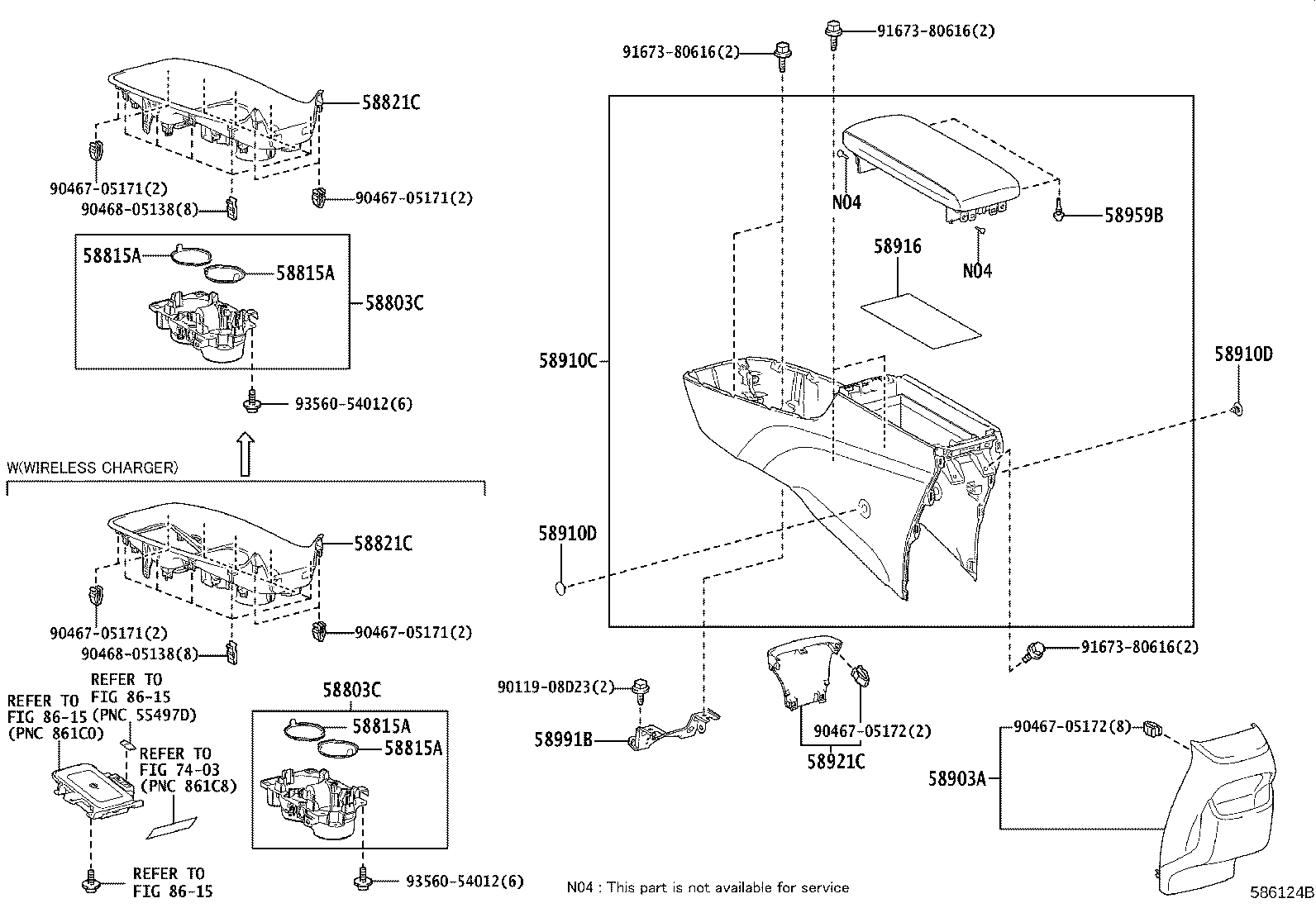

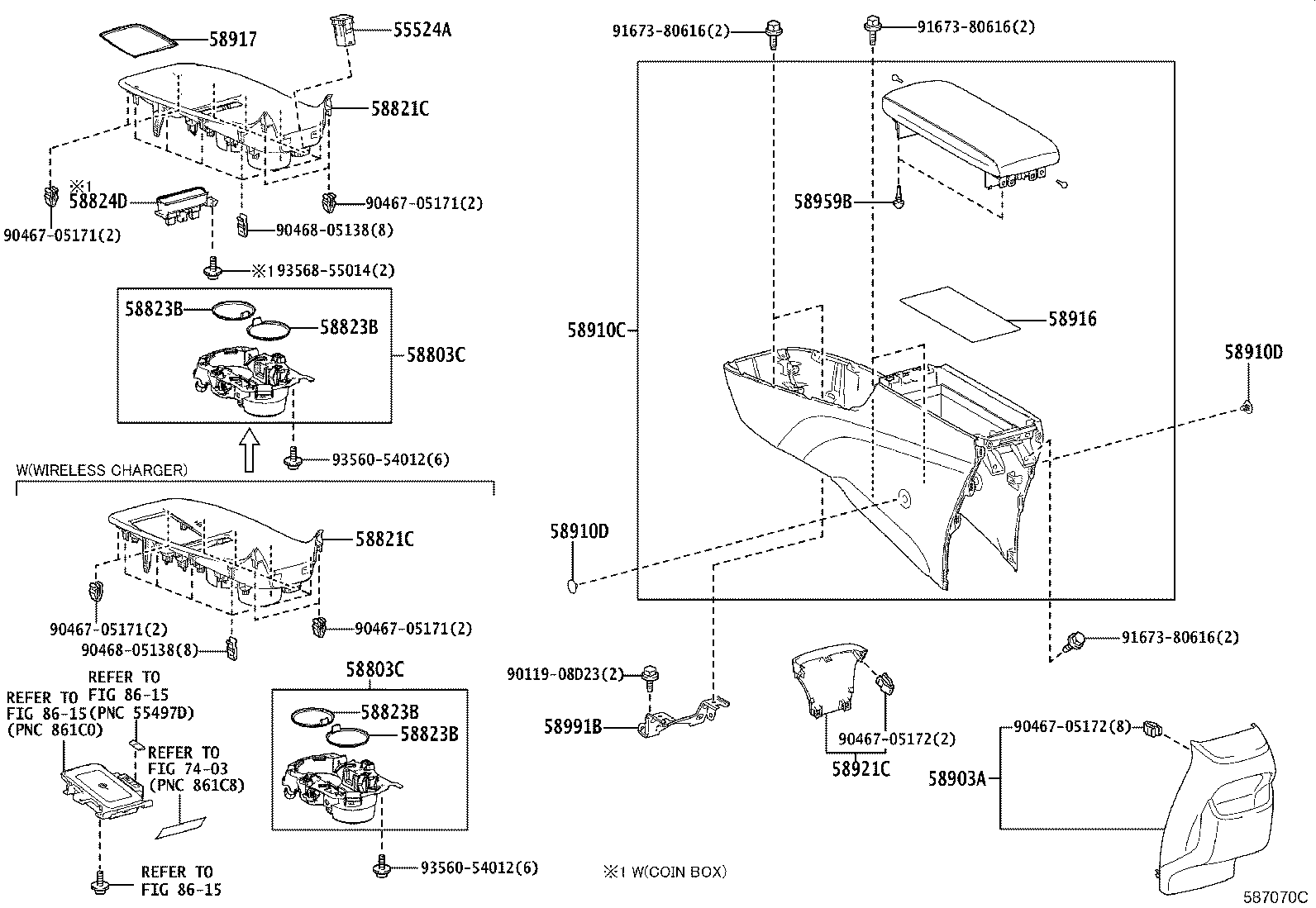

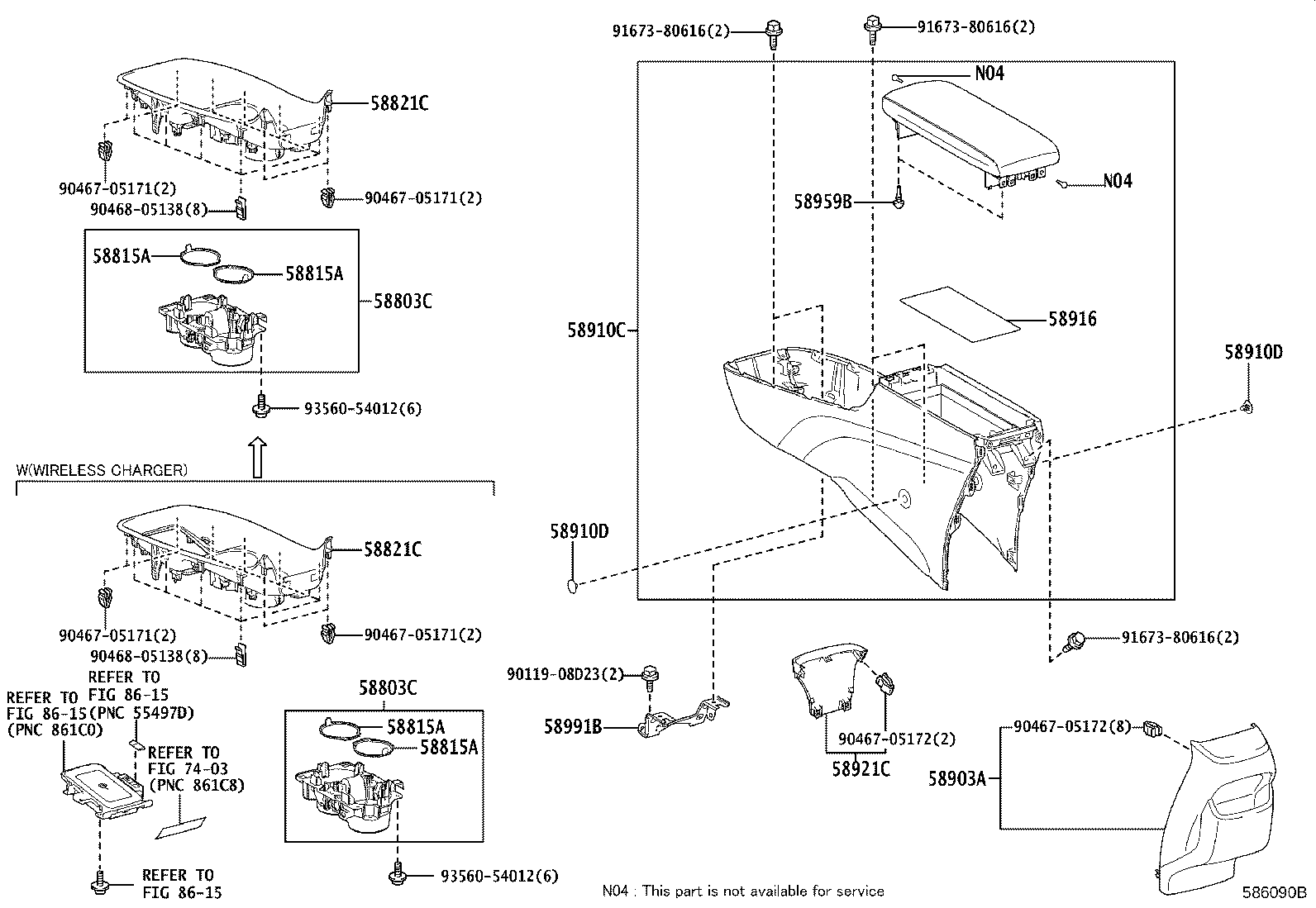

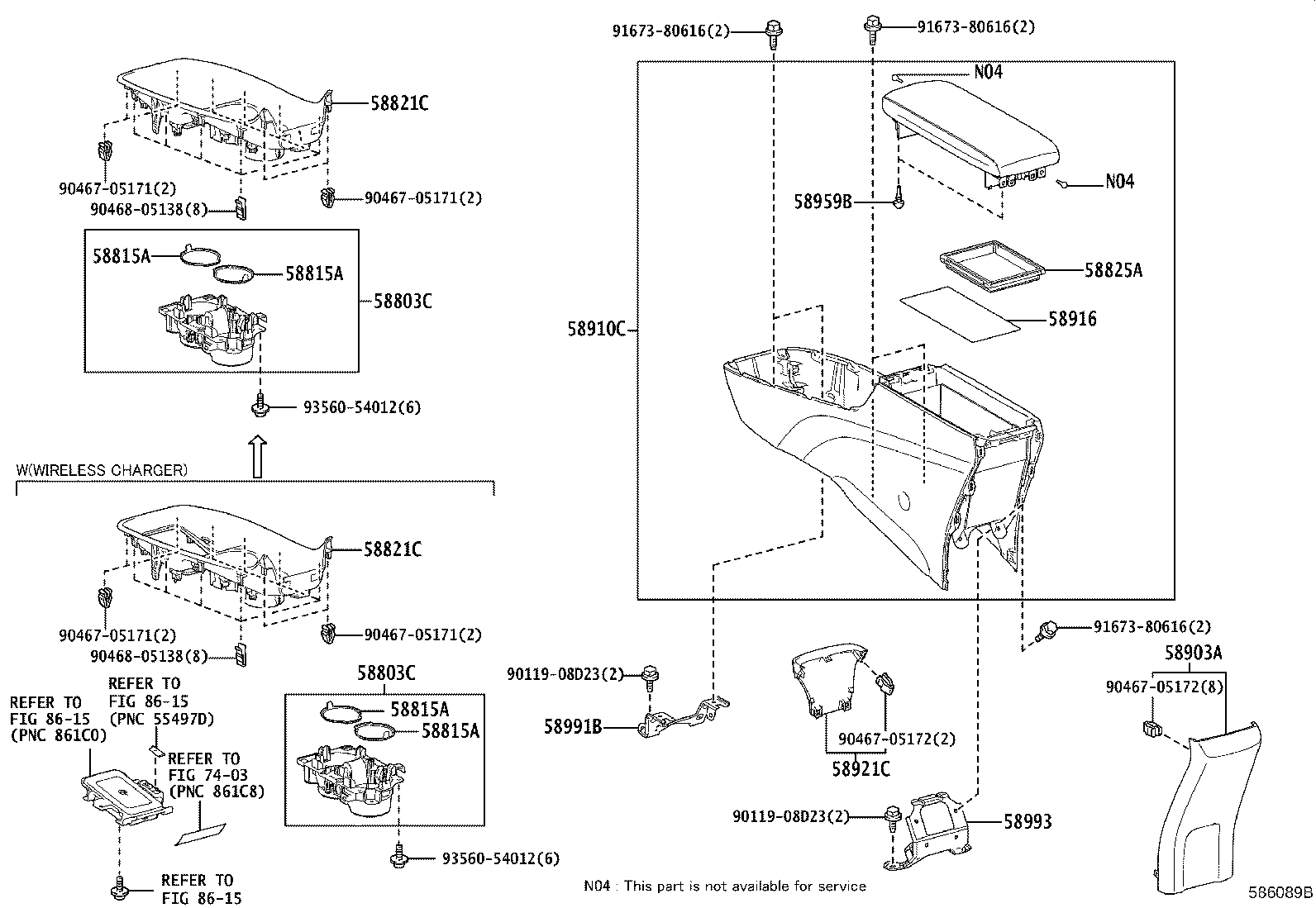

Figure 586123B 586123B 2016-09 → 2019-05 Figure 586124B 586124B 2016-12 → 2019-05 Figure 586089B 586089B 2016-09 → 2019-05 Figure 586090B 586090B 2016-12 → 2019-05 Figure 586093 586093 2016-09 → 2019-05 Figure 587068A 587068A 2019-05 → — Figure 587069A 587069A 2019-05 → — Figure 587067C 587067C 2019-05 → — Figure 587070C 587070C 2019-05 → —

Part groups

PNCDescription
55524A Cover, Switch Base Hole
58803C Box Sub-assy, Console Cup Holder
58815A Carpet, Console Box
58821C Panel, Console, Upper
58823B Box, Console Compartment
58824D Box, Console Coin
58825A Pocket, Console Box
58903A Panel Sub-assy, Console Rear End
58910C Box Assy, Console, Rear
58910D Clip(FOR CONSOLE BOX)
58916 Mat, Box Bottom
58917 Mat, Box Bottom, NO.2
58917A Cover, Console Box, Rear
58921C Plate, Box, Upper NO.1
58959B Cushion, Console Compartment Door
58991B Bracket, Console Box Mounting, Front
58993 Bracket, Console Box Mounting, Rear
589F0 Box Assy, Rear Seat Console
589F6 Bracket, Rear Seat Console Box, Lwr
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
