Toyota Prius Phv

2016-09 → 2022-11 · chassis ZVW52 · catalogue 224530 · Europe

Supported model Data version 2023-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Center Stop Lamp

4 part groups · 2 illustrations

Illustrations

Figure 817930C

817930C 2016-09 → 2019-02

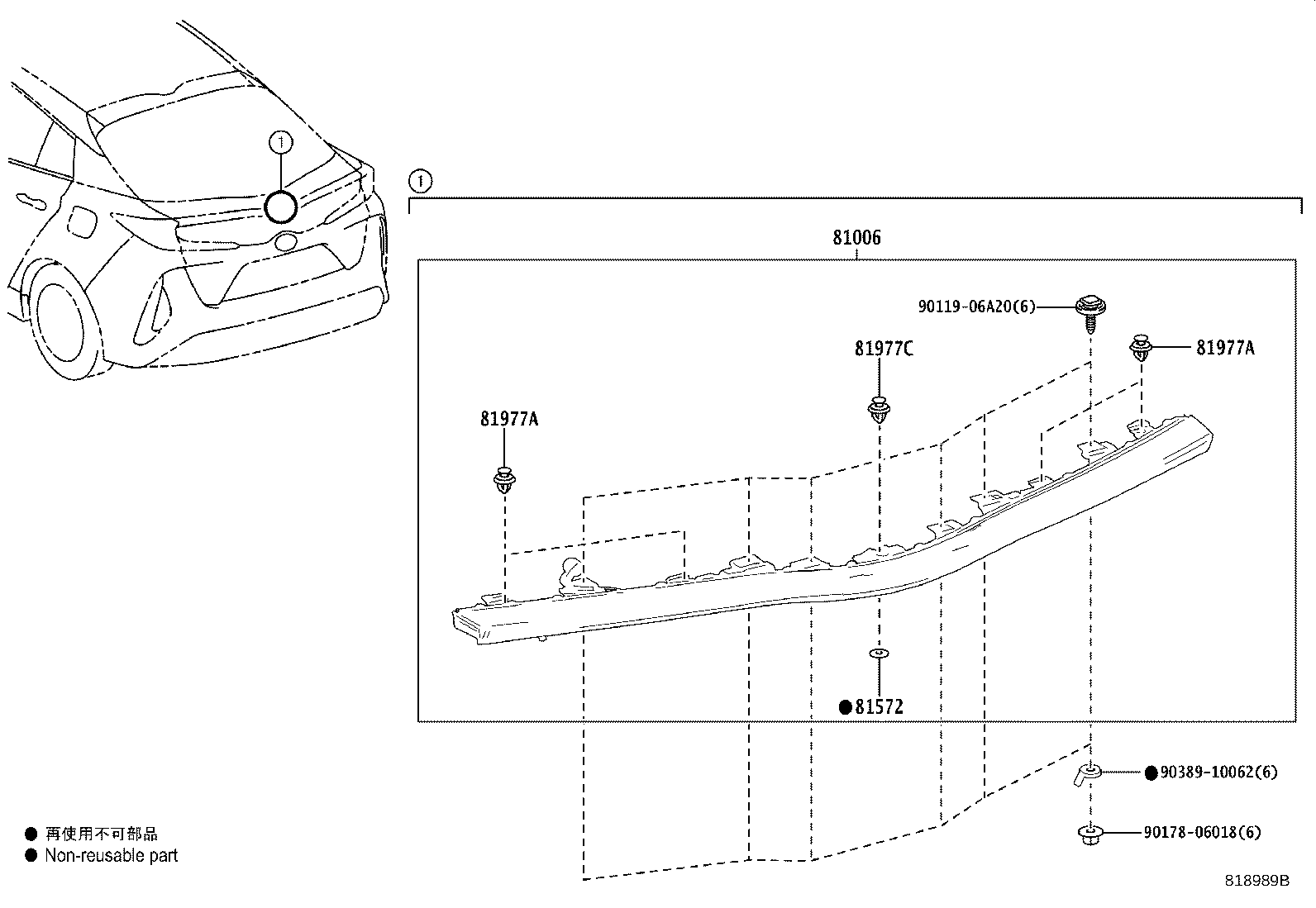

Figure 818989B

818989B 2019-02 → —

Part groups

PNC	Description
81006	Lamp Set, Stop Center
81572	Gasket, Center Stop Lamp
81977A	Clip (FOR CENTER STOP LAMP)
81977C	Clip (FOR CENTER STOP LAMP), NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
