Toyota Prius Phv
2016-09 → 2022-11 · chassis ZVW52 · catalogue 224530 · Europe
Supported model
Data version 2023-12
Hev Inverter
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04899 | Converter Kit, HV |
| 04899L | Computer Kit, Motor Generator Control |
| G9118A | Label, HV Motor Control Inverter Caution |

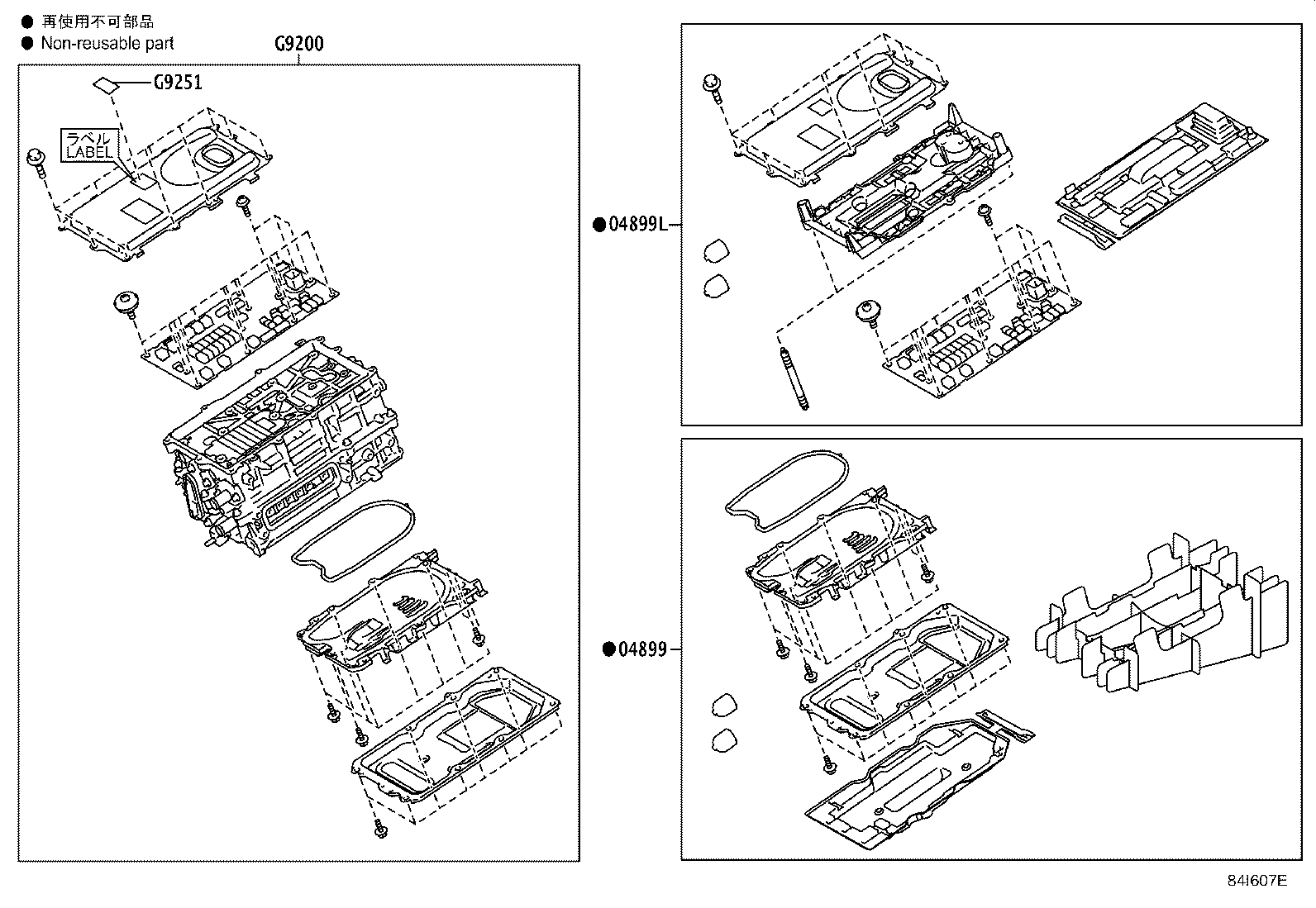

| G9200 | Inverter Assy, W/Converter |
| G9214 | Bracket, Inverter, NO.1 |
| G9215 | Bracket, Inverter, NO.2 |
| G921E | Protector, Inverter |
| G9221 | Cover, Inverter |
| G9251 | Seat, Inverter Name |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
