Toyota Prius Phv

2016-09 → 2022-11 · chassis ZVW52 · catalogue 224530 · Europe

Supported model Data version 2023-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

12 part groups · 3 illustrations

Illustrations

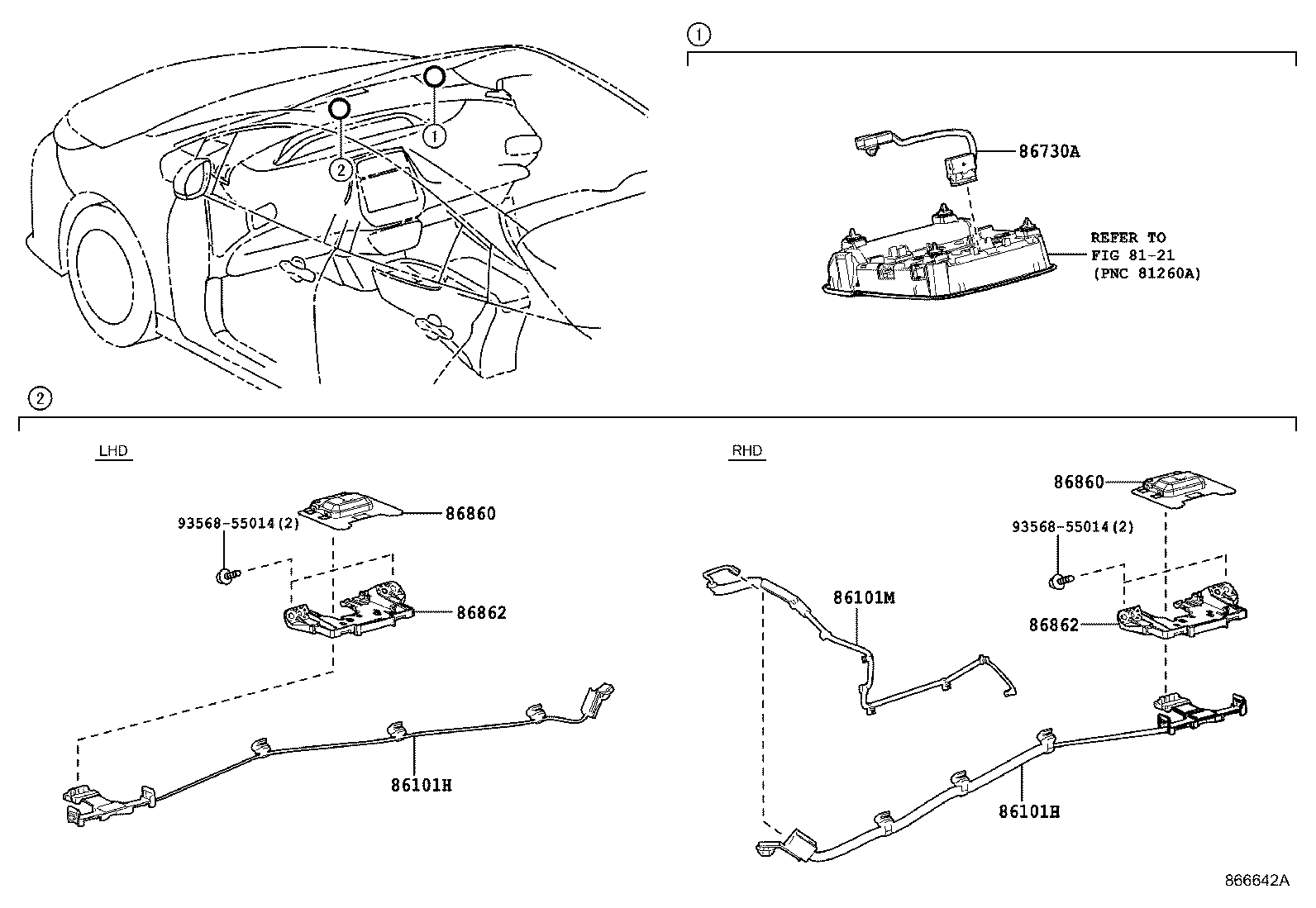

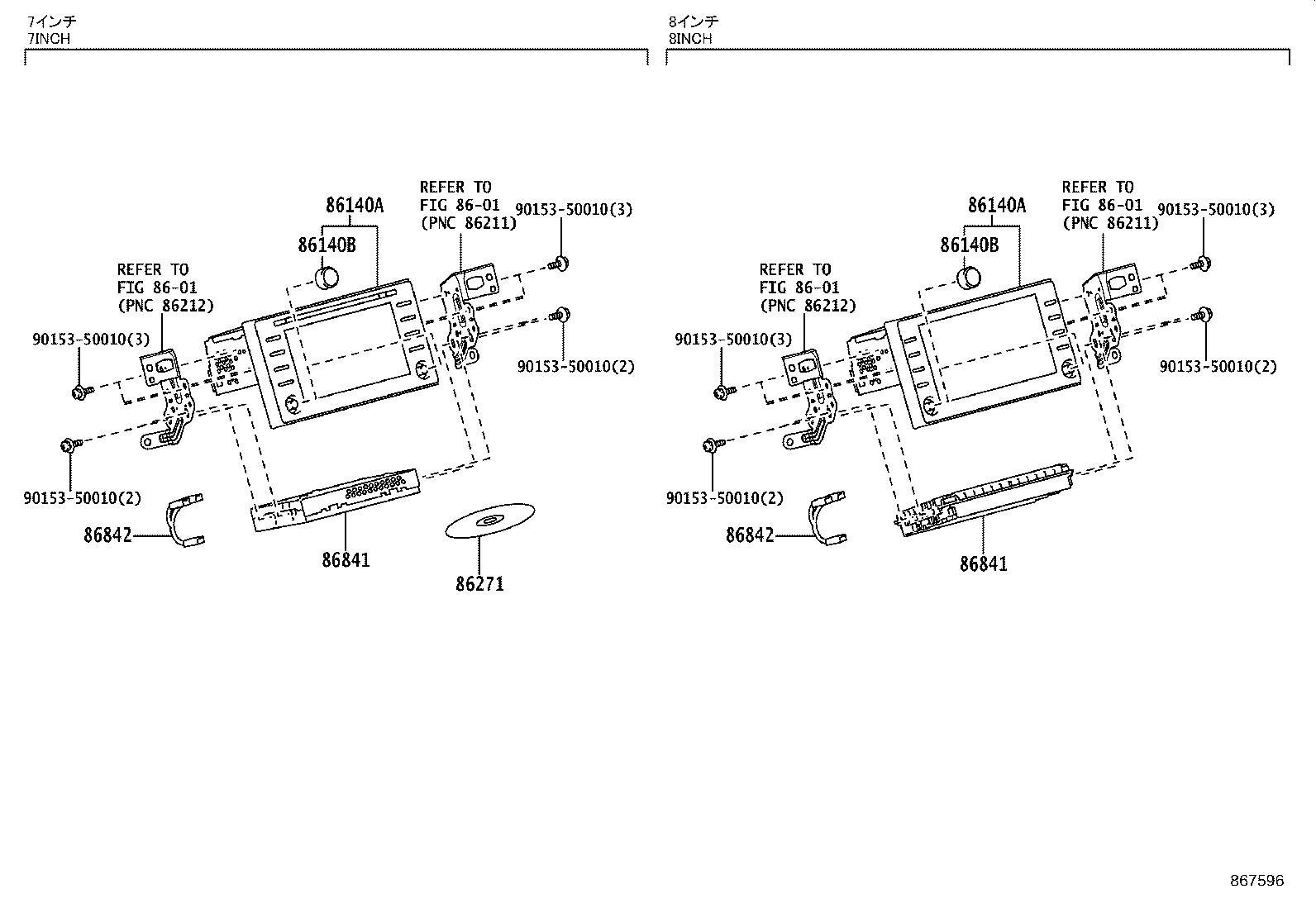

Figure 866643C 866643C 2016-09 → 2019-04 Figure 867596 867596 2019-05 → — Figure 866642A 866642A 2016-09 → —

Part groups

PNCDescription
86101H Cord Sub-assy, Antenna
86101M Cord Sub-assy, Antenna
86120L Receiver Assy, Navigation
86140A Receiver Assy, Radio & Display
86140B Knob, Radio & Display Receiver Switch
86271 Disc, Disc Player
86705B Cord Sub-assy, Telephone Antenna
86730A Microphone Assy, Telephone
86841 Computer, Navigation
86842 Wire, Navigation, NO.1
86860 Antenna Assy, Navigation
86862 Bracket, Navigation Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
