Toyota Prius +/V/A(ALPHA)

2012-03 → 2021-09 · chassis ZVW40 · catalogue 225510 · Europe

Supported model Data version 2017-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 615595B 6402 — not listed in this catalogue 6402 — not listed in this catalogue 6402 — not listed in this catalogue 6402 — not listed in this catalogue 6402 — not listed in this catalogue 63251N — DAM, ROOF WINDOW GLASS ADHESIVE, NO.1 (3 parts) 63215A — MOULDING, ROOF WINDOW, UPPER (3 parts) 63103A — REINFORCEMENT SUB-ASSY, ROOF PANEL (6 parts) 61247F — REINFORCEMENT, ROOF SIDE RAIL, INNER (6 parts) 63104E — REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR (6 parts) 63105A — FRAME SUB-ASSY, BACK DOOR OPENING (2 parts) 63127 — REINFORCEMENT, ROOF PANEL, NO.5 (6 parts) 63142D — REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR (3 parts) 63102A — PANEL SUB-ASSY, WINDSHIELD HEADER (6 parts) 61248F — REINFORCEMENT, ROOF SIDE RAIL, INNER, LH (6 parts) 63113B — PANEL, ROOF, REAR (3 parts) 63514A — WIRE, CONNECTOR (5 parts) 63202H — RAIL SUB-ASSY, SLIDE ROOF (5 parts) 63250H — HOUSING ASSY, SUNSHADE (7 parts) 63260H — GEAR ASSY, SLIDING ROOF DRIVE (5 parts) 63227L — CLIP, ROOF WINDOW (3 parts) 63212A — GLASS, ROOF WINDOW (3 parts) 6329747021 — not listed in this catalogue 9017806006 — not listed in this catalogue 6329747030 — not listed in this catalogue 9011606172 — not listed in this catalogue 9011606172 — not listed in this catalogue 9017806006 — not listed in this catalogue 6329747030 — not listed in this catalogue 9017806006 — not listed in this catalogue 9010906372 — not listed in this catalogue 9012908001 — not listed in this catalogue 9012908001 — not listed in this catalogue 6329747030 — not listed in this catalogue 9017806006 — not listed in this catalogue

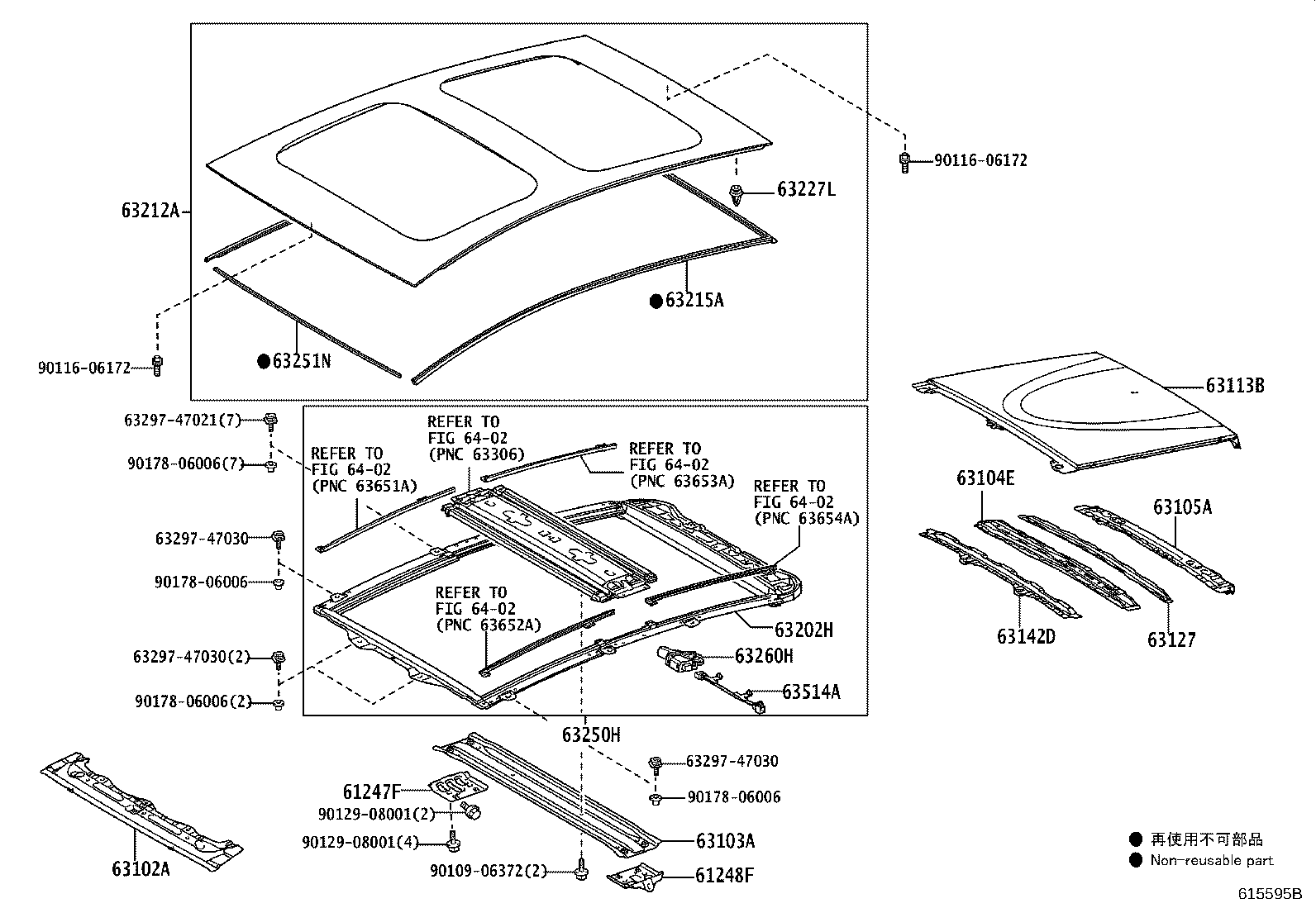

615595B · 17 callouts, 18 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
78 parts on this figure
Part number Description Fitment Price
61247F — Reinforcement, Roof Side Rail, Inner
61247-47030 note Reinforcement, Roof Side Rail, Inner
2012-03 → 2014-11 ended
ZVW40 —
61247-47040 Reinforcement, Roof Side Rail, Inner
2012-03 → 2014-11 ended
ZVW40 —
61247-47030 Reinforcement, Roof Side Rail, Inner
2020-08 → 2021-09 ended
ZVW40 LHD —
61247-47030 note Reinforcement, Roof Side Rail, Inner
2014-11 → 2020-08 ended
ZVW40 LHD —
61247-47040 Reinforcement, Roof Side Rail, Inner
2014-11 → 2020-08 ended
ZVW40 LHD —
61247-47040 Reinforcement, Roof Side Rail, Inner
2014-11 → 2021-09 ended
ZVW40 RHD —
61248F — Reinforcement, Roof Side Rail, Inner, LH
61247-47030 note Reinforcement, Roof Side Rail, Inner, LH
2012-03 → 2014-11 ended
ZVW40 —
61247-47040 Reinforcement, Roof Side Rail, Inner, LH
2012-03 → 2014-11 ended
ZVW40 —
61247-47030 note Reinforcement, Roof Side Rail, Inner, LH
2014-11 → 2020-08 ended
ZVW40 LHD —
61247-47030 Reinforcement, Roof Side Rail, Inner, LH
2020-08 → 2021-09 ended
ZVW40 LHD —
61247-47040 Reinforcement, Roof Side Rail, Inner, LH
2014-11 → 2020-08 ended
ZVW40 LHD —
61247-47040 Reinforcement, Roof Side Rail, Inner, LH
2014-11 → 2021-09 ended
ZVW40 RHD —
63102A — Panel Sub-assy, Windshield Header
63102-47060 note Panel Sub-assy, Windshield Header
2012-03 → 2014-11 ended
ZVW40 —
63102-47901 Panel Sub-assy, Windshield Header
2012-03 → 2014-11 ended
ZVW40 —
63102-47060 note Panel Sub-assy, Windshield Header
2014-11 → 2020-08 ended
ZVW40 LHD —
63102-47060 Panel Sub-assy, Windshield Header
2020-08 → 2021-09 ended
ZVW40 LHD —
63102-47901 Panel Sub-assy, Windshield Header
2014-11 → 2020-08 ended
ZVW40 LHD —
63102-47901 Panel Sub-assy, Windshield Header
2014-11 → 2021-09 ended
ZVW40 RHD —
63103A — Reinforcement Sub-assy, Roof Panel
63103-47020 Reinforcement Sub-assy, Roof Panel
2012-03 → 2014-11 ended
ZVW40 —
63103-47030 note Reinforcement Sub-assy, Roof Panel
2012-03 → 2014-11 ended
ZVW40 —
63103-47020 Reinforcement Sub-assy, Roof Panel
2014-11 → 2020-08 ended
ZVW40 LHD —
63103-47020 Reinforcement Sub-assy, Roof Panel
2014-11 → 2021-09 ended
ZVW40 RHD —
63103-47030 note Reinforcement Sub-assy, Roof Panel
2014-11 → 2020-08 ended
ZVW40 LHD —
63103-47030 Reinforcement Sub-assy, Roof Panel
2020-08 → 2021-09 ended
ZVW40 LHD —
63104E — Reinforcement Sub-assy, Roof Panel, Rear
63104-47010 Reinforcement Sub-assy, Roof Panel, Rear
2012-03 → 2014-11 ended
ZVW40 —
63104-47020 note Reinforcement Sub-assy, Roof Panel, Rear
2012-03 → 2014-11 ended
ZVW40 —
63104-47010 Reinforcement Sub-assy, Roof Panel, Rear
2014-11 → 2020-08 ended
ZVW40 LHD —
63104-47010 Reinforcement Sub-assy, Roof Panel, Rear
2014-11 → 2021-09 ended
ZVW40 RHD —
63104-47020 note Reinforcement Sub-assy, Roof Panel, Rear
2014-11 → 2020-08 ended
ZVW40 LHD —
63104-47020 Reinforcement Sub-assy, Roof Panel, Rear
2020-08 → 2021-09 ended
ZVW40 LHD —
63105A — Frame Sub-assy, Back Door Opening
63105-47030 Frame Sub-assy, Back Door Opening
2012-03 → 2014-11 ended
ZVW40 —
63105-47030 Frame Sub-assy, Back Door Opening
2014-11 → 2021-09 ended
ZVW40 —
63113B — Panel, Roof, Rear
63113-47010 note Panel, Roof, Rear
2012-03 → 2014-11 ended
ZVW40 —
63113-47010 note Panel, Roof, Rear
2014-11 → 2020-08 ended
ZVW40 LHD —
63113-47010 Panel, Roof, Rear
2020-08 → 2021-09 ended
ZVW40 LHD —
63127 — Reinforcement, Roof Panel, NO.5
63127-47020 Reinforcement, Roof Panel, NO.5
2012-03 → 2014-11 ended
ZVW40 —
63127-47030 note Reinforcement, Roof Panel, NO.5
2012-03 → 2014-11 ended
ZVW40 —
63127-47020 Reinforcement, Roof Panel, NO.5
2014-11 → 2021-09 ended
ZVW40 RHD —
63127-47020 Reinforcement, Roof Panel, NO.5
2014-11 → 2020-08 ended
ZVW40 LHD —
63127-47030 Reinforcement, Roof Panel, NO.5
2020-08 → 2021-09 ended
ZVW40 LHD —
63127-47030 note Reinforcement, Roof Panel, NO.5
2014-11 → 2020-08 ended
ZVW40 LHD —
63142D — Reinforcement Sub-assy, Roof Panel, Rear
63142-47030 note Reinforcement Sub-assy, Roof Panel, Rear
2012-03 → 2014-11 ended
ZVW40 —
63142-47030 note Reinforcement Sub-assy, Roof Panel, Rear
2014-11 → 2020-08 ended
ZVW40 LHD —
63142-47030 Reinforcement Sub-assy, Roof Panel, Rear
2020-08 → 2021-09 ended
ZVW40 LHD —
63202H — Rail Sub-assy, Slide Roof
63202-47030 Rail Sub-assy, Slide Roof
2012-03 → 2012-10 ended
ZVW40 —
63202-47030 note Rail Sub-assy, Slide Roof
2012-03 → 2012-10 ended
ZVW40 —
63202-47030 note Rail Sub-assy, Slide Roof
2012-10 → 2014-11 ended
ZVW40 —
63202-47030 note Rail Sub-assy, Slide Roof
2014-11 → 2020-08 ended
ZVW40 LHD —
63202-47030 Rail Sub-assy, Slide Roof
2020-08 → 2021-09 ended
ZVW40 LHD —
63212A — Glass, Roof Window
63201-47040 note Glass, Roof Window
2012-03 → 2014-11 ended
ZVW40 —
63201-47040 note Glass, Roof Window
2014-11 → 2020-08 ended
ZVW40 LHD —
63201-47040 Glass, Roof Window
2020-08 → 2021-09 ended
ZVW40 LHD —
63215A — Moulding, Roof Window, Upper
75557-47010 note Moulding, Roof Window, Upper
2012-03 → 2014-11 ended
ZVW40 —
75557-47010 note Moulding, Roof Window, Upper
2014-11 → 2020-08 ended
ZVW40 LHD —
75557-47010 Moulding, Roof Window, Upper
2020-08 → 2021-09 ended
ZVW40 LHD —
63227L — Clip, Roof Window
63228-47010 note Clip, Roof Window
2012-03 → 2014-11 ended
ZVW40 —
63228-47010 note Clip, Roof Window
2014-11 → 2020-08 ended
ZVW40 LHD —
63228-47010 Clip, Roof Window
2020-08 → 2021-09 ended
ZVW40 LHD —
63250H — Housing Assy, Sunshade
63250-47022-B1 note Housing Assy, Sunshade
2012-03 → 2012-10 ended
ZVW40 —
63250-47022-B1 note Housing Assy, Sunshade
2012-10 → 2014-10 ended
ZVW40 —
63250-47022-B1 note Housing Assy, Sunshade
2012-03 → 2012-10 ended
ZVW40 —
63250-47023-B1 note Housing Assy, Sunshade
2014-11 → 2015-02 ended
ZVW40 LHD —
63250-47030-B0 note Housing Assy, Sunshade
2015-02 → 2015-05 ended
ZVW40 LHD —
63250-47050-B0 note Housing Assy, Sunshade
2015-05 → 2020-08 ended
ZVW40 LHD —
63250-47050-B0 note Housing Assy, Sunshade
2020-08 → 2021-09 ended
ZVW40 LHD —
63251N — Dam, Roof Window Glass Adhesive, NO.1
56117-50140 note Dam, Roof Window Glass Adhesive, NO.1
2012-03 → 2014-11 ended
ZVW40 —
56117-50140 note Dam, Roof Window Glass Adhesive, NO.1
2014-11 → 2020-08 ended
ZVW40 LHD —
56117-50140 note Dam, Roof Window Glass Adhesive, NO.1
2020-08 → 2021-09 ended
ZVW40 LHD —
63260H — Gear Assy, Sliding Roof Drive
63260-47020 note Gear Assy, Sliding Roof Drive
2012-03 → 2012-10 ended
ZVW40 —
63260-47020 note Gear Assy, Sliding Roof Drive
2012-10 → 2014-11 ended
ZVW40 —
63260-47020 Gear Assy, Sliding Roof Drive
2012-03 → 2012-10 ended
ZVW40 —
63260-47020 note Gear Assy, Sliding Roof Drive
2014-11 → 2020-08 ended
ZVW40 LHD —
63260-47020 Gear Assy, Sliding Roof Drive
2020-08 → 2021-09 ended
ZVW40 LHD —
63514A — Wire, Connector
63514-47010 Wire, Connector
2012-03 → 2012-10 ended
ZVW40 —
63514-47010 note Wire, Connector
2012-03 → 2012-10 ended
ZVW40 —
63514-47010 note Wire, Connector
2012-10 → 2014-11 ended
ZVW40 —
63514-47010 note Wire, Connector
2014-11 → 2020-08 ended
ZVW40 LHD —
63514-47010 Wire, Connector
2020-08 → 2021-09 ended
ZVW40 LHD —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
