Toyota Prius +/V/A(ALPHA)

2012-03 → 2021-09 · chassis ZVW40 · catalogue 225510 · Europe

Supported model Data version 2017-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

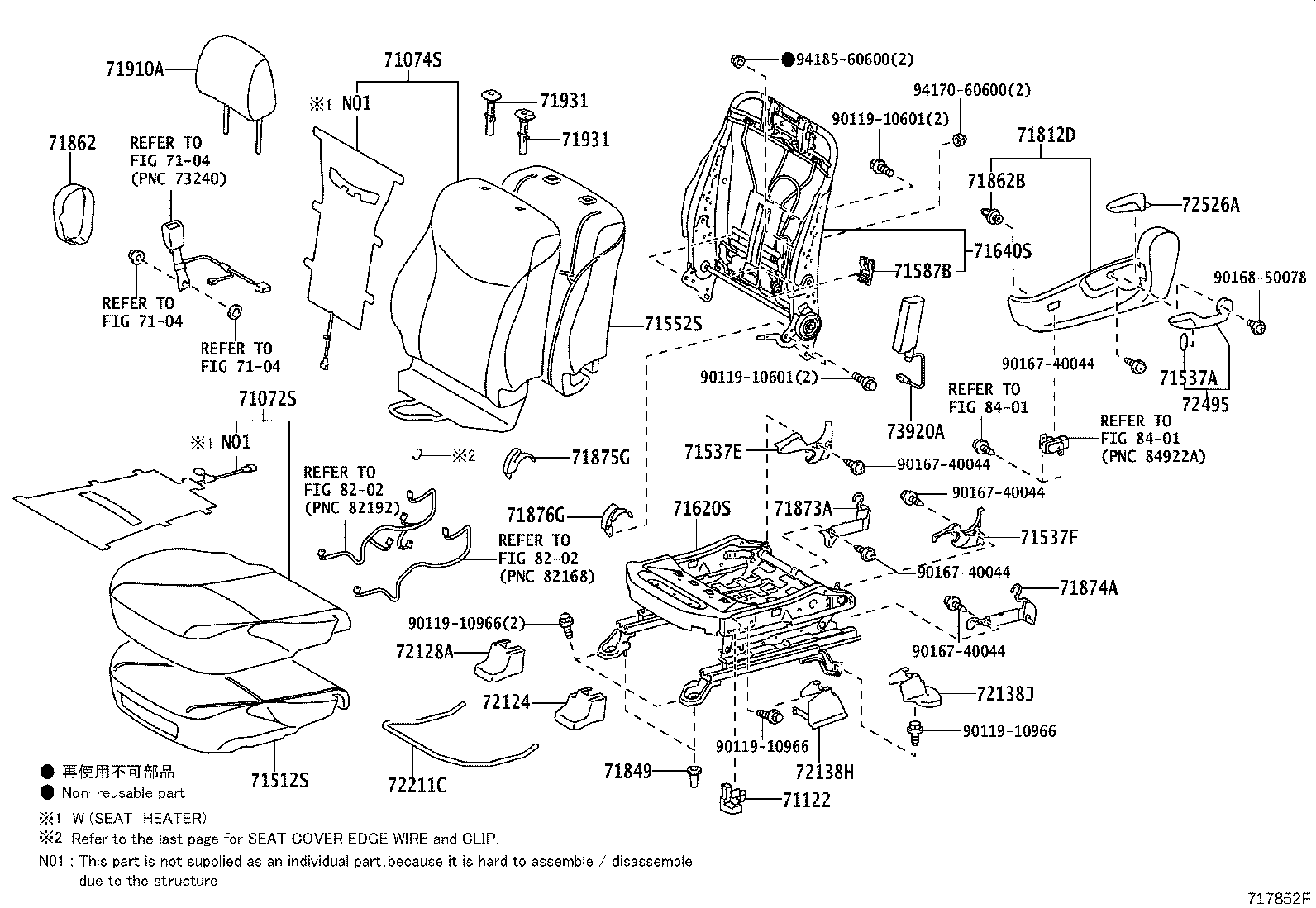

Exploded illustration 717852F 71910A — HEADREST ASSY, FRONT SEAT (34 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (12 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (12 parts) 71875G — COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) (8 parts) 71876G — COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) (4 parts) 71873A — SHIELD, FRONT SEAT CUSHION, LOWER (6 parts) 71874A — SHIELD, FRONT SEAT CUSHION, LOWER LH (6 parts) 71537E — PROTECTOR, FRONT SEAT CUSHION, NO.1 (8 parts) 71537F — PROTECTOR, FRONT SEAT CUSHION, NO.2 (12 parts) 71640S — SPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (9 parts) 9011910966 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 71620S — SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) (25 parts) 8202 — not listed in this catalogue 8202 — not listed in this catalogue 9011910601 — not listed in this catalogue 9011910601 — not listed in this catalogue 71512S — PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) (8 parts) 71072S — COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) (80 parts) 71074S — COVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (50 parts) 8401 — not listed in this catalogue 9011910966 — not listed in this catalogue 9011910966 — not listed in this catalogue 72138H — COVER, FRONT SEAT TRACK, LH REAR INNER (2 parts) 72138J — COVER, FRONT SEAT TRACK, LH REAR OUTER (2 parts) 9016740044 — not listed in this catalogue 72526A — HANDLE, RECLINING ADJUSTER RELEASE, LH (4 parts) 71812D — SHIELD, FRONT SEAT CUSHION, LH (12 parts) 71552S — PAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (7 parts) 71849 — CAP, SEAT ADJUSTER COVER, LH (2 parts) 71122 — BRACKET, FRONT SEAT CUSHION, LH (2 parts) 72211C — HANDLE, SEAT TRACK ADJUSTING (3 parts) 72124 — COVER, SEAT TRACK BRACKET, OUTER FRONT LH (2 parts) 72128A — COVER, SEAT TRACK BRACKET, INNER FRONT LH (2 parts) 9016850078 — not listed in this catalogue 72495 — HANDLE, VERTICAL ADJUSTING, LH (3 parts) 71537A — PROTECTOR, FRONT SEAT CUSHION (3 parts) 71862B — CLIP(FOR FRONT SEAT SHIELD, LH) (2 parts) 73920A — AIRBAG ASSY, FRONT SEAT, LH (2 parts) 9418560600 — not listed in this catalogue 9417060600 — not listed in this catalogue 71587B — PROTECTOR, FRONT SEATBACK EDGE (2 parts) 71862 — SHIELD, FRONT SEAT CUSHION, INNER LH (12 parts) 7104 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 8401 — not listed in this catalogue
717852F · 30 callouts, 20 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
324 parts on this figure
Part number Description Fitment Price
71072S — Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71072-47310-B5 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2012-03 → 2013-01 ended
ZVW40 LHD —
71072-47310-B6 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-01 → 2013-08 ended
ZVW40 LHD —
71072-47310-G3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2012-03 → 2013-01 ended
ZVW40 LHD —
71072-47310-G4 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-01 → 2013-08 ended
ZVW40 LHD —
71072-47311-B6 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-08 → 2014-11 ended
ZVW40 LHD —
71072-47311-G4 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-08 → 2014-11 ended
ZVW40 LHD —
71072-47320-B1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2012-03 → 2013-01 ended
ZVW40 LHD —
71072-47320-B2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-08 → 2014-11 ended
ZVW40 LHD —
71072-47320-B2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-08 → 2014-11 ended
ZVW40 LHD —
71072-47320-B2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-01 → 2013-08 ended
ZVW40 LHD —
71072-47320-G1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2012-03 → 2013-01 ended
ZVW40 LHD —
71072-47320-G2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-08 → 2014-11 ended
ZVW40 LHD —
71072-47320-G2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-08 → 2014-11 ended
ZVW40 LHD —
71072-47320-G2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-01 → 2013-08 ended
ZVW40 LHD —
71072-47340-B5 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2012-03 → 2013-01 ended
ZVW40 RHD —
71072-47340-B5 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-01 → 2013-08 ended
ZVW40 RHD —
71072-47340-B5 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2012-03 → 2013-08 ended
ZVW40 LHD —
71072-47340-B6 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-01 → 2013-08 ended
ZVW40 RHD —
71072-47340-G3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2012-03 → 2013-01 ended
ZVW40 RHD —
71072-47340-G3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-01 → 2013-08 ended
ZVW40 RHD —
71072-47340-G3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2012-03 → 2013-08 ended
ZVW40 LHD —
71072-47340-G4 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-01 → 2013-08 ended
ZVW40 RHD —
71072-47341-B6 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-08 → 2014-11 ended
ZVW40 RHD —
71072-47341-G4 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-08 → 2014-11 ended
ZVW40 RHD —
71072-47520-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2012-03 → 2013-01 ended
ZVW40 LHD —
71072-47520-B1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-08 → 2014-11 ended
ZVW40 LHD —
71072-47520-B1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-01 → 2013-08 ended
ZVW40 LHD —
71072-47520-B1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-08 → 2014-11 ended
ZVW40 LHD —
71072-47520-G0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2012-03 → 2013-01 ended
ZVW40 LHD —
71072-47520-G1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-01 → 2013-08 ended
ZVW40 LHD —
71072-47520-G1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-08 → 2014-11 ended
ZVW40 LHD —
71072-47520-G1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-08 → 2014-11 ended
ZVW40 LHD —
71072-47530-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2012-03 → 2013-01 ended
ZVW40 RHD —
71072-47530-B1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-08 → 2014-11 ended
ZVW40 RHD —
71072-47530-B1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-08 → 2014-11 ended
ZVW40 RHD —
71072-47530-B1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-01 → 2013-08 ended
ZVW40 RHD —
71072-47530-G0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2012-03 → 2013-01 ended
ZVW40 RHD —
71072-47530-G1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-08 → 2014-11 ended
ZVW40 RHD —
71072-47530-G1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-08 → 2014-11 ended
ZVW40 RHD —
71072-47530-G1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-01 → 2013-08 ended
ZVW40 RHD —
71072-47540-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2012-03 → 2013-01 ended
ZVW40 RHD —
71072-47540-B1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-08 → 2014-11 ended
ZVW40 RHD —
71072-47540-B1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-08 → 2014-11 ended
ZVW40 RHD —
71072-47540-B1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-01 → 2013-08 ended
ZVW40 RHD —
71072-47540-G0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2012-03 → 2013-01 ended
ZVW40 RHD —
71072-47540-G1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-08 → 2014-11 ended
ZVW40 RHD —
71072-47540-G1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-08 → 2014-11 ended
ZVW40 RHD —
71072-47540-G1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-01 → 2013-08 ended
ZVW40 RHD —
71072-47580-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2012-03 → 2013-01 ended
ZVW40 RHD —
71072-47580-B1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-01 → 2014-11 ended
ZVW40 RHD —
71072-47580-G0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2012-03 → 2013-01 ended
ZVW40 RHD —
71072-47580-G1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-01 → 2014-11 ended
ZVW40 RHD —
71072-47590-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2012-03 → 2013-01 ended
ZVW40 LHD —
71072-47590-B1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-01 → 2014-11 ended
ZVW40 LHD —
71072-47590-G0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2012-03 → 2013-01 ended
ZVW40 LHD —
71072-47590-G1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-01 → 2014-11 ended
ZVW40 LHD —
71072-47410-B1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-12 → 2021-09 ended
ZVW40 RHD —
71072-47410-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-12 → 2021-09 ended
ZVW40 RHD —
71072-47690-B3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2014-11 → 2017-12 ended
ZVW40 LHD —
71072-47690-B3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-12 → 2020-08 ended
ZVW40 LHD —
71072-47690-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-12 → 2020-08 ended
ZVW40 LHD —
71072-47690-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2014-11 → 2017-12 ended
ZVW40 LHD —
71072-47700-B2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2014-11 → 2017-12 ended
ZVW40 LHD —
71072-47700-B2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-12 → 2020-08 ended
ZVW40 LHD —
71072-47700-B2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2020-08 → 2021-09 ended
ZVW40 LHD —
71072-47700-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2014-11 → 2017-12 ended
ZVW40 LHD —
71072-47700-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-12 → 2020-08 ended
ZVW40 LHD —
71072-47700-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2020-08 → 2021-09 ended
ZVW40 LHD —
71072-47710-B1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-12 → 2020-08 ended
ZVW40 LHD —
71072-47710-B1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2014-11 → 2017-12 ended
ZVW40 LHD —
71072-47710-C1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2014-11 → 2017-12 ended
ZVW40 LHD —
71072-47710-C1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-12 → 2020-08 ended
ZVW40 LHD —
71072-47720-B1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2014-11 → 2017-12 ended
ZVW40 RHD —
71072-47720-B1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-12 → 2020-08 ended
ZVW40 RHD —
71072-47720-C1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2014-11 → 2017-12 ended
ZVW40 RHD —
71072-47720-C1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-12 → 2020-08 ended
ZVW40 RHD —
71072-47730-B2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2014-11 → 2020-08 ended
ZVW40 RHD —
71072-47730-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2014-11 → 2020-08 ended
ZVW40 RHD —
71072-47740-B1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2014-11 → 2017-12 ended
ZVW40 LHD —
71072-47740-C1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2014-11 → 2017-12 ended
ZVW40 LHD —
71074S — Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71074-47320-B1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2012-03 → 2012-09 ended
ZVW40 —
71074-47320-G1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2012-03 → 2012-09 ended
ZVW40 —
71074-47321-B3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2012-09 → 2013-08 ended
ZVW40 —
71074-47321-G3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2012-09 → 2013-08 ended
ZVW40 —
71074-47330-B1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2012-03 → 2012-09 ended
ZVW40 —
71074-47330-G1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2012-03 → 2012-09 ended
ZVW40 —
71074-47331-B3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2012-09 → 2013-08 ended
ZVW40 —
71074-47331-B4 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2013-08 → 2014-11 ended
ZVW40 —
71074-47331-G3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2012-09 → 2013-08 ended
ZVW40 —
71074-47331-G4 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2013-08 → 2014-11 ended
ZVW40 —
71074-47340-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2012-03 → 2012-09 ended
ZVW40 —
71074-47340-G0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2012-03 → 2012-09 ended
ZVW40 —
71074-47341-B2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2012-09 → 2013-08 ended
ZVW40 —
71074-47341-B3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2013-08 → 2014-11 ended
ZVW40 —
71074-47341-B3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2013-08 → 2014-11 ended
ZVW40 —
71074-47341-G2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2012-09 → 2013-08 ended
ZVW40 —
71074-47341-G3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2013-08 → 2014-11 ended
ZVW40 —
71074-47341-G3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2013-08 → 2014-11 ended
ZVW40 —
71074-47350-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2012-03 → 2012-08 ended
ZVW40 —
71074-47350-B1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2012-08 → 2013-08 ended
ZVW40 —
71074-47350-B2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2013-08 → 2014-11 ended
ZVW40 —
71074-47350-B2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2013-08 → 2014-11 ended
ZVW40 —
71074-47350-G0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2012-03 → 2012-08 ended
ZVW40 —
71074-47350-G1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2012-08 → 2013-08 ended
ZVW40 —
71074-47350-G2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2013-08 → 2014-11 ended
ZVW40 —
71074-47350-G2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2013-08 → 2014-11 ended
ZVW40 —
71074-47400-B0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2012-03 → 2012-09 ended
ZVW40 —
71074-47400-G0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2012-03 → 2012-09 ended
ZVW40 —
71074-47401-B2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2012-09 → 2013-08 ended
ZVW40 —
71074-47401-B3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2013-08 → 2014-11 ended
ZVW40 —
71074-47401-G2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2012-09 → 2013-08 ended
ZVW40 —
71074-47401-G3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2013-08 → 2014-11 ended
ZVW40 —
71074-47710-B3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-12 → 2021-09 ended
ZVW40 RHD —
71074-47710-B3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-12 → 2020-08 ended
ZVW40 LHD —
71074-47710-B3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2014-11 → 2017-12 ended
ZVW40 LHD —
71074-47710-C3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2014-11 → 2017-12 ended
ZVW40 LHD —
71074-47710-C3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-12 → 2020-08 ended
ZVW40 LHD —
71074-47710-C3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-12 → 2021-09 ended
ZVW40 RHD —
71074-47720-B3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2014-11 → 2017-12 ended
ZVW40 —
71074-47720-B3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-12 → 2020-08 ended
ZVW40 —
71074-47720-C3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2014-11 → 2017-12 ended
ZVW40 —
71074-47720-C3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-12 → 2020-08 ended
ZVW40 —
71074-47730-B5 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2014-11 → 2017-12 ended
ZVW40 LHD —
71074-47730-B5 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2014-11 → 2020-08 ended
ZVW40 RHD —
71074-47730-B5 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2020-08 → 2021-09 ended
ZVW40 LHD —
71074-47730-B5 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-12 → 2020-08 ended
ZVW40 LHD —
71074-47730-C5 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2020-08 → 2021-09 ended
ZVW40 LHD —
71074-47730-C5 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2014-11 → 2020-08 ended
ZVW40 RHD —
71074-47730-C5 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2014-11 → 2017-12 ended
ZVW40 LHD —
71074-47730-C5 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-12 → 2020-08 ended
ZVW40 LHD —
71122 — Bracket, Front Seat Cushion, LH
71122-47010 Bracket, Front Seat Cushion, LH
2012-03 → 2014-11 ended
ZVW40 LHD —
71122-47010 Bracket, Front Seat Cushion, LH
2014-11 → 2020-08 ended
ZVW40 LHD —
71512S — Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71502-47020 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2012-03 → 2014-11 ended
ZVW40 RHD —
71512-47090 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2012-03 → 2014-11 ended
ZVW40 LHD —
71502-47020 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2014-11 → 2021-09 ended
ZVW40 RHD —
71512-47090 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2014-11 → 2020-08 ended
ZVW40 LHD —
71512-47130 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2017-12 → 2020-08 ended
ZVW40 LHD —
71512-47130 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2020-08 → 2021-09 ended
ZVW40 LHD —
71512-47130 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2014-11 → 2017-12 ended
ZVW40 LHD —
71512-47130 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2014-11 → 2017-12 ended
ZVW40 LHD —
71537A — Protector, Front Seat Cushion
71537-47040 Protector, Front Seat Cushion
2012-03 → 2014-11 ended
ZVW40 —
71537-47040 Protector, Front Seat Cushion
2014-11 → 2020-08 ended
ZVW40 LHD —
71537-47040 Protector, Front Seat Cushion
2014-11 → 2021-09 ended
ZVW40 RHD —
71537E — Protector, Front Seat Cushion, NO.1
71537-47010-B1 note Protector, Front Seat Cushion, NO.1
2012-03 → 2014-11 ended
ZVW40 LHD —
71537-47010-G0 note Protector, Front Seat Cushion, NO.1
2012-03 → 2014-11 ended
ZVW40 LHD —
71537-47020-B1 note Protector, Front Seat Cushion, NO.1
2012-03 → 2013-08 ended
ZVW40 LHD —
71537-47020-B1 note Protector, Front Seat Cushion, NO.1
2012-03 → 2014-11 ended
ZVW40 RHD —
71537-47020-G0 note Protector, Front Seat Cushion, NO.1
2012-03 → 2013-08 ended
ZVW40 LHD —
71537-47020-G0 note Protector, Front Seat Cushion, NO.1
2012-03 → 2014-11 ended
ZVW40 RHD —
71537-47010-C0 note Protector, Front Seat Cushion, NO.1
2014-11 → 2021-09 ended
ZVW40 LHD —
71537-47020-C0 note Protector, Front Seat Cushion, NO.1
2014-11 → 2021-09 ended
ZVW40 RHD —
71537F — Protector, Front Seat Cushion, NO.2
71538-47010-B1 note Protector, Front Seat Cushion, NO.2
2012-03 → 2014-11 ended
ZVW40 LHD —
71538-47010-G0 note Protector, Front Seat Cushion, NO.2
2012-03 → 2014-11 ended
ZVW40 LHD —
71538-47020-B1 note Protector, Front Seat Cushion, NO.2
2012-03 → 2013-08 ended
ZVW40 LHD —
71538-47020-B1 note Protector, Front Seat Cushion, NO.2
2012-03 → 2014-11 ended
ZVW40 RHD —
71538-47020-G0 note Protector, Front Seat Cushion, NO.2
2012-03 → 2013-08 ended
ZVW40 LHD —
71538-47020-G0 note Protector, Front Seat Cushion, NO.2
2012-03 → 2014-11 ended
ZVW40 RHD —
71538-47010-C0 note Protector, Front Seat Cushion, NO.2
2014-11 → 2020-08 ended
ZVW40 LHD —
71538-47020-C0 note Protector, Front Seat Cushion, NO.2
2014-11 → 2021-09 ended
ZVW40 RHD —
71538-52050-C0 note Protector, Front Seat Cushion, NO.2
2020-08 → 2021-09 ended
ZVW40 LHD —
71538-52050-C0 note Protector, Front Seat Cushion, NO.2
2014-11 → 2017-12 ended
ZVW40 LHD —
71538-52050-C0 note Protector, Front Seat Cushion, NO.2
2014-11 → 2017-12 ended
ZVW40 LHD —
71538-52050-C0 note Protector, Front Seat Cushion, NO.2
2017-12 → 2020-08 ended
ZVW40 LHD —
71552S — Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71552-47150 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2012-03 → 2014-11 ended
ZVW40 —
71552-47150 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2014-11 → 2020-08 ended
ZVW40 LHD —
71552-47150 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2014-11 → 2021-09 ended
ZVW40 RHD —
71552-47210 note Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2014-11 → 2017-12 ended
ZVW40 LHD —
71552-47210 note Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2014-11 → 2017-12 ended
ZVW40 LHD —
71552-47210 note Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2017-12 → 2020-08 ended
ZVW40 LHD —
71552-47210 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2020-08 → 2021-09 ended
ZVW40 LHD —
71587B — Protector, Front Seatback Edge
71587-52030 Protector, Front Seatback Edge
2012-03 → 2014-11 ended
ZVW40 —
71587-52030 Protector, Front Seatback Edge
2014-11 → 2021-09 ended
ZVW40 —
71620S — Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71620-47100 Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2012-03 → 2012-09 ended
ZVW40 RHD —
71620-47100 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2012-03 → 2012-09 ended
ZVW40 LHD —
71620-47101 Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2012-09 → 2014-11 ended
ZVW40 RHD —
71620-47101 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2012-09 → 2013-08 ended
ZVW40 LHD —
71620-47140 Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2012-03 → 2012-09 ended
ZVW40 LHD —
71620-47141 Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2012-09 → 2014-11 ended
ZVW40 LHD —
71620-47150 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2012-03 → 2012-09 ended
ZVW40 RHD —
71620-47150 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2012-03 → 2012-09 ended
ZVW40 RHD —
71620-47150 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2012-03 → 2012-09 ended
ZVW40 RHD —
71620-47151 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2012-09 → 2013-08 ended
ZVW40 RHD —
71620-47151 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2012-09 → 2013-08 ended
ZVW40 RHD —
71620-47151 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2012-09 → 2014-11 ended
ZVW40 RHD —
71620-47151 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-08 → 2014-11 ended
ZVW40 RHD —
71620-47151 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-08 → 2014-11 ended
ZVW40 RHD —
71620-47151 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-08 → 2014-11 ended
ZVW40 RHD —
71620-47151 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2013-08 → 2014-11 ended
ZVW40 RHD —
71620-47240 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2014-11 → 2017-12 ended
ZVW40 LHD —
71620-47240 Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2020-08 → 2021-09 ended
ZVW40 LHD —
71620-47240 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-12 → 2020-08 ended
ZVW40 LHD —
71620-47240 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2014-11 → 2017-12 ended
ZVW40 LHD —
71620-47310 Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-12 → 2021-09 ended
ZVW40 RHD —
71620-47330 Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2014-11 → 2020-08 ended
ZVW40 LHD —
71620-47340 Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2014-11 → 2017-12 ended
ZVW40 RHD —
71620-47340 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-12 → 2020-08 ended
ZVW40 RHD —
71620-47340 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-12 → 2020-08 ended
ZVW40 RHD —
71640S — Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71640-47120 note Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
2012-03 → 2013-08 ended
ZVW40 LHD —
71640-47120 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
2012-03 → 2014-11 ended
ZVW40 RHD —
71640-47130 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
2012-03 → 2014-11 ended
ZVW40 LHD —
71640-47120 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
2014-11 → 2021-09 ended
ZVW40 RHD —
71640-47130 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
2014-11 → 2020-08 ended
ZVW40 LHD —
71640-47150 note Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
2017-12 → 2020-08 ended
ZVW40 LHD —
71640-47150 note Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
2014-11 → 2017-12 ended
ZVW40 LHD —
71640-47150 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
2020-08 → 2021-09 ended
ZVW40 LHD —
71640-47150 note Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
2014-11 → 2017-12 ended
ZVW40 LHD —
71812D — Shield, Front Seat Cushion, LH
71812-47070-B1 note Shield, Front Seat Cushion, LH
2012-03 → 2014-11 ended
ZVW40 LHD —
71812-47070-G0 note Shield, Front Seat Cushion, LH
2012-03 → 2014-11 ended
ZVW40 LHD —
71812-47090-B1 note Shield, Front Seat Cushion, LH
2012-03 → 2013-08 ended
ZVW40 LHD —
71812-47090-B1 note Shield, Front Seat Cushion, LH
2012-03 → 2014-11 ended
ZVW40 RHD —
71812-47090-G0 note Shield, Front Seat Cushion, LH
2012-03 → 2013-08 ended
ZVW40 LHD —
71812-47090-G0 note Shield, Front Seat Cushion, LH
2012-03 → 2014-11 ended
ZVW40 RHD —
71812-47070-C0 note Shield, Front Seat Cushion, LH
2014-11 → 2020-08 ended
ZVW40 LHD —
71812-47090-C0 note Shield, Front Seat Cushion, LH
2014-11 → 2021-09 ended
ZVW40 RHD —
71812-47120-C0 note Shield, Front Seat Cushion, LH
2014-11 → 2017-12 ended
ZVW40 LHD —
71812-47120-C0 note Shield, Front Seat Cushion, LH
2020-08 → 2021-09 ended
ZVW40 LHD —
71812-47120-C0 note Shield, Front Seat Cushion, LH
2017-12 → 2020-08 ended
ZVW40 LHD —
71812-47120-C0 note Shield, Front Seat Cushion, LH
2014-11 → 2017-12 ended
ZVW40 LHD —
71849 — Cap, Seat Adjuster Cover, LH
71848-47010 Cap, Seat Adjuster Cover, LH
2012-03 → 2014-11 ended
ZVW40 —
71848-47010 Cap, Seat Adjuster Cover, LH
2014-11 → 2021-09 ended
ZVW40 —
71862 — Shield, Front Seat Cushion, Inner LH
71862-47040-B1 note Shield, Front Seat Cushion, Inner LH
2012-03 → 2014-11 ended
ZVW40 LHD —
71862-47040-G0 note Shield, Front Seat Cushion, Inner LH
2012-03 → 2014-11 ended
ZVW40 LHD —
71862-47070-B1 note Shield, Front Seat Cushion, Inner LH
2012-03 → 2013-08 ended
ZVW40 LHD —
71862-47070-B1 note Shield, Front Seat Cushion, Inner LH
2012-03 → 2014-11 ended
ZVW40 RHD —
71862-47070-G0 note Shield, Front Seat Cushion, Inner LH
2012-03 → 2013-08 ended
ZVW40 LHD —
71862-47070-G0 note Shield, Front Seat Cushion, Inner LH
2012-03 → 2014-11 ended
ZVW40 RHD —
71862-47040-C0 note Shield, Front Seat Cushion, Inner LH
2014-11 → 2020-08 ended
ZVW40 LHD —
71862-47070-C0 note Shield, Front Seat Cushion, Inner LH
2014-11 → 2021-09 ended
ZVW40 RHD —
71862-76010-C0 note Shield, Front Seat Cushion, Inner LH
2014-11 → 2017-12 ended
ZVW40 LHD —
71862-76010-C0 note Shield, Front Seat Cushion, Inner LH
2014-11 → 2017-12 ended
ZVW40 LHD —
71862-76010-C0 note Shield, Front Seat Cushion, Inner LH
2017-12 → 2020-08 ended
ZVW40 LHD —
71862-76010-C0 note Shield, Front Seat Cushion, Inner LH
2020-08 → 2021-09 ended
ZVW40 LHD —
71862B — Clip(FOR FRONT SEAT SHIELD, LH)
71769-47020 Clip(FOR FRONT SEAT SHIELD, LH)
2012-03 → 2014-11 ended
ZVW40 —
71769-47020 Clip(FOR FRONT SEAT SHIELD, LH)
2014-11 → 2021-09 ended
ZVW40 —
71873A — Shield, Front Seat Cushion, Lower
71873-47040 Shield, Front Seat Cushion, Lower
2012-03 → 2014-11 ended
ZVW40 LHD —
71873-47040 Shield, Front Seat Cushion, Lower
2014-11 → 2020-08 ended
ZVW40 LHD —
71873-60030 note Shield, Front Seat Cushion, Lower
2014-11 → 2017-12 ended
ZVW40 LHD —
71873-60030 note Shield, Front Seat Cushion, Lower
2014-11 → 2017-12 ended
ZVW40 LHD —
71873-60030 note Shield, Front Seat Cushion, Lower
2017-12 → 2020-08 ended
ZVW40 LHD —
71873-60030 Shield, Front Seat Cushion, Lower
2020-08 → 2021-09 ended
ZVW40 LHD —
71874A — Shield, Front Seat Cushion, Lower LH
71874-47040 Shield, Front Seat Cushion, Lower LH
2012-03 → 2014-11 ended
ZVW40 LHD —
71874-47040 Shield, Front Seat Cushion, Lower LH
2014-11 → 2020-08 ended
ZVW40 LHD —
71874-60110 Shield, Front Seat Cushion, Lower LH
2020-08 → 2021-09 ended
ZVW40 LHD —
71874-60110 note Shield, Front Seat Cushion, Lower LH
2014-11 → 2017-12 ended
ZVW40 LHD —
71874-60110 note Shield, Front Seat Cushion, Lower LH
2014-11 → 2017-12 ended
ZVW40 LHD —
71874-60110 note Shield, Front Seat Cushion, Lower LH
2017-12 → 2020-08 ended
ZVW40 LHD —
71875G — Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71875-47030-B1 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2012-03 → 2014-11 ended
ZVW40 —
71875-47030-G0 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2012-03 → 2014-11 ended
ZVW40 —
71875-47030-C0 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2014-11 → 2020-08 ended
ZVW40 LHD —
71875-47030-C0 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2014-11 → 2021-09 ended
ZVW40 RHD —
71875-60210-C0 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2014-11 → 2017-12 ended
ZVW40 LHD —
71875-60210-C0 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2014-11 → 2017-12 ended
ZVW40 LHD —
71875-60210-C0 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2017-12 → 2020-08 ended
ZVW40 LHD —
71875-60210-C0 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2020-08 → 2021-09 ended
ZVW40 LHD —
71876G — Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71876-47030-B1 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2012-03 → 2014-11 ended
ZVW40 —
71876-47030-G0 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2012-03 → 2014-11 ended
ZVW40 —
71876-47030-C0 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2014-11 → 2021-09 ended
ZVW40 RHD —
71876-47030-C0 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2014-11 → 2020-08 ended
ZVW40 LHD —
71910A — Headrest Assy, Front Seat
71910-47160-B0 note Headrest Assy, Front Seat
2012-03 → 2013-08 ended
ZVW40 —
71910-47160-B0 note Headrest Assy, Front Seat
2013-08 → 2014-11 ended
ZVW40 —
71910-47160-B0 note Headrest Assy, Front Seat
2013-08 → 2014-11 ended
ZVW40 —
71910-47160-G0 note Headrest Assy, Front Seat
2012-03 → 2013-08 ended
ZVW40 —
71910-47160-G0 note Headrest Assy, Front Seat
2013-08 → 2014-11 ended
ZVW40 —
71910-47160-G0 note Headrest Assy, Front Seat
2013-08 → 2014-11 ended
ZVW40 —
71910-47210-B0 note Headrest Assy, Front Seat
2012-03 → 2014-11 ended
ZVW40 —
71910-47210-G0 note Headrest Assy, Front Seat
2012-03 → 2014-11 ended
ZVW40 —
71910-47220-B0 note Headrest Assy, Front Seat
2012-03 → 2013-03 ended
ZVW40 —
71910-47220-B1 note Headrest Assy, Front Seat
2013-03 → 2013-08 ended
ZVW40 —
71910-47220-B1 note Headrest Assy, Front Seat
2013-08 → 2014-11 ended
ZVW40 —
71910-47220-B1 note Headrest Assy, Front Seat
2013-08 → 2014-11 ended
ZVW40 —
71910-47220-G0 note Headrest Assy, Front Seat
2012-03 → 2013-03 ended
ZVW40 —
71910-47220-G1 note Headrest Assy, Front Seat
2013-03 → 2013-08 ended
ZVW40 —
71910-47220-G1 note Headrest Assy, Front Seat
2013-08 → 2014-11 ended
ZVW40 —
71910-47220-G1 note Headrest Assy, Front Seat
2013-08 → 2014-11 ended
ZVW40 —
71910-47300-B2 note Headrest Assy, Front Seat
2014-11 → 2017-12 ended
ZVW40 LHD —
71910-47300-B2 note Headrest Assy, Front Seat
2017-12 → 2021-09 ended
ZVW40 RHD —
71910-47300-B2 note Headrest Assy, Front Seat
2017-12 → 2020-08 ended
ZVW40 LHD —
71910-47300-C1 note Headrest Assy, Front Seat
2014-11 → 2017-12 ended
ZVW40 LHD —
71910-47300-C1 note Headrest Assy, Front Seat
2017-12 → 2021-09 ended
ZVW40 RHD —
71910-47300-C1 note Headrest Assy, Front Seat
2017-12 → 2020-08 ended
ZVW40 LHD —
71910-47320-B0 note Headrest Assy, Front Seat
2017-12 → 2020-08 ended
ZVW40 —
71910-47320-B0 note Headrest Assy, Front Seat
2014-11 → 2017-12 ended
ZVW40 —
71910-47320-C0 note Headrest Assy, Front Seat
2017-12 → 2020-08 ended
ZVW40 —
71910-47320-C0 note Headrest Assy, Front Seat
2014-11 → 2017-12 ended
ZVW40 —
71910-47340-B2 note Headrest Assy, Front Seat
2014-11 → 2017-12 ended
ZVW40 RHD —
71910-47340-B2 note Headrest Assy, Front Seat
2014-11 → 2017-12 ended
ZVW40 LHD —
71910-47340-C3 note Headrest Assy, Front Seat
2014-11 → 2017-12 ended
ZVW40 LHD —
71910-47340-C3 note Headrest Assy, Front Seat
2014-11 → 2017-12 ended
ZVW40 RHD —
71910-47341-B3 note Headrest Assy, Front Seat
2020-08 → 2021-09 ended
ZVW40 LHD —
71910-47341-B3 note Headrest Assy, Front Seat
2017-12 → 2020-08 ended
ZVW40 —
71910-47341-C4 note Headrest Assy, Front Seat
2017-12 → 2020-08 ended
ZVW40 —
71910-47341-C4 note Headrest Assy, Front Seat
2020-08 → 2021-09 ended
ZVW40 LHD —
71931 — Support, Front Seat Headrest
71930-47020-B2 note Support, Front Seat Headrest
2012-03 → 2014-11 ended
ZVW40 —
71930-47020-G0 note Support, Front Seat Headrest
2012-03 → 2014-11 ended
ZVW40 —
71931-47020-B2 note Support, Front Seat Headrest
2012-03 → 2014-11 ended
ZVW40 —
71931-47020-G0 note Support, Front Seat Headrest
2012-03 → 2014-11 ended
ZVW40 —
71930-47020-B0 note Support, Front Seat Headrest
2014-11 → 2021-09 ended
ZVW40 —
71930-47020-C0 note Support, Front Seat Headrest
2014-11 → 2017-10 ended
ZVW40 —
71930-47020-C0 note Support, Front Seat Headrest
2017-10 → 2017-12 ended
ZVW40 LHD —
71930-47020-C4 note Support, Front Seat Headrest
2017-10 → 2021-09 ended
ZVW40 —
71931-47020-B0 note Support, Front Seat Headrest
2014-11 → 2021-09 ended
ZVW40 —
71931-47020-C0 note Support, Front Seat Headrest
2014-11 → 2017-10 ended
ZVW40 —
71931-47020-C0 note Support, Front Seat Headrest
2017-10 → 2017-12 ended
ZVW40 LHD —
71931-47020-C4 note Support, Front Seat Headrest
2017-10 → 2021-09 ended
ZVW40 —
72124 — Cover, Seat Track Bracket, Outer Front LH
72124-47020-C0 note Cover, Seat Track Bracket, Outer Front LH
2012-03 → 2014-11 ended
ZVW40 —
72124-47020-C0 note Cover, Seat Track Bracket, Outer Front LH
2014-11 → 2021-09 ended
ZVW40 —
72128A — Cover, Seat Track Bracket, Inner Front LH
72128-47010-C0 note Cover, Seat Track Bracket, Inner Front LH
2012-03 → 2014-11 ended
ZVW40 —
72128-47010-C0 note Cover, Seat Track Bracket, Inner Front LH
2014-11 → 2021-09 ended
ZVW40 —
72138H — Cover, Front Seat Track, LH Rear Inner
72158-47050-C0 note Cover, Front Seat Track, LH Rear Inner
2012-03 → 2014-11 ended
ZVW40 —
72158-47050-C0 note Cover, Front Seat Track, LH Rear Inner
2014-11 → 2021-09 ended
ZVW40 —
72138J — Cover, Front Seat Track, LH Rear Outer
72138-47050-C0 note Cover, Front Seat Track, LH Rear Outer
2012-03 → 2014-11 ended
ZVW40 —
72138-47050-C0 note Cover, Front Seat Track, LH Rear Outer
2014-11 → 2021-09 ended
ZVW40 —
72211C — Handle, Seat Track Adjusting
72211-47020 Handle, Seat Track Adjusting
2012-03 → 2014-11 ended
ZVW40 —
72211-47020 Handle, Seat Track Adjusting
2014-11 → 2020-08 ended
ZVW40 LHD —
72211-47020 Handle, Seat Track Adjusting
2014-11 → 2021-09 ended
ZVW40 RHD —
72495 — Handle, Vertical Adjusting, LH
72495-47010-B2 note Handle, Vertical Adjusting, LH
2012-03 → 2014-11 ended
ZVW40 LHD —
72495-47010-G0 note Handle, Vertical Adjusting, LH
2012-03 → 2014-11 ended
ZVW40 LHD —
72495-47010-C0 note Handle, Vertical Adjusting, LH
2014-11 → 2020-08 ended
ZVW40 LHD —
72526A — Handle, Reclining Adjuster Release, LH
72526-47010-B1 note Handle, Reclining Adjuster Release, LH
2012-03 → 2014-11 ended
ZVW40 —
72526-47010-G0 note Handle, Reclining Adjuster Release, LH
2012-03 → 2014-11 ended
ZVW40 —
72526-47010-C0 note Handle, Reclining Adjuster Release, LH
2014-11 → 2020-08 ended
ZVW40 LHD —
72526-52040-C0 note Handle, Reclining Adjuster Release, LH
2014-11 → 2021-09 ended
ZVW40 RHD —
73920A — Airbag Assy, Front Seat, LH
73920-47050 Airbag Assy, Front Seat, LH
2012-03 → 2014-11 ended
ZVW40 —
73920-47050 Airbag Assy, Front Seat, LH
2014-11 → 2021-09 ended
ZVW40 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
