Toyota Prius +/V/A(ALPHA)
2012-03 → 2021-09 · chassis ZVW40 · catalogue 225510 · Europe
Supported model
Data version 2017-12

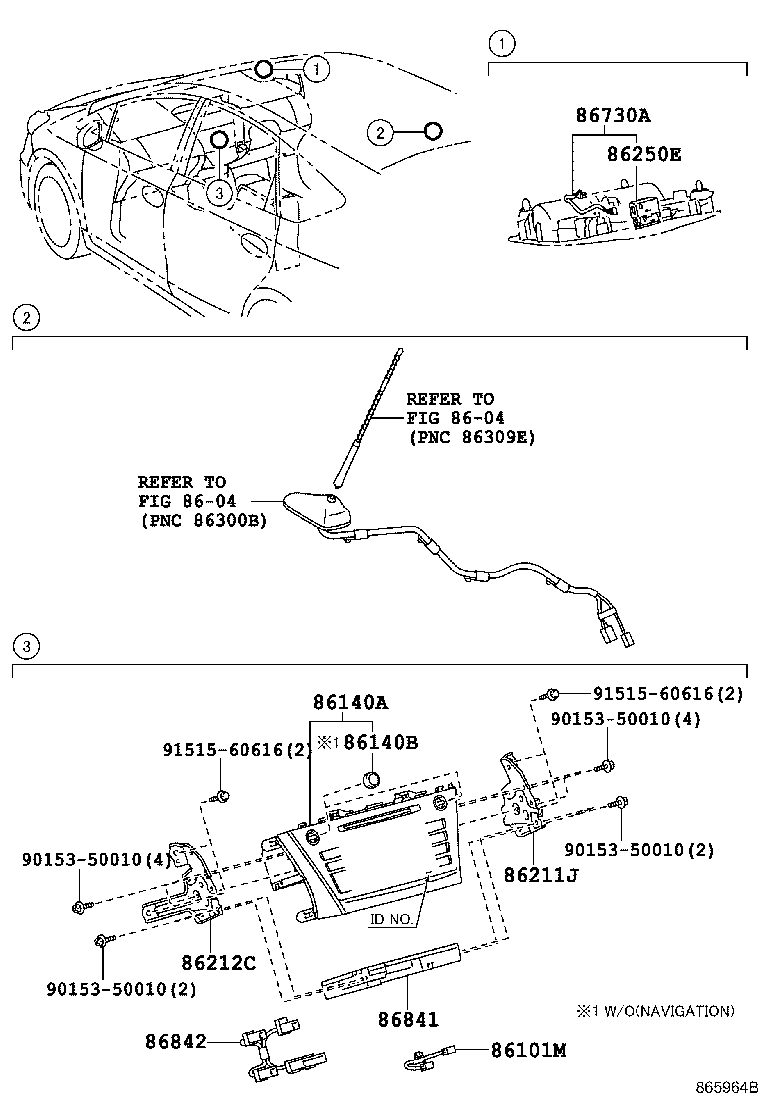

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86101M — Cord Sub-assy, Antenna | ||||
| 86705-33120 note |
Cord Sub-assy, Antenna
2015-09 → 2017-12
ended
|
ZVW40 LHD | — | |
| 86705-33120 note |
Cord Sub-assy, Antenna
2014-11 → 2017-12
ended
|
ZVW40 RHD | — | |
| 86705-33120 note |
Cord Sub-assy, Antenna
2014-11 → 2020-08
ended
|
ZVW40 LHD | — | |
| 86705-33120 note |
Cord Sub-assy, Antenna
2015-09 → 2017-12
ended
|
ZVW40 | — | |
| 86705-33120 note |
Cord Sub-assy, Antenna
2014-11 → 2020-08
ended
|
ZVW40 LHD | — | |
| 86140A — Receiver Assy, Radio & Display | ||||
| 86140-47140 note |
Receiver Assy, Radio & Display
2012-03 → 2014-11
ended
|
ZVW40 RHD | — | |
| 86140-47150 note |
Receiver Assy, Radio & Display
2012-03 → 2014-11
ended
|
ZVW40 LHD | — | |
| 86140-47160 note |
Receiver Assy, Radio & Display
2012-03 → 2014-11
ended
|
ZVW40 RHD | — | |
| 86140-47170 note |
Receiver Assy, Radio & Display
2012-03 → 2014-11
ended
|
ZVW40 LHD | — | |
| 86140-47220 note |
Receiver Assy, Radio & Display
2014-11 → 2015-05
ended
|
ZVW40 RHD | — | |
| 86140-47220 note |
Receiver Assy, Radio & Display
2014-11 → 2015-05
ended
|
ZVW40 RHD | — | |
| 86140-47220 note |
Receiver Assy, Radio & Display
2014-11 → 2015-05
ended
|
ZVW40 RHD | — | |
| 86140-47220 note |
Receiver Assy, Radio & Display
2014-11 → 2015-05
ended
|
ZVW40 RHD | — | |
| 86140-47221 note |
Receiver Assy, Radio & Display
2015-06 → 2019-07
ended
|
ZVW40 RHD | — | |
| 86140-47221 note |
Receiver Assy, Radio & Display
2015-06 → 2020-08
ended
|
ZVW40 RHD | — | |
| 86140-47221 note |
Receiver Assy, Radio & Display
2015-06 → 2020-08
ended
|
ZVW40 RHD | — | |
| 86140-47221 note |
Receiver Assy, Radio & Display
2015-06 → 2020-08
ended
|
ZVW40 RHD | — | |
| 86140-47230 note |
Receiver Assy, Radio & Display
2014-11 → 2015-05
ended
|
ZVW40 LHD | — | |
| 86140-47230 note |
Receiver Assy, Radio & Display
2014-11 → 2015-05
ended
|
ZVW40 LHD | — | |
| 86140-47231 note |
Receiver Assy, Radio & Display
2015-06 → 2020-08
ended
|
ZVW40 LHD | — | |
| 86140-47231 note |
Receiver Assy, Radio & Display
2015-06 → 2019-07
ended
|
ZVW40 LHD | — | |
| 86140-47240 note |
Receiver Assy, Radio & Display
2014-11 → 2015-05
ended
|
ZVW40 LHD | — | |
| 86140-47241 note |
Receiver Assy, Radio & Display
2015-06 → 2020-08
ended
|
ZVW40 LHD | — | |
| 86140-47241 note |
Receiver Assy, Radio & Display
2015-09 → 2017-12
ended
|
ZVW40 LHD | — | |
| 86140-47390 note |
Receiver Assy, Radio & Display
2014-11 → 2015-05
ended
|
ZVW40 RHD | — | |
| 86140-47391 note |
Receiver Assy, Radio & Display
2015-09 → 2017-12
ended
|
ZVW40 RHD | — | |
| 86140-47391 note |
Receiver Assy, Radio & Display
2015-06 → 2017-12
ended
|
ZVW40 RHD | — | |
| 86140-47400 note |
Receiver Assy, Radio & Display
2014-11 → 2015-05
ended
|
ZVW40 LHD | — | |
| 86140-47401 note |
Receiver Assy, Radio & Display
2015-09 → 2017-12
ended
|
ZVW40 LHD | — | |
| 86140-47401 note |
Receiver Assy, Radio & Display
2015-06 → 2020-08
ended
|
ZVW40 LHD | — | |
| 86140B — Knob, Radio & Display Receiver Switch | ||||
| 90010-24150 |
Knob, Radio & Display Receiver Switch
2012-03 → 2014-11
ended
|
ZVW40 | — | |
| 90010-24150 note |
Knob, Radio & Display Receiver Switch
2012-03 → 2014-11
ended
|
ZVW40 | — | |
| 90010-24150 note |
Knob, Radio & Display Receiver Switch
2012-03 → 2014-11
ended
|
ZVW40 RHD | — | |
| 90010-24176 |
Knob, Radio & Display Receiver Switch
2014-11 → 2020-08
ended
|
ZVW40 | — | |
| 86211J — Bracket, Radio Receiver, NO.1 | ||||
| 86211-47080 |
Bracket, Radio Receiver, NO.1
2012-03 → 2014-11
ended
|
ZVW40 | — | |
| 86211-47120 |
Bracket, Radio Receiver, NO.1
2014-11 → 2020-08
ended
|
ZVW40 | — | |
| 86212C — Bracket, Radio Receiver, NO.2 | ||||
| 86212-47080 |
Bracket, Radio Receiver, NO.2
2012-03 → 2014-11
ended
|
ZVW40 | — | |
| 86212-47120 |
Bracket, Radio Receiver, NO.2
2014-11 → 2020-08
ended
|
ZVW40 | — | |
| 86250E — Microphone Assy, Amplifier | ||||
| 86250-52020 |
Microphone Assy, Amplifier
2012-03 → 2014-11
ended
|
ZVW40 RHD | — | |
| 86250-52020 note |
Microphone Assy, Amplifier
2012-03 → 2014-11
ended
|
ZVW40 RHD | — | |
| 86250-52030 |
Microphone Assy, Amplifier
2012-03 → 2014-11
ended
|
ZVW40 LHD | — | |
| 86250-52020 note |
Microphone Assy, Amplifier
2014-11 → 2020-08
ended
|
ZVW40 RHD | — | |
| 86250-52020 |
Microphone Assy, Amplifier
2014-11 → 2020-08
ended
|
ZVW40 RHD | — | |
| 86250-52020 note |
Microphone Assy, Amplifier
2014-11 → 2019-07
ended
|
ZVW40 RHD | — | |
| 86250-52030 note |
Microphone Assy, Amplifier
2014-11 → 2019-07
ended
|
ZVW40 LHD | — | |
| 86250-52030 |
Microphone Assy, Amplifier
2014-11 → 2020-08
ended
|
ZVW40 LHD | — | |
| 86730A — Microphone Assy, Telephone | ||||
| 86730-47030 |
Microphone Assy, Telephone
2012-03 → 2014-11
ended
|
ZVW40 RHD | — | |
| 86730-47030 note |
Microphone Assy, Telephone
2012-03 → 2014-11
ended
|
ZVW40 RHD | — | |
| 86730-47040 |
Microphone Assy, Telephone
2012-03 → 2014-11
ended
|
ZVW40 LHD | — | |
| 86730-47030 note |
Microphone Assy, Telephone
2014-11 → 2019-07
ended
|
ZVW40 RHD | — | |
| 86730-47030 |
Microphone Assy, Telephone
2014-11 → 2020-08
ended
|
ZVW40 RHD | — | |
| 86730-47030 note |
Microphone Assy, Telephone
2014-11 → 2020-08
ended
|
ZVW40 RHD | — | |
| 86730-47040 |
Microphone Assy, Telephone
2014-11 → 2020-08
ended
|
ZVW40 LHD | — | |
| 86730-47040 note |
Microphone Assy, Telephone
2014-11 → 2019-07
ended
|
ZVW40 LHD | — | |
| 86841 — Computer, Navigation | ||||
| 86840-02014 note |
Computer, Navigation
2015-09 → 2016-04
ended
|
ZVW40 | — | |
| 86840-05010 note |
Computer, Navigation
2014-11 → 2015-01
ended
|
ZVW40 LHD | — | |
| 86840-05011 note |
Computer, Navigation
2015-02 → 2016-04
ended
|
ZVW40 LHD | — | |
| 86840-05021 note |
Computer, Navigation
2015-09 → 2016-04
ended
|
ZVW40 LHD | — | |
| 86840-0F020 note |
Computer, Navigation
2016-05 → 2020-08
ended
|
ZVW40 LHD | — | |
| 86840-0F020 note |
Computer, Navigation
2016-05 → 2017-12
ended
|
ZVW40 RHD | — | |
| 86840-0F030 note |
Computer, Navigation
2016-05 → 2020-08
ended
|
ZVW40 LHD | — | |
| 86840-0F040 note |
Computer, Navigation
2016-05 → 2017-12
ended
|
ZVW40 | — | |
| 86840-0F050 note |
Computer, Navigation
2016-05 → 2017-12
ended
|
ZVW40 LHD | — | |
| 86840-0W012 note |
Computer, Navigation
2014-11 → 2015-01
ended
|
ZVW40 | — | |
| 86840-0W013 note |
Computer, Navigation
2015-02 → 2016-04
ended
|
ZVW40 | — | |
| 86842 — Wire, Navigation, NO.1 | ||||
| 86842-60760 note |
Wire, Navigation, NO.1
2014-11 → 2017-12
ended
|
ZVW40 RHD | — | |
| 86842-60760 note |
Wire, Navigation, NO.1
2015-09 → 2017-12
ended
|
ZVW40 LHD | — | |
| 86842-60760 note |
Wire, Navigation, NO.1
2015-09 → 2017-12
ended
|
ZVW40 | — | |
| 86842-60760 note |
Wire, Navigation, NO.1
2014-11 → 2020-08
ended
|
ZVW40 LHD | — | |
| 86842-60760 note |
Wire, Navigation, NO.1
2014-11 → 2020-08
ended
|
ZVW40 LHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
