Toyota Prius +/V/A(ALPHA)

2012-03 → 2021-09 · chassis ZVW40 · catalogue 225510 · Europe

Supported model Data version 2017-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Block

25 part groups · 2 illustrations

Illustrations

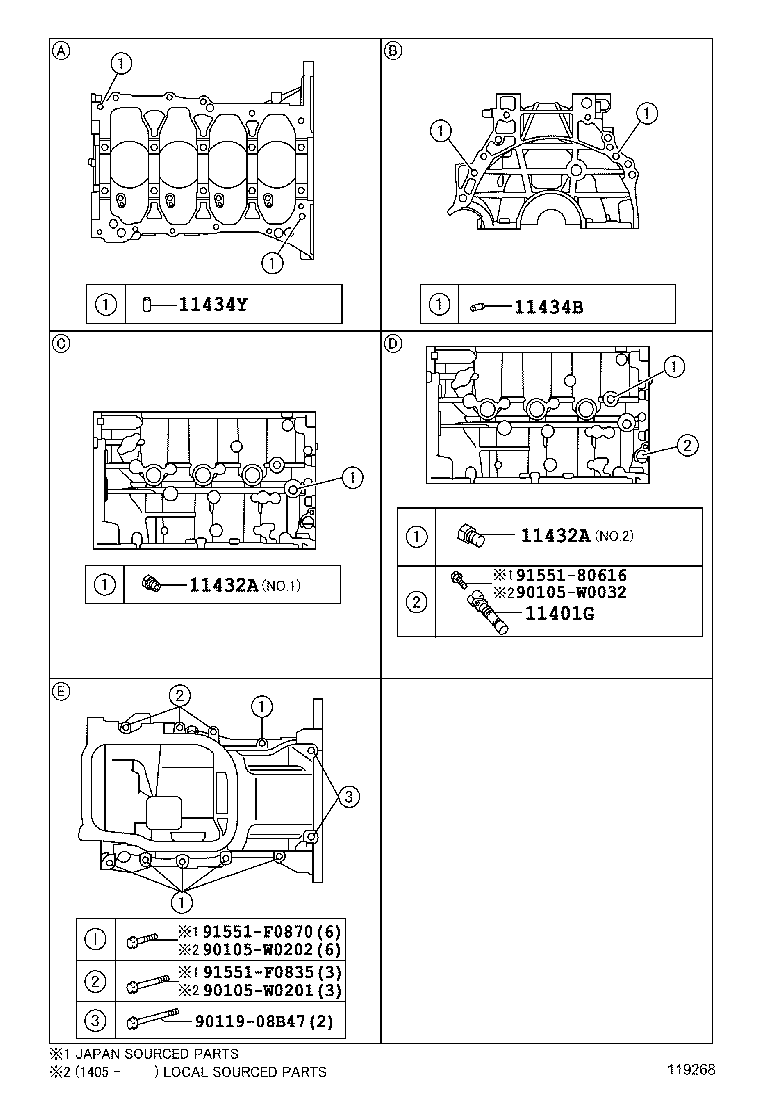

Figure 119267D 119267D 2012-03 → — Figure 119268 119268 2012-03 → —

Part groups

PNCDescription
11361J Cover, Flywheel Housing Under
11363A Cover, Flywheel Housing Side
11401 Block Sub-assy, Cylinder
11401G Sensor, Crank Position
11401L Seal, Engine Rear Oil
11409 Guide Sub-assy, Oil Level Gage
11416 Bolt(FOR CRANKSHAFT BEARING CAP SET)
11420 Crankcase Assy, Stiffening
11421 Bolt, Stud(FOR OIL PAN)
11432A Plug, W/Head Taper Screw, NO.1
11434A Pin, Straight(FOR TIMING GEAR COVER SET)
11434B Pin, Straight(FOR CLUTCH HOUSING SET)
11434C Pin, Straight (FOR CYLINDER HEAD SET)
11434J Pin, Ring (FOR CYLINDER HEAD SET)
11434M Pin, Straight(FOR CHAIN TENSIONER)
11434Y Pin, Straight(FOR OIL PAN)
11444A Ring, O
11452B Ring, O(FOR OIL LEVEL GAGE GUIDE)
12101A Plug(FOR OIL PAN DRAIN)
12101B Gasket(FOR OIL PAN DRAIN PLUG)
12102A Pan Sub-assy, Oil, NO.2
15301 Gage Sub-assy, Oil Level
15301A Ring, O(FOR OIL LEVEL GAGE)
15708 Nozzle Sub-assy, Oil, NO.1
28193 Insulator, Starter Hole
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
