Toyota Prius +/V/A(ALPHA)
2012-03 → 2021-09 · chassis ZVW40 · catalogue 225510 · Europe
Supported model
Data version 2017-12

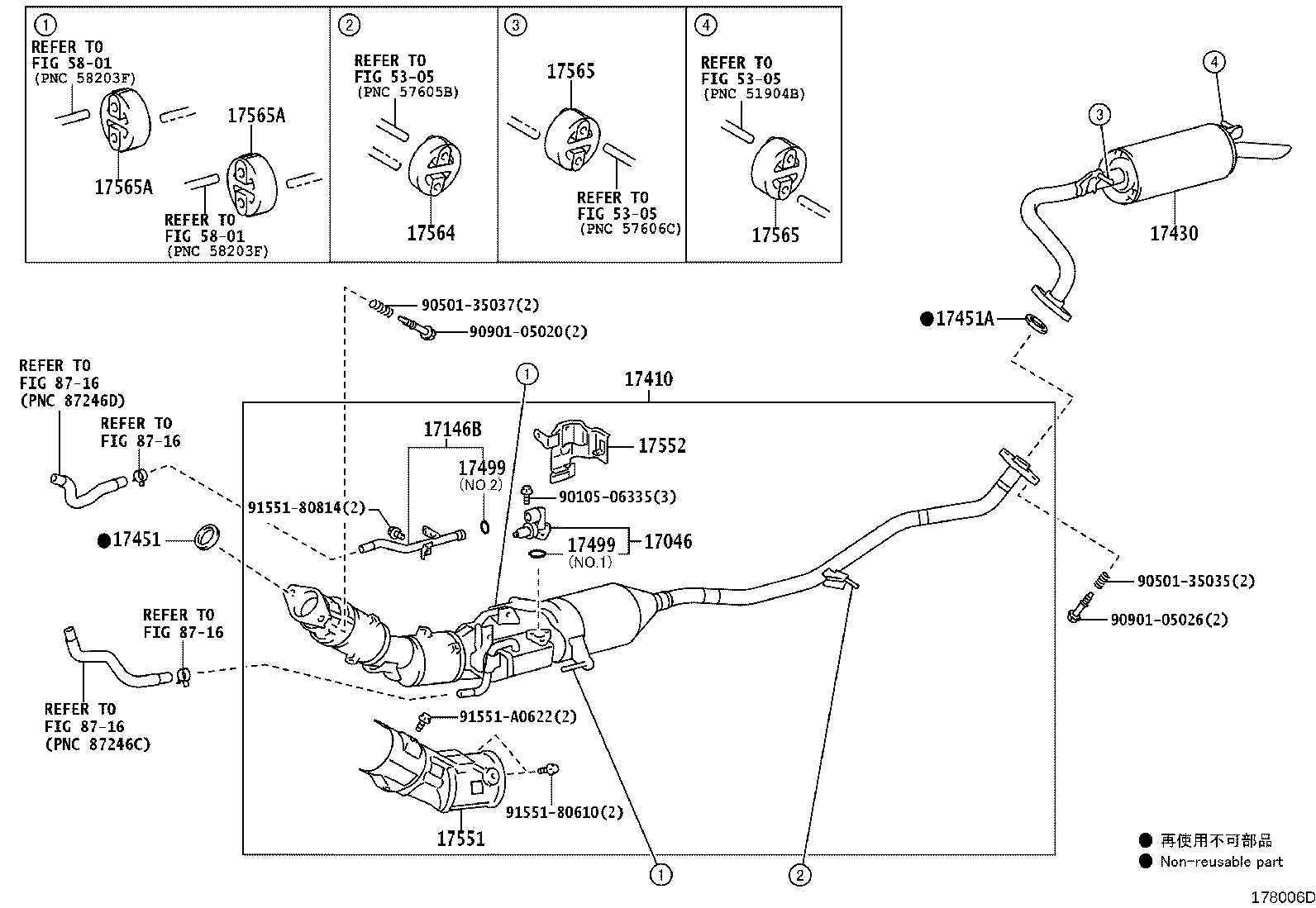

Exhaust Pipe
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17046 | Actuator Sub-assy, Exhaust Pipe Gas Control |
| 17146B | Pipe, Exhaust By-pass |
| 17410 | Pipe Assy, Exhaust, Front |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17451 | Gasket, Exhaust Pipe |
| 17451A | Gasket, Exhaust Pipe, NO.2 |
| 17499 | Gasket, Exhaust Pipe Gas Control Actuator |
| 17551 | Insulator, Exhaust Pipe Heat, NO.1 |
| 17552 | Insulator, Exhaust Pipe Heat, NO.2 |
| 17564 | Support,Exhaust Pipe, NO.4 |
| 17565 | Support, Exhaust Pipe, NO.5 |
| 17565A | Support, Exhaust Pipe, NO.4 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
