Toyota Prius +/V/A(ALPHA)

2012-03 → 2021-09 · chassis ZVW40 · catalogue 225510 · Europe

Supported model Data version 2017-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

7 part groups · 2 illustrations

Illustrations

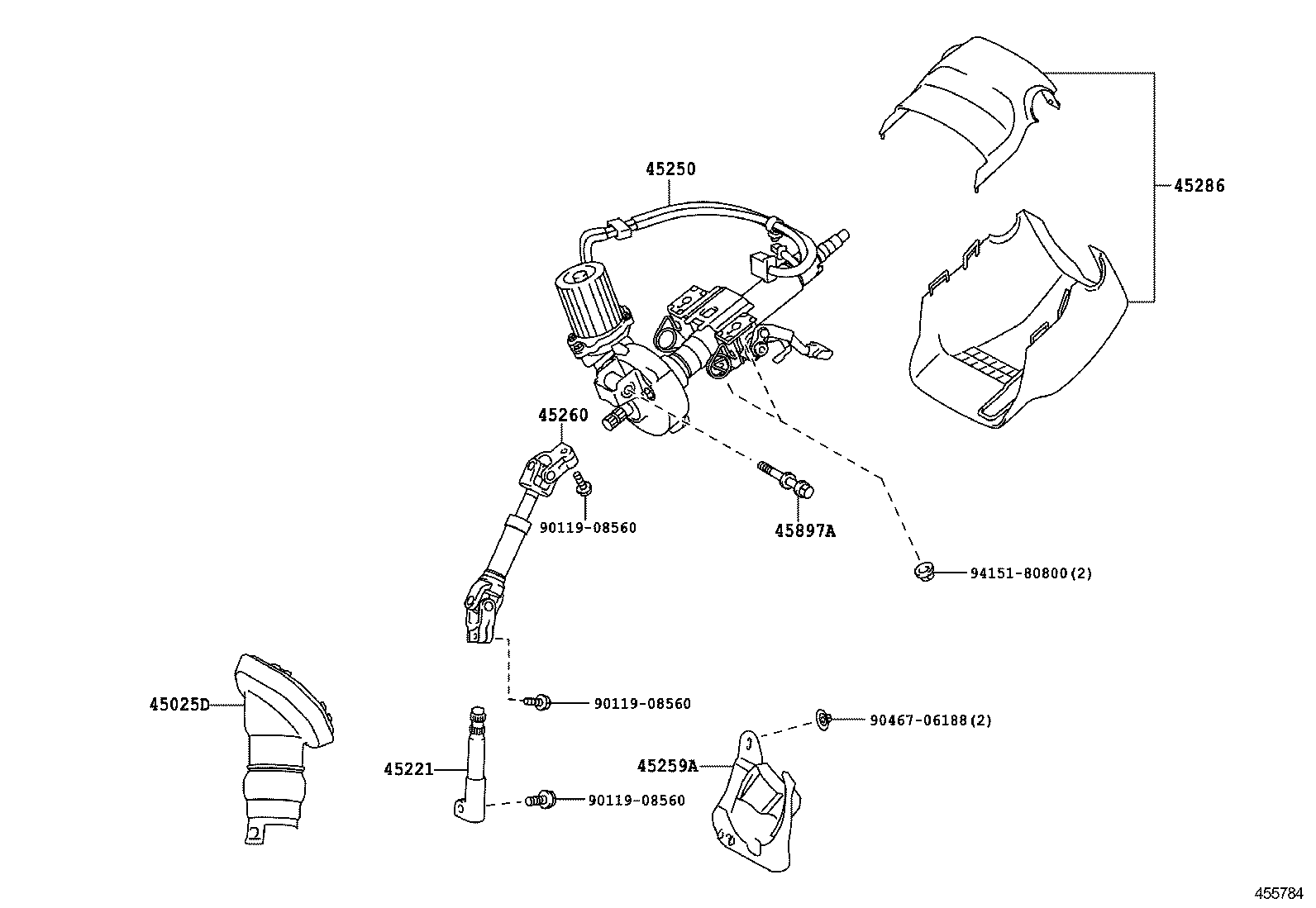

Figure 455783 455783 2012-03 → — Figure 455784 455784 2012-03 → —

Part groups

PNCDescription
45025D Cover Sub-assy, Steering Column Hole, NO.1
45221 Shaft, Steering Intermediate
45250 Column Assy, Steering
45259A Sheet, Column Hole Cover Silencer
45260 Shaft Assy, Steering Intermediate, NO.2
45286 Cover, Steering Column
45897A Bolt, Tilt Steering Pawl Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
