Toyota Prius +/V/A(ALPHA)

2012-03 → 2021-09 · chassis ZVW40 · catalogue 225510 · Europe

Supported model Data version 2017-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Parking Brake & Cable

28 part groups · 3 illustrations

Illustrations

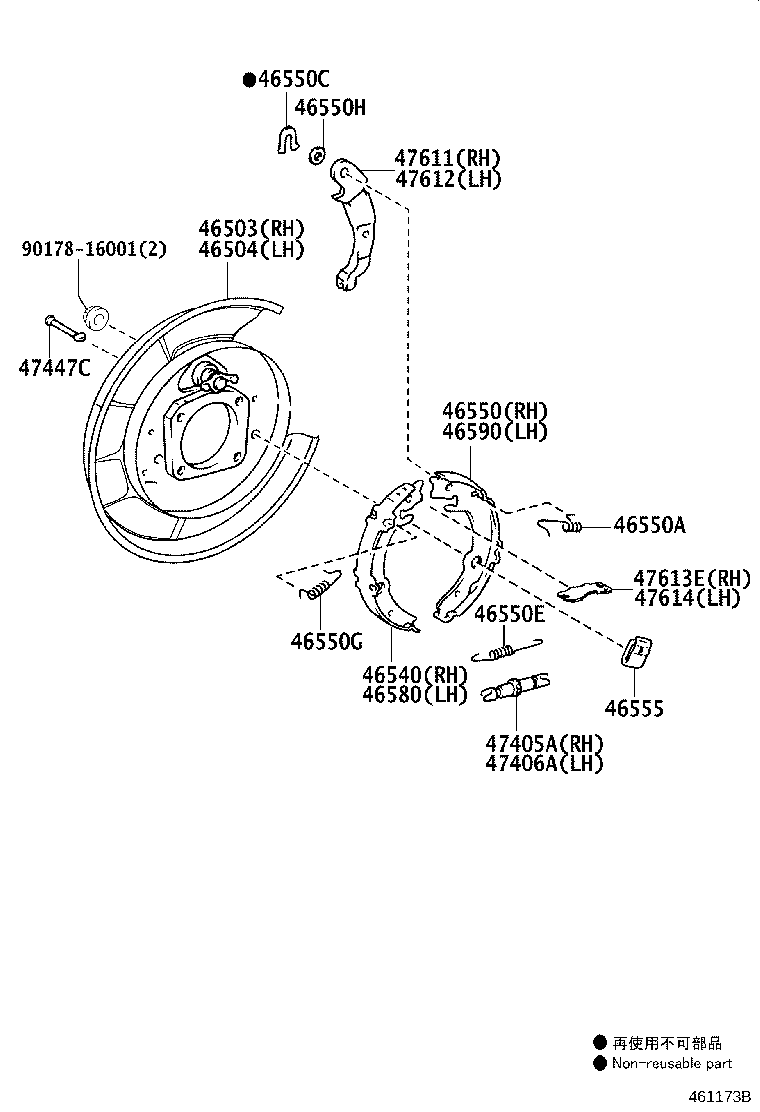

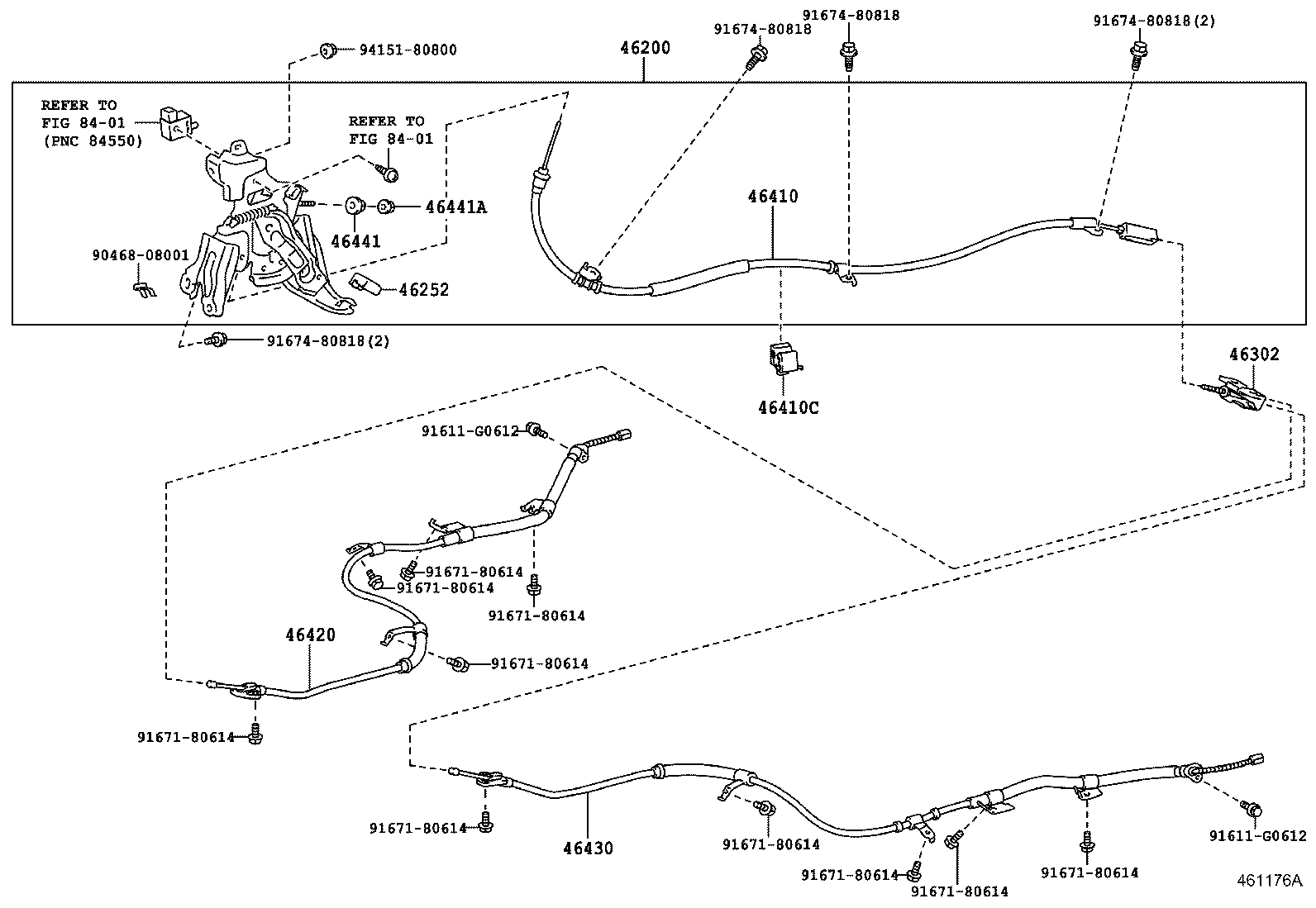

Figure 461175A 461175A 2012-03 → — Figure 461176A 461176A 2012-03 → — Figure 461173B 461173B 2012-03 → —

Part groups

PNCDescription
46200 Pedal Assy, Parking Brake Control
46252 Pad, Parking Pedal
46302 Rod Sub-assy, Parking Brake Pull, NO.1
46410 Cable Assy, Parking Brake, NO.1
46410C Clamp(FOR PARKING BRAKE FRONT CABLE)
46420 Cable Assy, Parking Brake, NO.2
46430 Cable Assy, Parking Brake, NO.3
46441 Nut, Wire Adjusting, NO.1
46441A Nut, Wire Adjusting, NO.2
46503 Plate Sub-assy, Parking Brake, RH
46504 Plate Sub-assy, Parking Brake, LH
46540 Shoe Assy, Parking Brake, RH OR Center NO.1
46550 Shoe Assy, Parking Brake, RH OR Center NO.2
46550A Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN)
46550C Washer, Type C(FOR PARKING BRAKE SHOE)
46550E Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN)
46550G Spring, Tension, NO.3(FOR PARKING BRAKE SHOE RETURN)
46550H Shim(FOR PARKING BRAKE SHOE)
46555 Spring, Brake Shoe Hold Down
46580 Shoe Assy, Parking Brake, LH NO.1
46590 Shoe Assy, Parking Brake, LH NO.2
47405A Screw Set, Shoe Adjusting, RH(FOR PARKING BRAKE)
47406A Screw Set, Shoe Adjusting, LH(FOR PARKING BRAKE)
47447C Pin, Shoe Hold Down Spring(FOR PARKING BRAKE)
47611 Lever, Parking Brake Shoe, RH
47612 Lever, Parking Brake Shoe, LH
47613E Strut, Parking Brake Shoe, RH
47614 Strut, Parking Brake Shoe, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
