Toyota Prius +/V/A(ALPHA)

2012-03 → 2021-09 · chassis ZVW40 · catalogue 225510 · Europe

Supported model Data version 2017-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

21 part groups · 3 illustrations

Illustrations

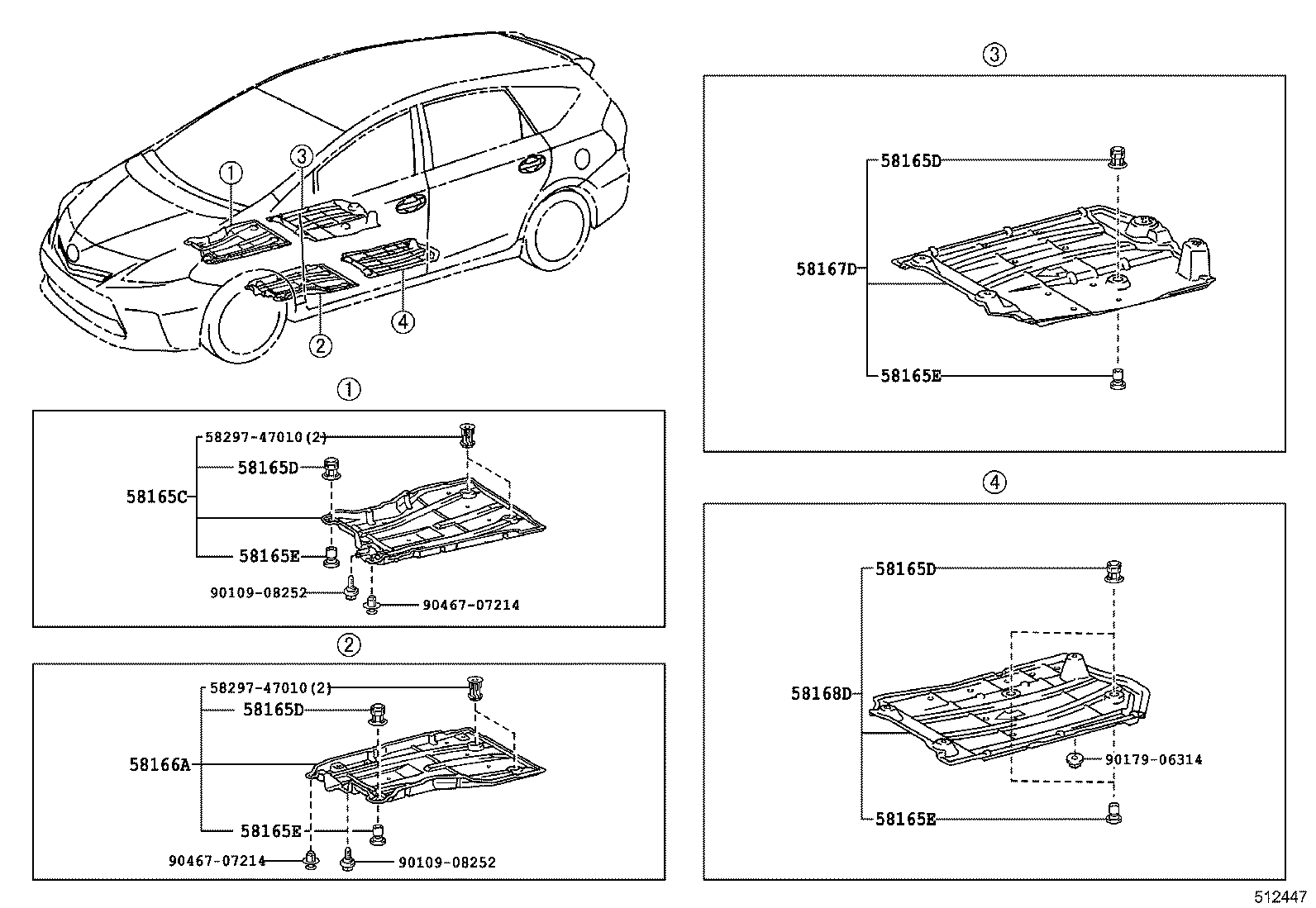

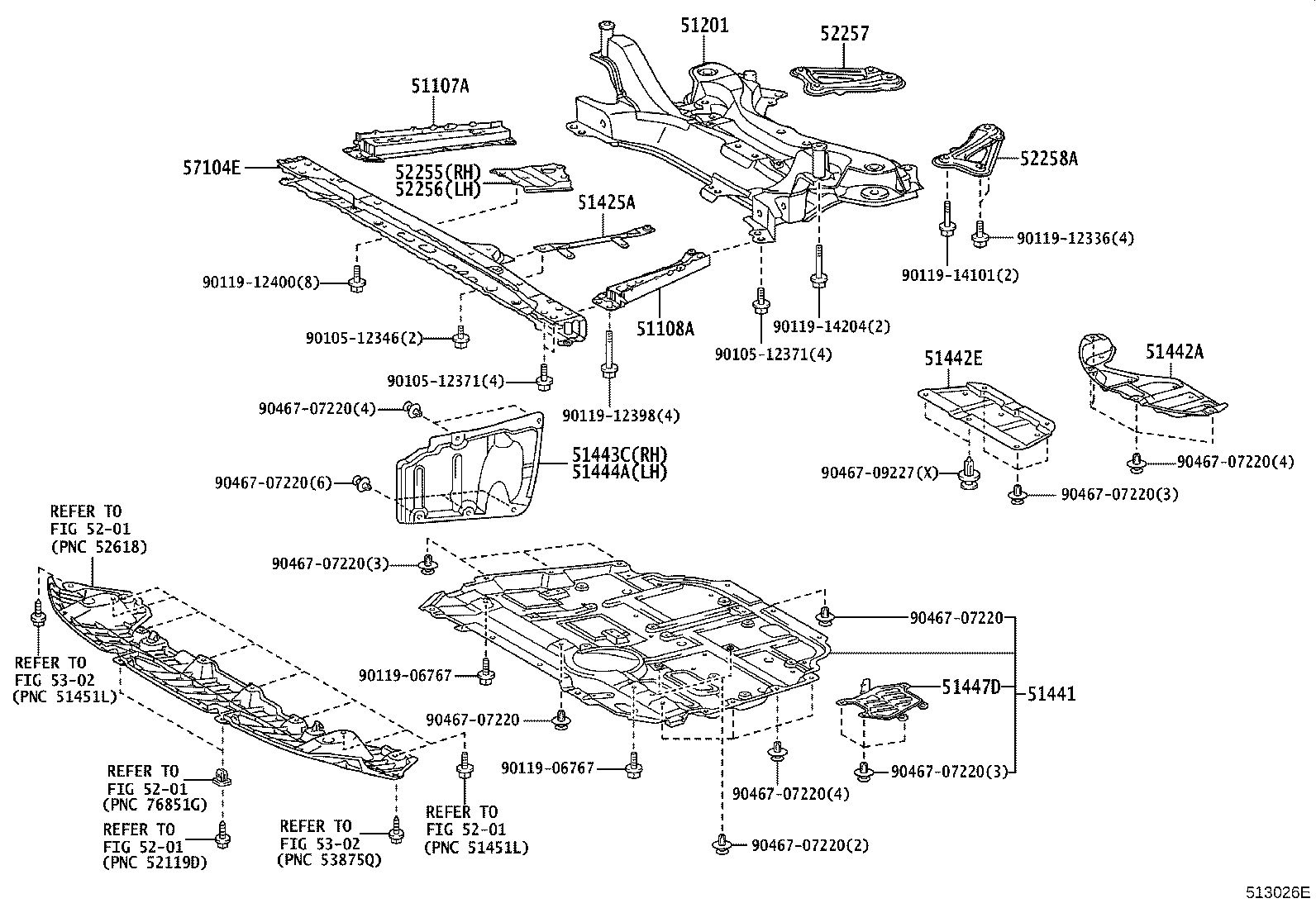

Figure 512098N 512098N 2012-03 → 2014-11 Figure 513026E 513026E 2014-11 → — Figure 512447 512447 2012-03 → —

Part groups

PNCDescription
51107A Reinforcement Sub-assy, Side Rail, Rear RH
51108A Reinforcement Sub-assy, Side Rail, Rear LH
51201 Crossmember Sub-assy, Front Suspension
51425A Reinforcement, Engine Front Mounting Bracket, Lower
51441 Cover, Engine Under, NO.1
51442A Cover, Engine Under, Front NO.3
51442E Cover, Engine Under, NO.2
51443C Cover, Engine Under, Rear RH
51444A Cover, Engine Under, Rear LH
51447D Cover, Engine Under, NO.4 Center
52255 Brace, Front Suspension Member, Front RH
52256 Brace, Front Suspension Member, Front LH
52257 Brace, Front Suspension Member, Rear RH
52258A Brace, Front Suspension Member, Rear LH
57104E Member Sub-assy, Front Cross
58165C Cover, Front Floor, RH
58165D Clip, Floor Cover
58165E Clip, Floor Cover
58166A Cover, Front Floor, LH
58167D Cover, Front Floor, Center RH
58168D Cover, Front Floor, Center LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
