Toyota Prius +/V/A(ALPHA)
2012-03 → 2021-09 · chassis ZVW40 · catalogue 225510 · Europe
Supported model
Data version 2017-12

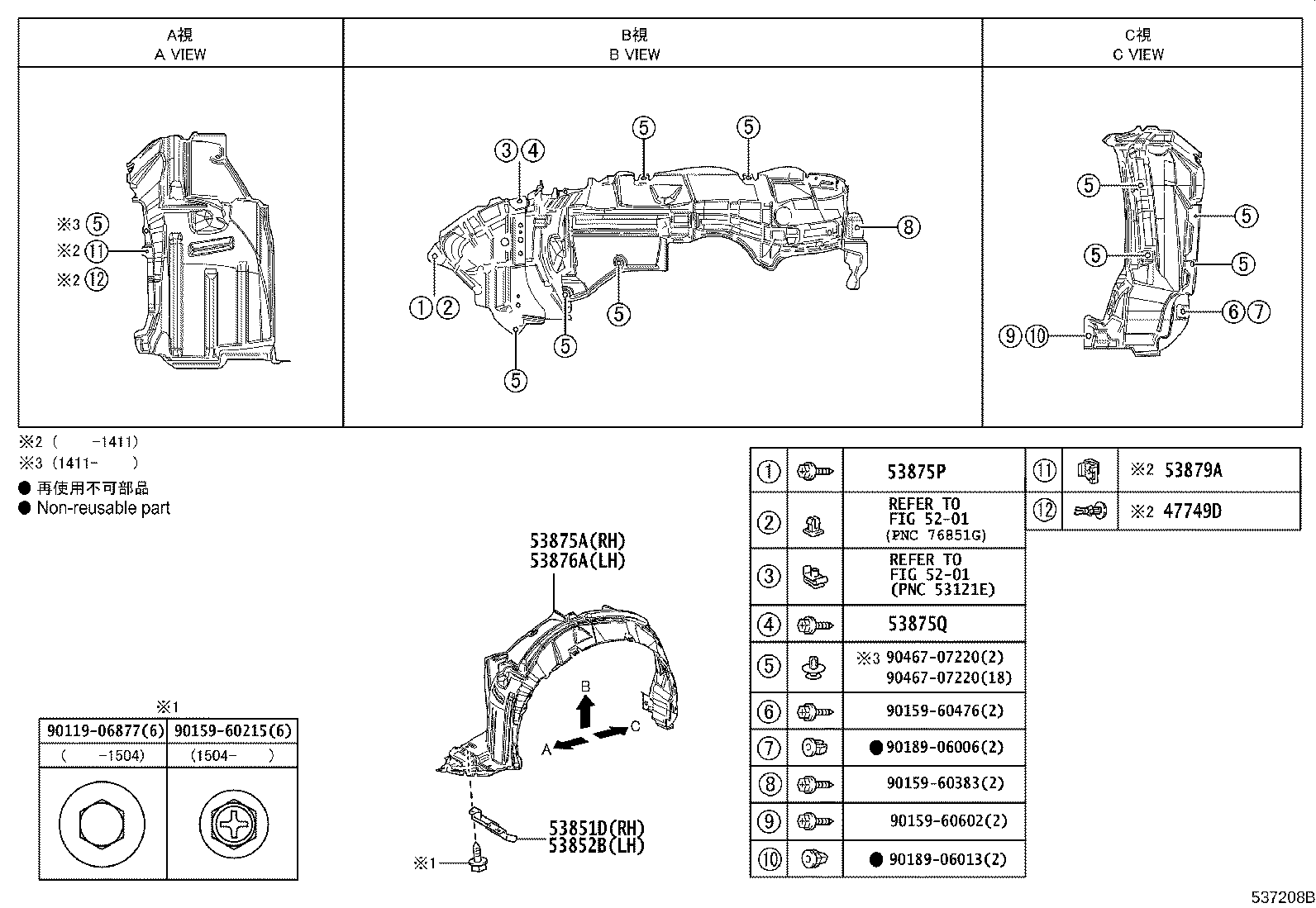

Hood & Front Fender
25 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 47749D | Clip, Pin Hold |
| 53301 | Hood Sub-assy |
| 53341B | Insulator, Hood |
| 53341C | Clip(FOR HOOD INSULATOR) |
| 53801 | Fender Sub-assy, Front RH |
| 53802 | Fender Sub-assy, Front LH |
| 53813B | Extension, Front Fender, RH |
| 53814B | Extension, Front Fender, LH |
| 53825A | Protector, Front Fender, Upper RH |
| 53826A | Protector, Front Fender, Upper LH |
| 53827L | Protector, Front Fender Side Panel, RH |
| 53828K | Protector, Front Fender Side Panel, LH |
| 53851D | Pad, Front Wheel Opening Extension, RH |
| 53852B | Pad, Front Wheel Opening Extension, LH |
| 53857 | Retainer, Front Wheel Opening Extension, RH |
| 53858 | Retainer, Front Wheel Opening Extension, LH |
| 53866 | Seal, Front Fender TO Cowl Side, RH |
| 53867 | Seal, Front Fender TO Cowl Side, LH |
| 53875A | Liner, Front Fender, RH |
| 53875P | Screw, NO.1 |
| 53875Q | Screw, NO.2 |
| 53876A | Liner, Front Fender, LH |
| 53879A | Retainer, Front Fender Liner |
| 53882B | Seal, Front Fender, RH |
| 53883B | Seal, Front Fender, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
