Toyota Prius +/V/A(ALPHA)
2012-03 → 2021-09 · chassis ZVW40 · catalogue 225510 · Europe
Supported model
Data version 2017-12

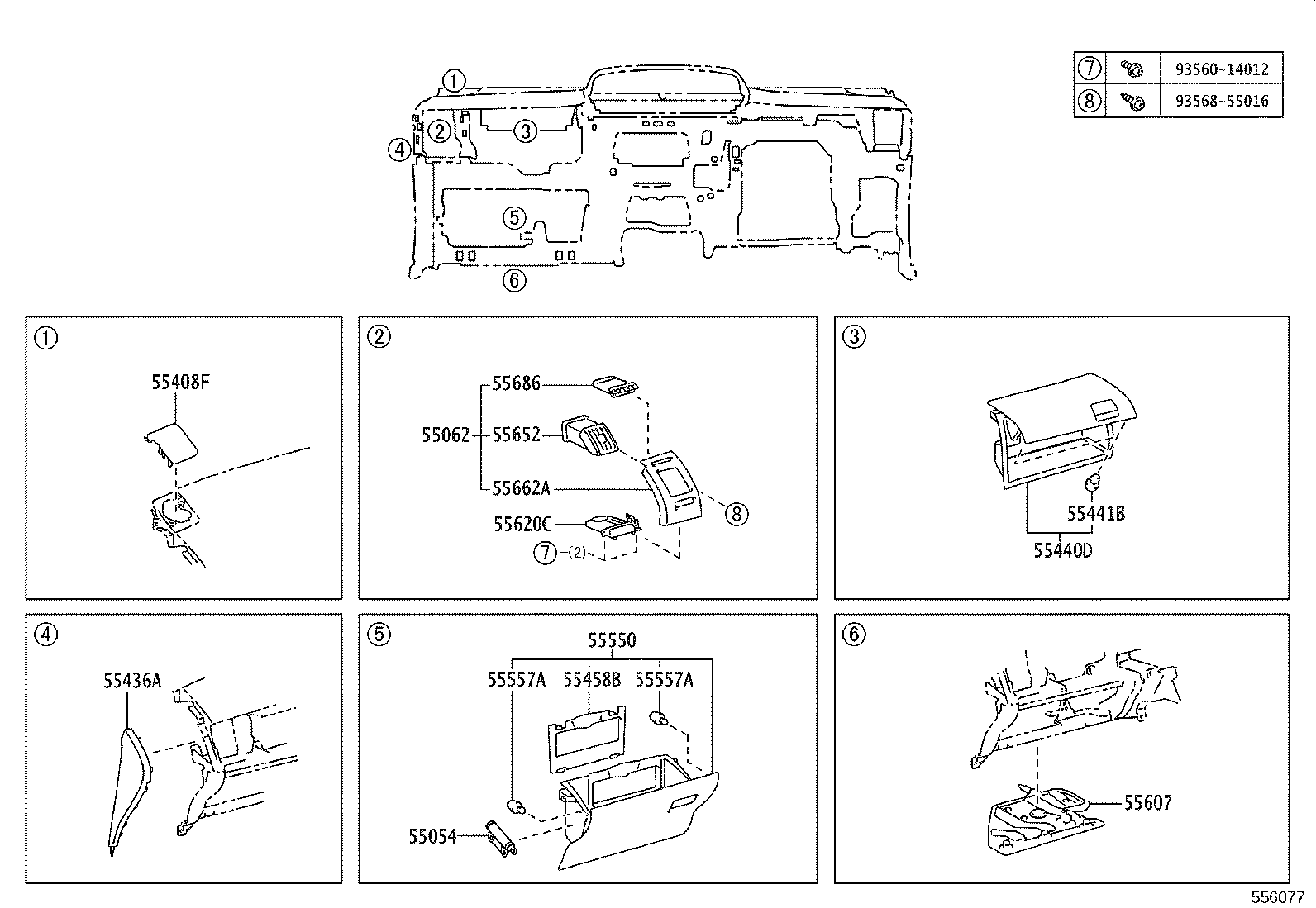

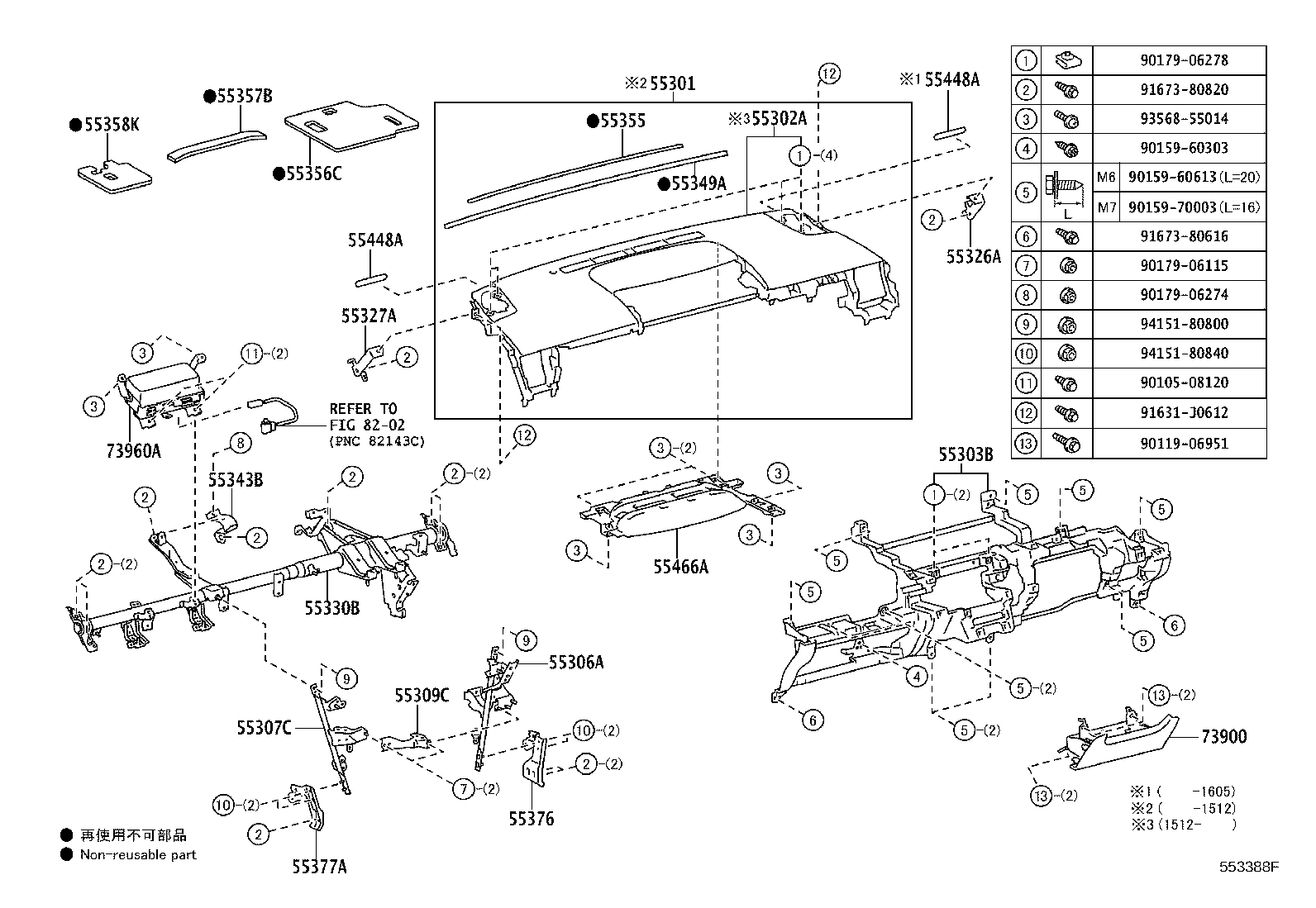

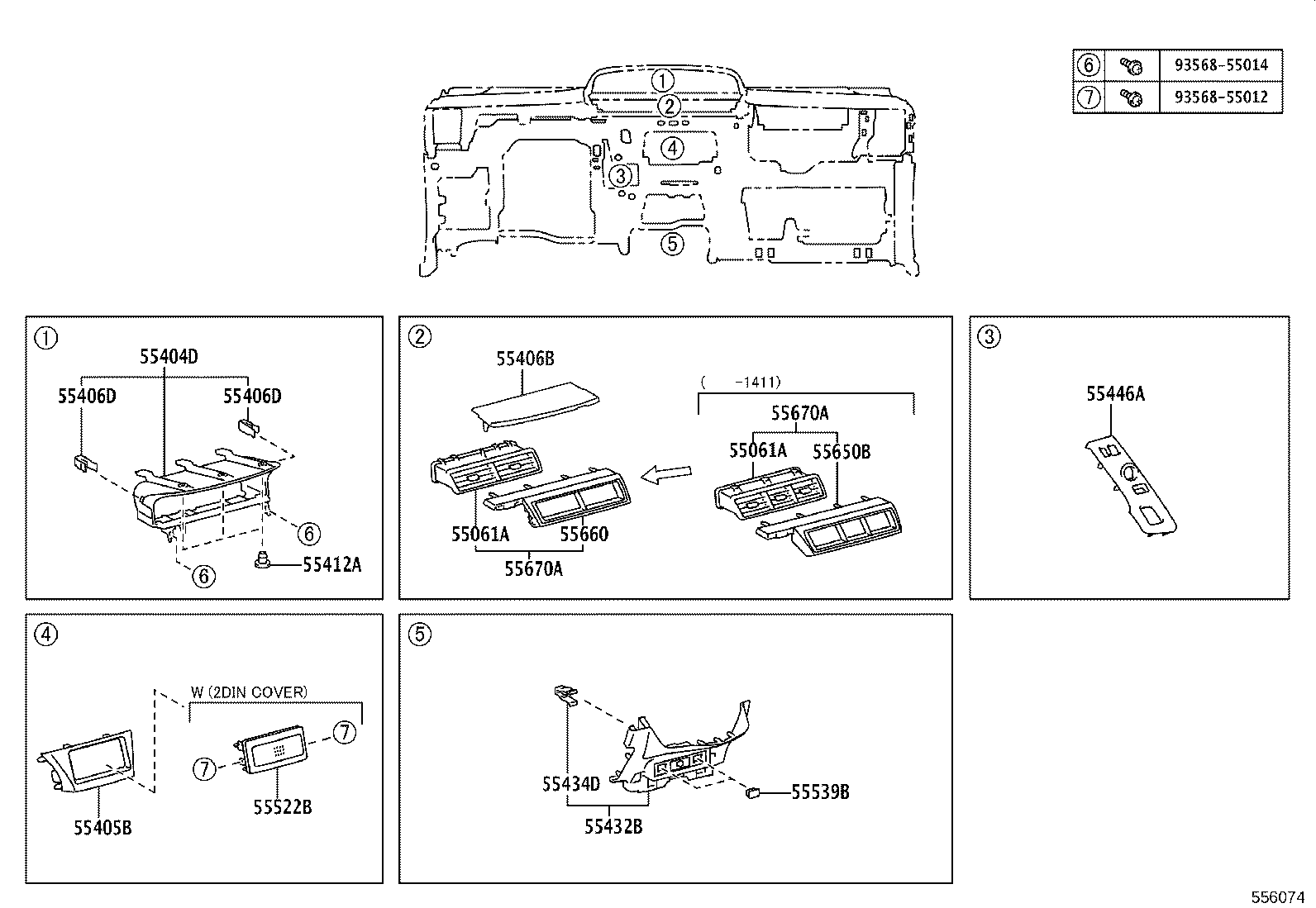

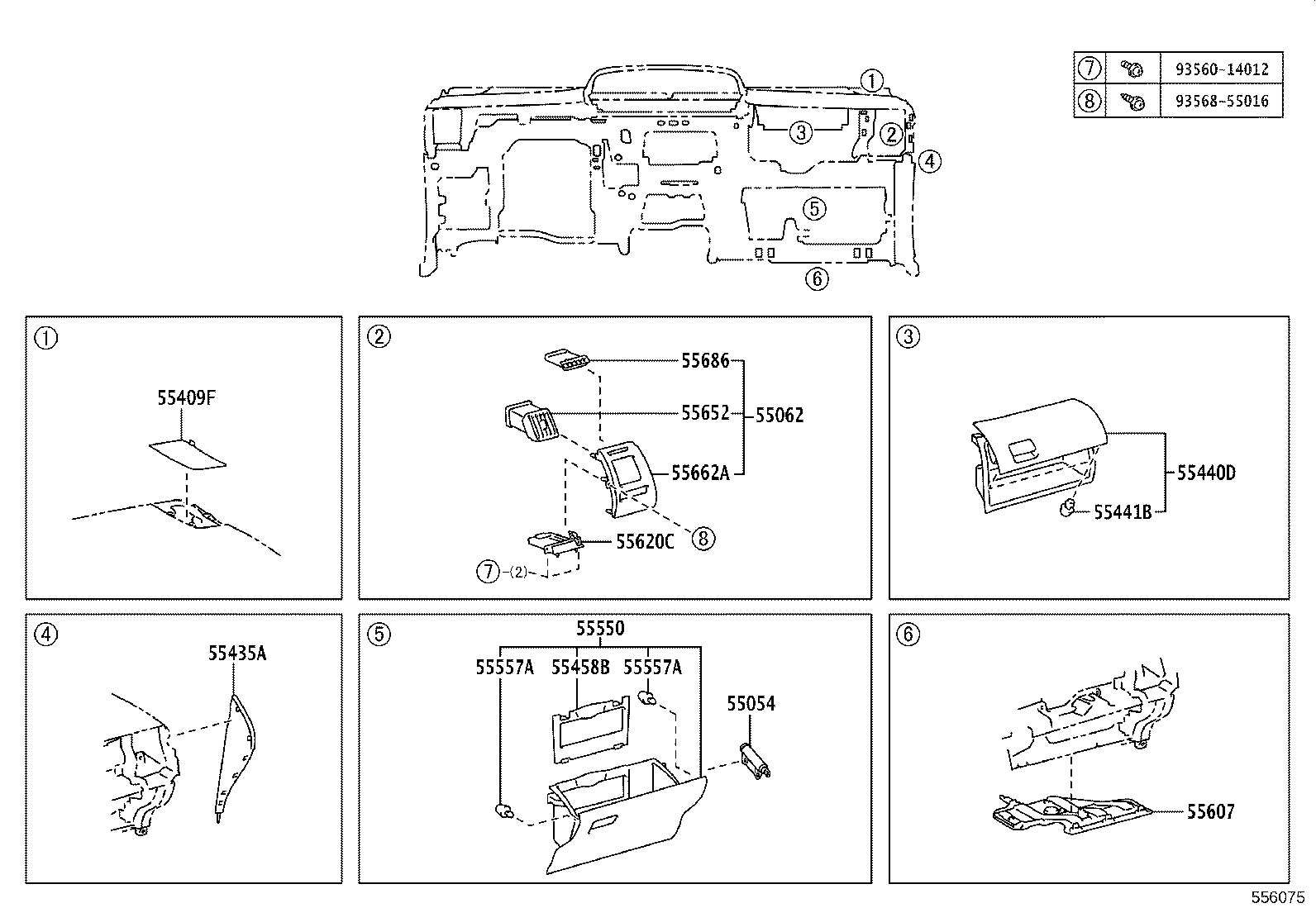

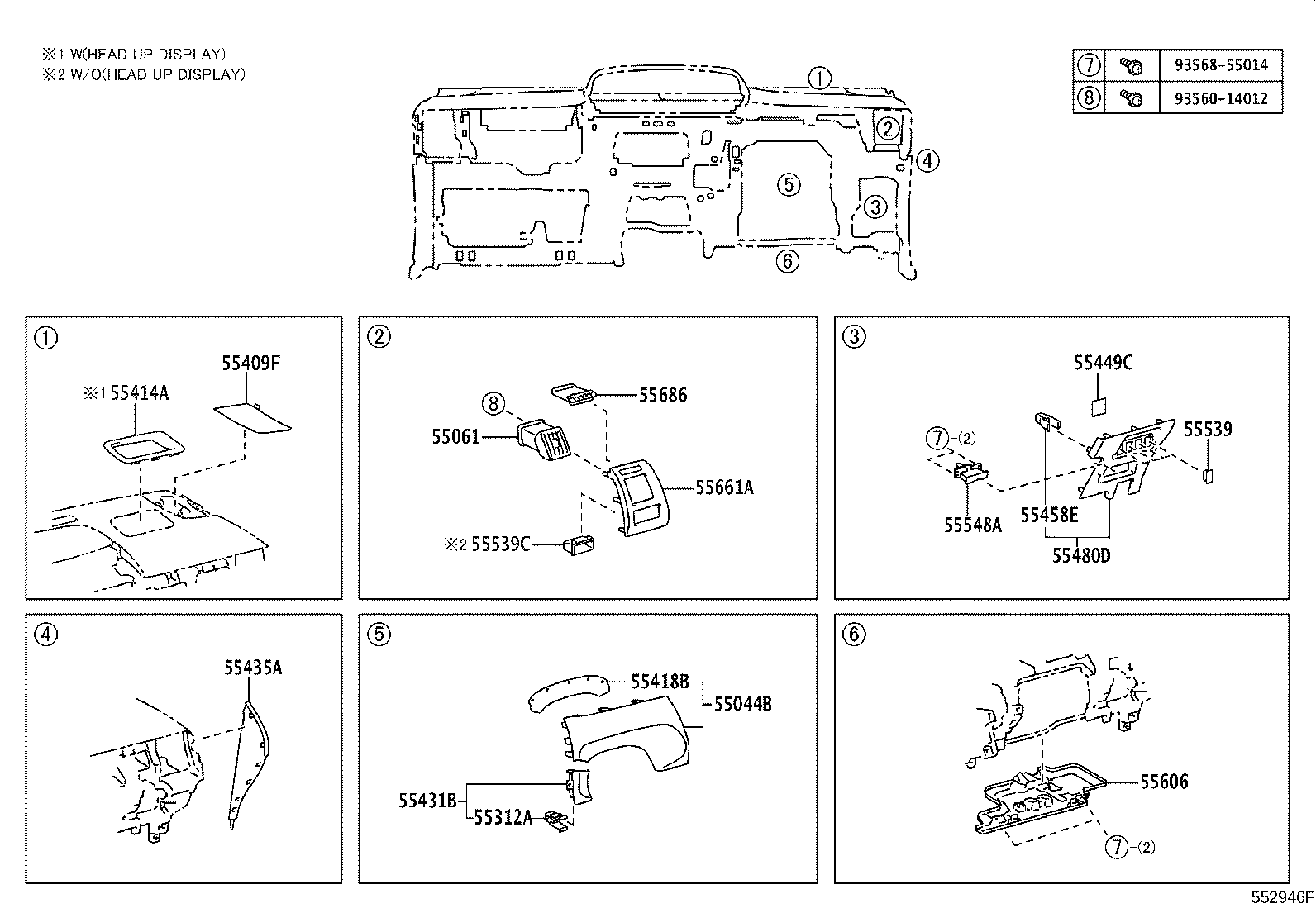

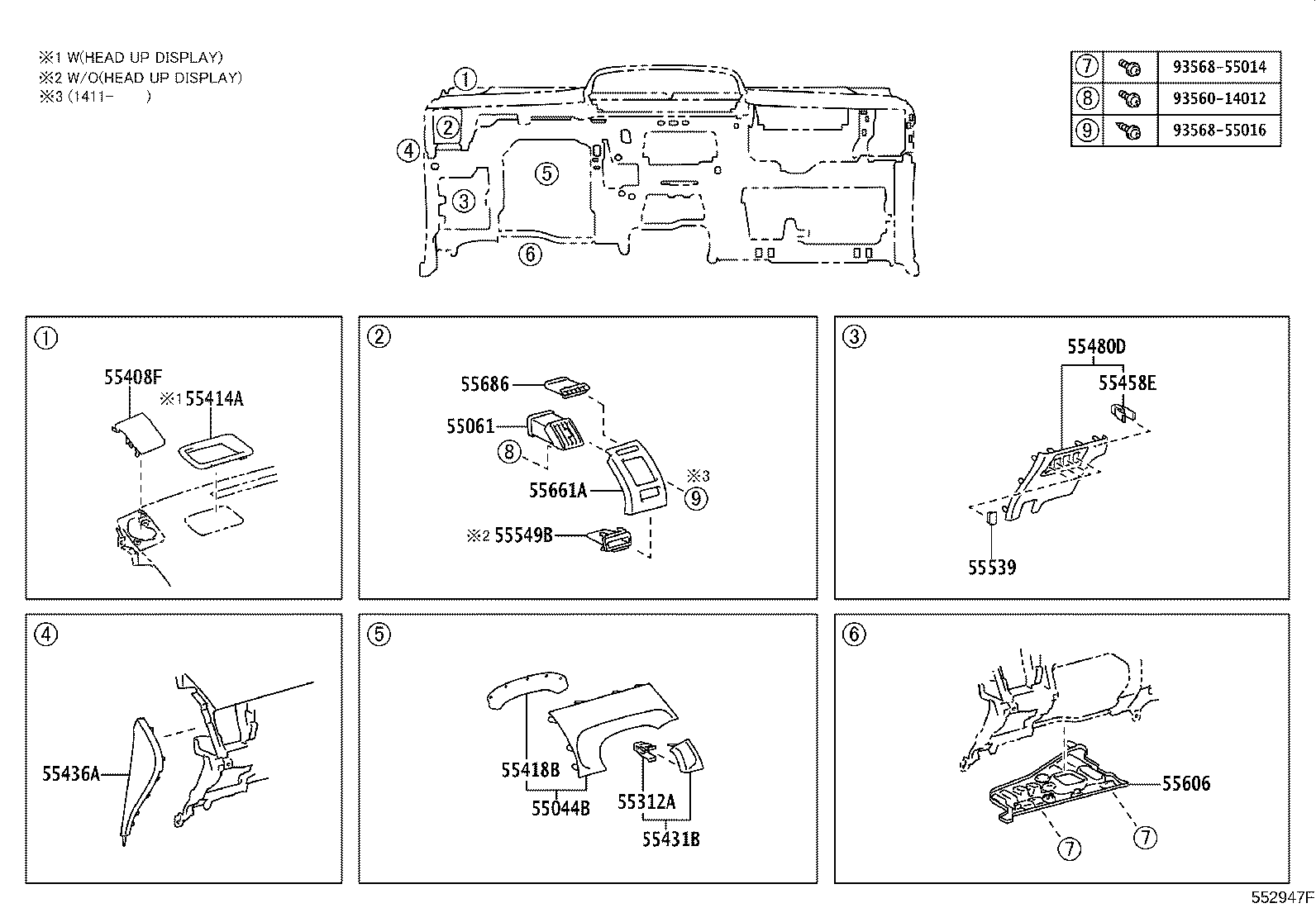

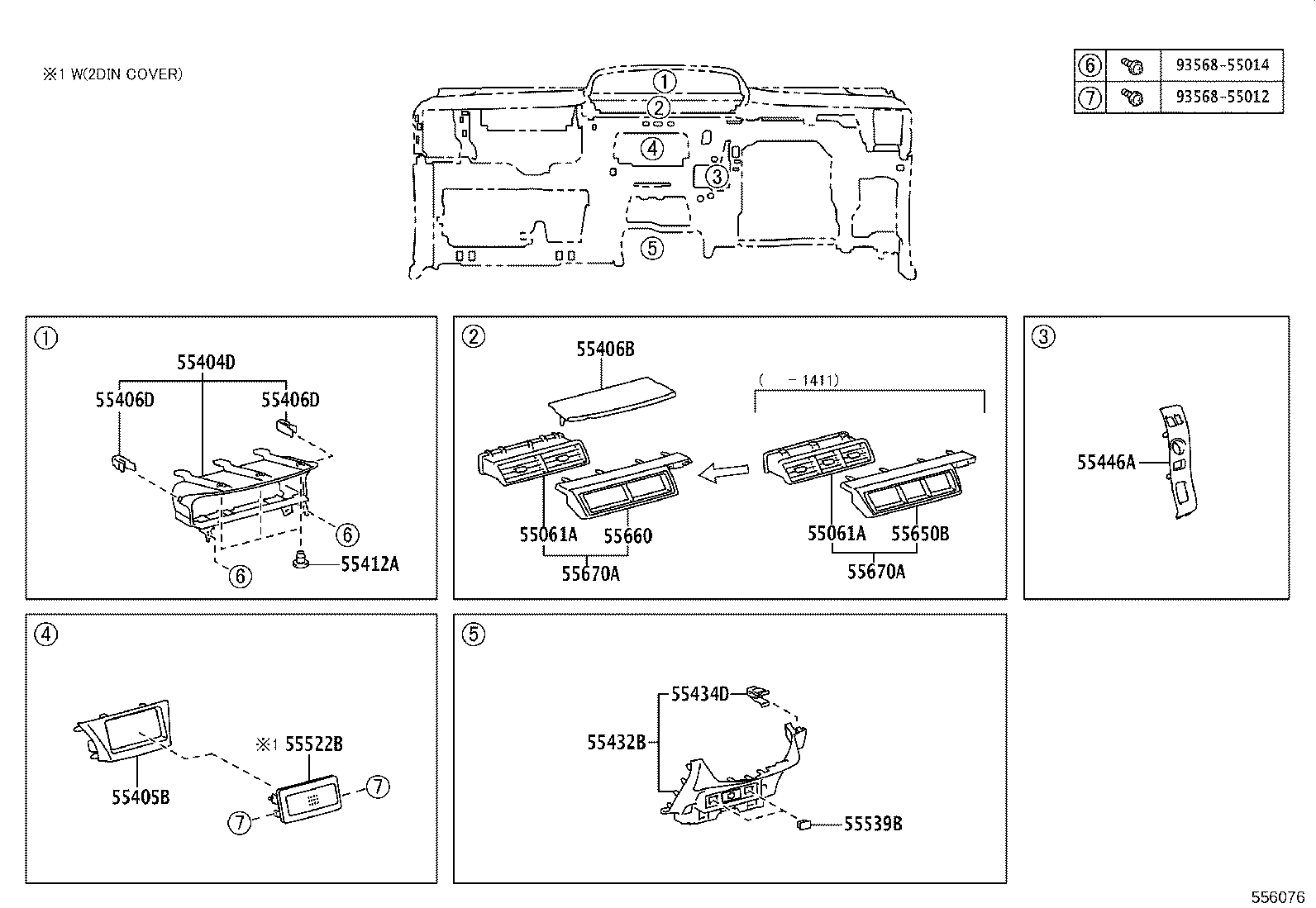

Instrument Panel & Glove Compartment
66 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 55044B | Panel Sub-assy, Instrument Panel Finish, Upper |
| 55054 | Stopper Sub-assy, Glove Compartment Door |
| 55061 | Register Sub-assy, Instrument Panel, NO.1 |
| 55061A | Register Sub-assy, Instrument Panel |
| 55062 | Register Sub-assy, Instrument Panel, N0.2 |
| 55301 | Panel Sub-assy, Instrument |
| 55302A | Panel Sub-assy, Instrument, Upper |
| 55303B | Panel Sub-assy, Instrument, Lower |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55307C | Brace Sub-assy, Instrument Panel, NO.2 |
| 55309C | Reinforcement Sub-assy, Instrument Panel, Center |
| 55312A | Clip, Instrument Panel |
| 55326A | Stay, Instrument Panel, NO.1 |
| 55327A | Stay, Instrument Panel, NO.2 |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55343B | Brace, Instrument Panel TO Cowl, Center |
| 55349A | Cushion, Instrument Panel |
| 55355 | Cushion, Instrument Panel, NO.1 |
| 55356C | Cushion, Instrument Panel, NO.2 |
| 55357B | Cushion, Instrument Panel, NO.3 |
| 55358K | Cushion, Instrument Panel, NO.4 |
| 55376 | Bracket, Instrument Panel Mounting, NO.1 |
| 55377A | Bracket, Instrument Panel Mounting, NO.2 |
| 55404D | Panel Sub-assy, Instrument Cluster Finish |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55406B | Panel Sub-assy, Instrument Cluster Finish, Lower Center |
| 55406D | Clip(FOR PANEL, INSTRUMENT CLUSTER FINISH) |
| 55408F | Panel Sub-assy, Instrument Panel Speaker, NO.1 |
| 55409F | Panel Sub-assy, Instrument Panel Speaker, NO.2 |
| 55412A | Clip, Panel, Instrument Cluster Finish, End |
| 55414A | Panel, Instrument Cluster Finish, End |
| 55418B | Spacer,Meter Hood |
| 55431B | Panel, Instrument Panel Finish, Upper |
| 55432B | Panel, Instrument Panel Finish, Lower |
| 55434D | Clip, Instrument Panel Finish, Lower Center |
| 55435A | Panel, Instrument Panel Finish, End RH |
| 55436A | Panel, Instrument Panel Finish, End LH |
| 55440D | Box Assy, Instrument Panel |
| 55441B | Cushion, Instrument Panel Box |
| 55446A | Base, Switch Hole, NO.1 |
| 55448A | Cushion, Instrument Panel Finish, NO.1 |
| 55449C | Cushion, Instrument Panel Finish Panel, NO.2 |
| 55458B | Cover, Instrument, Lwr |
| 55458E | Clip(FOR INSTRUMENT LOWER COVER) |
| 55466A | Retainer, Instrument Panel Safety Pad |
| 55480D | Panel Assy, Instrument Panel Finish, Lwr |
| 55522B | Cover, Radio Tuner Opening |
| 55539 | Cover, Spare Switch Hole |
| 55539B | Cover, Spare Switch Hole, NO.2 |
| 55539C | Cover, Spare Switch Hole |
| 55548A | Cover, Instrument Panel Hole |
| 55549B | Cover, Instrument Panel Hole, NO.2 |
| 55550 | Door Assy, Glove Compartment |
| 55557A | Cushion, Glove Compartment Door Check |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55607 | Cover Sub-assy, Instrument Panel Under, NO.2 |
| 55620C | Holder, Instrument Panel Cup |
| 55650B | Bezel, Instrument Panel Register |
| 55652 | Register, Instrument Panel, NO.2 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55661A | Bezel, Instrument Panel Register |
| 55662A | Bezel, Instrument Panel Resister, NO.2 |
| 55670A | Register Assy, Instrument Panel, Center |
| 55686 | Retainer, Register Blade |
| 73900 | Airbag Assy, Instrument Panel, Lower NO.1 |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
