Toyota Prius +/V/A(ALPHA)

2012-03 → 2021-09 · chassis ZVW40 · catalogue 225510 · Europe

Supported model Data version 2017-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

16 part groups · 2 illustrations

Illustrations

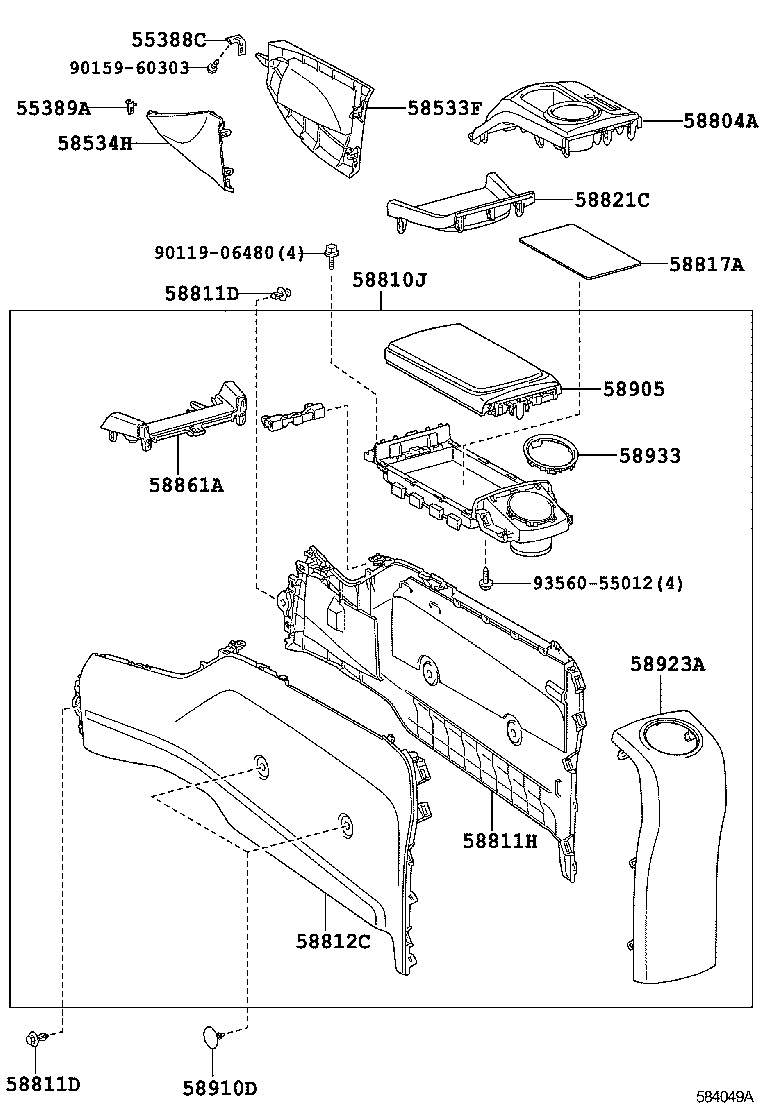

Figure 584482 584482 2012-03 → — Figure 584049A 584049A 2012-03 → —

Part groups

PNCDescription
55388C Bracket, Console Mounting, RH
55389A Bracket, Console Mounting, LH
58533F Cover, Floor Carpet, Center RH
58534H Cover, Floor Carpet, Center LH
58804A Panel Sub-assy, Console, Upper
58810J Box Assy, Console
58811D Clip(FOR CONSOLE BOX)
58811H Box, Console, RH
58812C Box, Console, LH
58817A Insert, Console Box, Front NO.2
58821C Panel, Console, Upper
58861A Support, Console Box, NO.1
58905 Door Sub-assy, Console Compartment
58910D Clip(FOR CONSOLE BOX)
58923A Panel, Console Rear End
58933 Garnish, Console Rear End Panel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
