Toyota Prius +/V/A(ALPHA)

2012-03 → 2021-09 · chassis ZVW40 · catalogue 225510 · Europe

Supported model Data version 2017-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

13 part groups · 2 illustrations

Illustrations

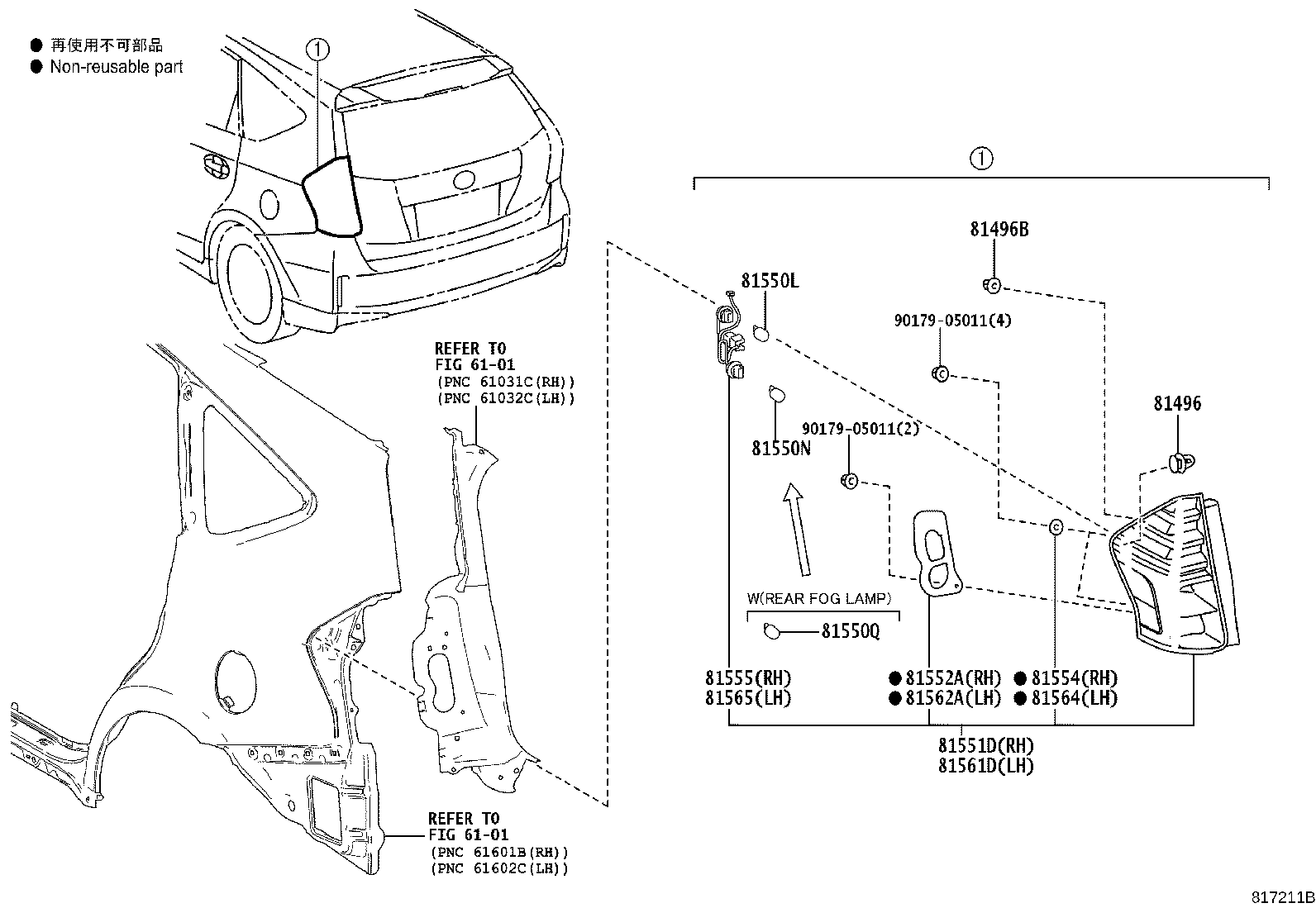

Figure 816175B 816175B 2012-03 → 2014-11 Figure 817211B 817211B 2014-11 → —

Part groups

PNCDescription
81496 Guide, Rear Combination Lamp
81496B Guide, Rear Lamp
81550L Bulb, Rear Turn Signal Lamp
81550N Bulb, Back UP Lamp
81550Q Bulb, Rear Fog Lamp, NO.1
81551D Lens & Body, Rear Combination Lamp, RH
81552A Gasket, Rear Combination Lamp, RH
81554 Gasket, Rear Combination Lamp Body, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81561D Lens & Body, Rear Combination Lamp, LH
81562A Gasket, Rear Combination Lamp, LH
81564 Gasket, Rear Combination Lamp Body, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
