Toyota Prius +/V/A(ALPHA)
2012-03 → 2021-09 · chassis ZVW40 · catalogue 225510 · Europe
Supported model
Data version 2017-12
Meter
21 part groups · 7 illustrations
Part groups

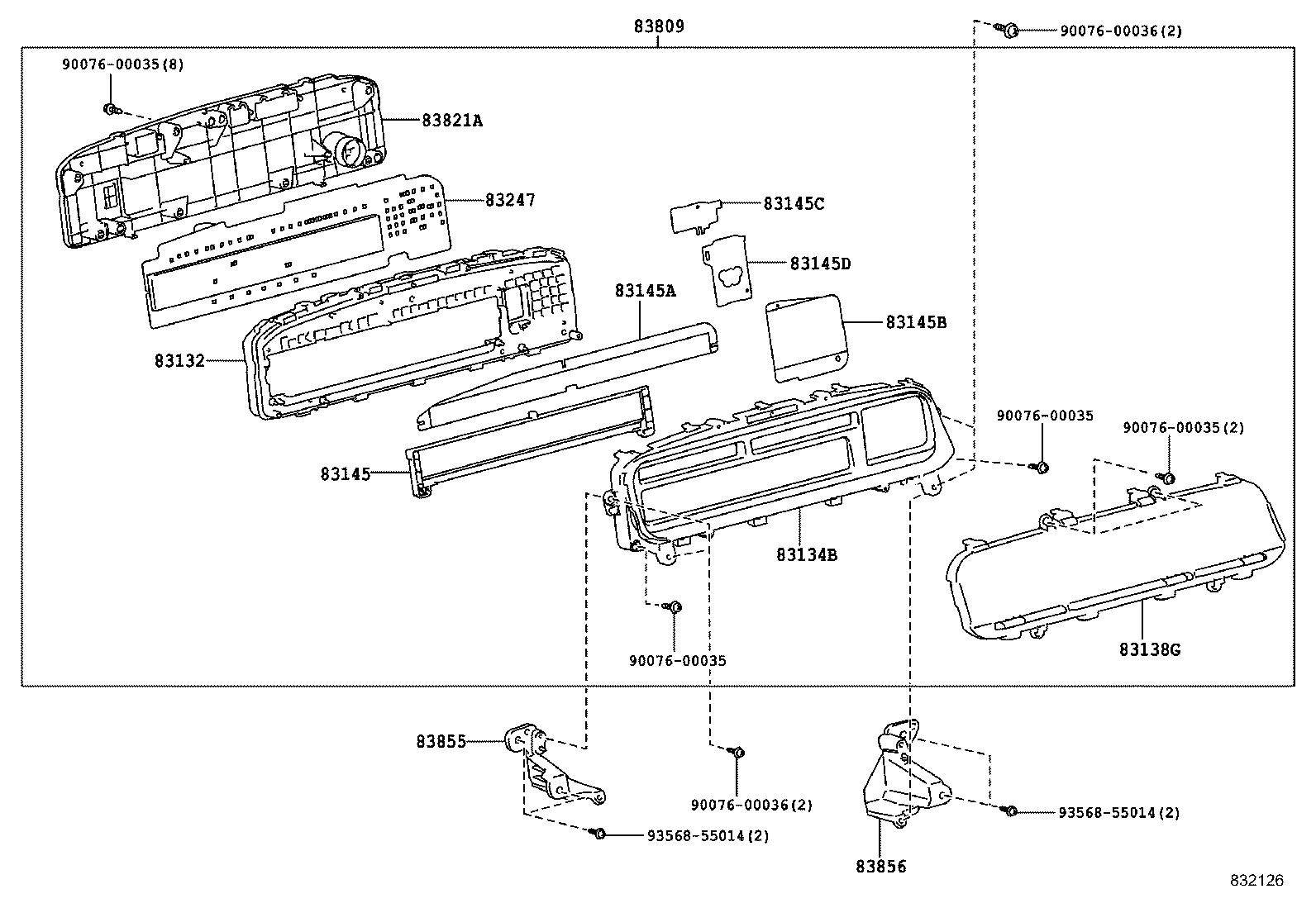

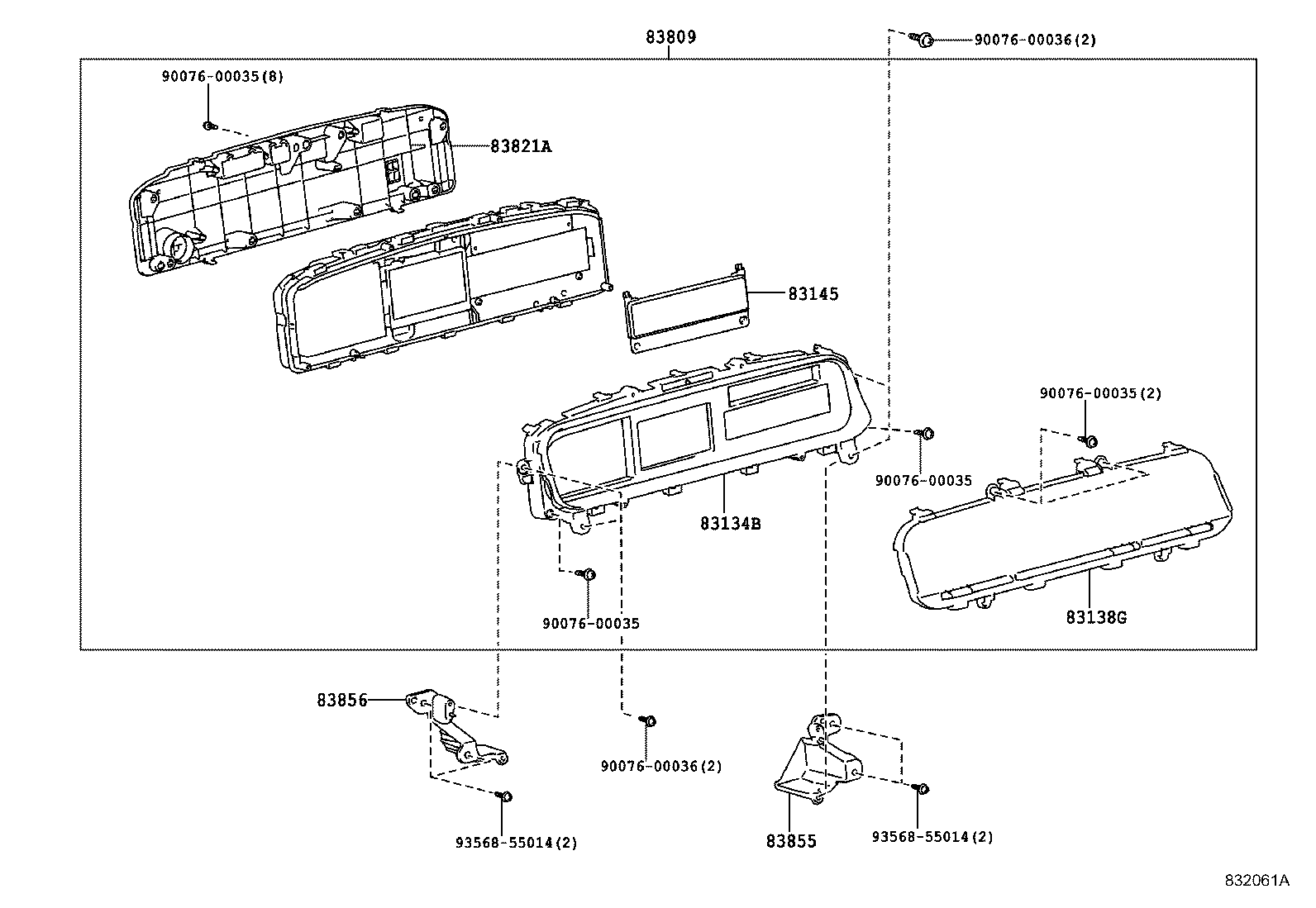

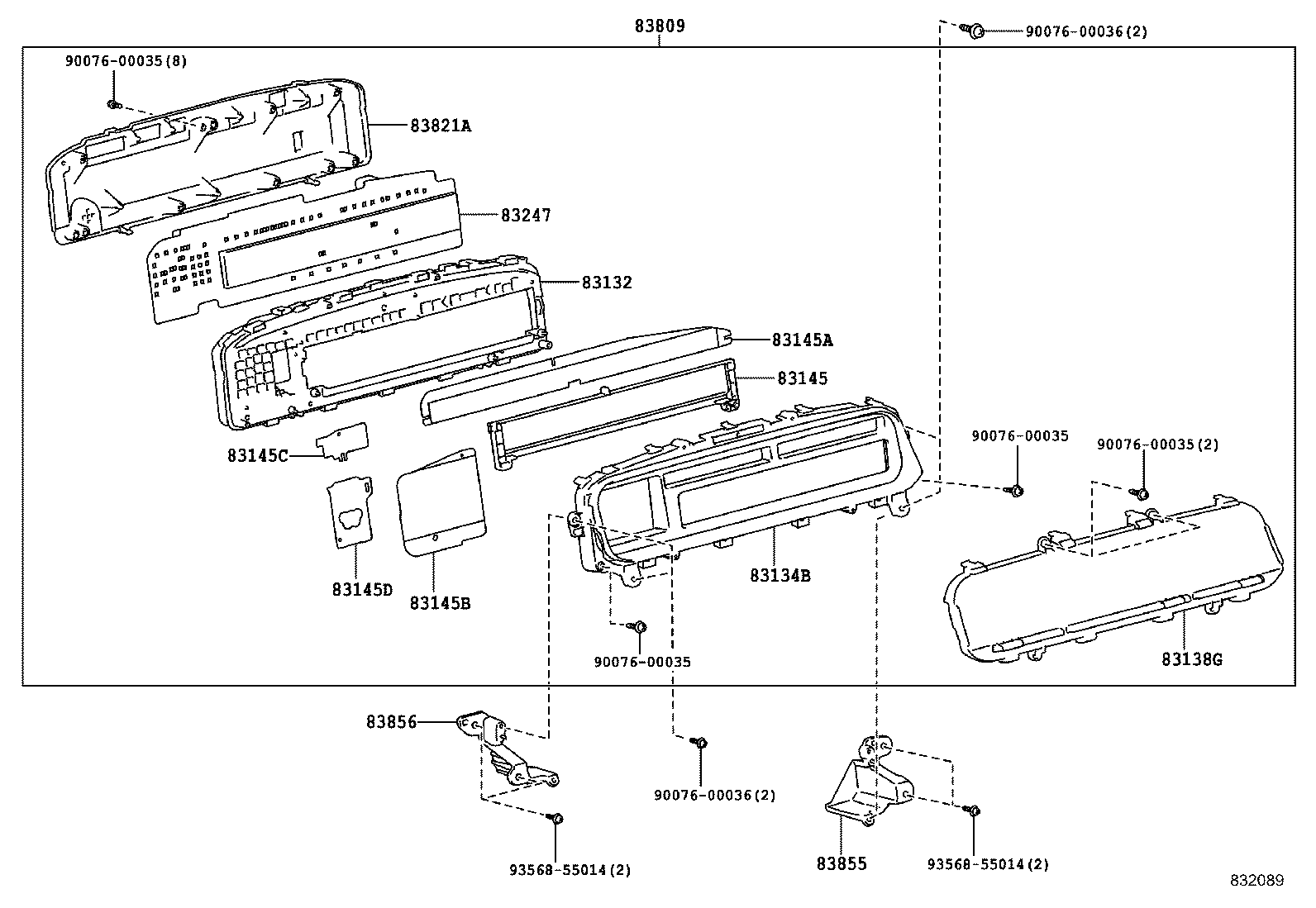

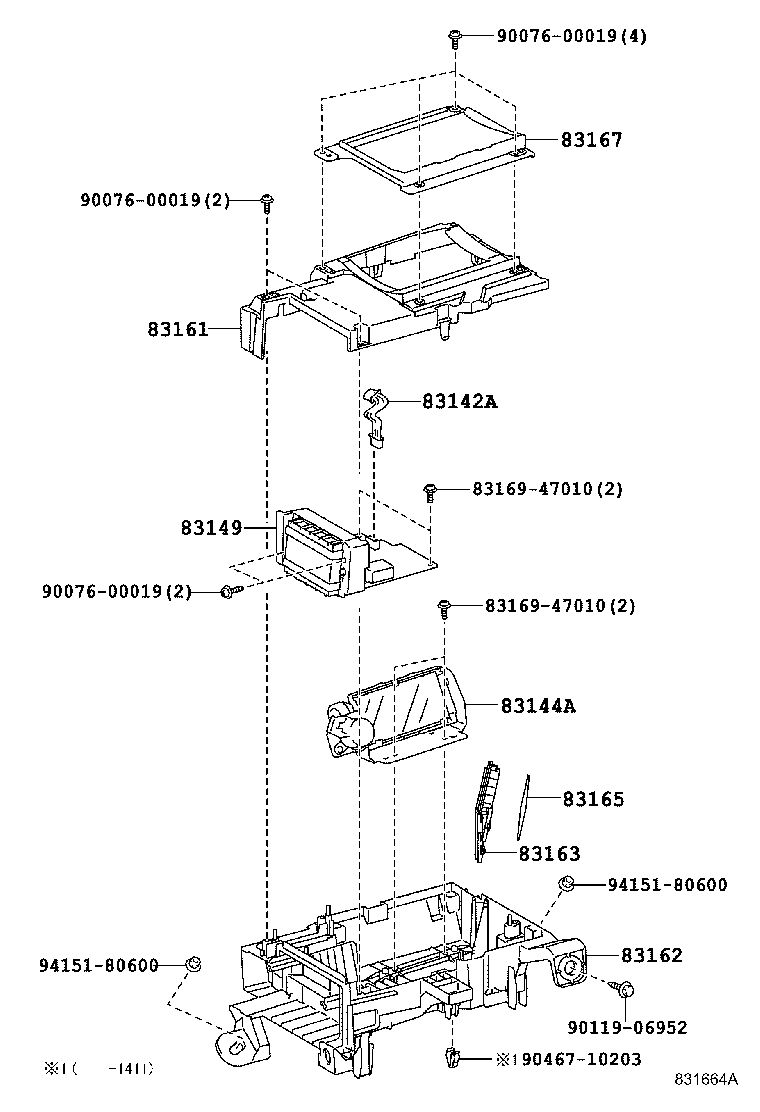

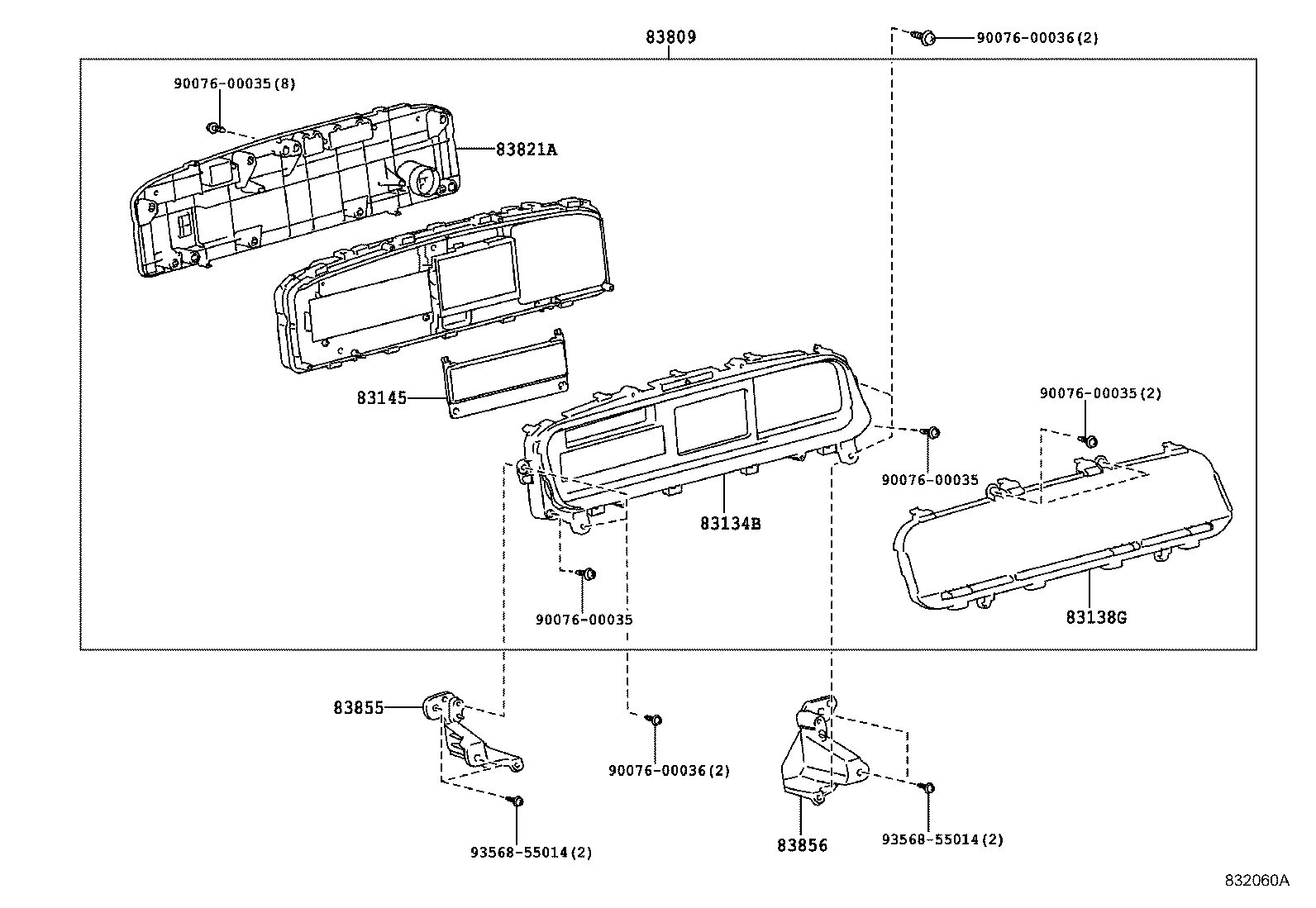

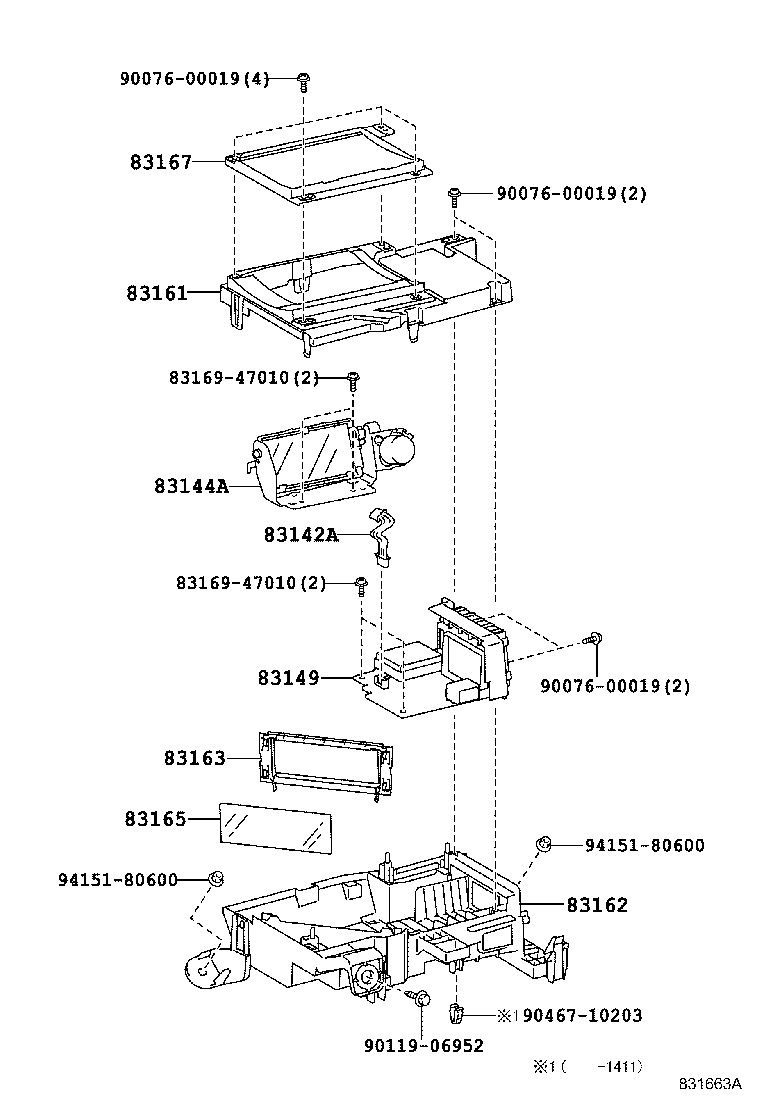

| PNC | Description |
|---|---|
| 83132 | Case, Combination Meter |
| 83134B | Cover, Combination Meter, NO.2 |
| 83138G | Glass, Combination Meter |
| 83142A | Wire, Combination Meter |
| 83144A | Mirror, Combination Meter |
| 83145 | Lens, Meter, NO.1 |
| 83145A | Lens, Meter, NO.2 |
| 83145B | Lens, Meter, NO.3 |
| 83145C | Lens, Meter, NO.4 |
| 83145D | Lens, Meter, NO.5 |
| 83149 | Plate, Meter Circuit |
| 83161 | Case, Combination Meter Mirror, NO.1 |
| 83162 | Case, Combination Meter Mirror, NO.2 |
| 83163 | Plate, Combination Meter Mirror, NO.1 |
| 83165 | Mirror, Combination Meter, NO.2 |
| 83167 | Glass, Combination Meter Mirror |
| 83247 | Plate, Meter Circuit |
| 83809 | Meter Sub-assy, Combination |
| 83821A | Cover, Combination Meter, NO.1 |
| 83855 | Bracket, Combination Meter, NO.1 |
| 83856 | Bracket, Combination Meter, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
