Toyota Prius +/V/A(ALPHA)

2012-03 → 2021-09 · chassis ZVW40 · catalogue 225510 · Europe

Supported model Data version 2017-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

97 part groups · 12 illustrations

Illustrations

84D221 2012-03 → —

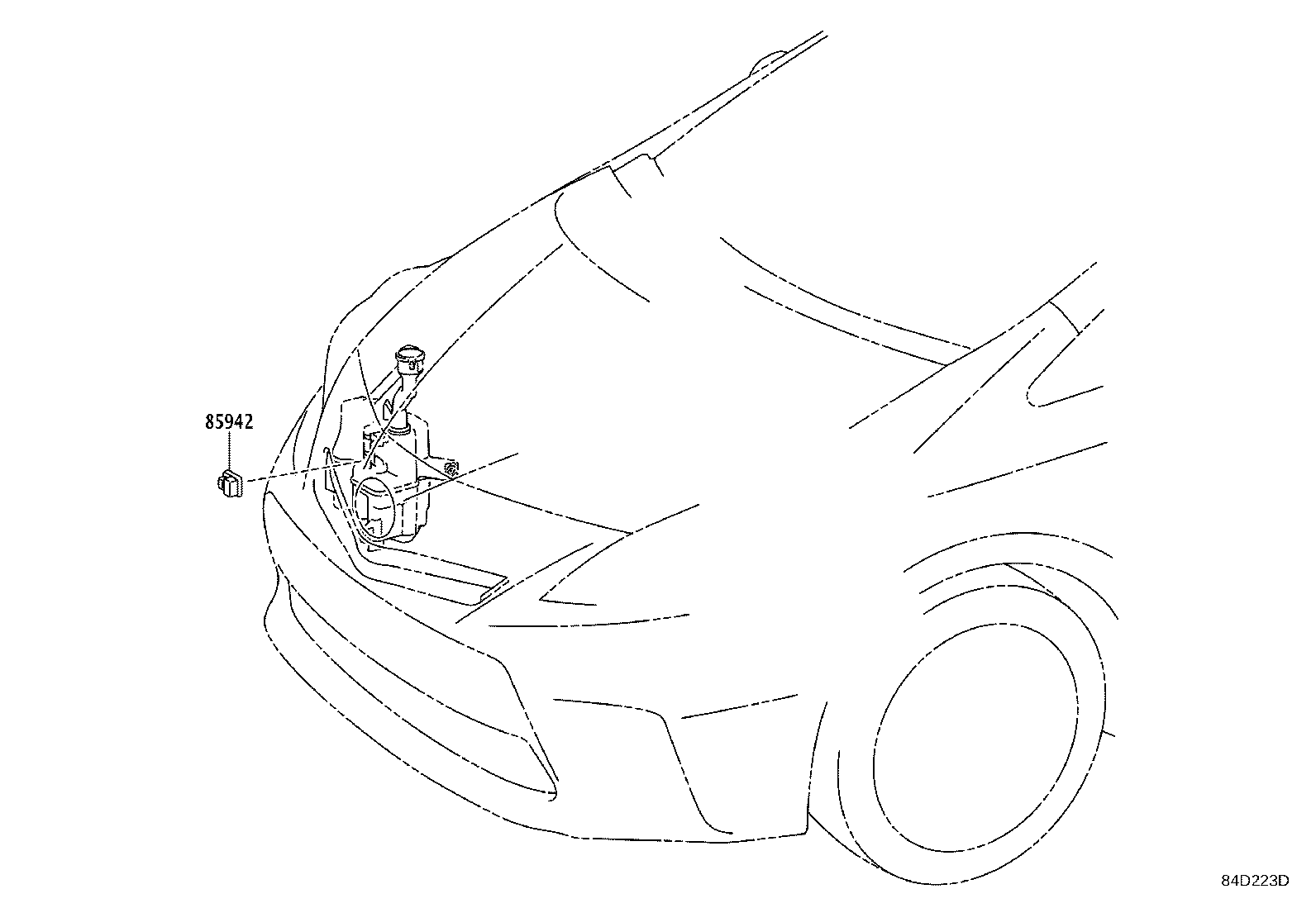

84D223D 2012-03 → 2012-10

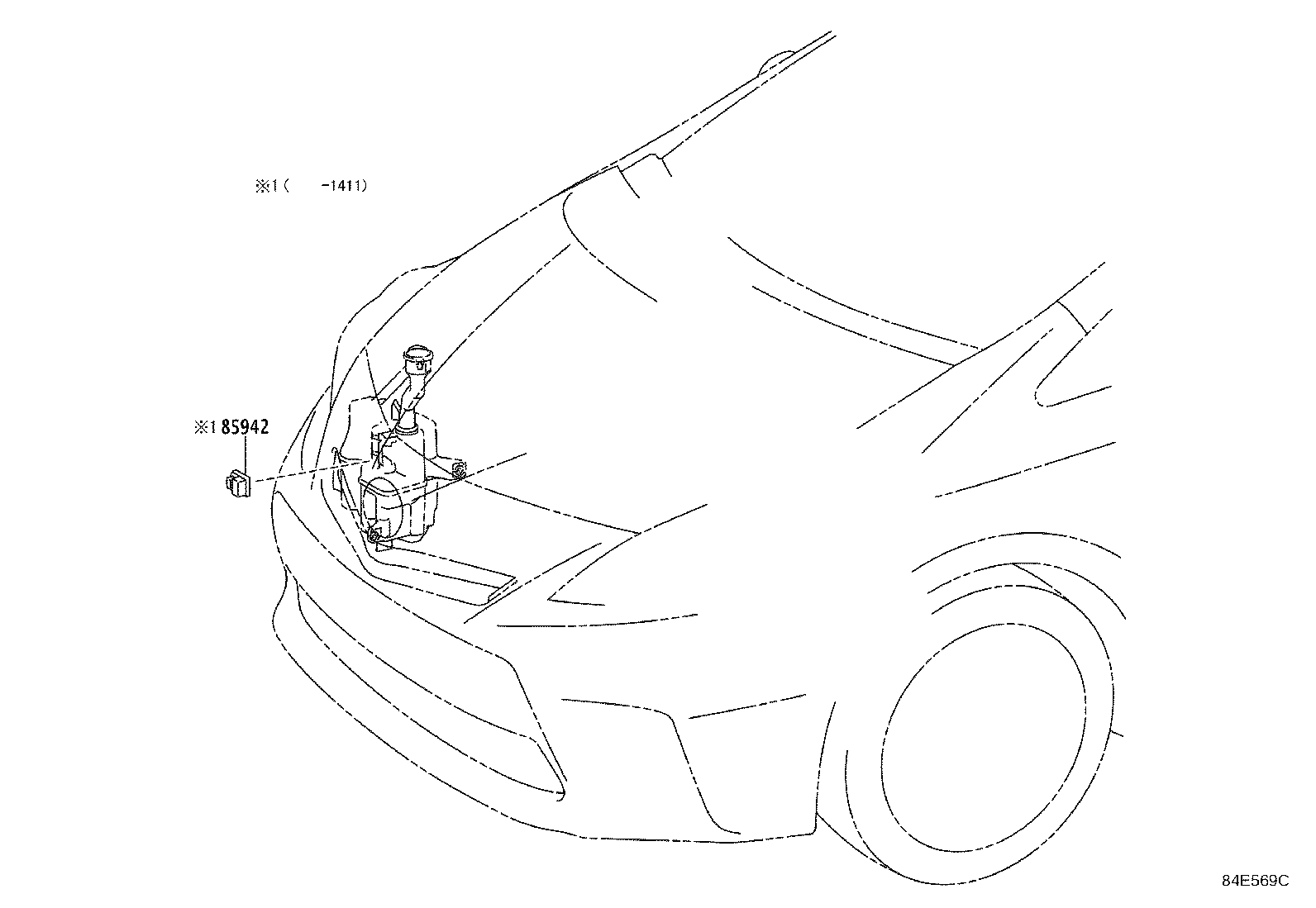

84E569C 2012-10 → —

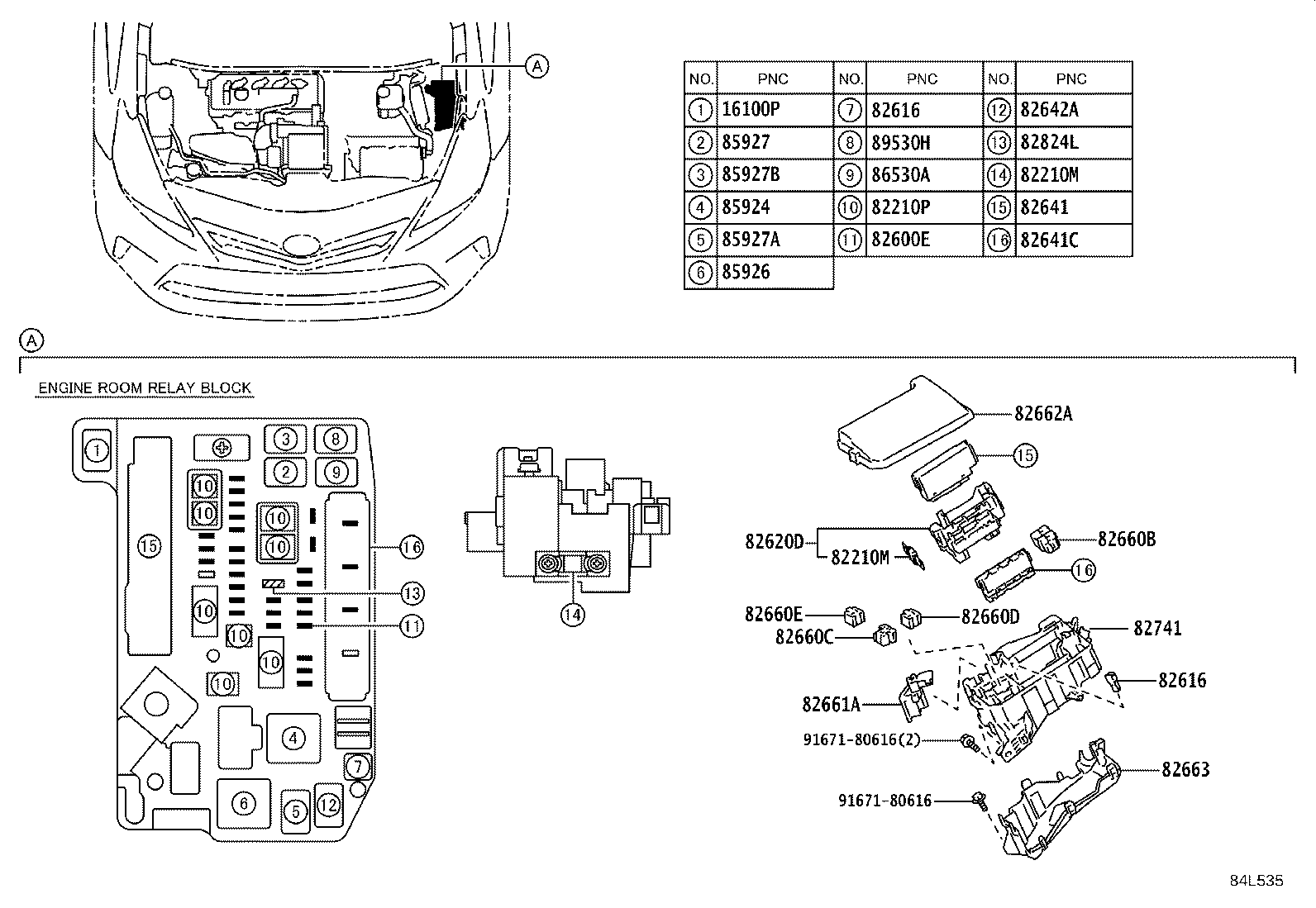

84L535 2012-03 → 2012-10

Part groups

PNC	Description
16100P	Relay, Water Pump
69065A	Cylinder Sub-assy, Airbag Cut Off Switch
82210M	Fusible Link
82210N	Instrument Panel Fusible Link
82210P	Engine Room Fusible Link
82600D	Instrument Panel Fuse
82600E	Engine Room Fuse
82616	Puller, Fuse
82620A	Block Assy, Fusible Link
82620B	Block Assy, Fusible Link
82620D	Block Assy, Fusible Link
82641	Relay, Integration NO.1
82641C	Relay, Integration NO.2
82642A	Relay, Running Light
82642D	Relay, Running Light NO.2
82660B	Block Assy, Relay
82660C	Block Assy, Relay
82660D	Block Assy, Relay
82660E	Block Assy, Relay
82661A	Cover, Relay Block, NO.2
82662A	Cover, Relay Block, Upper, NO.1
82663	Cover, Relay Block, Lower
82672A	Cover, Junction Block
82730	Block Assy, Instrument Panel Junction
82741	Block, Engine Room Relay
82824L	Pin, Short
82877	Box, Computer Integration, RH
82878	Box, Computer Integration, LH
83320	Gage Assy, Fuel Sender
83530	Switch Assy, Oil Pressure (FOR ENGINE)
84010D	Control & Panel Assy, Integration
84040	Master Switch Assy,Multiplex Network
84120	Switch Assy, Head UP Display
84140	Switch Assy, Headlamp Dimmer
84150D	Switch Assy, Headlamp Cleaner
84152	Switch, Headlamp Leveling
84233	Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234	Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84244B	Switch, Steering Pad, RH
84247A	Switch, Steering Pad, LH
84270Q	Relay, Lamp Cut
84307	Cable Sub-assy, Spiral W/Sensor
84330	Switch Assy, Hazard Warning Signal
84340	Switch Assy, Stop Lamp
84345	Adjuster, Stop Lamp Switch Mounting
84431	Switch, Vehicle Approaching Speaker
84490F	Switch Assy, Parking Assist Pre Support
84550	Switch Assy, Parking Brake
84650	Switch Assy, Windshield Wiper
84650D	Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84718	Switch, Transmission Shift Main
84751	Switch, Seat Heater
84770A	Switch Assy, Pre-collision System Cancel
84810	Switch Assy, Power Window Regulator
84810D	Switch Assy, Power Window Regulator, Rear
84840G	Switch Assy, Back Door Opener
84870A	Switch Assy, Outer Mirror
84921A	Knob, Power Seat Switch (FOR RECLINING)
84921B	Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
84922A	Switch, Front Power Seat(FOR LUMBAR)
84922B	Switch, Front Power Seat, RH
84922C	Switch, Front Power Seat, LH
84970	Switch Assy, Combination
85530B	Socket Assy, Power Outlet, Rear NO.1
85530E	Socket Assy, Power Outlet, NO.3
85535C	Cover, Power Outlet Socket, Rear
85535E	Cover, Power Outlet Socket, NO.2
85539	Label, Power Outlet Notice
85539A	Label, Power Outlet Notice, Rear
85916L	Relay, Rear Fog Lamp
85924	Relay, Ignition Control
85926	Relay, Headlamp Dimmer
85927	Relay, Cooling Fan
85927A	Relay, Cooling Fan, NO.2
85927B	Relay, Cooling Fan, NO.3
85940	Relay Assy, Windshield Wiper
85942	Relay, Headlamp Cleaner Control
85970A	Relay Assy, Double Lock Door Control
86530	Relay Assy, Horn
86530A	Relay, Horn
88150A	Computer Assy, Driving Support
88790F	Thermistor Assy
89111	Computer, Network Gateway
89120A	Sensor, Automatic Light Control
89221	Computer, Multiplex Network Body
89465	Sensor, Oxygen
89467B	Sensor, Air Fuel Ratio
89530C	Computer Assy, Transmission Control
89530H	Relay, Transaxle Parking Look Control
895A0A	Computer Assy, Stop Lamp Control
89611	Switch, Push Start
89615	Sensor, Knock Control
89650	Computer Assy, Power Steering
89681A	Computer, Power Management Control
89815	Computer, Seat Belt Control
89960	Computer Assy, Headlamp Leveling
89981C	Computer, Hybrid Vehicle Control

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
