Toyota Prius +/V/A(ALPHA)

2012-03 → 2021-09 · chassis ZVW40 · catalogue 225510 · Europe

Supported model Data version 2017-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

8 part groups · 2 illustrations

Illustrations

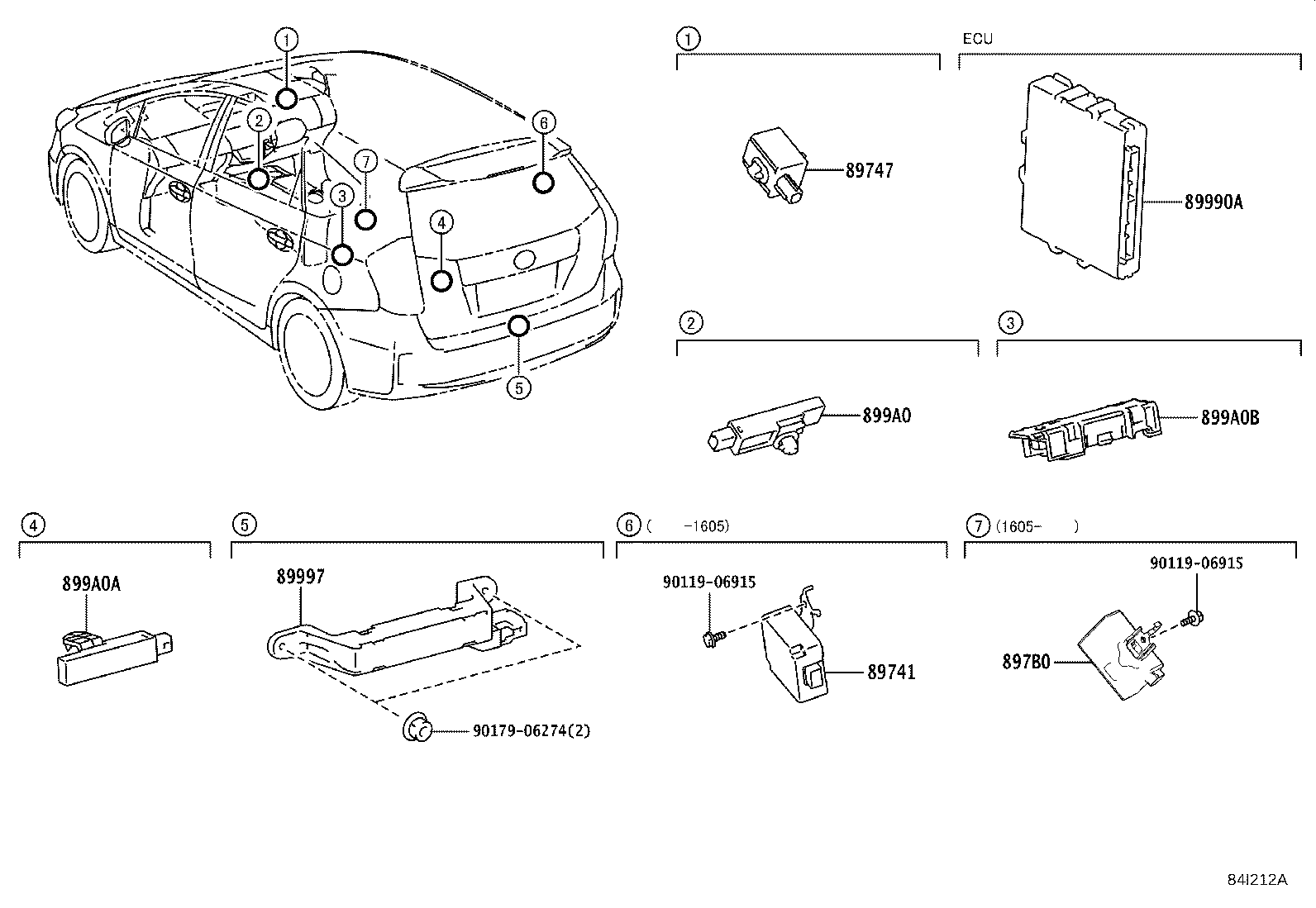

Figure 84I211A 84I211A 2012-03 → — Figure 84I212A 84I212A 2012-03 → —

Part groups

PNCDescription
89741 Receiver, Door Control
89747 Buzzer, Wireless Door Lock
897B0 Receiver Assy, Electrical Key & Tpms
89990A Computer Assy, Smart Key
89997 Antenna, Electrical Key
899A0 Antenna Assy, Indoor Electrical Key, NO.1
899A0A Antenna Assy, Indoor Electrical Key, NO.2
899A0B Antenna Assy, Indoor Electrical Key, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
