Toyota Prius +/V/A(ALPHA)

2012-03 → 2021-09 · chassis ZVW40 · catalogue 225510 · Europe

Supported model Data version 2017-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Wiper

14 part groups · 2 illustrations

Illustrations

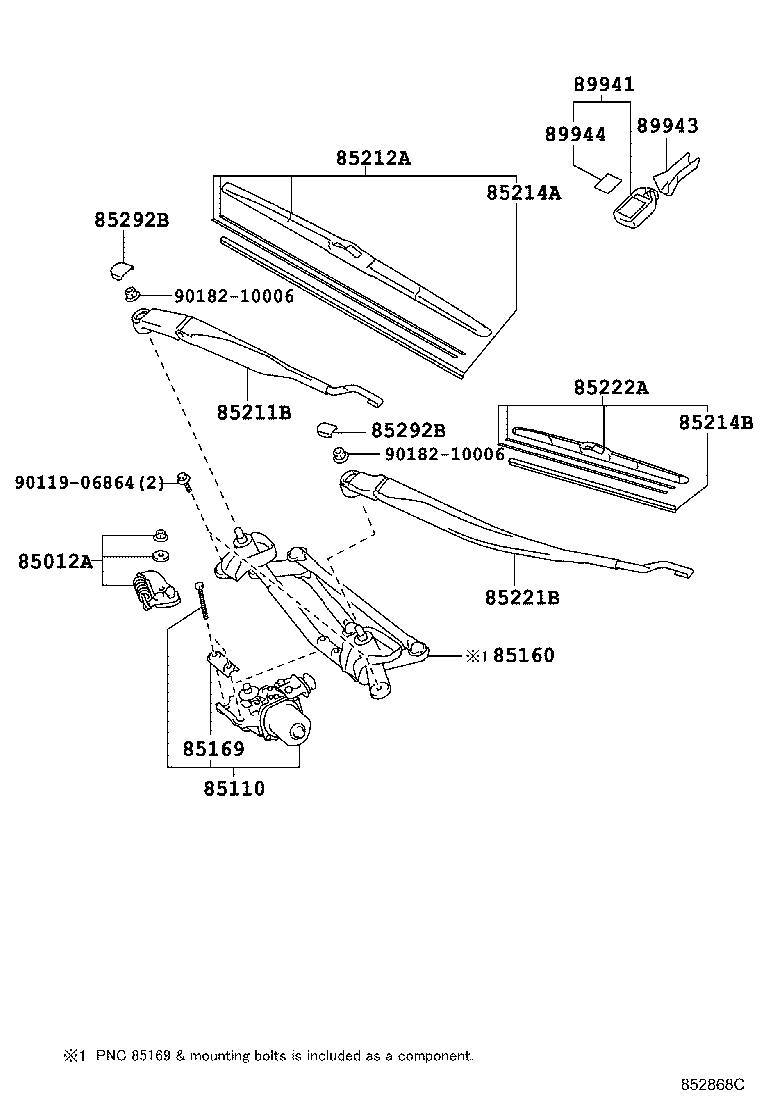

Figure 852867C 852867C 2012-03 → — Figure 852868C 852868C 2012-03 → —

Part groups

PNCDescription
85012A Crank Sub-assy, Front Wiper
85110 Motor Assy, Windshield Wiper
85160 Link Assy, Windshield Wiper
85169 Washer, Windshield Wiper Link Pivot, NO.1
85211B Arm, Front Wiper, RH
85212A Blade, FR Wiper, RH
85214A Rubber, Wiper, RH
85214B Rubber, Wiper, LH
85221B Arm, Front Wiper, LH
85222A Blade, FR Wiper, LH
85292B Cap, Front Wiper Arm Head
89941 Sensor, Rain
89943 Cover, Rain Sensor
89944 Tape, Rain Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
