Toyota Prius +/V/A(ALPHA)

2012-03 → 2021-09 · chassis ZVW40 · catalogue 225510 · Europe

Supported model Data version 2017-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

23 part groups · 6 illustrations

Illustrations

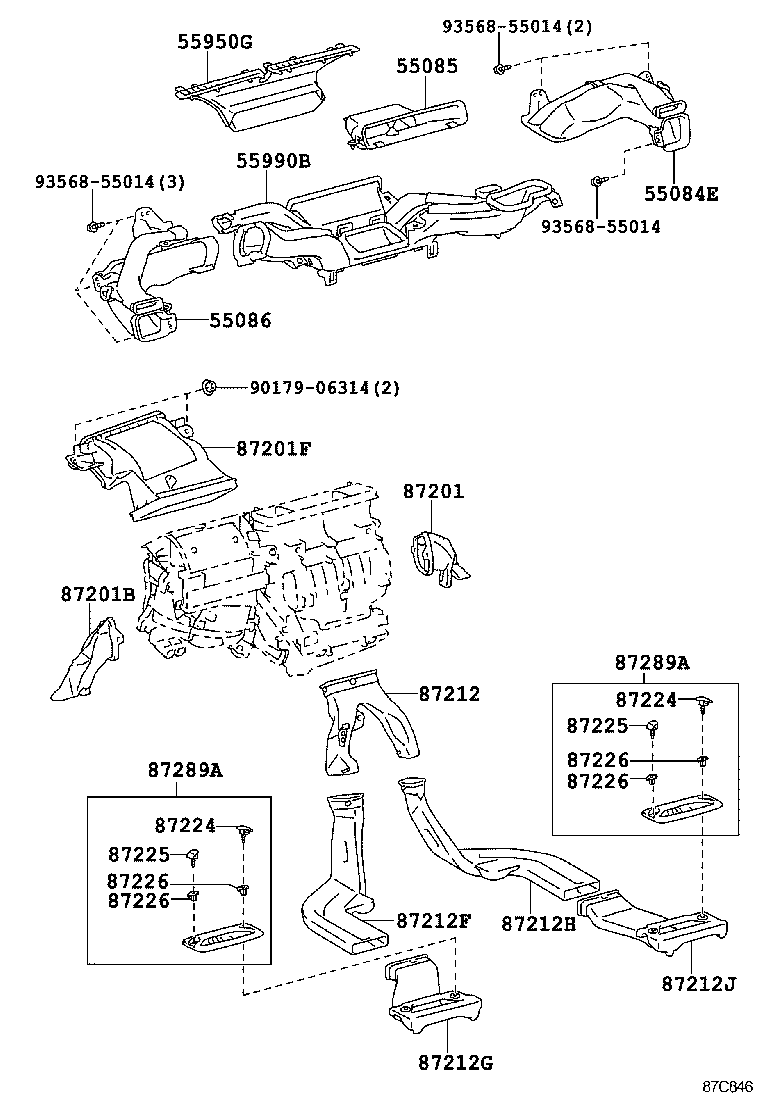

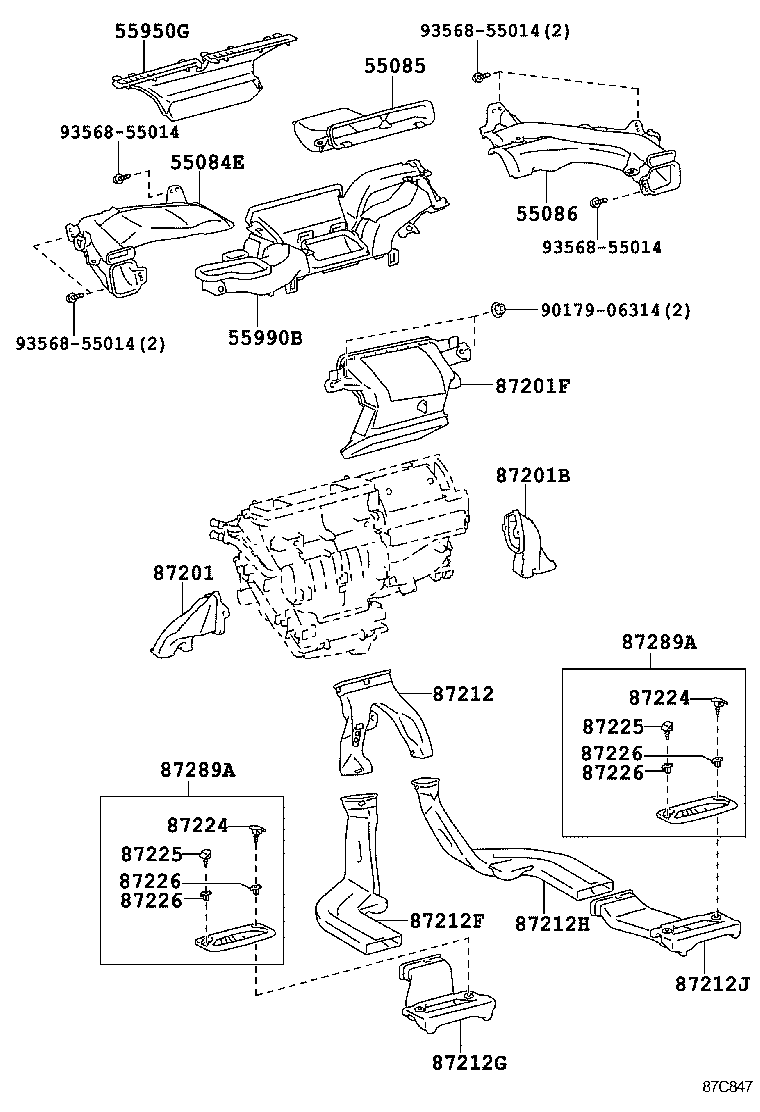

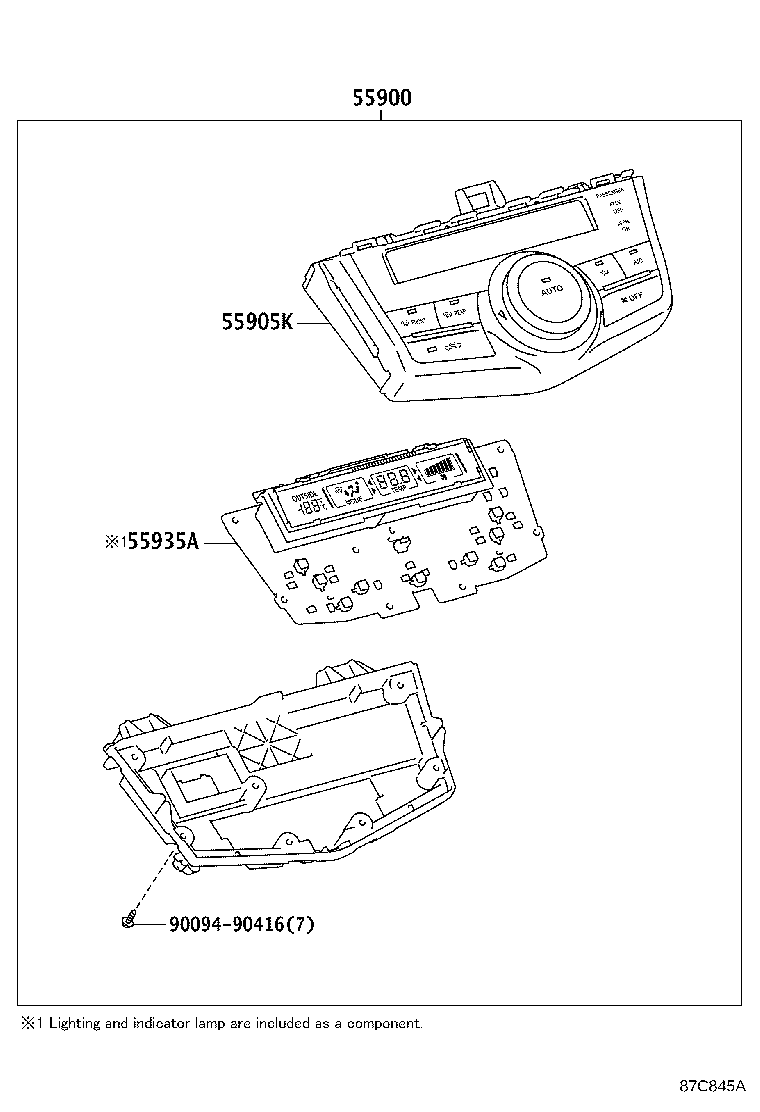

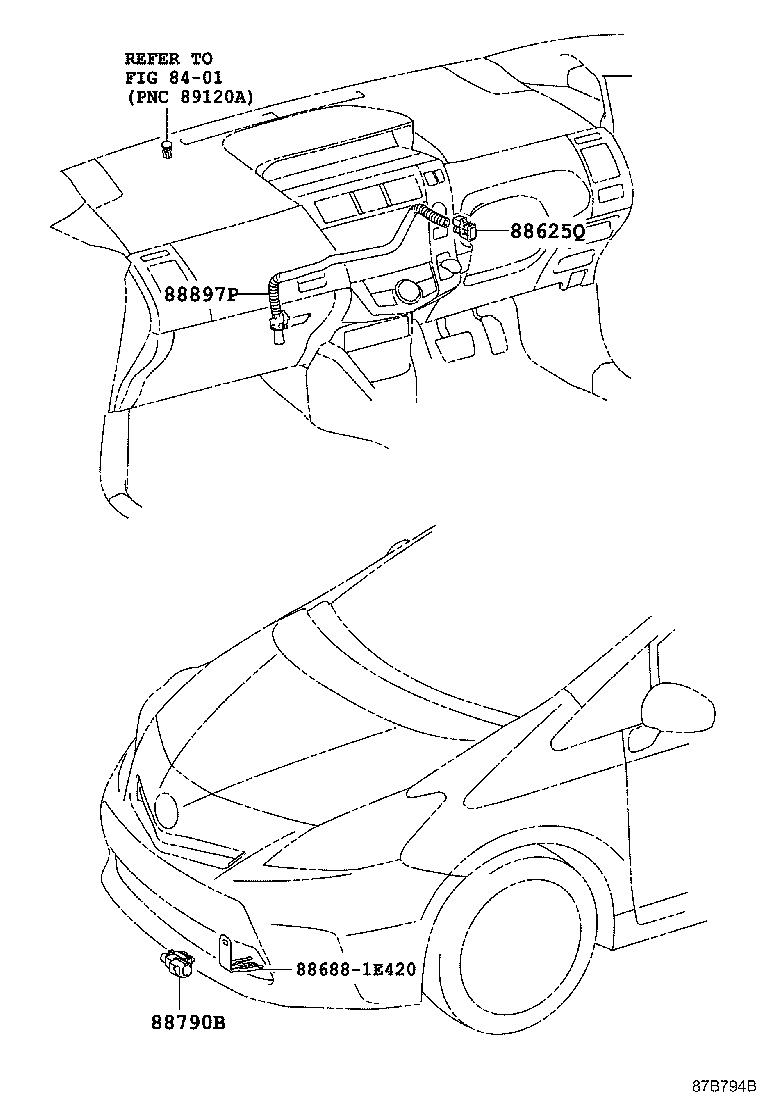

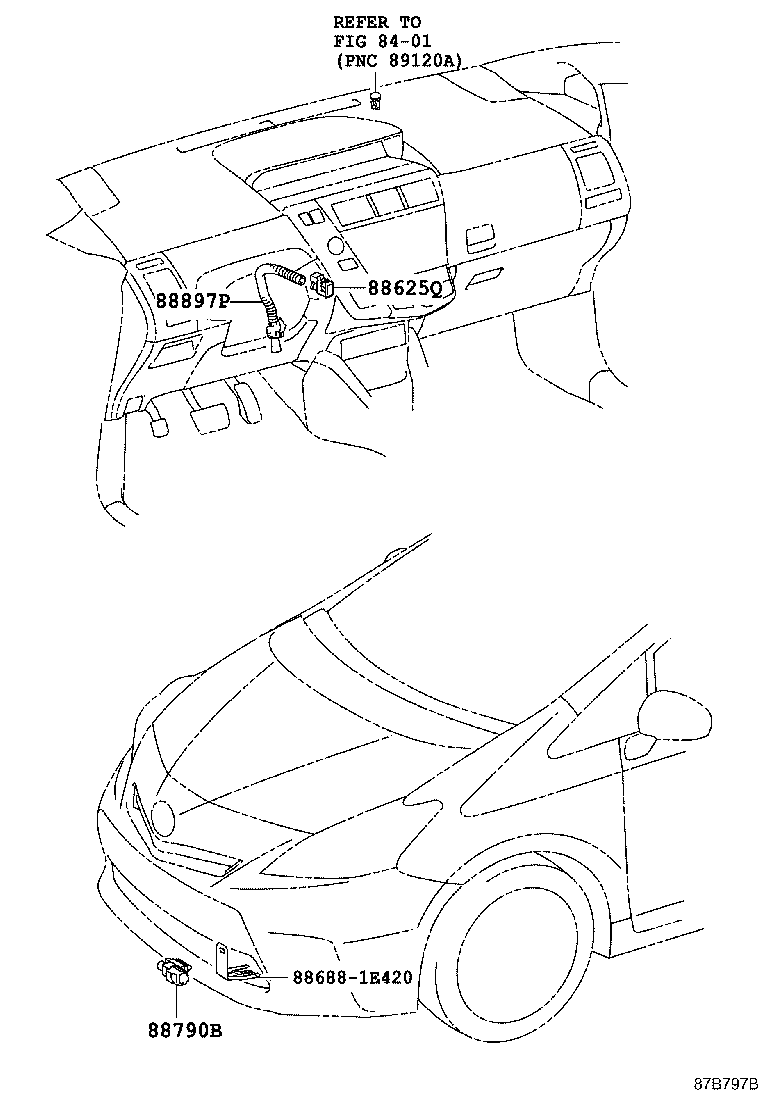

Figure 87C844A 87C844A 2012-03 → — Figure 87C845A 87C845A 2012-03 → — Figure 87C846 87C846 2012-03 → — Figure 87C847 87C847 2012-03 → — Figure 87B794B 87B794B 2012-03 → — Figure 87B797B 87B797B 2012-03 → —

Part groups

PNCDescription
55084E Duct Sub-assy, Heater TO Register, NO.1
55085 Duct Sub-assy, Heater TO Register, NO.2
55086 Duct Sub-assy, Heater TO Register, NO.3
55900 Control Assy, Air Conditioner
55905K Knob, Heater Control, NO.4
55935A Circuit, Center Cluster Module
55950G Nozzle Assy, Defroster
55990B Nozzle Assy, Defroster, Lower
87201 Duct Sub-assy, Air, NO.1
87201B Duct Sub-assy, Air, NO.2
87201F Duct Sub-assy, Air, NO.3
87212 Duct, Air, Rear NO.1
87212F Duct, Air, Rear NO.2
87212G Duct, Air, Rear NO.3
87212H Duct, Air, Rear NO.4
87212J Duct, Air, Rear NO.5
87224 Guide, Air Duct, RH
87225 Guide, Air Duct, LH
87226 Adapter, Air Duct
87289A Bezel, Rear Heater Register, NO.1
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88790B Thermistor Assy
88897P Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
