Toyota Prius +/V/A(ALPHA)

2012-03 → 2021-09 · chassis ZVW40 · catalogue 225510 · Europe

Supported model Data version 2017-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

11 part groups · 2 illustrations

Illustrations

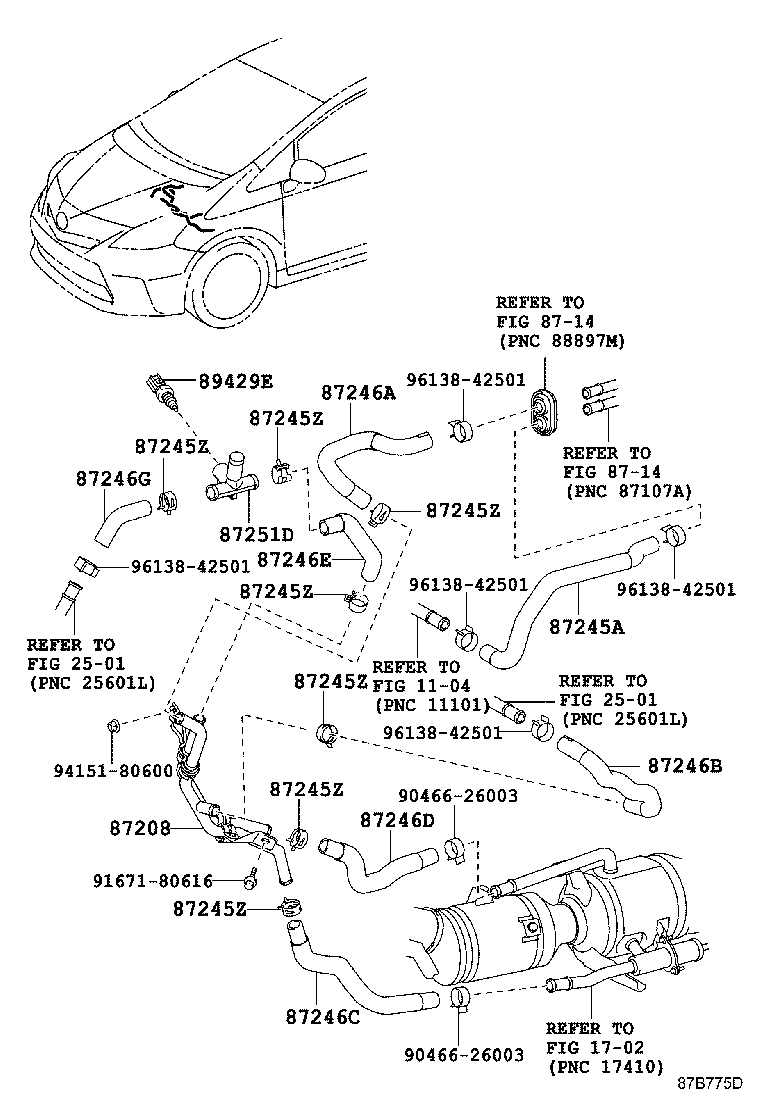

Figure 87B778B 87B778B 2012-03 → — Figure 87B775D 87B775D 2012-03 → —

Part groups

PNCDescription
87208 Pipe Sub-assy, Heater Water
87245A Hose, Heater Water, Inlet A
87245Z Clip OR Clamp (FOR HEATER WATER HOSE)
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246C Hose, Heater Water, Outlet C
87246D Hose, Heater Water, Outlet D
87246E Hose, Heater Water, Outlet E
87246G Hose, Heater Water, Outlet G
87251D Joint, Water, NO.1
89429E Sensor, Water Temperature
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
