Toyota Lexus CT200H
2010-12 → present · chassis ZWA10 · catalogue 232510 · Europe
Supported model
Data version 2018-09

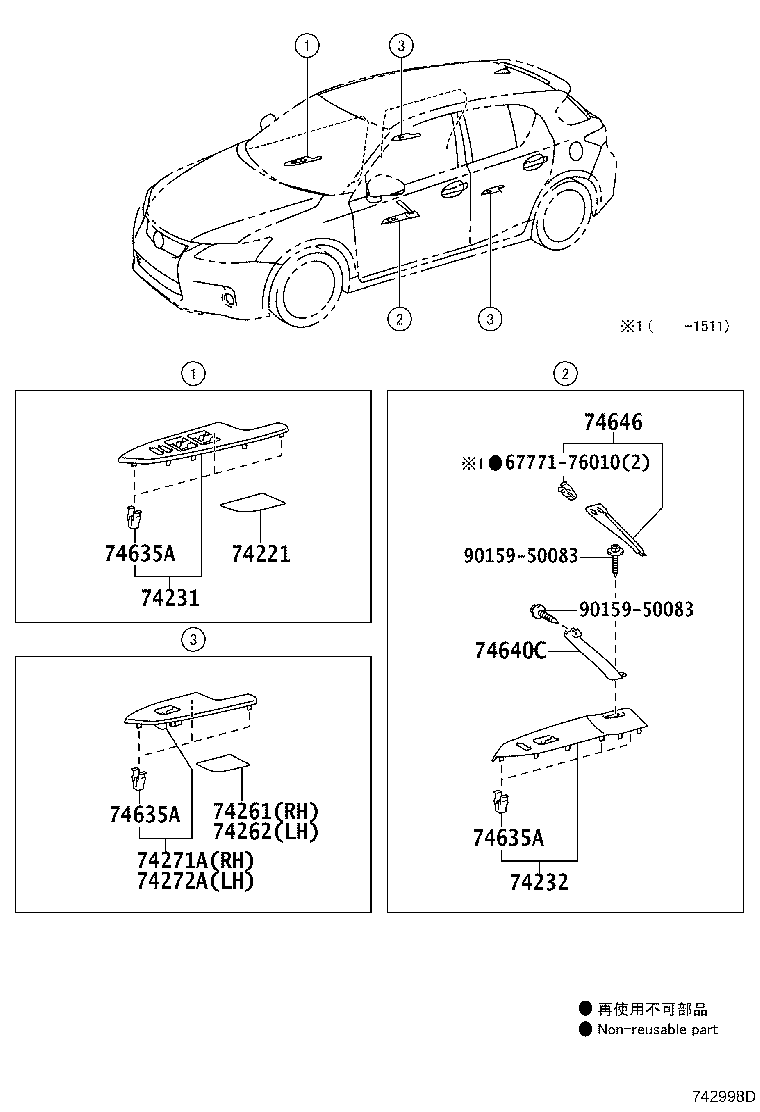

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 74221 — Cover, Door Armrest, RH | ||||
| 74221-76010 |
Cover, Door Armrest, RH
2010-12 → 2013-12
ended
|
ZWA10 RHD | — | |
| 74221-76010 |
Cover, Door Armrest, RH
2013-12 → 2020-07
ended
|
ZWA10 RHD | — | |
| 74231 — Panel, Front Armrest Base, Upper RH | ||||
| 74231-76010 |
Panel, Front Armrest Base, Upper RH
2010-12 → 2013-12
ended
|
ZWA10 LHD | — | |
| 74231-76020 |
Panel, Front Armrest Base, Upper RH
2010-12 → 2013-12
ended
|
ZWA10 RHD | — | |
| 74231-76010 |
Panel, Front Armrest Base, Upper RH
2013-12 → 2020-09
ended
|
ZWA10 LHD | — | |
| 74231-76021 |
Panel, Front Armrest Base, Upper RH
2013-12 → 2020-07
ended
|
ZWA10 RHD | — | |
| 74232 — Panel, Front Armrest Base, Upper LH | ||||
| 74232-76010 |
Panel, Front Armrest Base, Upper LH
2010-12 → 2013-12
ended
|
ZWA10 LHD | — | |
| 74232-76020 |
Panel, Front Armrest Base, Upper LH
2010-12 → 2013-12
ended
|
ZWA10 RHD | — | |
| 74232-76011 |
Panel, Front Armrest Base, Upper LH
2013-12 → 2020-09
ended
|
ZWA10 LHD | — | |
| 74232-76020 |
Panel, Front Armrest Base, Upper LH
2013-12 → 2020-07
ended
|
ZWA10 RHD | — | |
| 74261 — Cover, Rear Door Armrest, RH | ||||
| 74261-76010 |
Cover, Rear Door Armrest, RH
2010-12 → 2013-12
ended
|
ZWA10 | — | |
| 74261-76010 |
Cover, Rear Door Armrest, RH
2013-12 → 2020-09
ended
|
ZWA10 | — | |
| 74262 — Cover, Rear Door Armrest, LH | ||||
| 74262-76010 |
Cover, Rear Door Armrest, LH
2010-12 → 2013-12
ended
|
ZWA10 | — | |
| 74262-76010 |
Cover, Rear Door Armrest, LH
2013-12 → 2020-09
ended
|
ZWA10 | — | |
| 74271A — Panel, Rear Door Armrest Base, Upper RH | ||||
| 74271-76010 |
Panel, Rear Door Armrest Base, Upper RH
2010-12 → 2013-12
ended
|
ZWA10 | — | |
| 74271-76010 |
Panel, Rear Door Armrest Base, Upper RH
2013-12 → 2020-09
ended
|
ZWA10 | — | |
| 74272A — Panel, Rear Door Armrest Base, Upper LH | ||||
| 74272-76010 |
Panel, Rear Door Armrest Base, Upper LH
2010-12 → 2013-12
ended
|
ZWA10 | — | |
| 74272-76010 |
Panel, Rear Door Armrest Base, Upper LH
2013-12 → 2020-09
ended
|
ZWA10 | — | |
| 74635A — Clip | ||||
| 90467-10203 |
Clip
2010-12 → 2013-12
ended
|
ZWA10 | — | |
| 90467-10203 |
Clip
2013-12 → 2020-09
ended
|
ZWA10 | — | |
| 74640C — Grip Assy, Door Assist, LH | ||||
| 74642-76010-B0 note |
Grip Assy, Door Assist, LH
2010-12 → 2013-12
ended
|
ZWA10 RHD | — | |
| 74642-76020-B0 note |
Grip Assy, Door Assist, LH
2013-12 → 2020-07
ended
|
ZWA10 RHD B | — | |
| 74642-76020-B0 note |
Grip Assy, Door Assist, LH
2013-12 → 2020-07
ended
|
ZWA10 RHD E | — | |
| 74646 — Cover, Door Assist Grip, LH | ||||
| 74646-76010-C1 note |
Cover, Door Assist Grip, LH
2010-12 → 2012-12
ended
|
ZWA10 RHD | — | |
| 74646-76020-C0 note |
Cover, Door Assist Grip, LH
2013-01 → 2013-12
ended
|
ZWA10 RHD | — | |
| 74646-76020-C0 note |
Cover, Door Assist Grip, LH
2013-12 → 2014-11
ended
|
ZWA10 RHD B | — | |
| 74646-76020-C0 note |
Cover, Door Assist Grip, LH
2013-12 → 2014-11
ended
|
ZWA10 RHD E | — | |
| 74646-76021-C0 note |
Cover, Door Assist Grip, LH
2014-12 → 2015-11
ended
|
ZWA10 RHD B | — | |
| 74646-76021-C0 note |
Cover, Door Assist Grip, LH
2014-12 → 2015-11
ended
|
ZWA10 RHD E | — | |
| 74646-76030-C0 note |
Cover, Door Assist Grip, LH
2015-12 → 2020-07
ended
|
ZWA10 RHD B | — | |
| 74646-76030-C0 note |
Cover, Door Assist Grip, LH
2015-12 → 2020-07
ended
|
ZWA10 RHD E | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
