Toyota Lexus CT200H

2010-12 → present · chassis ZWA10 · catalogue 232510 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

11 part groups · 3 illustrations

Illustrations

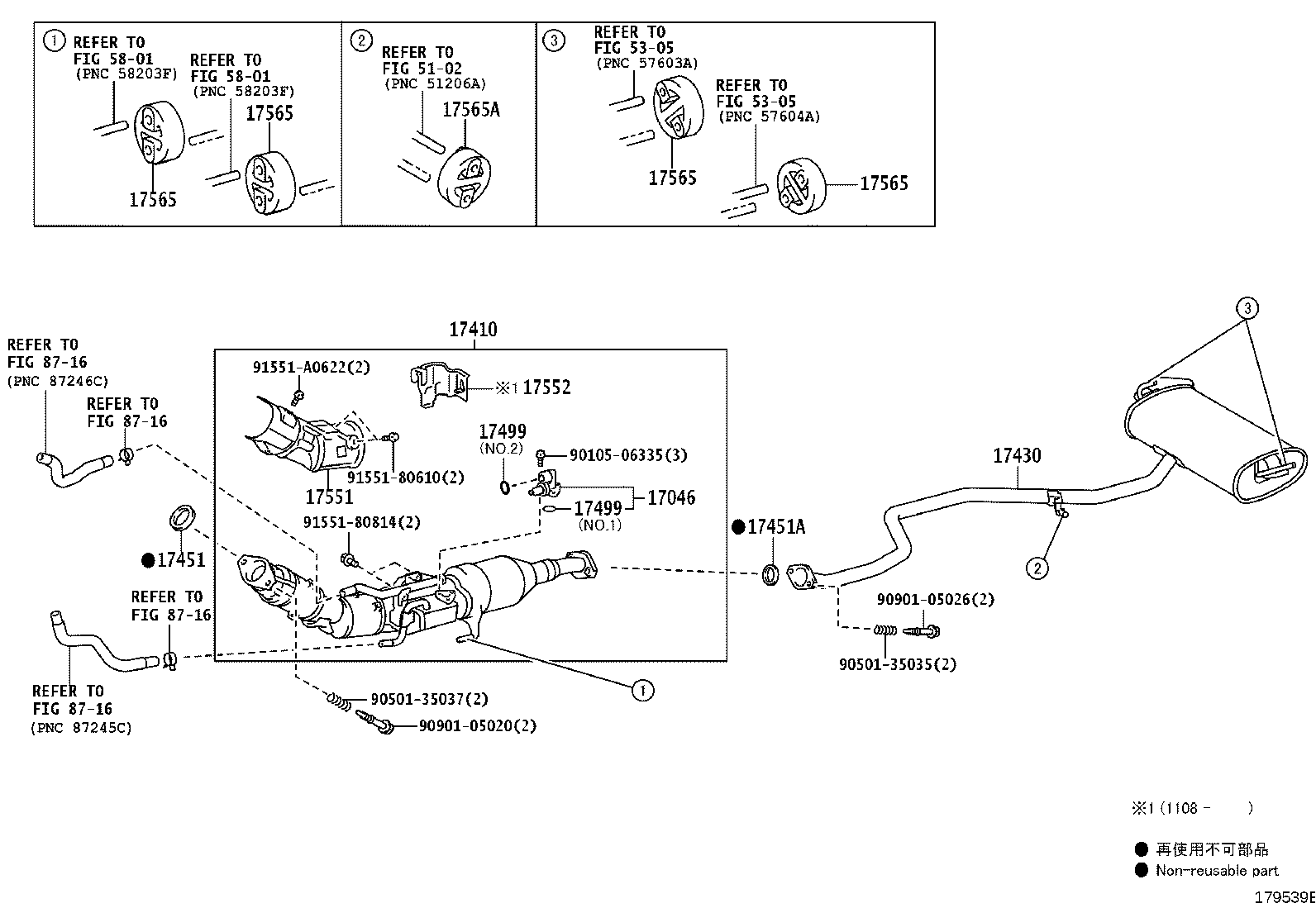

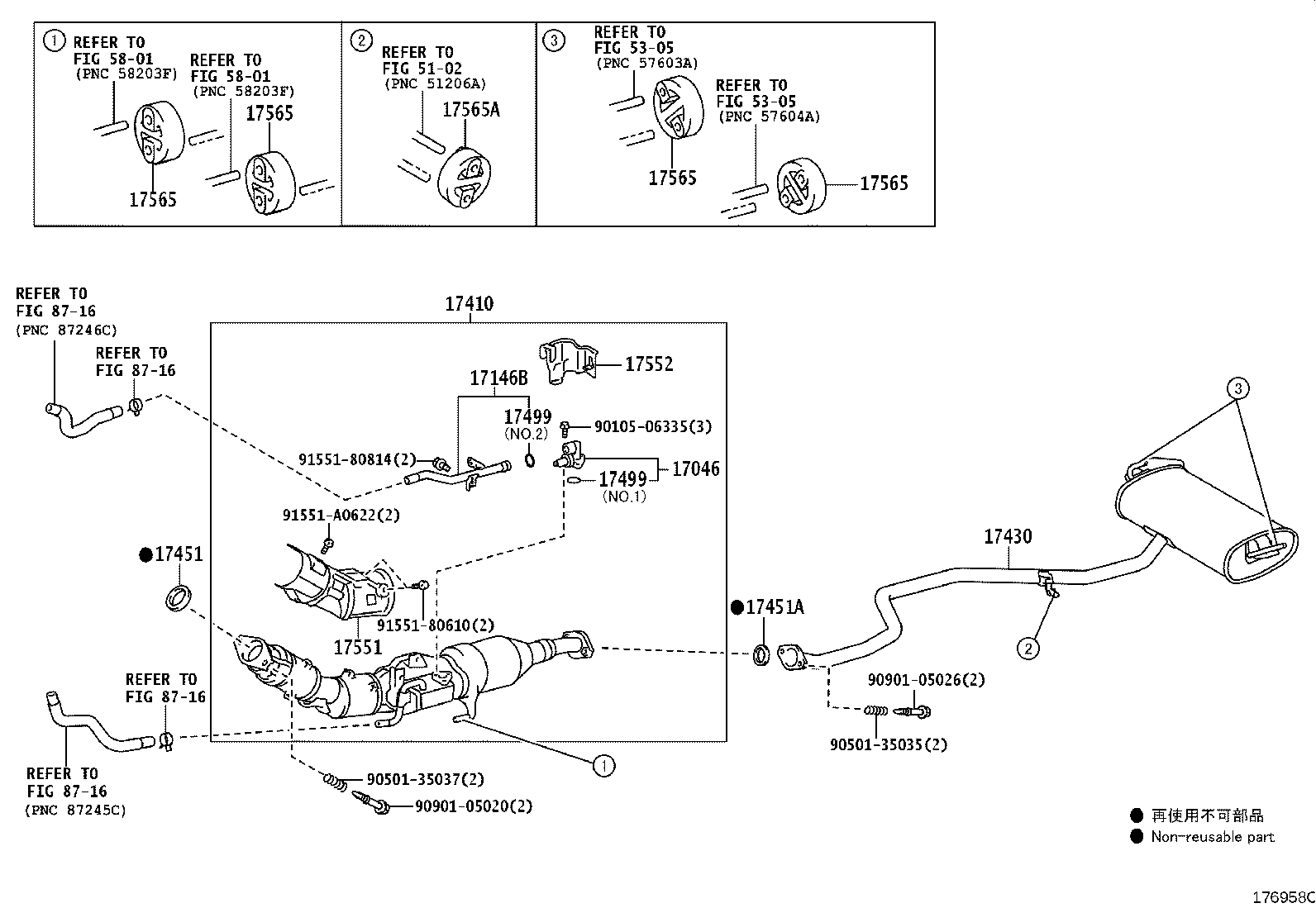

Figure 176957C 176957C 2010-12 → — Figure 179539E 179539E 2010-12 → 2012-01 Figure 176958O 176958O 2012-01 → —

Part groups

PNCDescription
17046 Actuator Sub-assy, Exhaust Pipe Gas Control
17146B Pipe, Exhaust By-pass
17410 Pipe Assy, Exhaust, Front
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17499 Gasket, Exhaust Pipe Gas Control Actuator
17551 Insulator, Exhaust Pipe Heat, NO.1
17552 Insulator, Exhaust Pipe Heat, NO.2
17565 Support, Exhaust Pipe, NO.5
17565A Support, Exhaust Pipe, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
