Toyota Lexus CT200H

2010-12 → present · chassis ZWA10 · catalogue 232510 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood Lock & Hinge

15 part groups · 2 illustrations

Illustrations

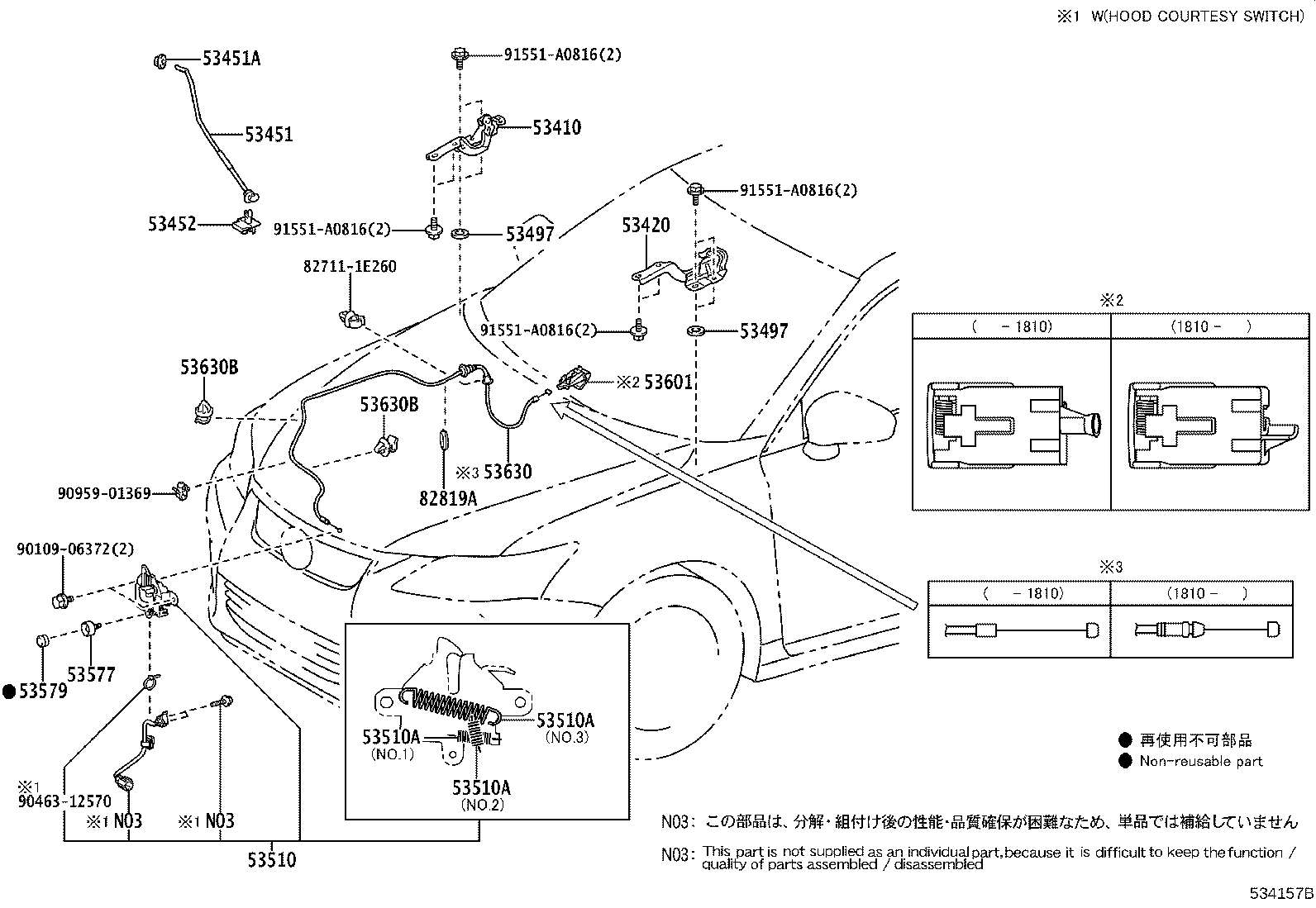

Figure 533362E 533362E 2010-12 → — Figure 534157B 534157B 2010-12 → —

Part groups

PNCDescription
53410 Hinge Assy, Hood, RH
53420 Hinge Assy, Hood, LH
53451 Rod, Hood Support
53451A Grommet(FOR HOOD SUPPORT ROD)
53452 Holder, Hood Stay
53497 Pad, Hood Hinge, NO.1
53510 Lock Assy, Hood
53510A Spring, Tension(FOR HOOD LOCK)
53577 Bolt, Hood Lock
53579 Cap, Hood Lock Nut
53601 Lever Sub-assy, Hood Lock Control
53614 Clamp, Hood Lock Control Cable
53630 Cable Assy, Hood Lock Control
53630B Clamp(FOR HOOD LOCK CONTROL CABLE)
82819A Grommet, Wire
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
