Toyota Lexus CT200H

2010-12 → present · chassis ZWA10 · catalogue 232510 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

58 part groups · 15 illustrations

Illustrations

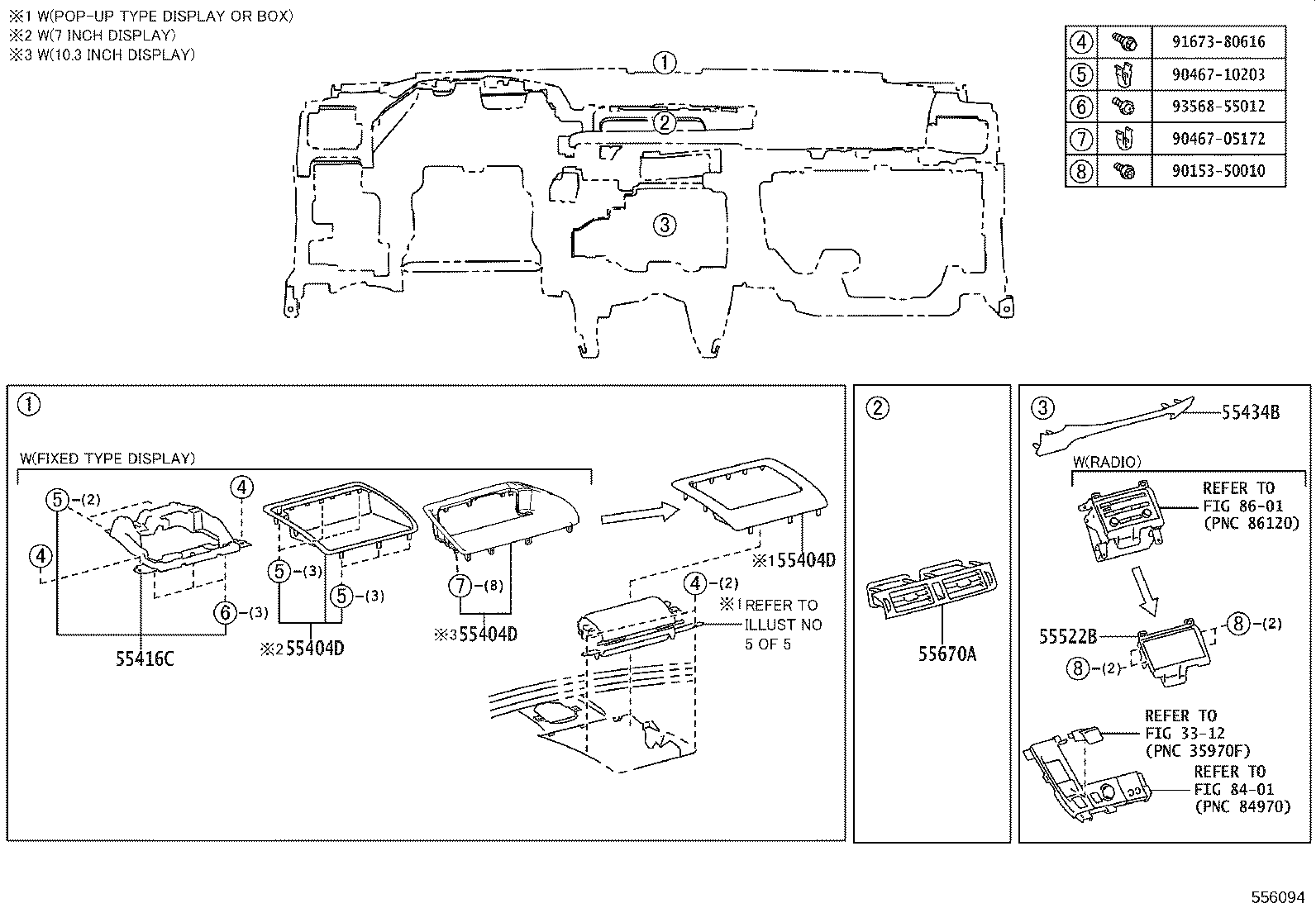

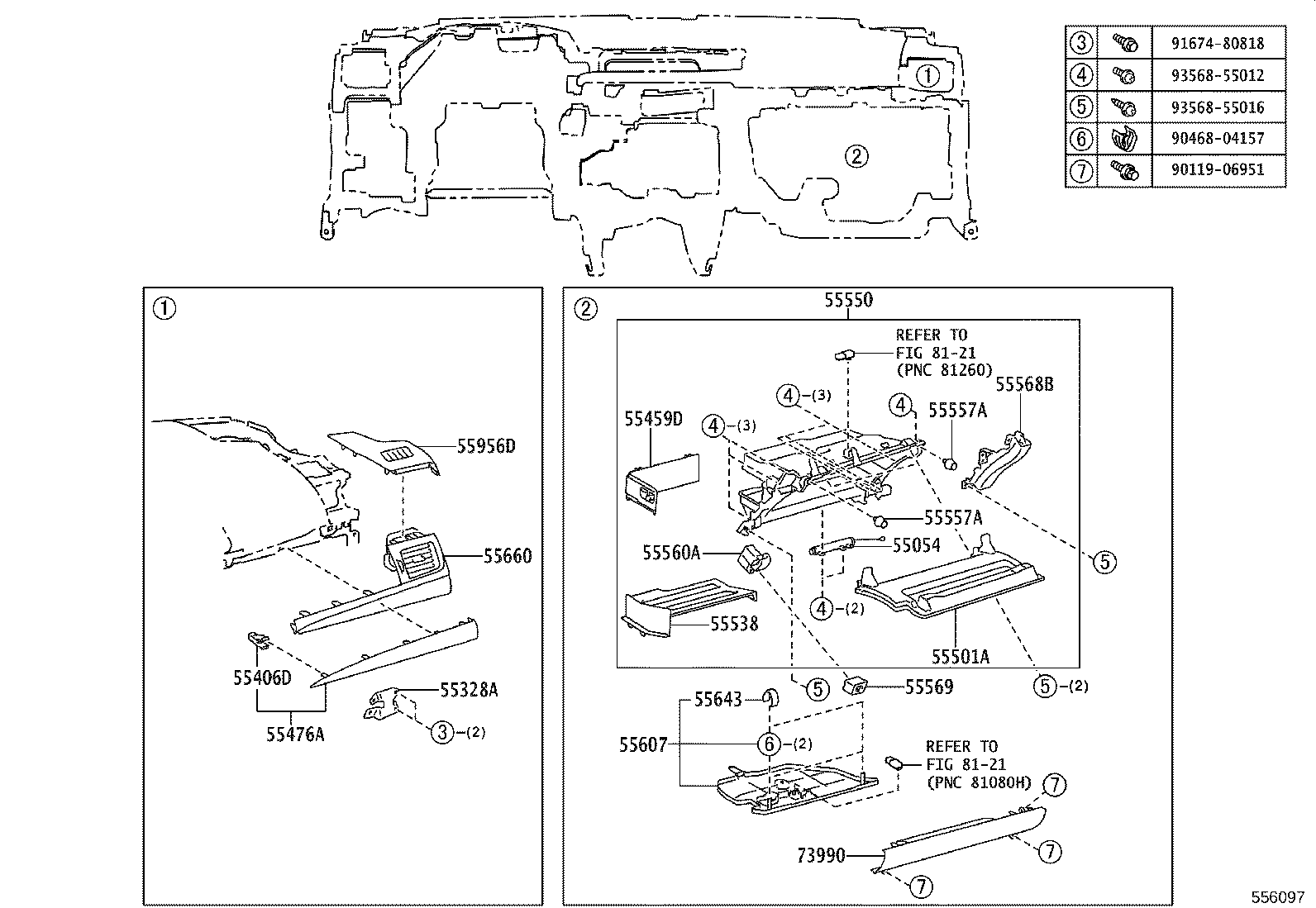

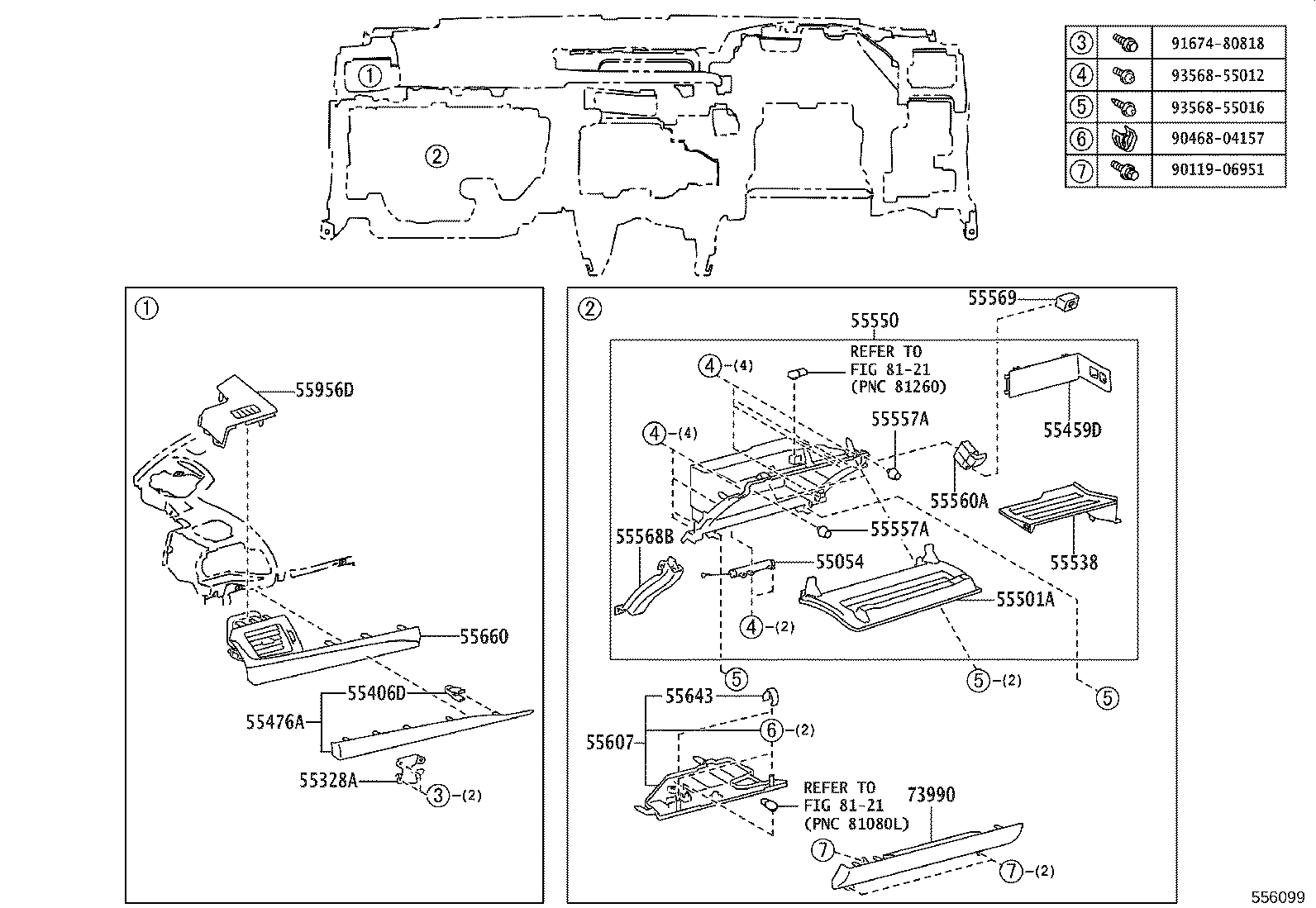

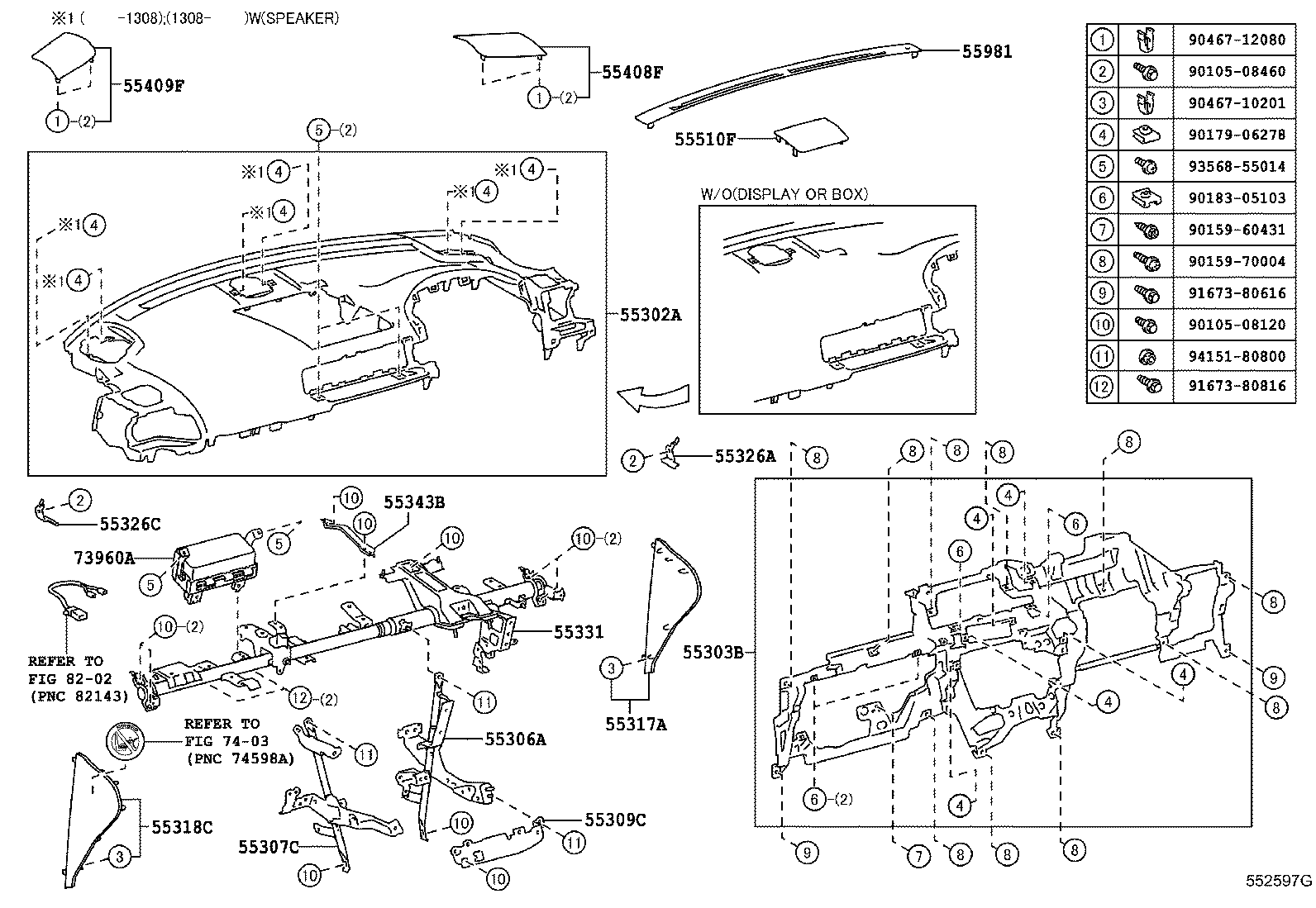

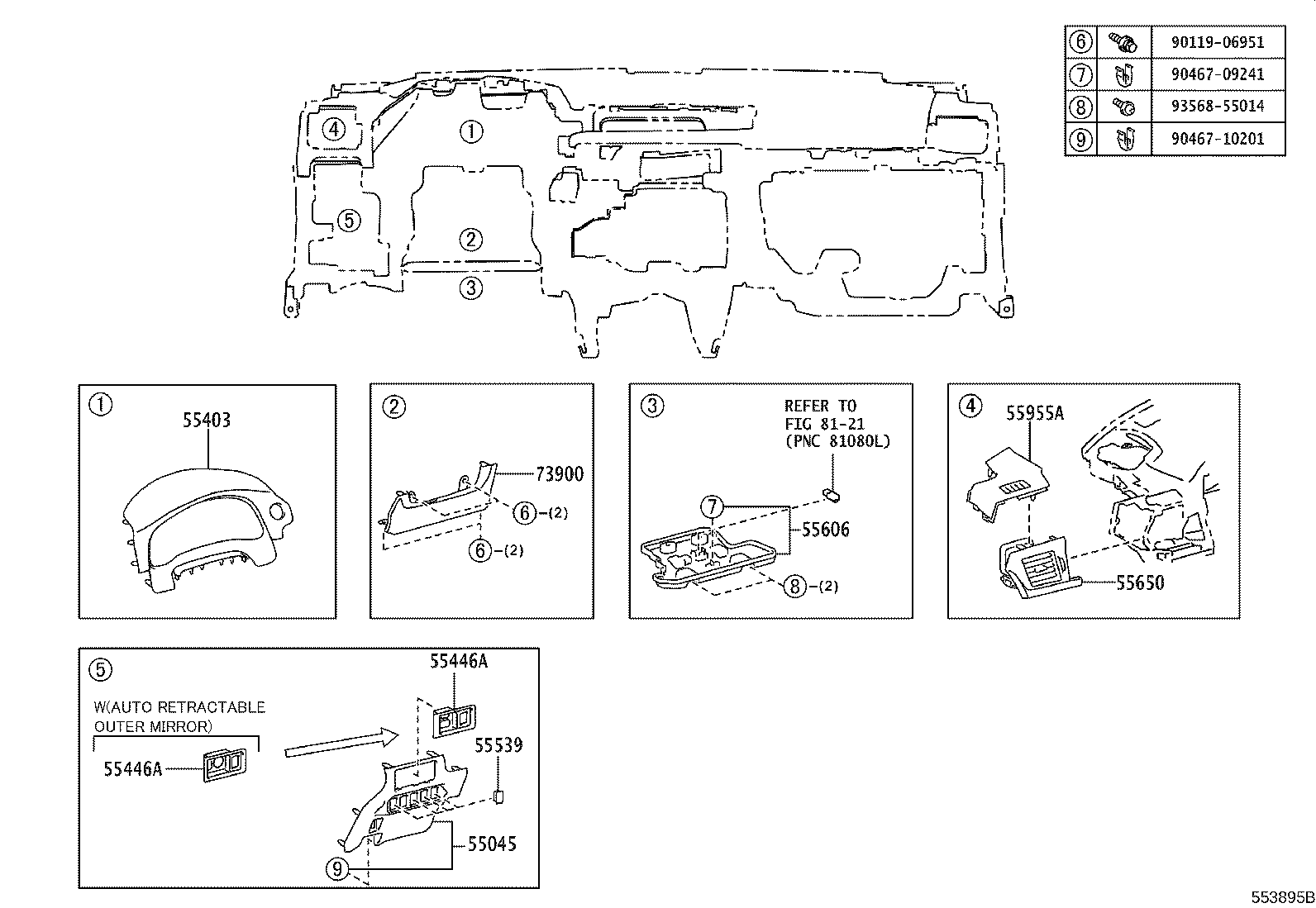

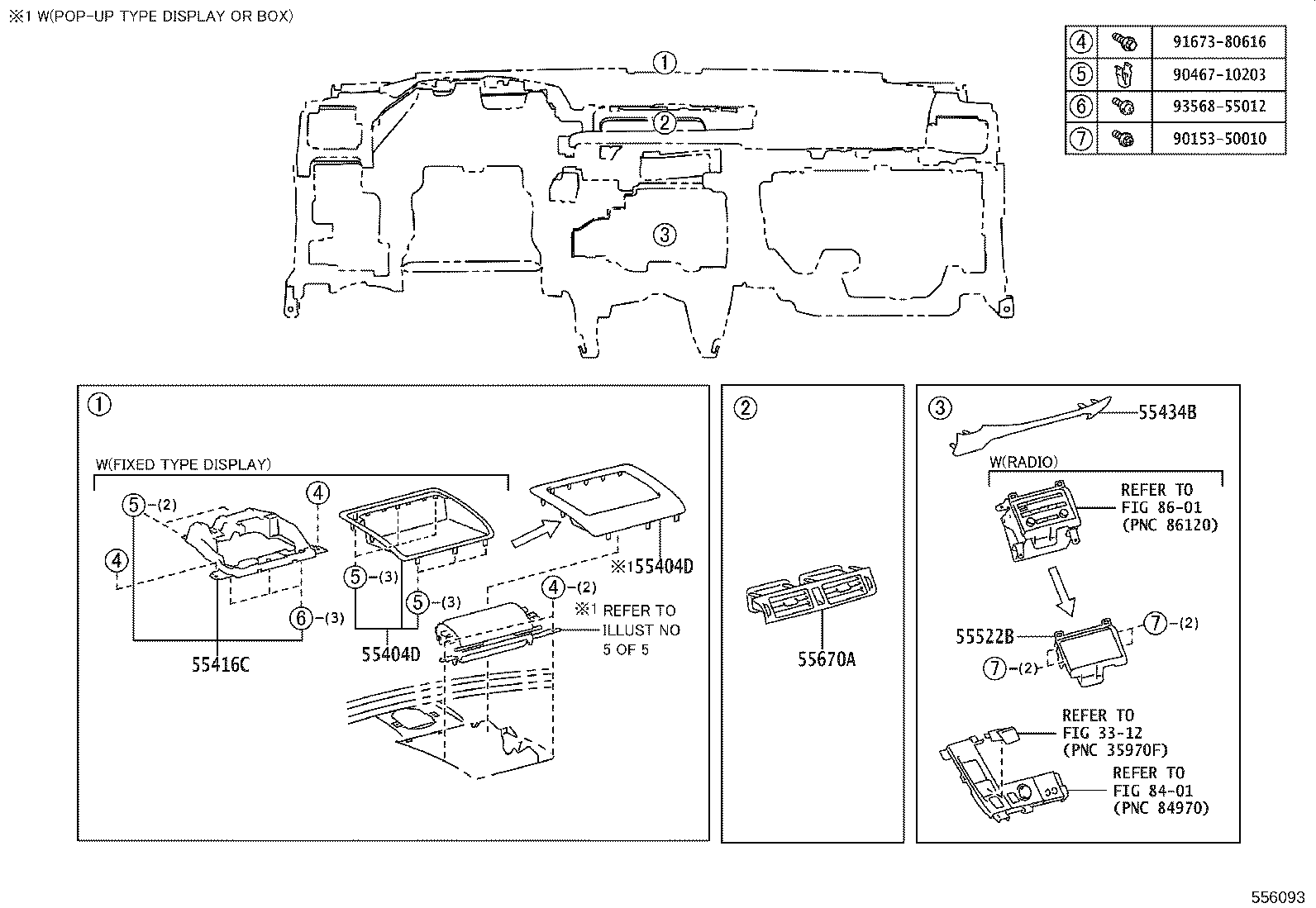

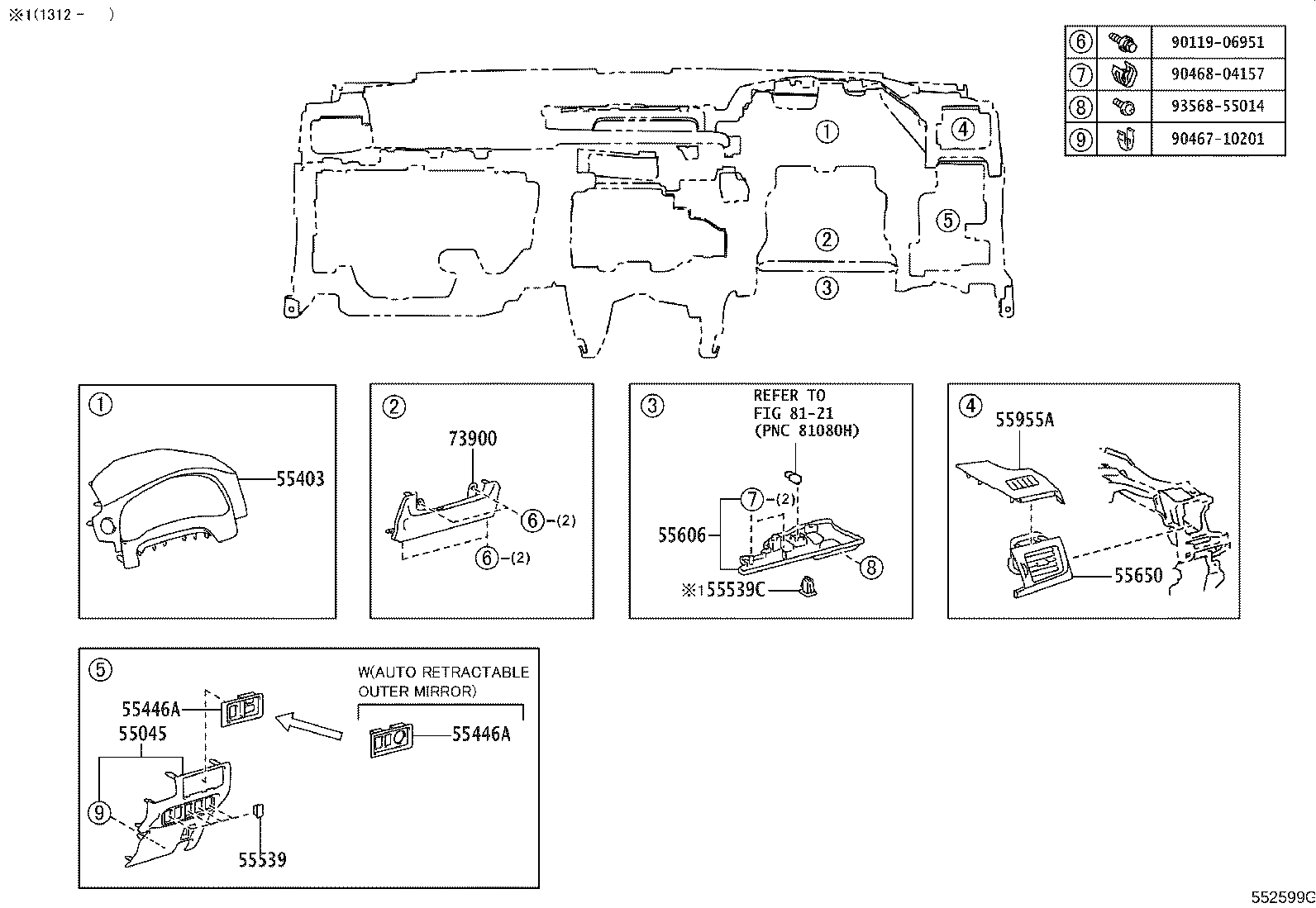

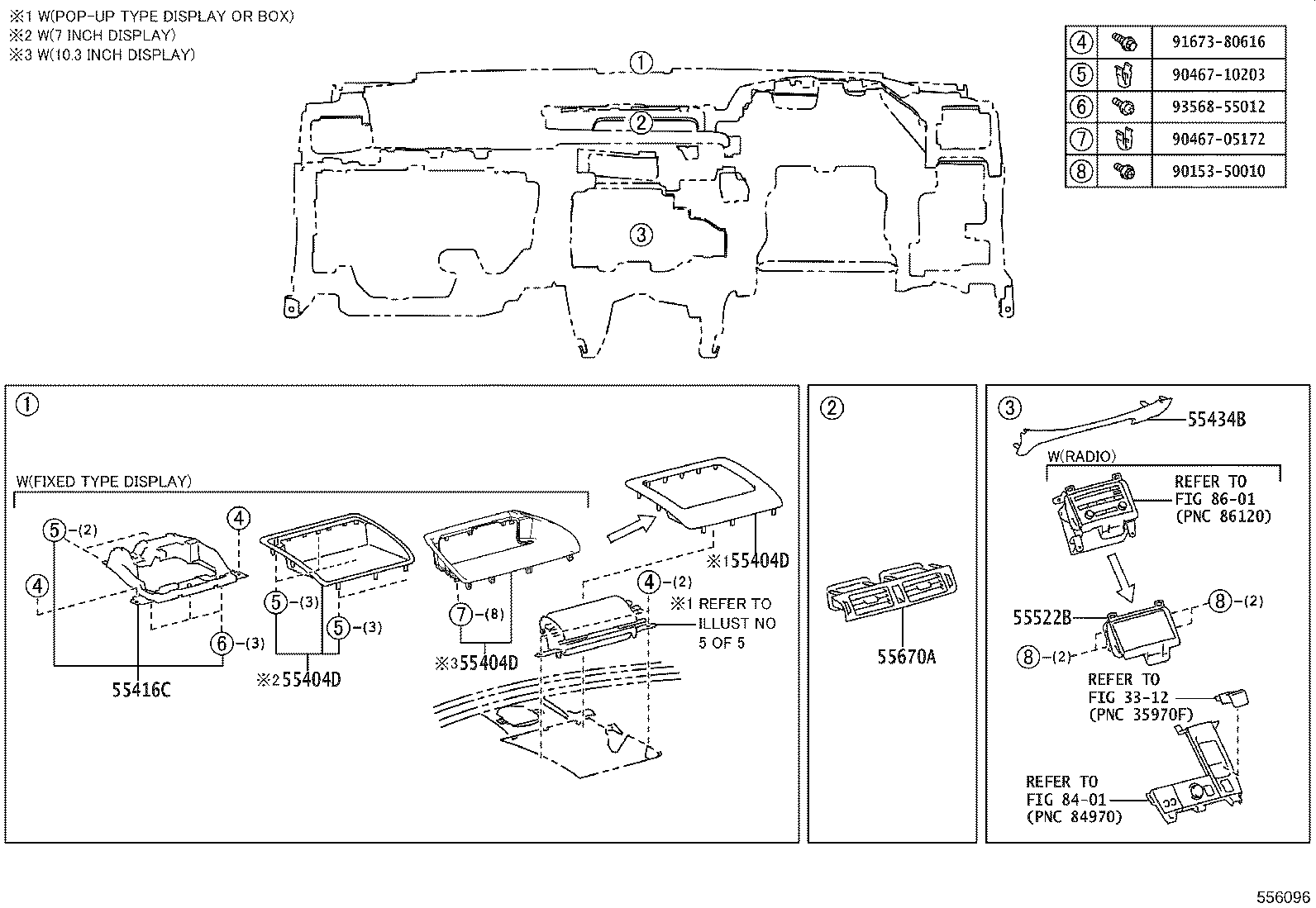

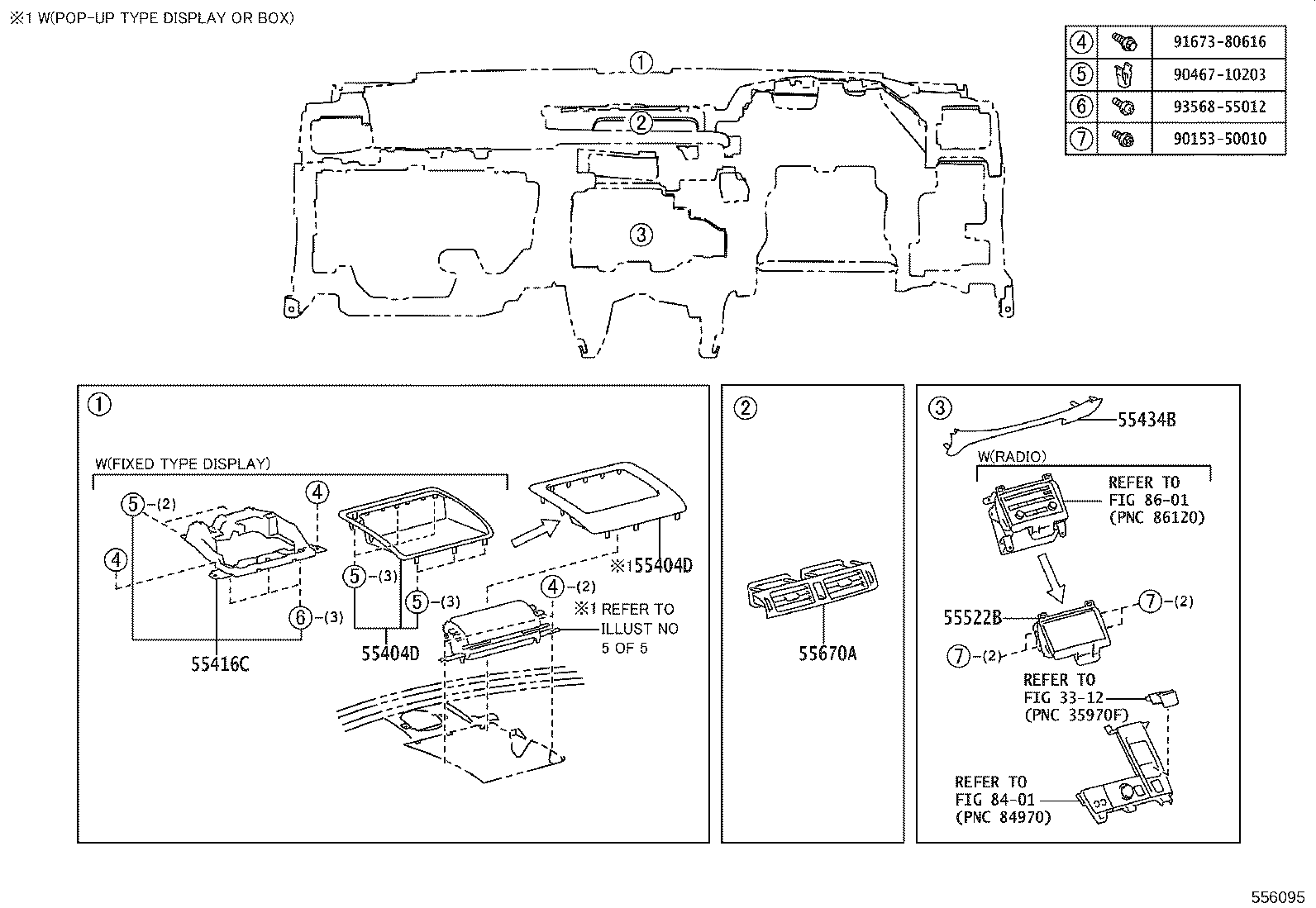

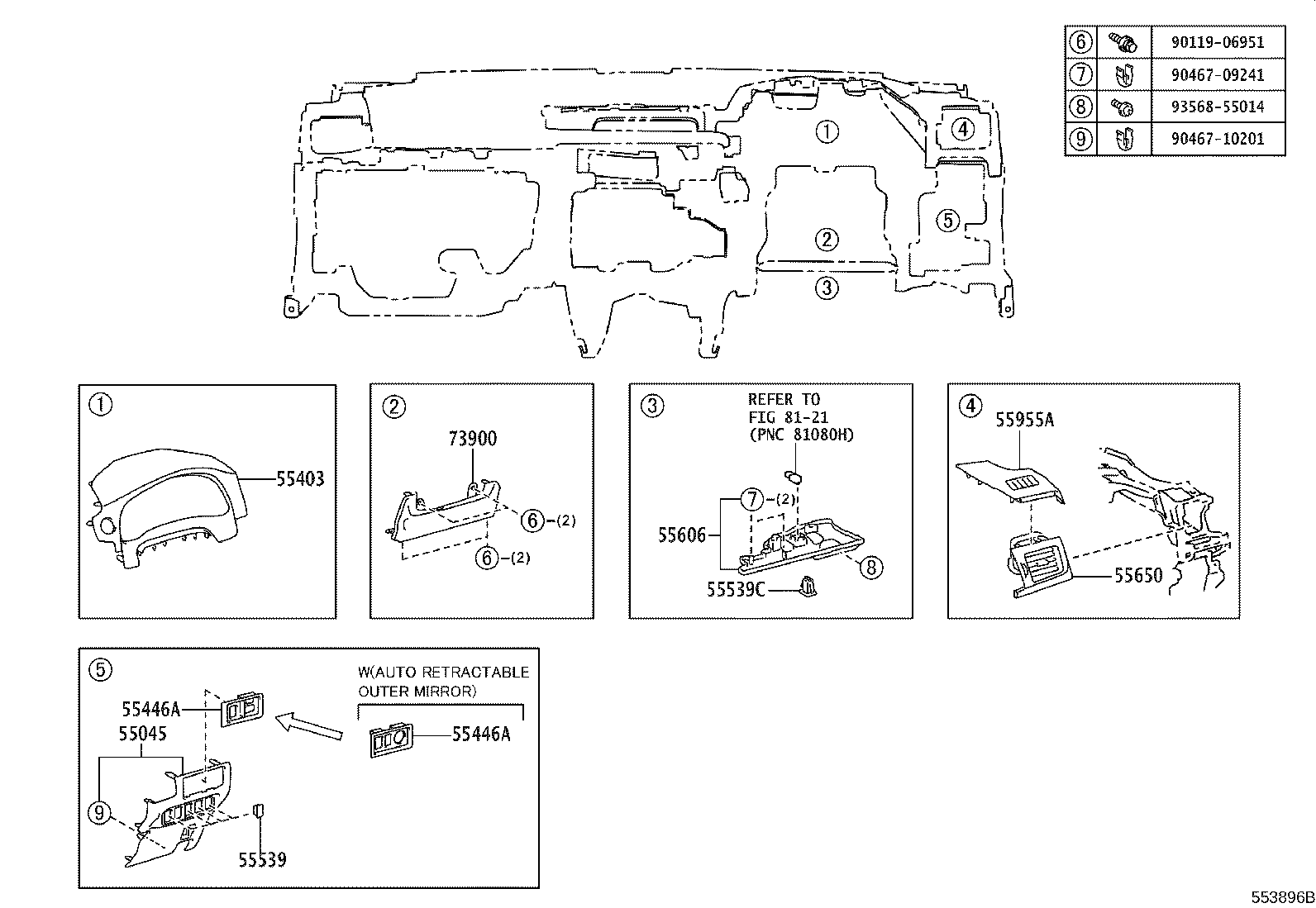

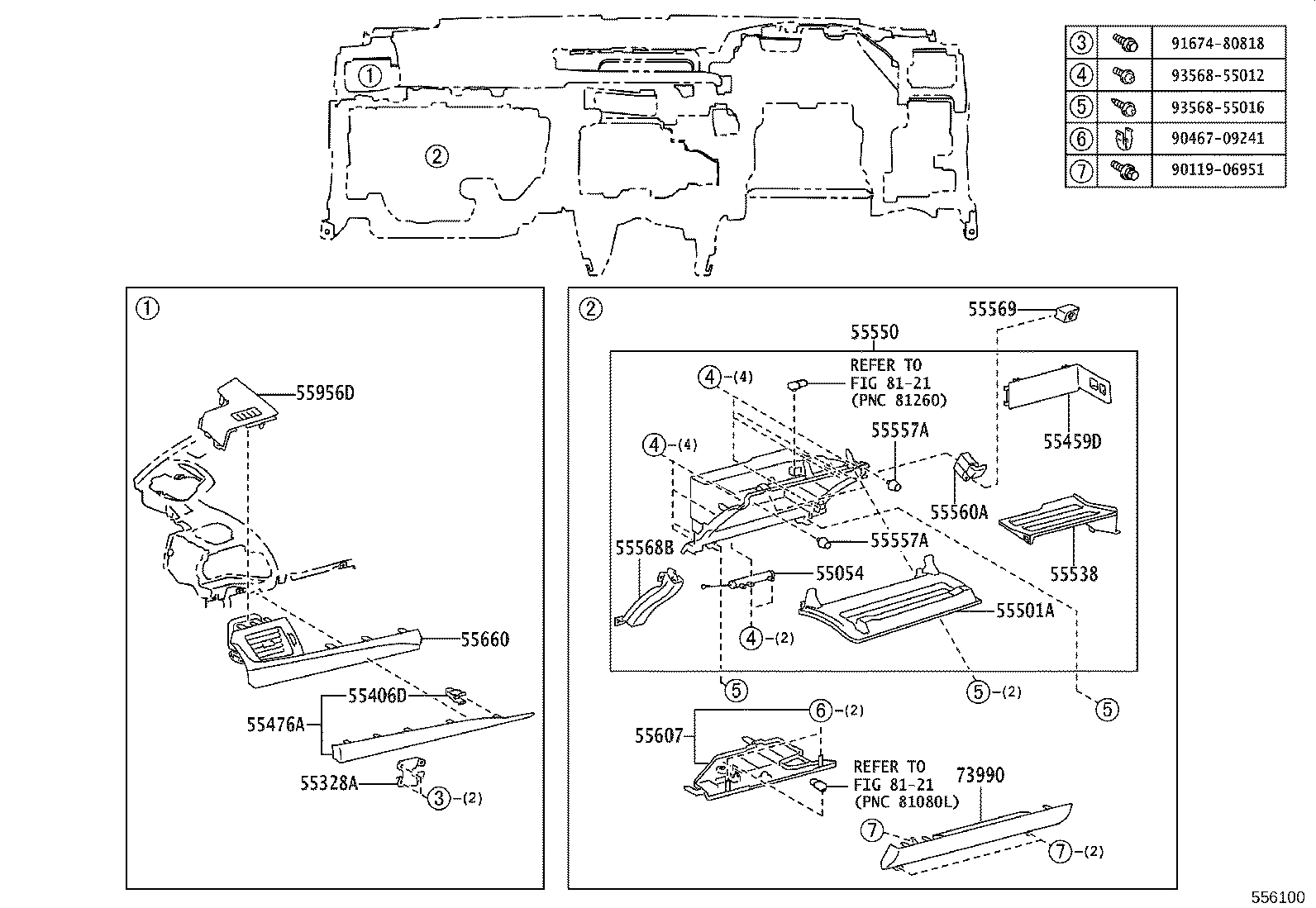

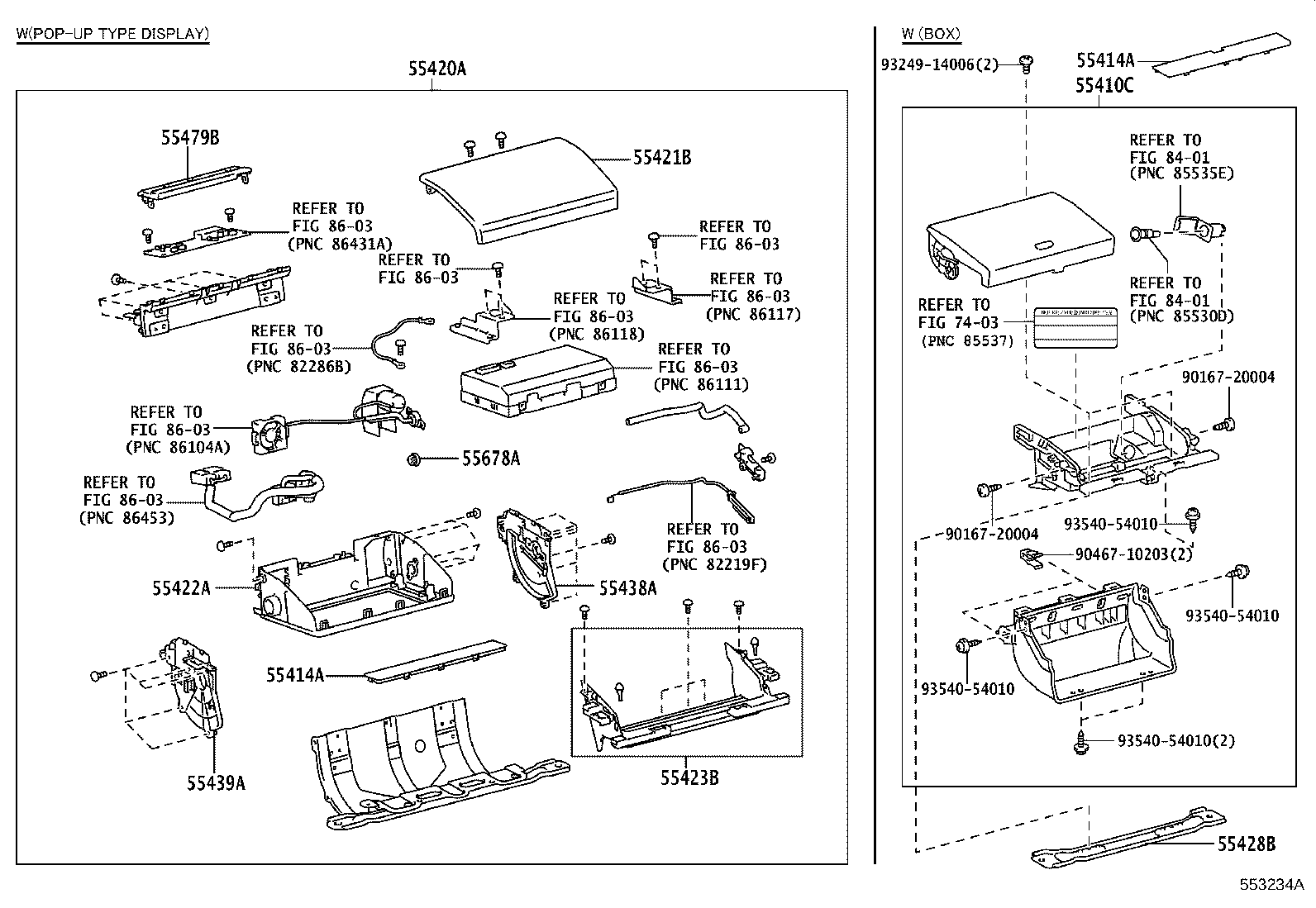

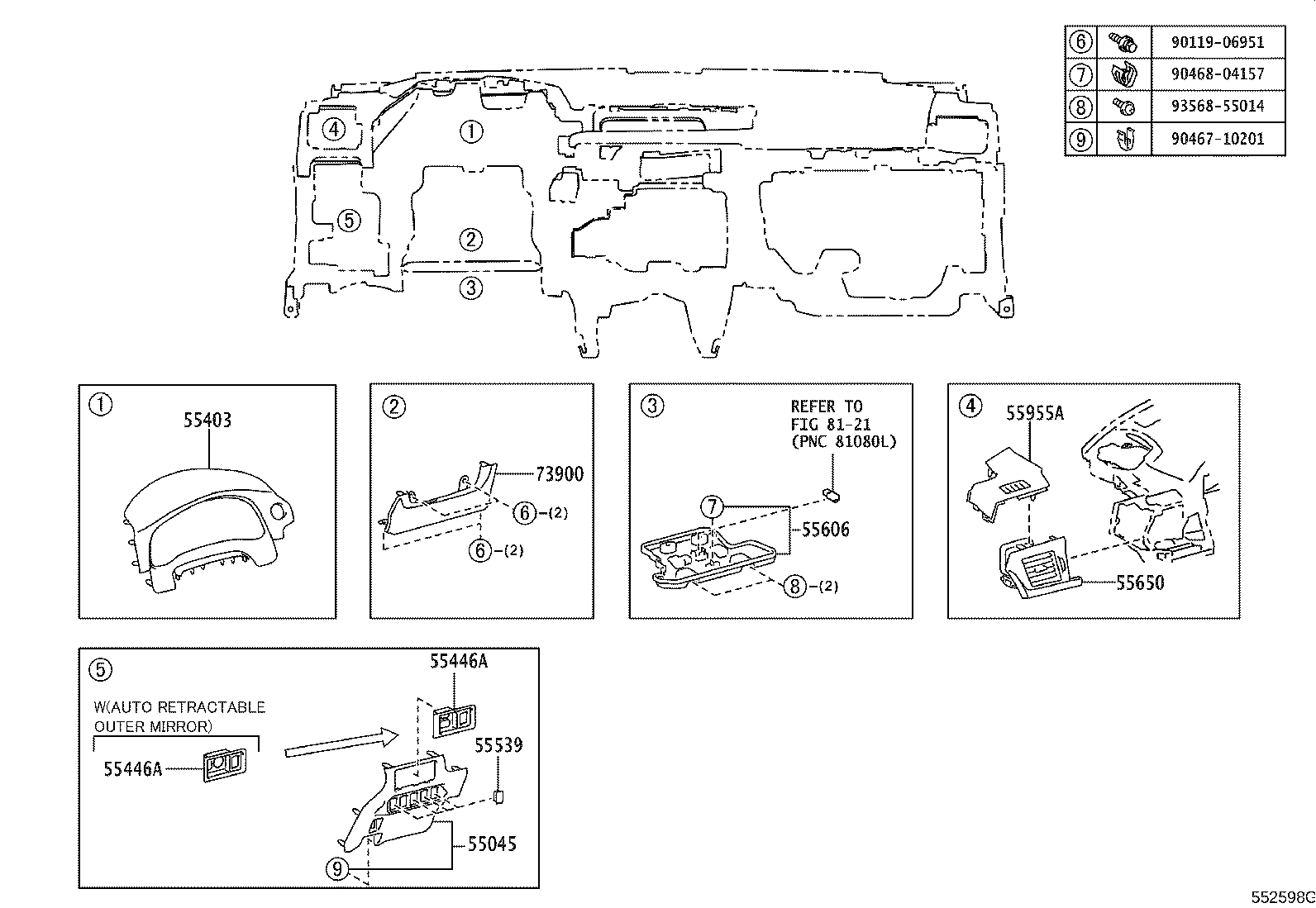

Figure 553180D 553180D 2010-12 → — Figure 552597G 552597G 2010-12 → — Figure 552598G 552598G 2010-12 → 2016-09 Figure 553895B 553895B 2016-09 → — Figure 552599G 552599G 2010-12 → 2016-09 Figure 553896B 553896B 2016-09 → — Figure 556093 556093 2010-12 → 2016-09 Figure 556094 556094 2016-09 → — Figure 556095 556095 2010-12 → 2016-09 Figure 556096 556096 2016-09 → — Figure 556097 556097 2010-12 → 2016-09 Figure 556098 556098 2016-09 → — Figure 556099 556099 2010-12 → 2016-09 Figure 556100 556100 2016-09 → — Figure 553234A 553234A 2010-12 → —

Part groups

PNCDescription
55045 Panel Sub-assy, Instrument Panel Finish, Lower
55054 Stopper Sub-assy, Glove Compartment Door
55302A Panel Sub-assy, Instrument, Upper
55303B Panel Sub-assy, Instrument, Lower
55306A Brace Sub-assy, Instrument Panel, NO.1
55307C Brace Sub-assy, Instrument Panel, NO.2
55309C Reinforcement Sub-assy, Instrument Panel, Center
55317A Panel, Instrument Side, RH
55318C Panel, Instrument Side, LH
55326A Stay, Instrument Panel, NO.1
55326C Stay, Instrument Panel, NO.2
55328A Stay, Instrument Panel, NO.3
55331 Reinforcement, Instrument Panel
55343B Brace, Instrument Panel TO Cowl, Center
55403 Hood Sub-assy, Meter
55404D Panel Sub-assy, Instrument Cluster Finish
55406D Clip(FOR PANEL, INSTRUMENT CLUSTER FINISH)
55408F Panel Sub-assy, Instrument Panel Speaker, NO.1
55409F Panel Sub-assy, Instrument Panel Speaker, NO.2
55410C Panel Assy, Instrument Cluster Finish
55414A Panel, Instrument Cluster Finish, End
55416C Retainer, Instrument Cluster Finish Panel
55420A Panel Assy, Instrument Cluster Finish, Center
55421B Panel, Instrument Cluster Finish, Upper
55422A Panel, Instrument Cluster Finish, Lower
55423B Cover, Instrument Cluster Finish Panel
55428B Bracket, Instrument Cluster, NO.2
55434B Panel, Instrument Panel Finish, Lower Center
55438A Retainer, Instrument Panel Finish Panel, NO.2
55439A Retainer, Instrument Panel Finish Panel, NO.3
55446A Base, Switch Hole, NO.1
55459D Cover, Instrument, Lower LH
55476A Garnish, Instrument Cluster Finish Panel, NO.3
55479B Cover, Instrument, Lower Center
55501A Door Sub-assy, Glove Compartment
55510F Cover Assy, Speaker Opening, NO.1
55522B Cover, Radio Tuner Opening
55538 Retainer,Glove Compartment
55539 Cover, Spare Switch Hole
55539C Cover, Spare Switch Hole
55550 Door Assy, Glove Compartment
55557A Cushion, Glove Compartment Door Check
55560A Lock Assy, Glove Compartment Door
55568B Plate, Glove Compartment Door Finish
55569 Cover, Glove Compartment Door Lock
55606 Cover Sub-assy, Instrument Panel Under, NO.1
55607 Cover Sub-assy, Instrument Panel Under, NO.2
55643 Pad, Instrument Panel Under Silencer, NO.1
55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55670A Register Assy, Instrument Panel, Center
55678A Gear, Instrument Panel Register Control
55955A Plate, Defroster Nozzle Opening, NO.1
55956D Plate, Defroster Nozzle Opening, NO.2
55981 Garnish, Defroster Nozzle, NO.1
73900 Airbag Assy, Instrument Panel, Lower NO.1
73960A Airbag Assy, Instrument Panel Passenger W/O Door
73990 Airbag Assy, Instrument Panel, Lower NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
