Toyota Lexus CT200H

2010-12 → present · chassis ZWA10 · catalogue 232510 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

11 part groups · 2 illustrations

Illustrations

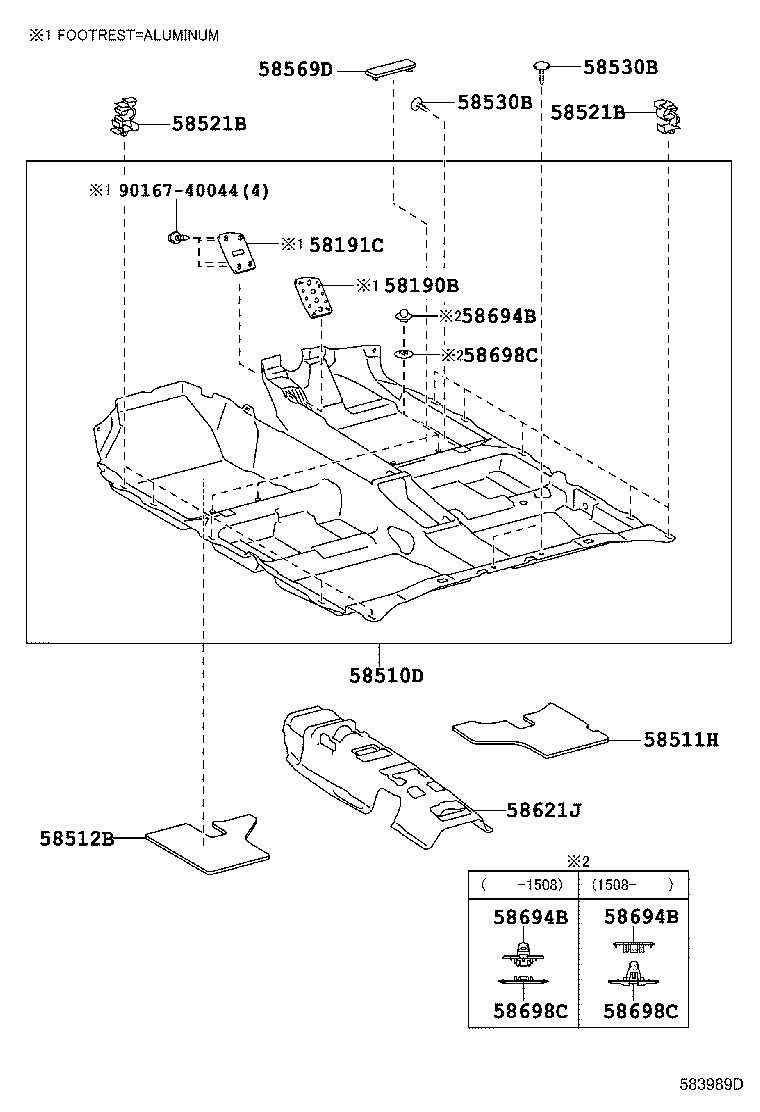

Figure 583988D 583988D 2010-12 → — Figure 583989D 583989D 2010-12 → —

Part groups

PNCDescription
58190B Rest Assy, Front Floor Foot
58191C Panel, Footrest
58510D Carpet Assy, Floor, Front
58511H Mat, Floor, Front RH
58512B Mat, Floor, Front LH
58521B Hook, Floor Carpet
58530B Clip(FOR FRONT FLOOR CARPET)
58569D Cover, Front Floor Caution Plate
58621J Silencer, Center Console, NO.1
58694B Plate, Mat Set, Upper
58698C Plate, Mat Set, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
