Toyota Lexus CT200H

2010-12 → present · chassis ZWA10 · catalogue 232510 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

33 part groups · 4 illustrations

Illustrations

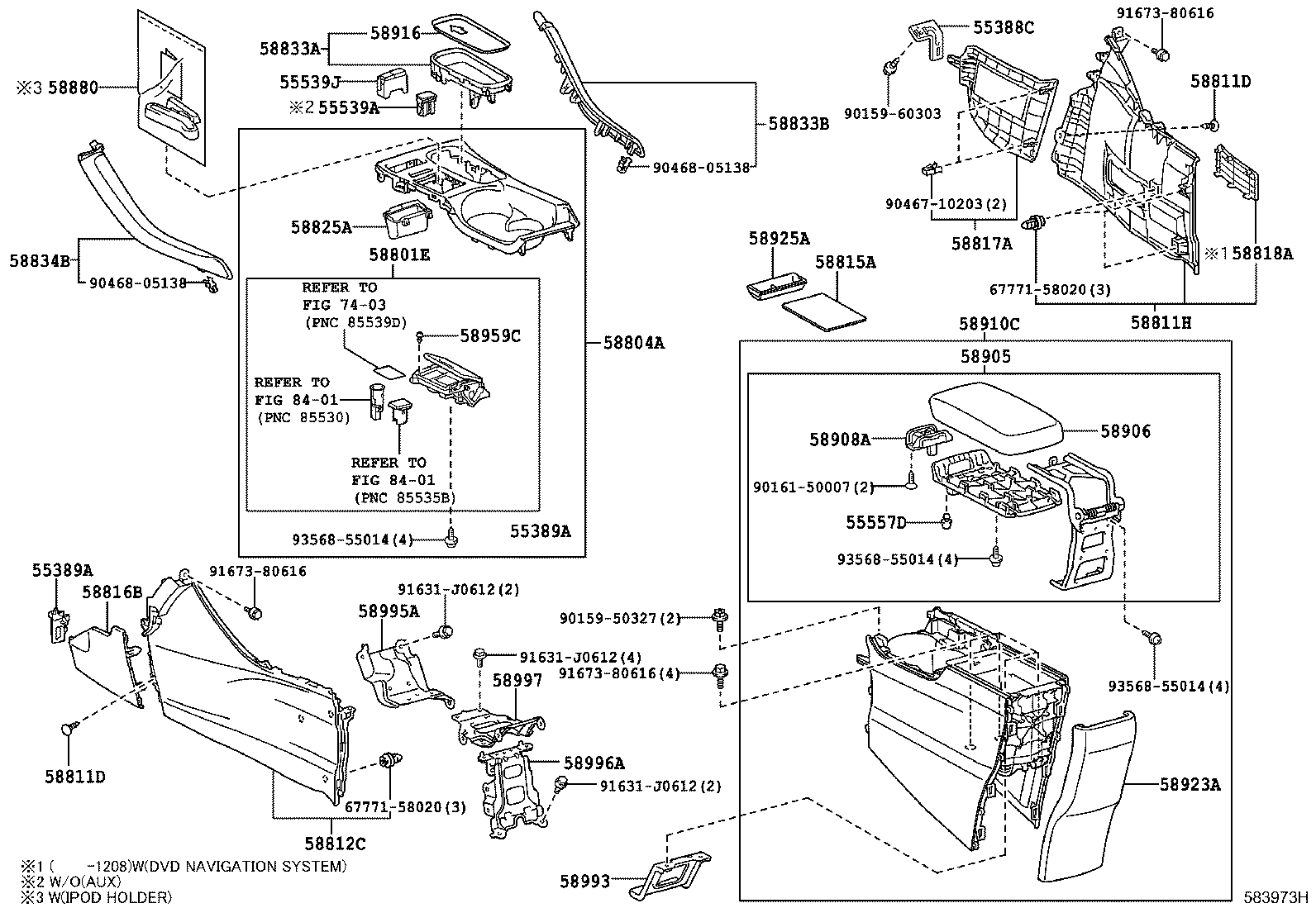

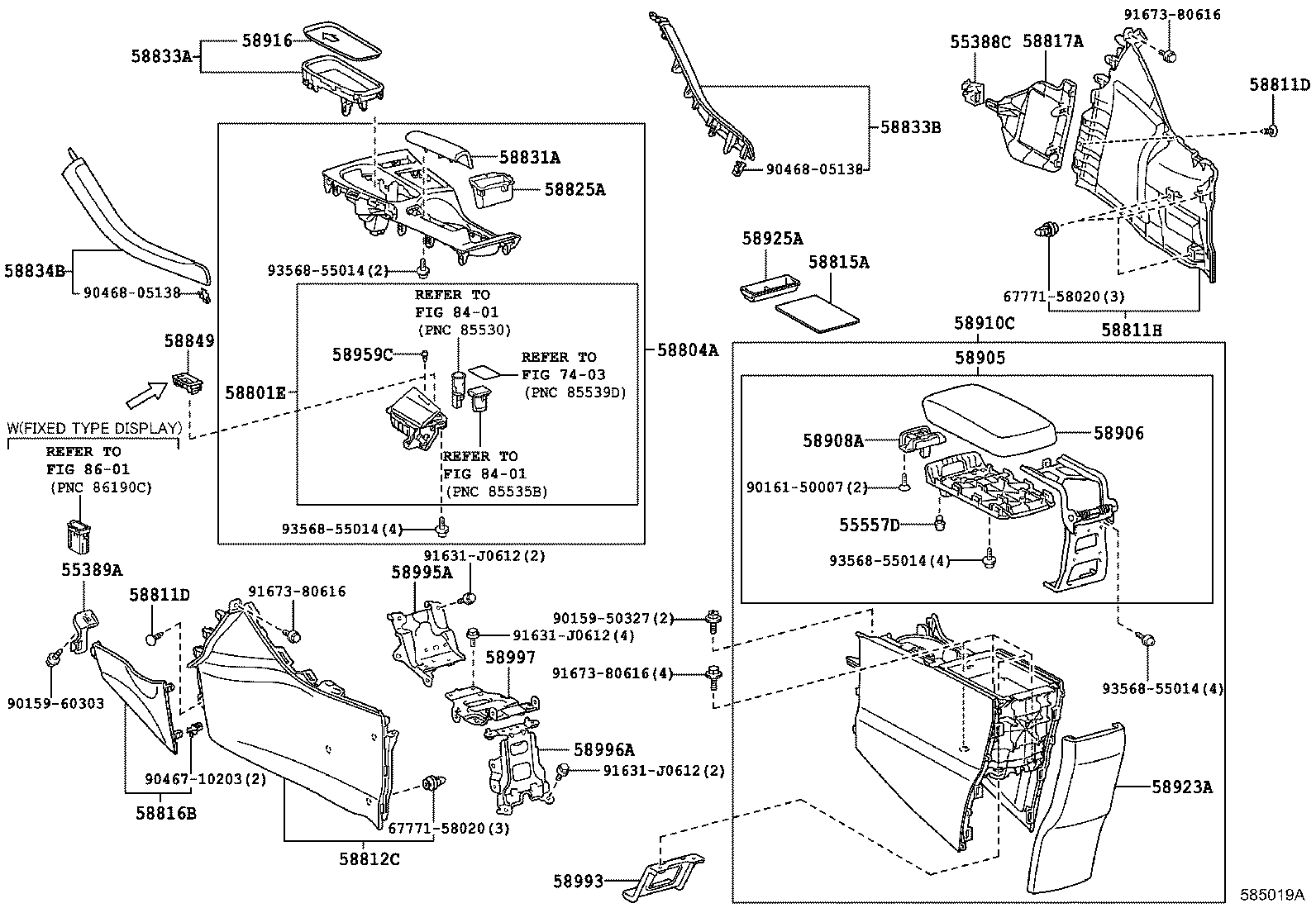

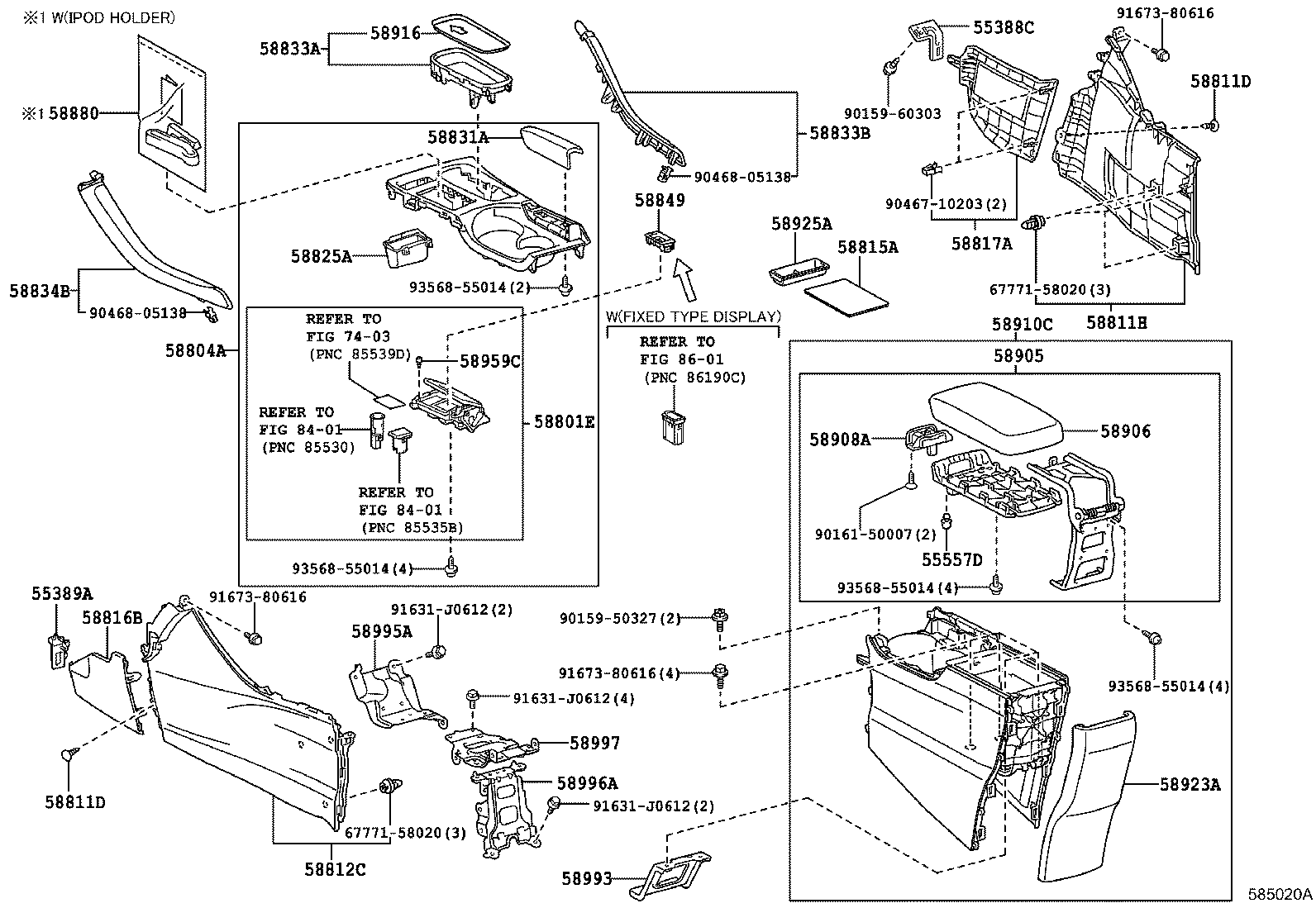

Figure 583972G 583972G 2010-12 → 2013-12 Figure 585019A 585019A 2013-12 → — Figure 583973H 583973H 2010-12 → 2013-12 Figure 585020A 585020A 2013-12 → —

Part groups

PNCDescription
55388C Bracket, Console Mounting, RH
55389A Bracket, Console Mounting, LH
55539A Cover, Spare Switch Hole
55539J Cover, Spare Switch Hole
55557D Cushion, Glove Compartment Door Check
58801E Box Sub-assy, Console, Upper
58804A Panel Sub-assy, Console, Upper
58811D Clip(FOR CONSOLE BOX)
58811H Box, Console, RH
58812C Box, Console, LH
58815A Carpet, Console Box
58816B Insert, Console Box
58817A Insert, Console Box, Front NO.2
58818A Cover, Console Box, FR
58825A Pocket, Console Box
58831A Garnish, Console Upper Panel, Front
58833A Cover, Console, Upper
58833B Garnish, Console Upper Panel, NO.1
58834B Garnish, Console Upper Panel, NO.2
58849 Cover, Console Box Hole, NO.2
58880 Box Assy, Equipment Set
58905 Door Sub-assy, Console Compartment
58906 Door Sub-assy, Upper Console
58908A Lock Sub-assy, Console Compartment Door
58910C Box Assy, Console, Rear
58916 Mat, Box Bottom
58923A Panel, Console Rear End
58925A Pocket, Console Box, Rear
58959C Cushion, Console Compartment Door
58993 Bracket, Console Box Mounting, Rear
58995A Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
58997 Bracket, Console Box Mounting, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
