Toyota Lexus CT200H

2010-12 → present · chassis ZWA10 · catalogue 232510 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Window Glass

24 part groups · 2 illustrations

Illustrations

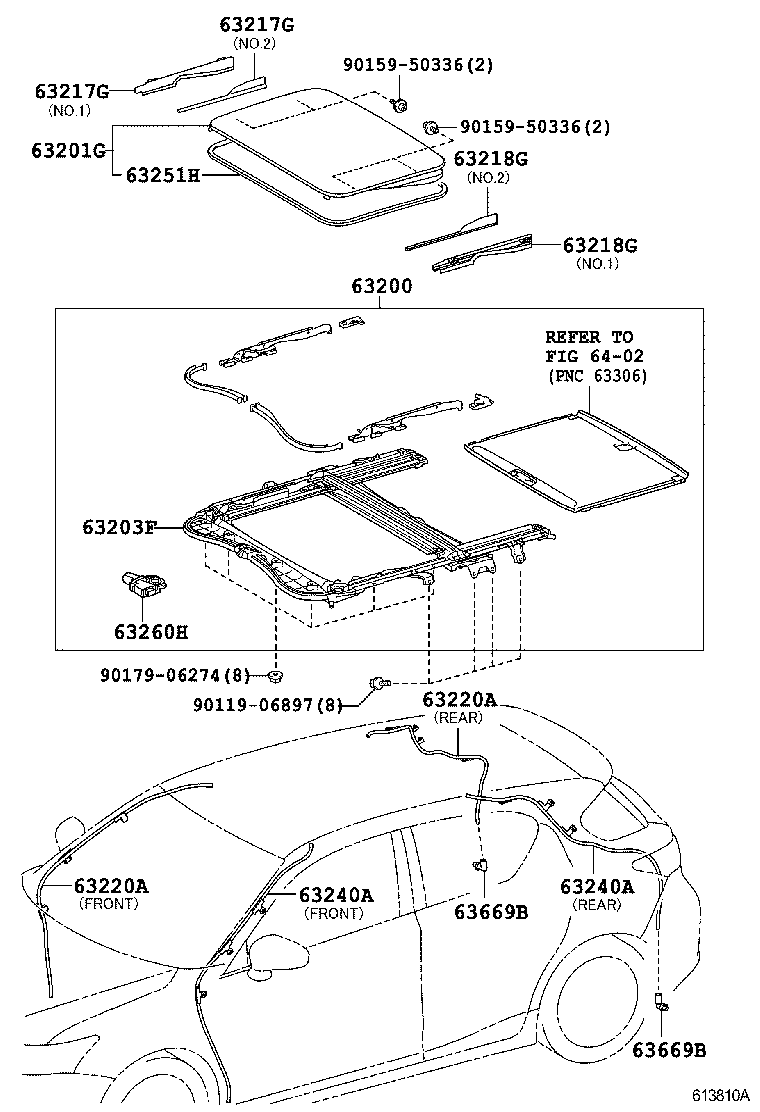

Figure 613813 613813 2010-12 → — Figure 613810A 613810A 2010-12 → —

Part groups

PNCDescription
61247F Reinforcement, Roof Side Rail, Inner
61248F Reinforcement, Roof Side Rail, Inner, LH
63102A Panel Sub-assy, Windshield Header
63103A Reinforcement Sub-assy, Roof Panel
63105A Frame Sub-assy, Back Door Opening
63111 Panel, Roof
63118 Support, Roof Panel, RH
63119 Support, Roof Panel, LH
63126B Reinforcement, Roof Panel, Rear NO.2
63142B Reinforcement, Roof Panel, Rear
63143B Reinforcement, Roof Panel, NO.3
63144A Reinforcement, Roof Panel, NO.4
63148B Reinforcement, Roof Panel Side
63200 Housing Assy, Moon Roof
63201G Glass Sub-assy, Sliding Roof
63203F Housing Sub-assy, Sliding Roof
63217G Garnish, Sliding Roof Side, RH
63218G Garnish, Sliding Roof Side, LH
63220A Hose Assy, Sliding Roof Drain, RH
63240A Hose Assy, Sliding Roof Drain, LH
63251H Weatherstrip, Sliding Roof
63260H Gear Assy, Sliding Roof Drive
63669B Grommet, Sliding Roof Drain
82819E Grommet, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
