Toyota Lexus CT200H

2010-12 → present · chassis ZWA10 · catalogue 232510 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Deck Board & Deck Trim Cover

32 part groups · 3 illustrations

Illustrations

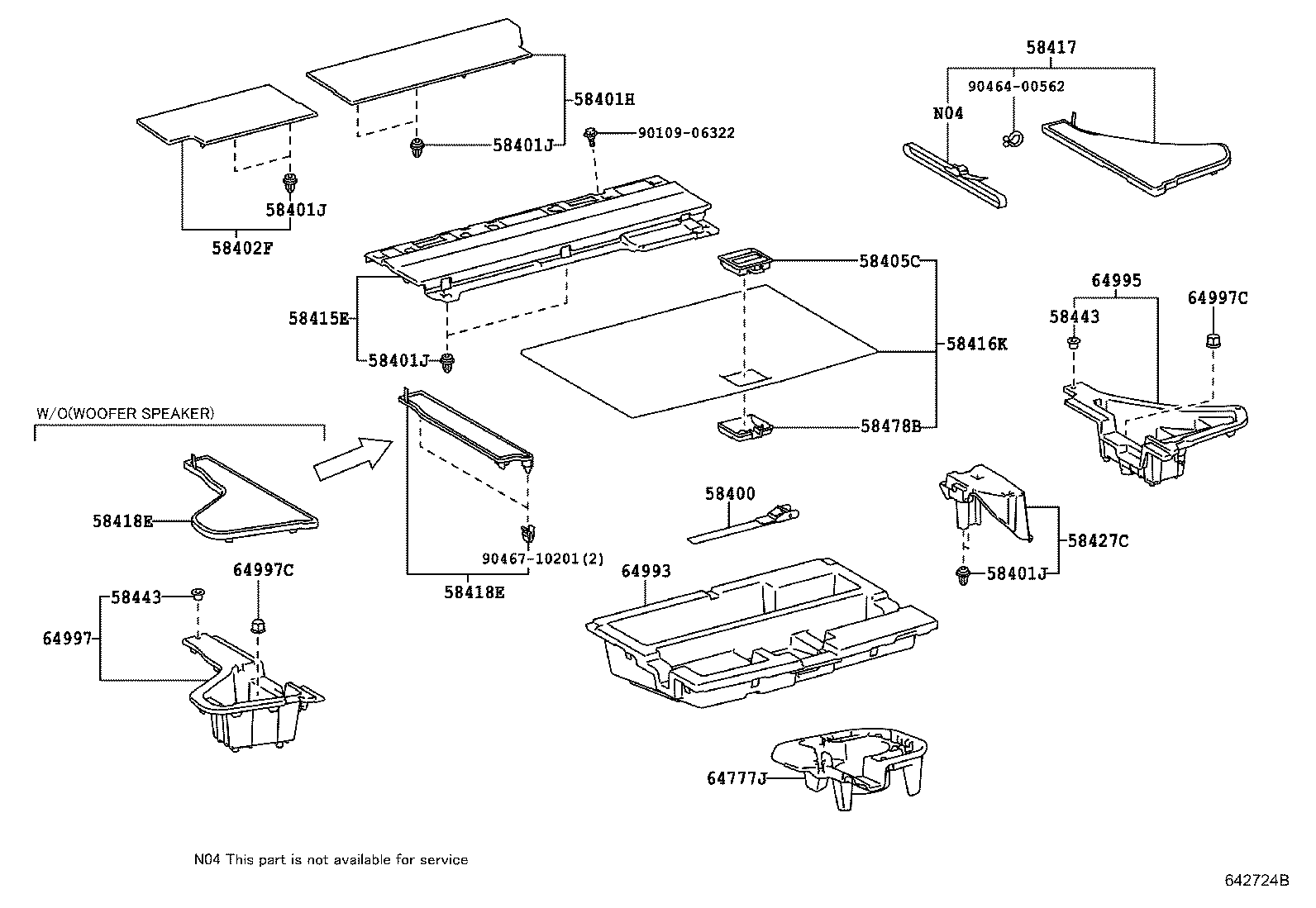

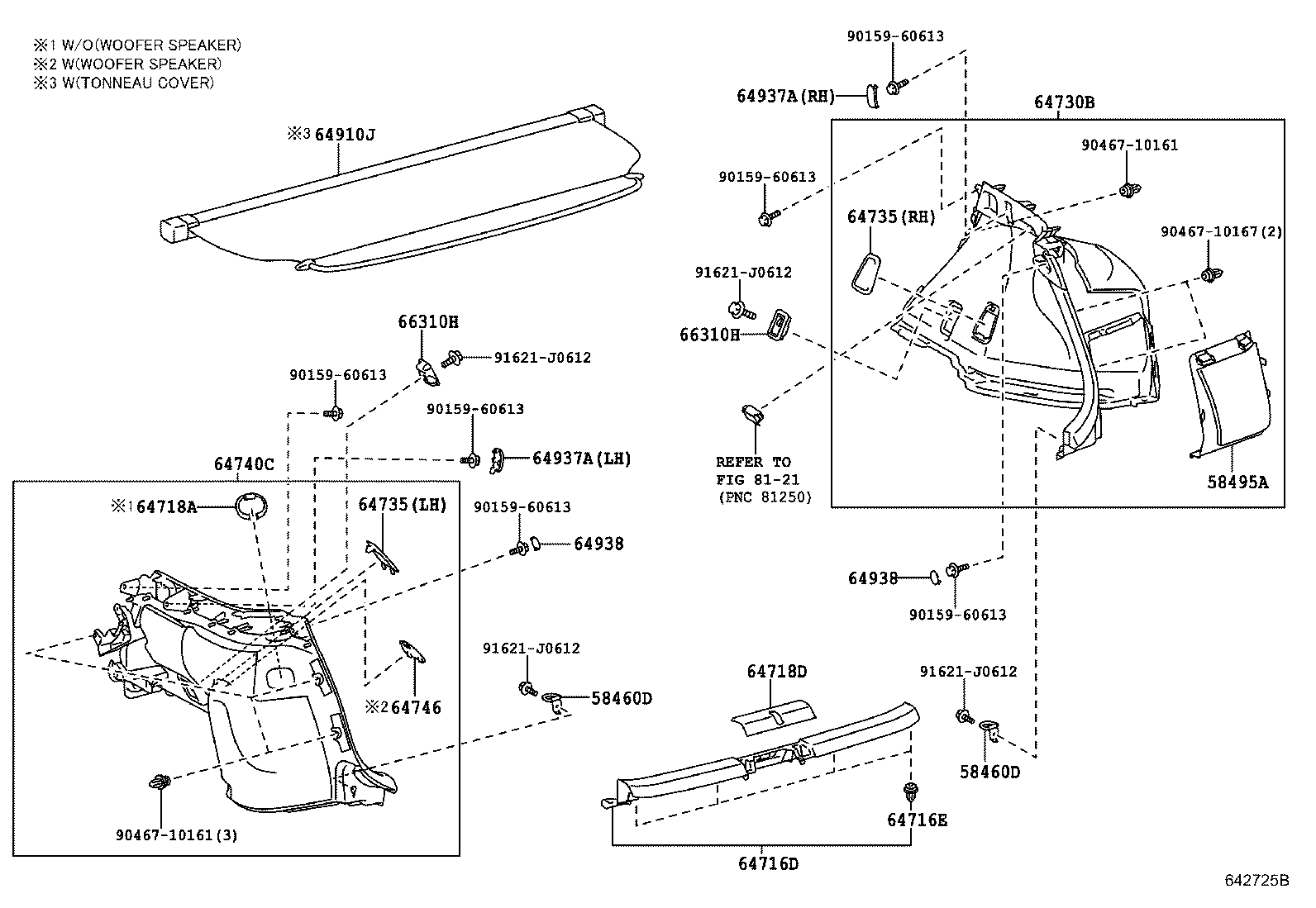

Figure 642722B 642722B 2010-12 → — Figure 642724B 642724B 2010-12 → — Figure 642725B 642725B 2010-12 → —

Part groups

PNCDescription
58400 Belt Assy, Luggage Hold, NO.1
58401H Board Sub-assy, Rear Floor, NO.1
58401J Clip(FOR DECK BOAD)
58402F Board Sub-assy, Rear Floor, NO.2
58405C Lock Sub-assy, Deck Board
58415E Board, Rear Floor, NO.1
58416K Board, Rear Floor, NO.2
58417 Board, Rear Floor, NO.3
58418E Board, Rear Floor, NO.4
58427C Spacer, Rear Floor Board
58443 Cushion, Deck Board, NO.1
58460D Striker Assy, Luggage Hold Belt
58478B Protector, Deck Board
58495A Plate, Rear Floor Board, Upper NO.3
58792F Support, Jack Carrier
64716D Cover, Deck Trim, Rear
64716E Clip(FOR DECK TRIM REAR COVER)
64718A Cover, Deck Trim Service Hole
64718D Cover, Deck Trim Service Hole
64730B Panel Assy, Deck Trim Side, RH
64735 Cover, Deck Trim Side Service Hole
64740C Panel Assy, Deck Trim Side, LH
64746 Cover, Rear Combination Lamp Service, LH
64777J Cushion, Spare Wheel
64910J Cover Assy, Tonneau
64937A Cap, Tonneau Cover Holder, NO.1
64938 Hook, Tonneau Cover, A
64993 Box, Deck Floor, Rear
64995 Box, Deck Floor, RH
64997 Box, Deck Floor, LH
64997C Clip(FOR DECK FLOOR BOX)
66310H Hook Assy, Rope
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
