Toyota Lexus CT200H
2010-12 → present · chassis ZWA10 · catalogue 232510 · Europe
Supported model
Data version 2018-09

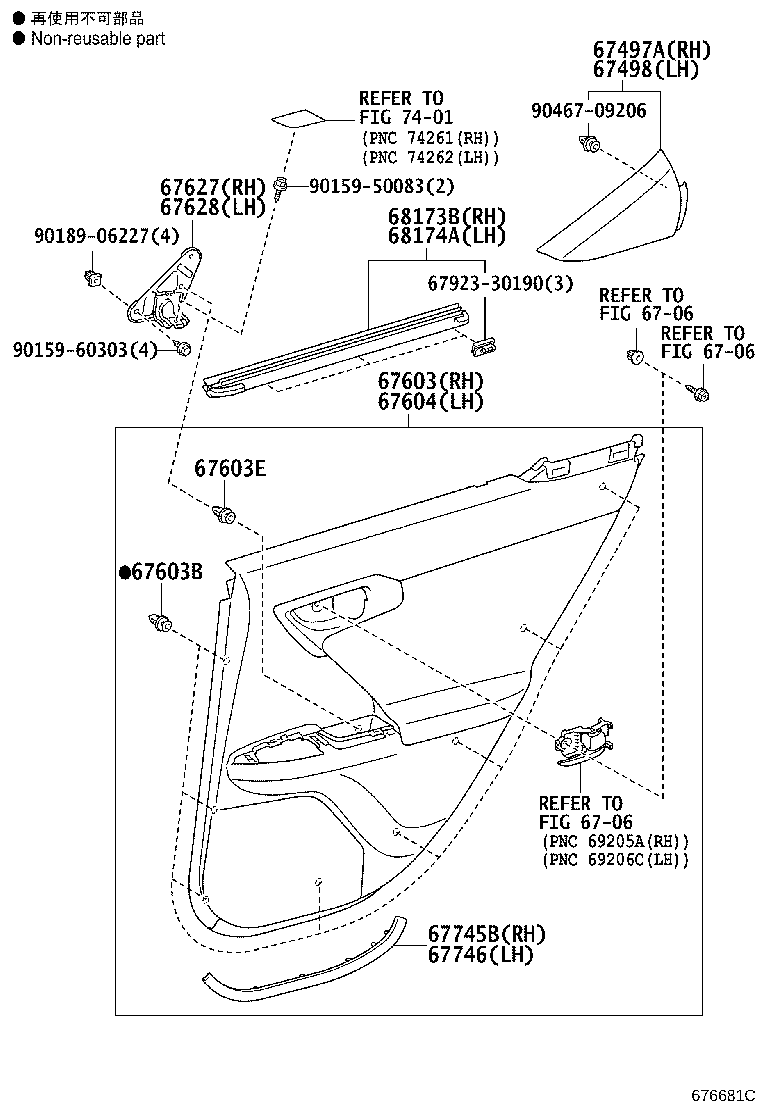

Rear Door Panel & Glass
56 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 67003 | Panel Sub-assy, Rear Door, RH |
| 67003C | Cushion, Rear Door Panel |
| 67004 | Panel Sub-assy, Rear Door, LH |
| 67113 | Panel, Rear Door, Outer RH |
| 67114 | Panel, Rear Door, Outer LH |
| 67407E | Bar Sub-assy, Rear Door Window Division, RH |
| 67408E | Bar Sub-assy, Rear Door Window Division, LH |
| 67497A | Bracket, Rear Door Rear Frame, RH |
| 67498 | Bracket, Rear Door Rear Frame, LH |
| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67603B | Clip(FOR REAR DOOR TRIM BOARD) |
| 67603E | Clip(FOR REAR DOOR TRIM BOARD) |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67627 | Bracket, Rear Door Trim, RH |
| 67628 | Bracket, Rear Door Trim, LH |
| 67673A | Garnish, Rear Door Frame, RH |
| 67674A | Garnish, Rear Door Frame, LH |
| 67715B | Pad, Rear Door Trim |
| 67745B | Seal, Rear Door Trim, RH |
| 67746 | Seal, Rear Door Trim, LH |
| 67841E | Cover, Rear Door Service Hole, RH |
| 67842E | Cover, Rear Door Service Hole, LH |
| 67847B | Seal, Rear Door Vent, RH NO.1 |
| 67847H | Seal, Rear Door Vent, RH NO.2 |
| 67848A | Seal, Rear Door Vent, LH NO.1 |
| 67848B | Seal, Rear Door Vent, LH NO.2 |
| 67867B | Clip, Door Weatherstrip(FOR REAR DOOR) |
| 67868G | Retainer, Door Weatherstrip |
| 67868J | Retainer, Door Weatherstrip |
| 67869D | Clip, Door Weatherstrip |
| 67871 | Weatherstrip, Rear Door, RH |
| 67871A | Retainer(FOR REAR DOOR WEATHERSTRIP) |
| 67872 | Weatherstrip, Rear Door, LH |
| 67887A | Weatherstrip, Rear Door, NO.2 RH |
| 67888A | Weatherstrip, Rear Door, NO.2 LH |
| 67895C | Weatherstrip, Rear Door, NO.3 RH |
| 67896 | Weatherstrip, Rear Door, NO.3 LH |
| 67897B | Cushion, Rear Door, RH |
| 67898B | Cushion, Rear Door, LH |
| 68103 | Glass Sub-assy, Rear Door, RH |
| 68104 | Glass Sub-assy, Rear Door, LH |
| 68123B | Glass, Rear Door Quarter Window, RH |
| 68124B | Glass, Rear Door Quarter Window, LH |
| 68142C | Run, Rear Door Glass, RH |
| 68152C | Run, Rear Door Glass, LH |
| 68173B | Weatherstrip, Rear Door Glass, Inner RH |
| 68174A | Weatherstrip, Rear Door Glass, Inner LH |
| 68188 | Weatherstrip, Rear Door Quarter Window, RH |
| 68189 | Weatherstrip, Rear Door Quarter Window, LH |
| 68630D | Check Assy, Rear Door, RH |
| 68640A | Check Assy, Rear Door, LH |
| 75937A | Tape, Black Out, Inner Upper RH |
| 75938 | Tape, Black Out, Inner Upper LH |
| 75951C | Tape, Black Out, Inner Front RH |
| 75952A | Tape, Black Out, Inner Front LH |
| 86262D | Cover, Rear Door Speaker |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
