Toyota Lexus CT200H

2010-12 → present · chassis ZWA10 · catalogue 232510 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

105 part groups · 11 illustrations

Illustrations

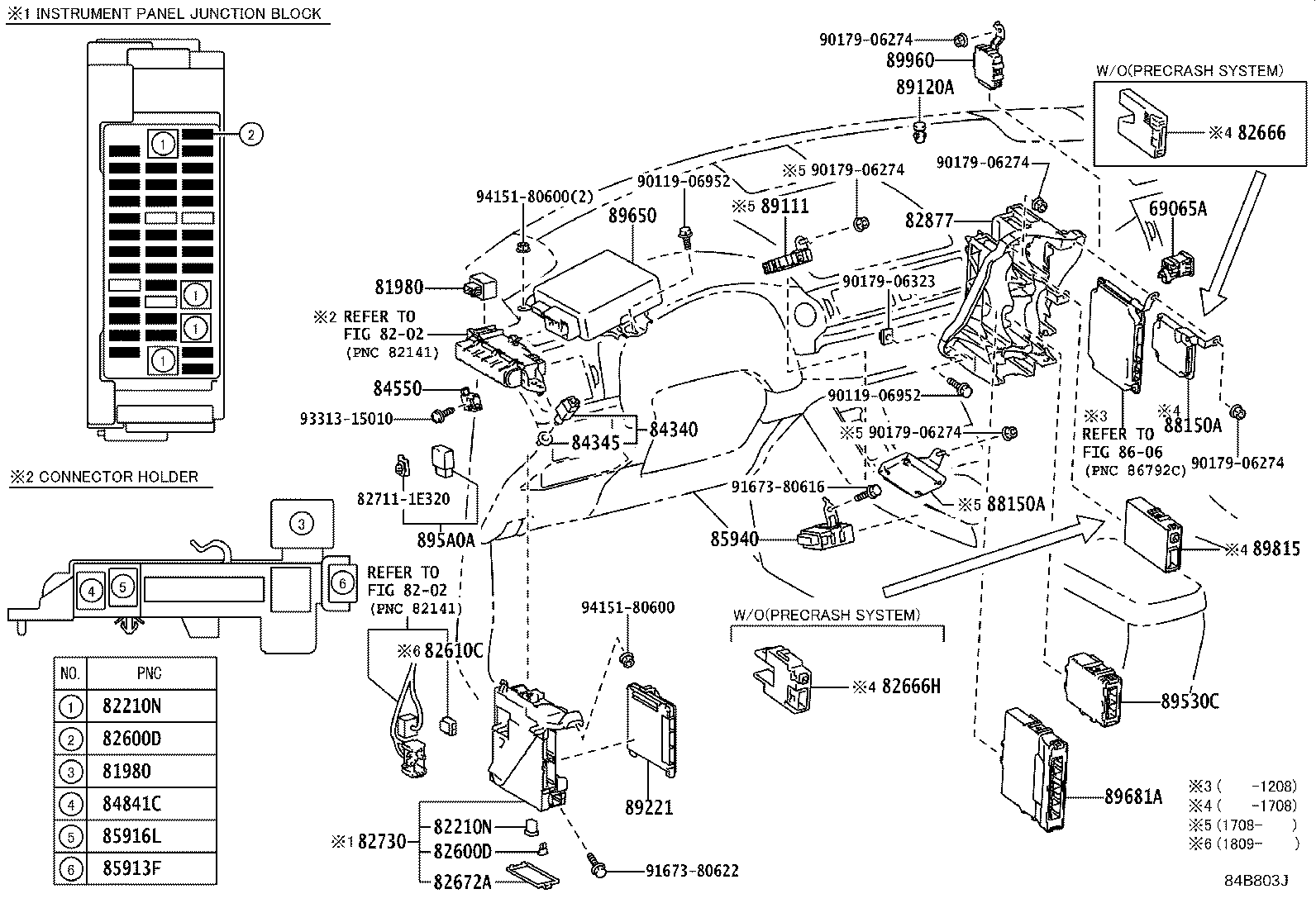

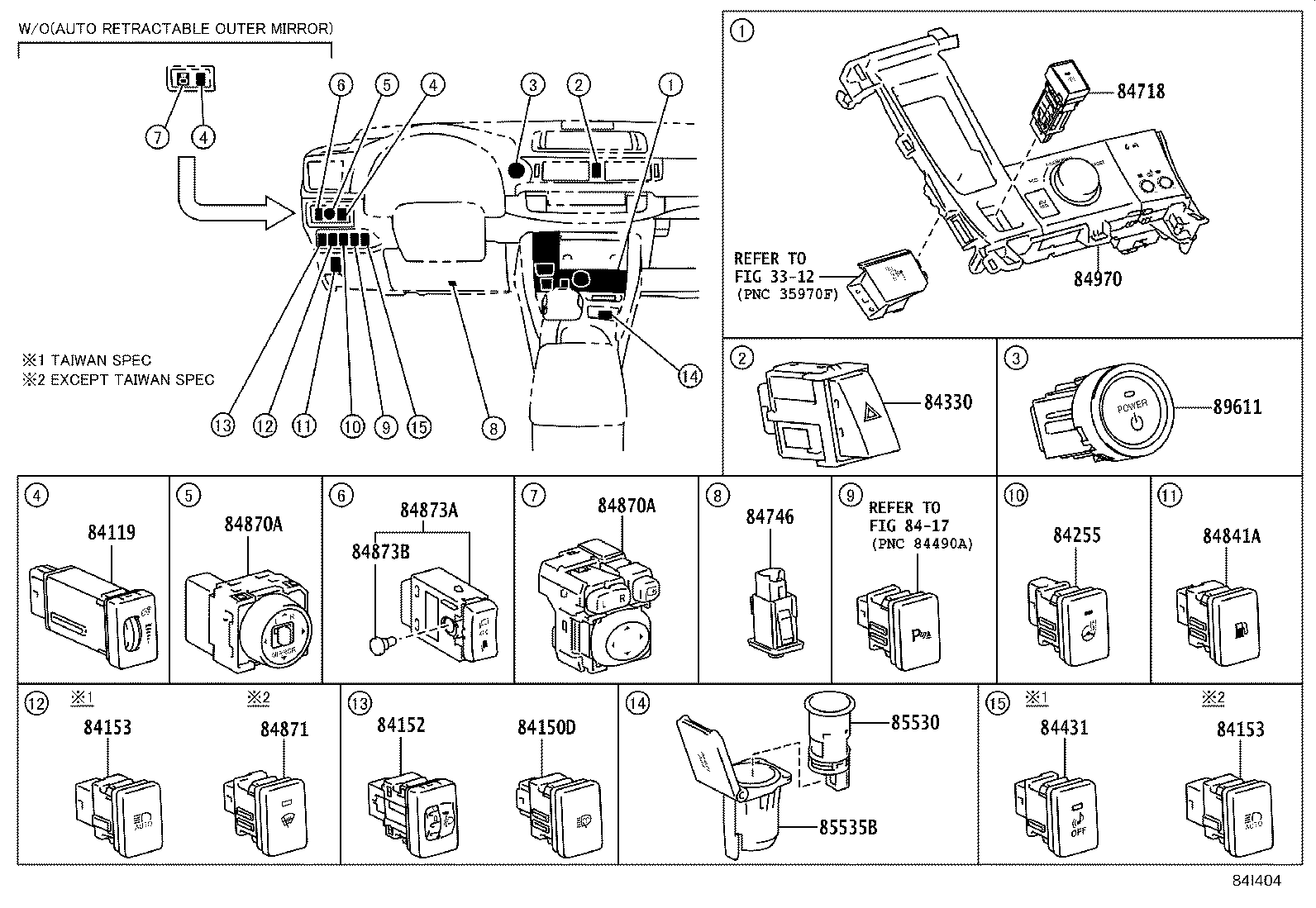

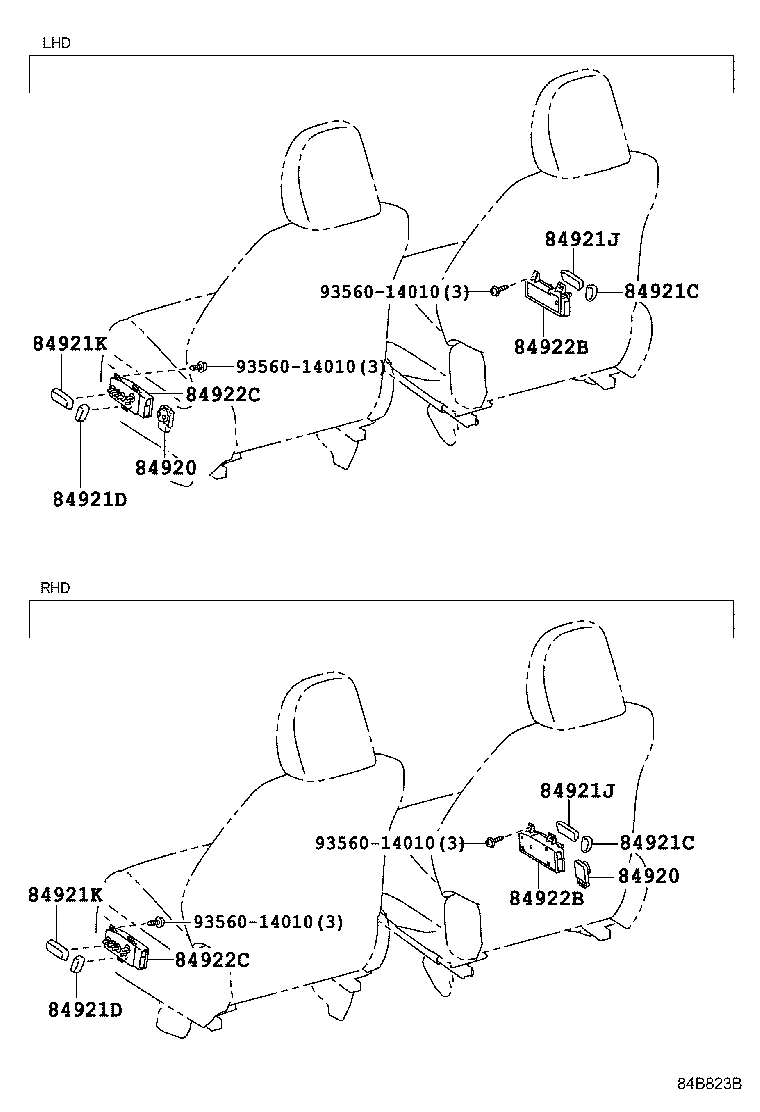

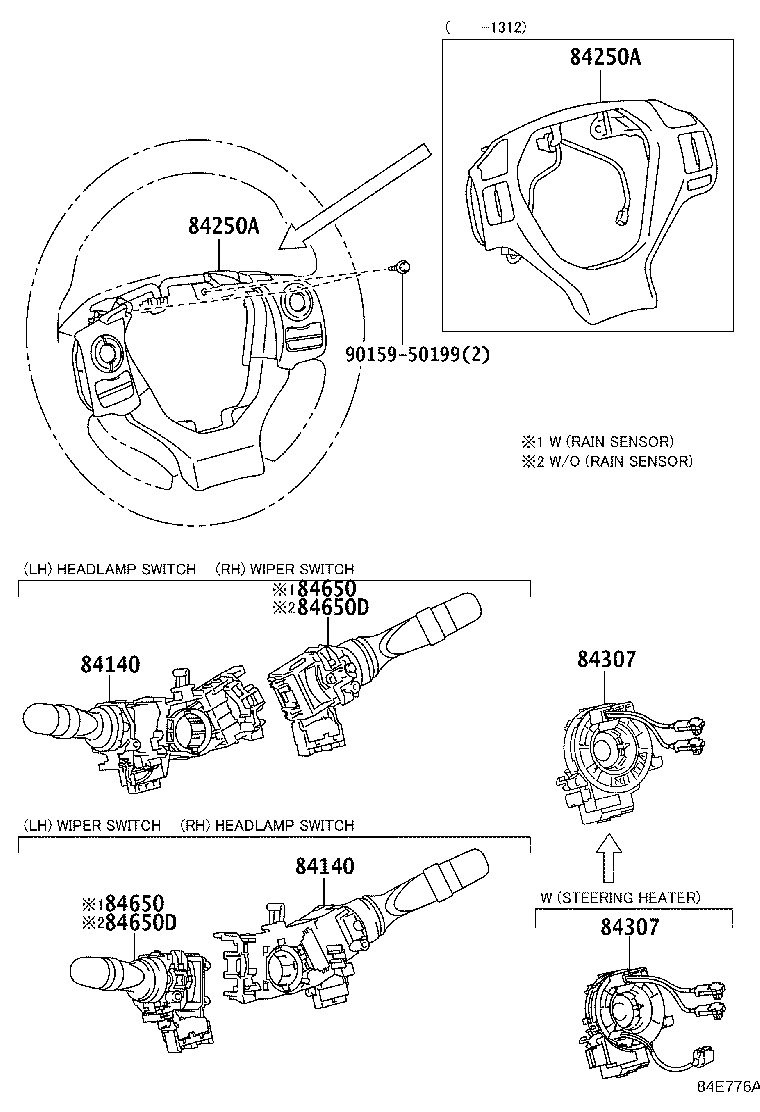

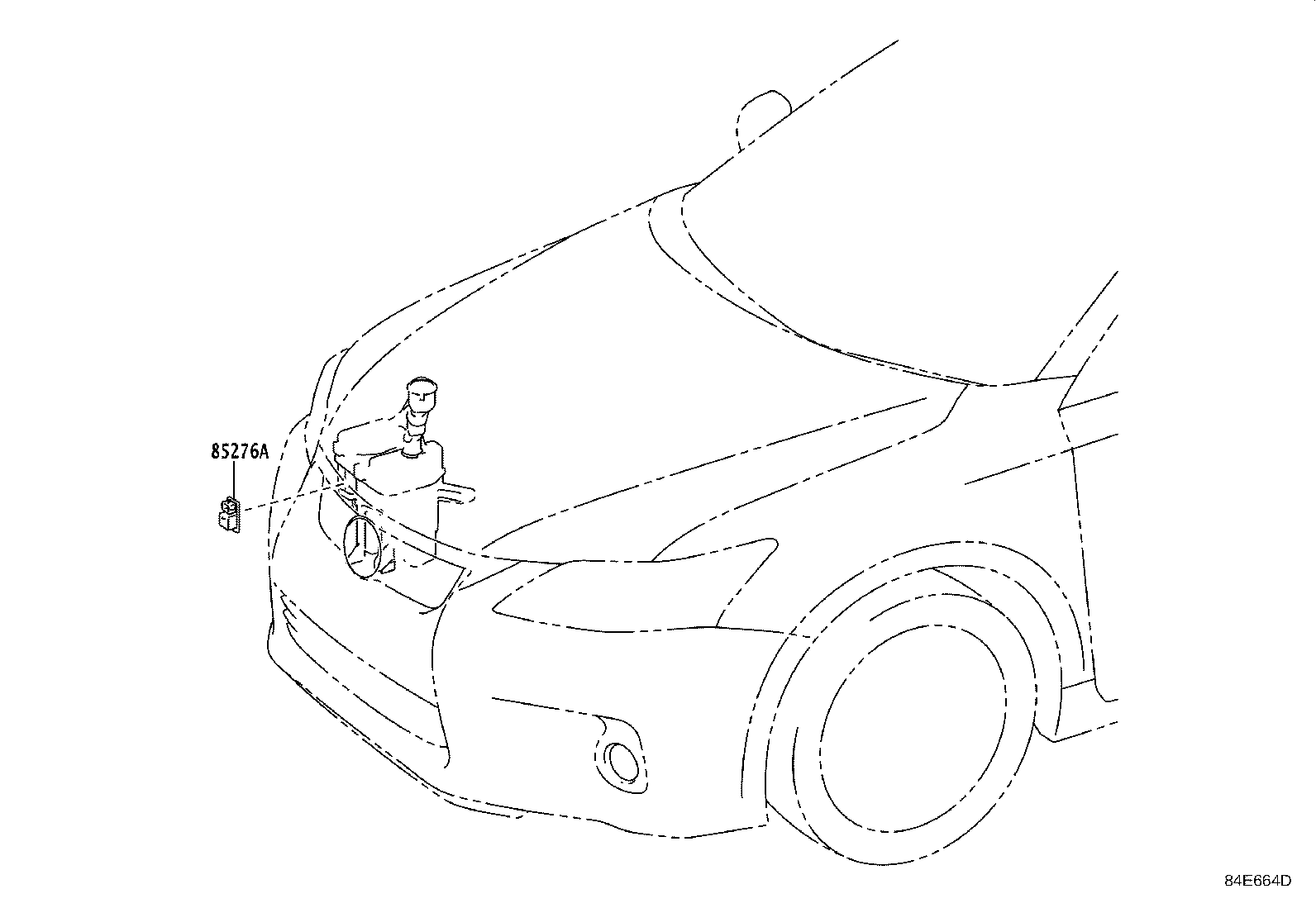

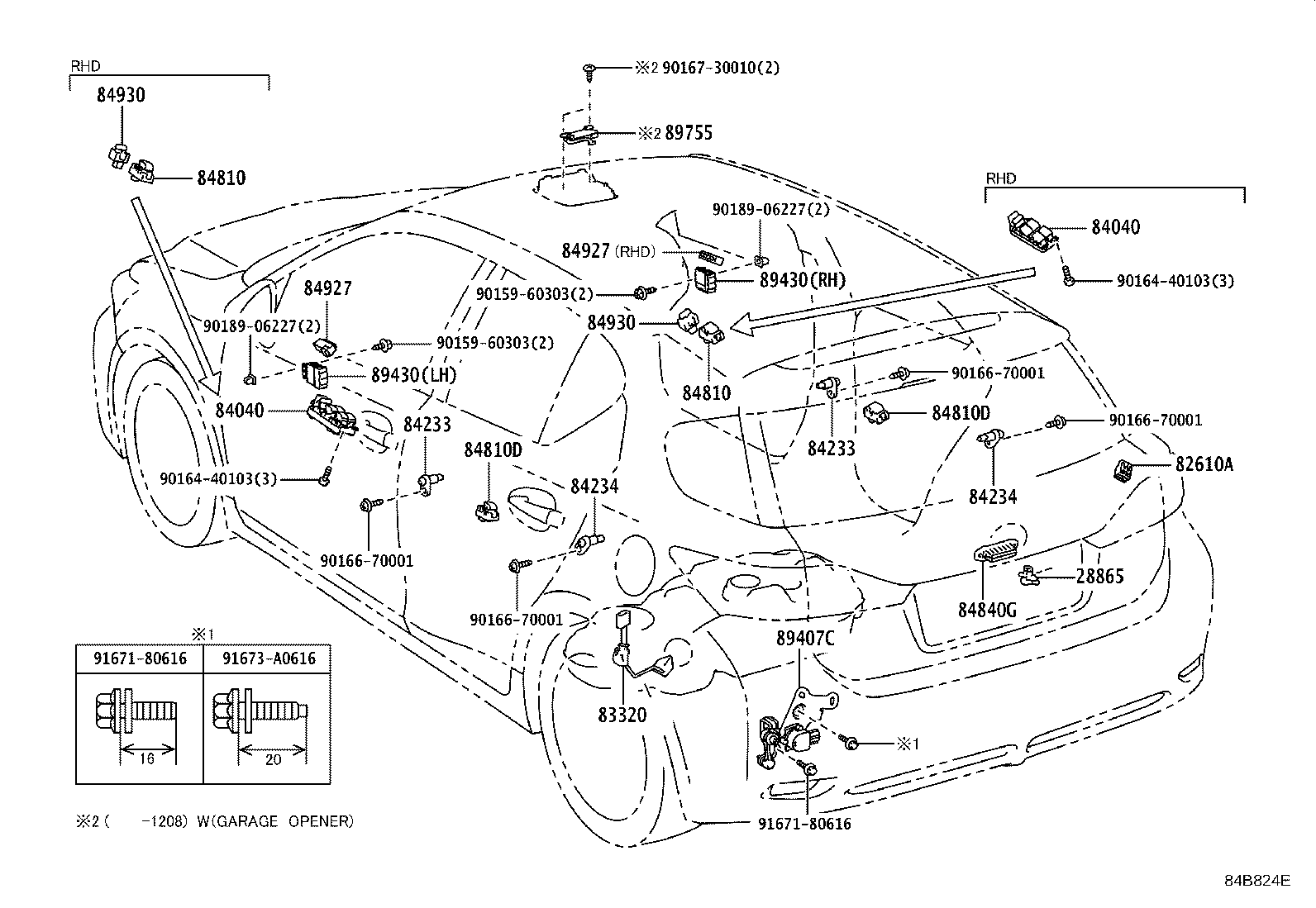

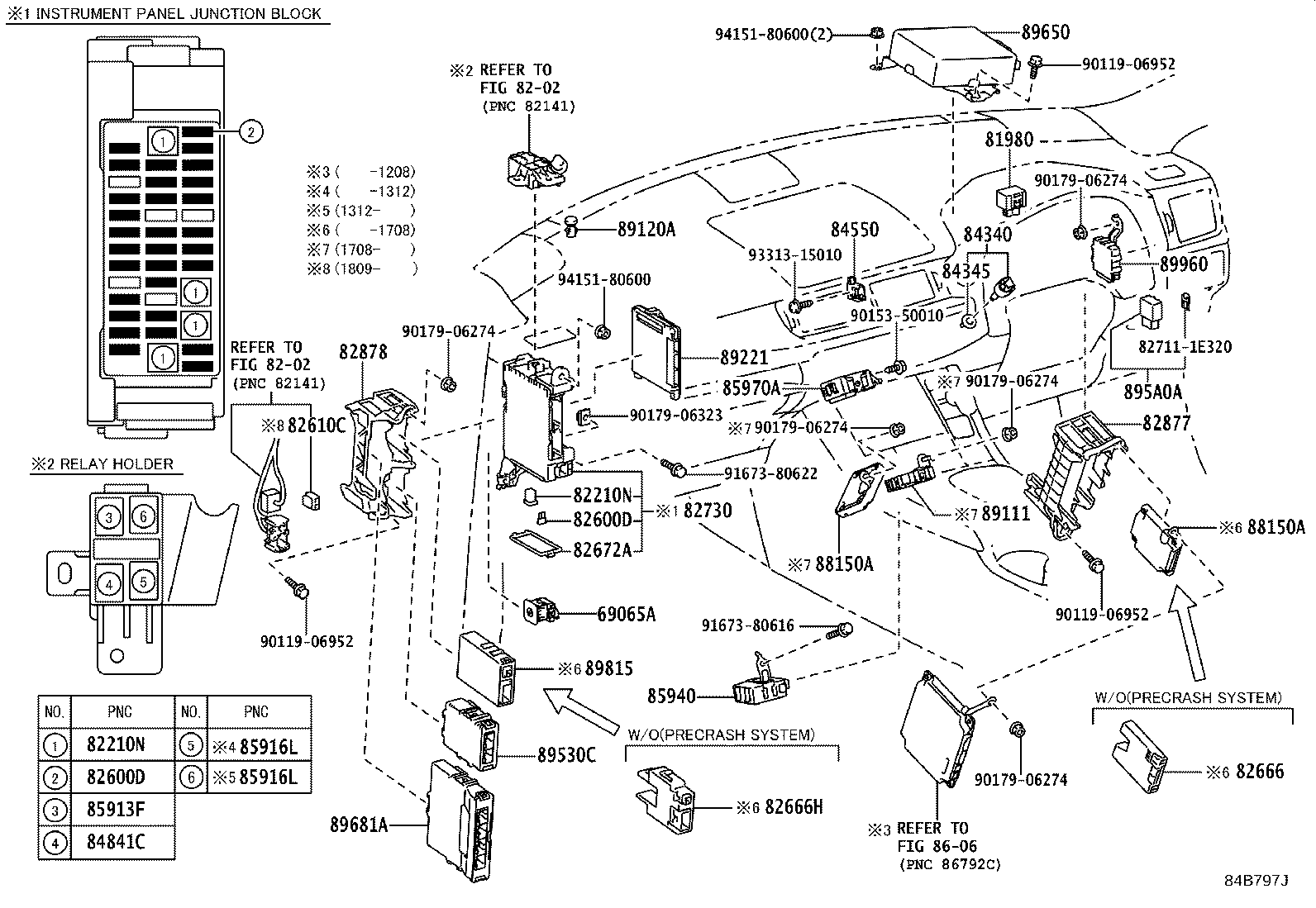

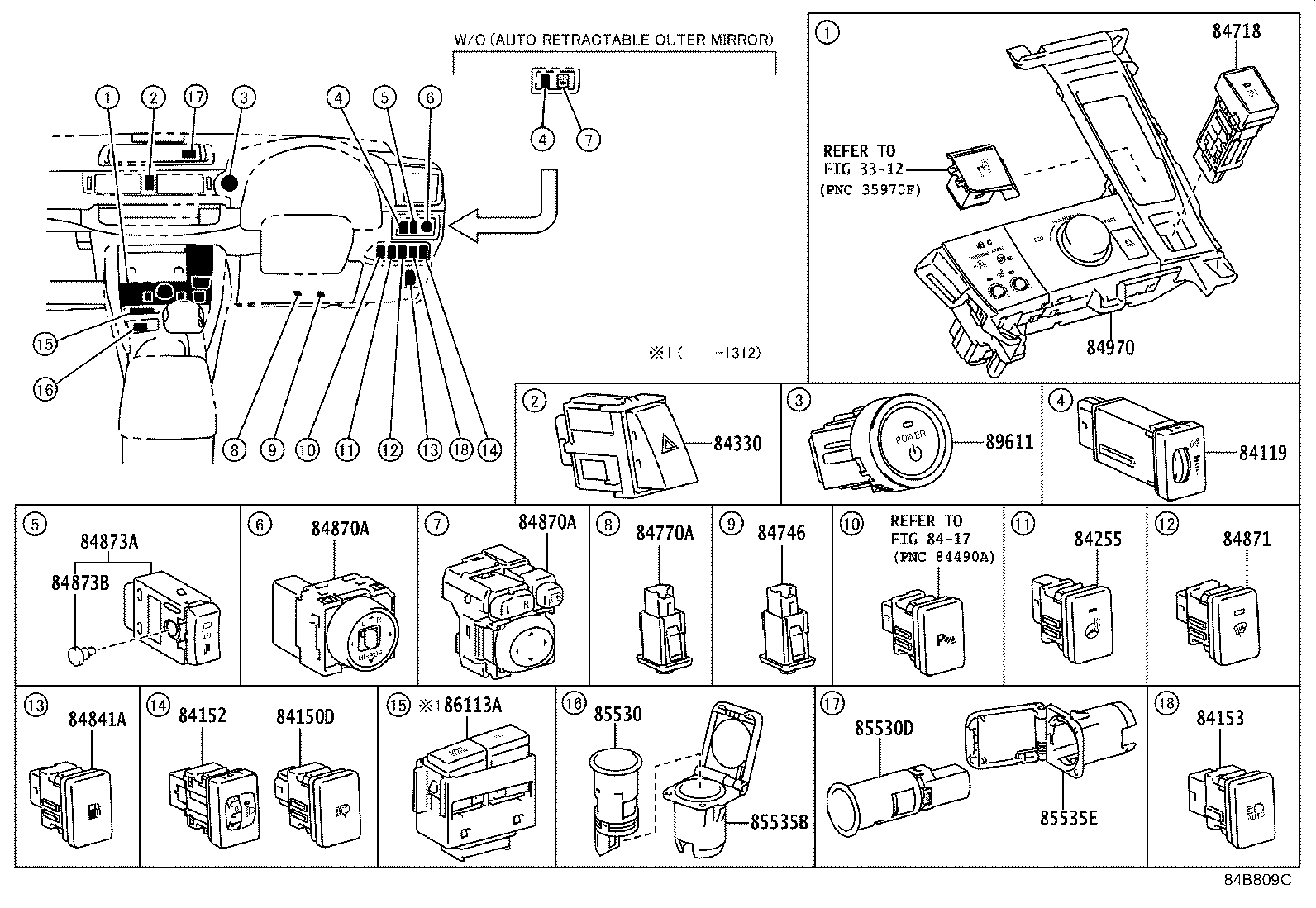

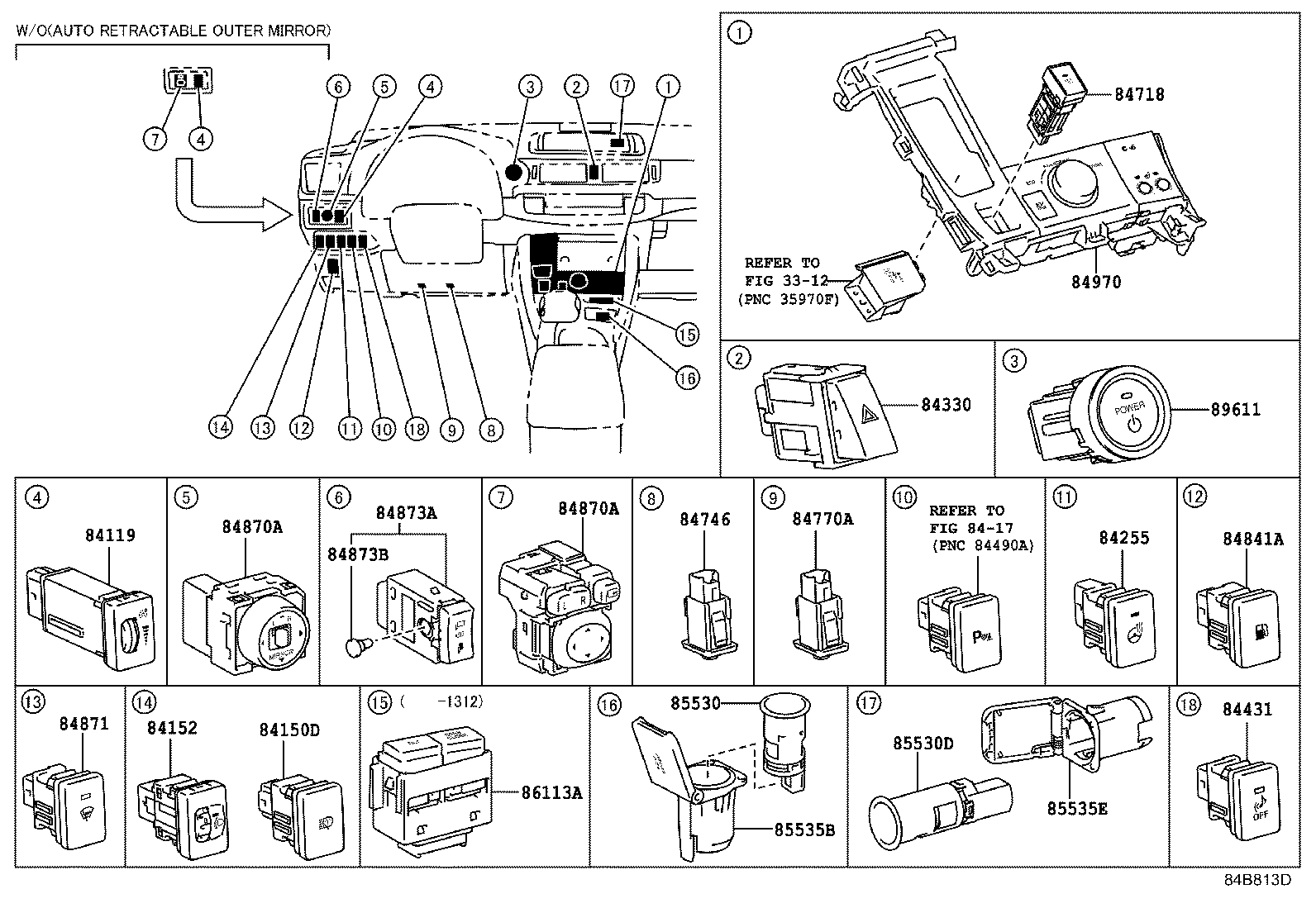

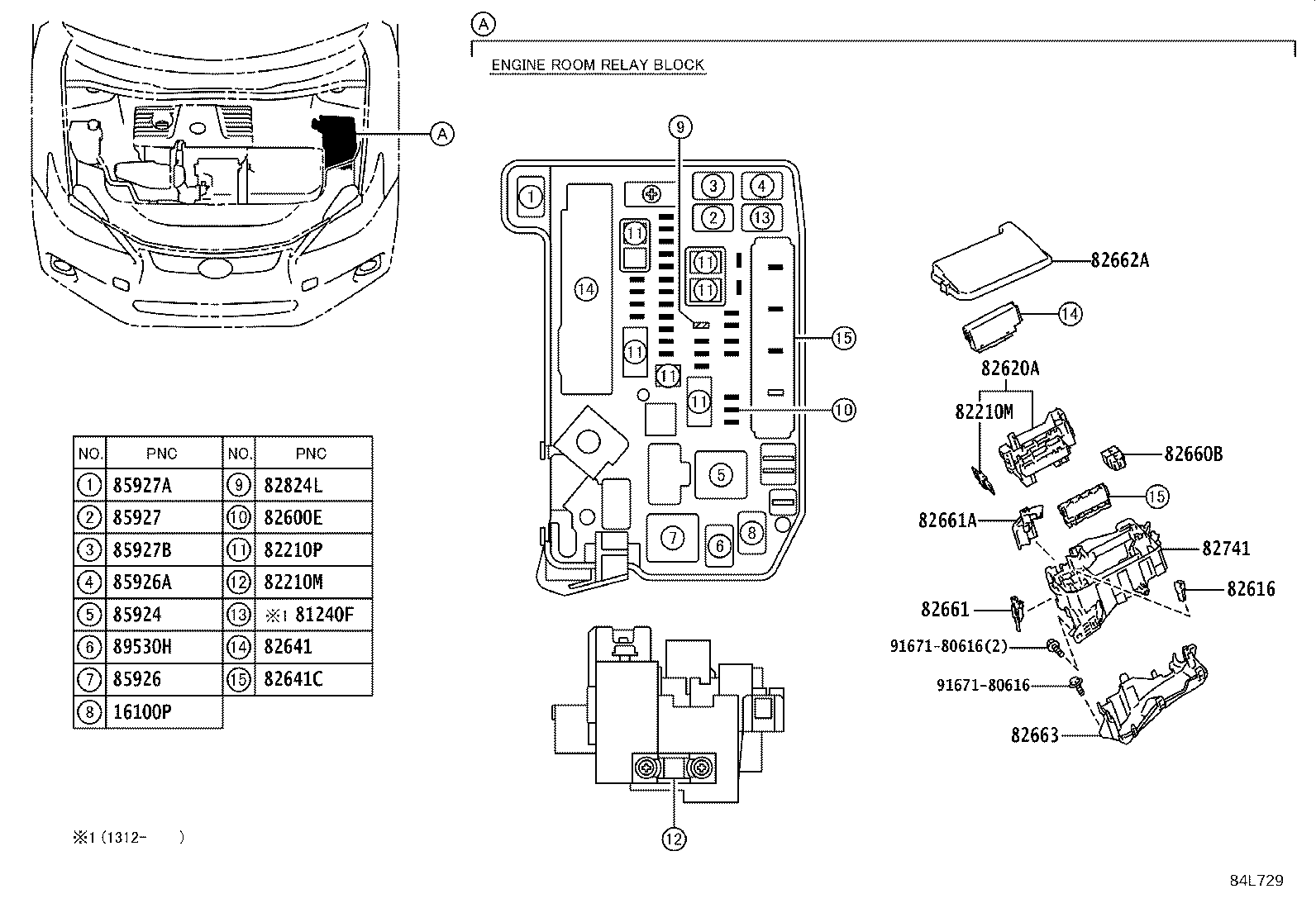

Figure 84B790A 84B790A 2010-12 → — Figure 84E664D 84E664D 2010-12 → — Figure 84L729 84L729 2010-12 → — Figure 84B803J 84B803J 2010-12 → — Figure 84B797J 84B797J 2010-12 → — Figure 84B813D 84B813D 2010-12 → 2017-08 Figure 84I404 84I404 2017-08 → — Figure 84B809C 84B809C 2010-12 → — Figure 84E776A 84E776A 2010-12 → — Figure 84B823B 84B823B 2010-12 → — Figure 84B824E 84B824E 2010-12 → —

Part groups

PNCDescription
16100P Relay, Water Pump
28865 Sensor, Battery Thermometer
69065A Cylinder Sub-assy, Airbag Cut Off Switch
81240F Relay, Dome Lamp
81980 Flasher Assy, Turn Signal
82210M Fusible Link
82210N Instrument Panel Fusible Link
82210P Engine Room Fusible Link
82600D Instrument Panel Fuse
82600E Engine Room Fuse
82610A Block Assy, Fuse
82610C Block Assy, Fuse
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82641 Relay, Integration NO.1
82641C Relay, Integration NO.2
82660B Block Assy, Relay
82661 Cover, Relay Block, NO.1
82661A Cover, Relay Block, NO.2
82662A Cover, Relay Block, Upper, NO.1
82663 Cover, Relay Block, Lower
82666 Holder, Connector
82666H Holder, Connector, NO.2
82672A Cover, Junction Block
82730 Block Assy, Instrument Panel Junction
82741 Block, Engine Room Relay
82824L Pin, Short
82877 Box, Computer Integration, RH
82878 Box, Computer Integration, LH
83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84040 Master Switch Assy,Multiplex Network
84119 Rheostat, Light Control
84140 Switch Assy, Headlamp Dimmer
84150D Switch Assy, Headlamp Cleaner
84152 Switch, Headlamp Leveling
84153 Switch, Auto High Beam
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84250A Switch Assy, Steering Pad
84255 Switch, Steering Heater
84307 Cable Sub-assy, Spiral W/Sensor
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84431 Switch, Vehicle Approaching Speaker
84550 Switch Assy, Parking Brake
84650 Switch Assy, Windshield Wiper
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84718 Switch, Transmission Shift Main
84746 Switch, Tire Pressure Warning
84770A Switch Assy, Pre-collision System Cancel
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84840G Switch Assy, Back Door Opener
84841A Switch, Fuel Lid Opener
84841C Relay, Fuel Lid Opener
84870A Switch Assy, Outer Mirror
84871 Switch Assy, Outer Mirror Heater
84873A Switch, Retractable Outer Mirror
84873B Bulb, Retractable Outer Mirror Switch
84920 Switch Assy, Power Seat
84921C Knob, Power Seat Switch, RH
84921D Knob, Power Seat Switch, LH
84921J Knob, Power Seat Switch, RH
84921K Knob, Power Seat Switch, LH
84922B Switch, Front Power Seat, RH
84922C Switch, Front Power Seat, LH
84927 Switch, Seat Memory
84930 Switch Assy, Door Control
84970 Switch Assy, Combination
85276A Relay, Cleaner Control
85530 Socket Assy, Power Outlet, NO.1
85530D Socket Assy, Power Outlet, NO.2
85535B Cover, Power Outlet Socket, NO.1
85535E Cover, Power Outlet Socket, NO.2
85913F Relay, Steering Heater
85916L Relay, Rear Fog Lamp
85924 Relay, Ignition Control
85926 Relay, Headlamp Dimmer
85926A Relay, Headlamp Day Dim Light
85927 Relay, Cooling Fan
85927A Relay, Cooling Fan, NO.2
85927B Relay, Cooling Fan, NO.3
85940 Relay Assy, Windshield Wiper
85970A Relay Assy, Double Lock Door Control
86113A Switch, Multi-display
88150A Computer Assy, Driving Support
89111 Computer, Network Gateway
89120A Sensor, Automatic Light Control
89221 Computer, Multiplex Network Body
89407C Sensor Sub-assy, Height Control, Rear
89430 Computer Assy, Outer Mirror Control
89465 Sensor, Oxygen
89467B Sensor, Air Fuel Ratio
89530C Computer Assy, Transmission Control
89530H Relay, Transaxle Parking Look Control
895A0A Computer Assy, Stop Lamp Control
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89681A Computer, Power Management Control
89755 Transmitter, Garage Door Opener
89815 Computer, Seat Belt Control
89960 Computer Assy, Headlamp Leveling
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
