Toyota Lexus CT200H

2010-12 → present · chassis ZWA10 · catalogue 232510 · Europe

Supported model Data version 2018-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Anti-theft Device

3 part groups · 2 illustrations

Illustrations

Figure 84B855B

84B855B 2010-12 → —

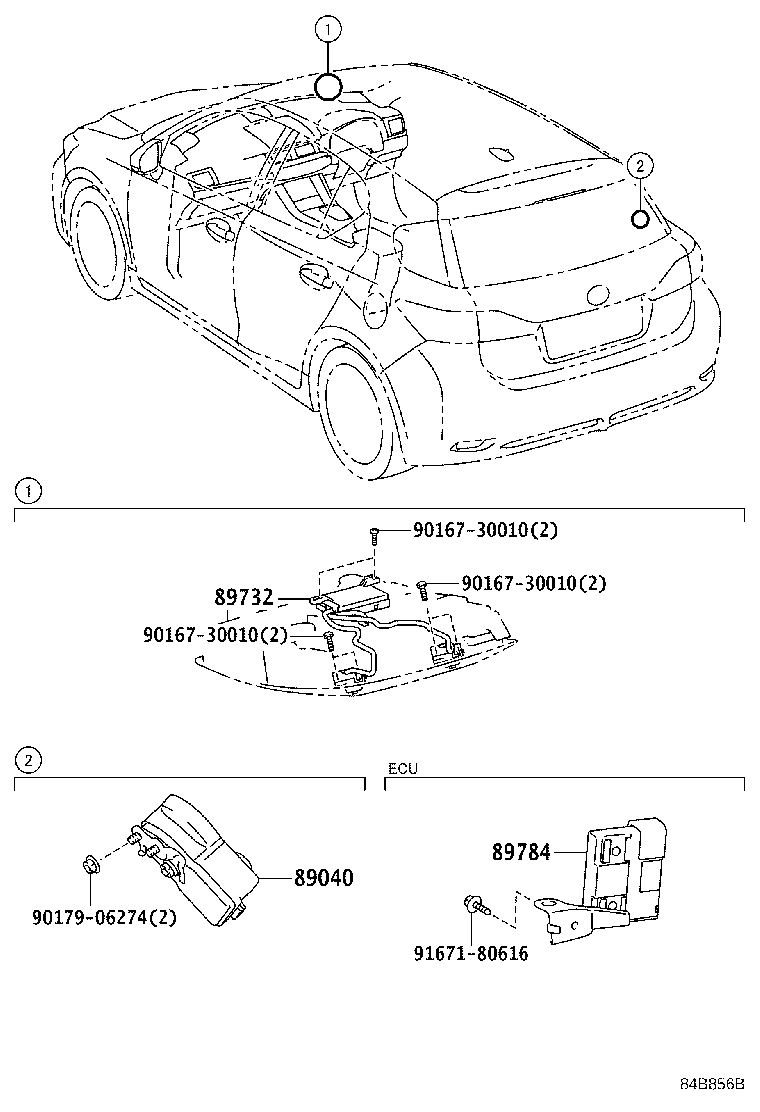

Figure 84B856B

84B856B 2010-12 → —

Part groups

PNC	Description
89040	Siren Assy, Theft Warning
89732	Sensor, Theft Warning Radar
89784	Computer, Immobilizer Code

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
