Toyota Lexus CT200H

2010-12 → present · chassis ZWA10 · catalogue 232510 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

22 part groups · 7 illustrations

Illustrations

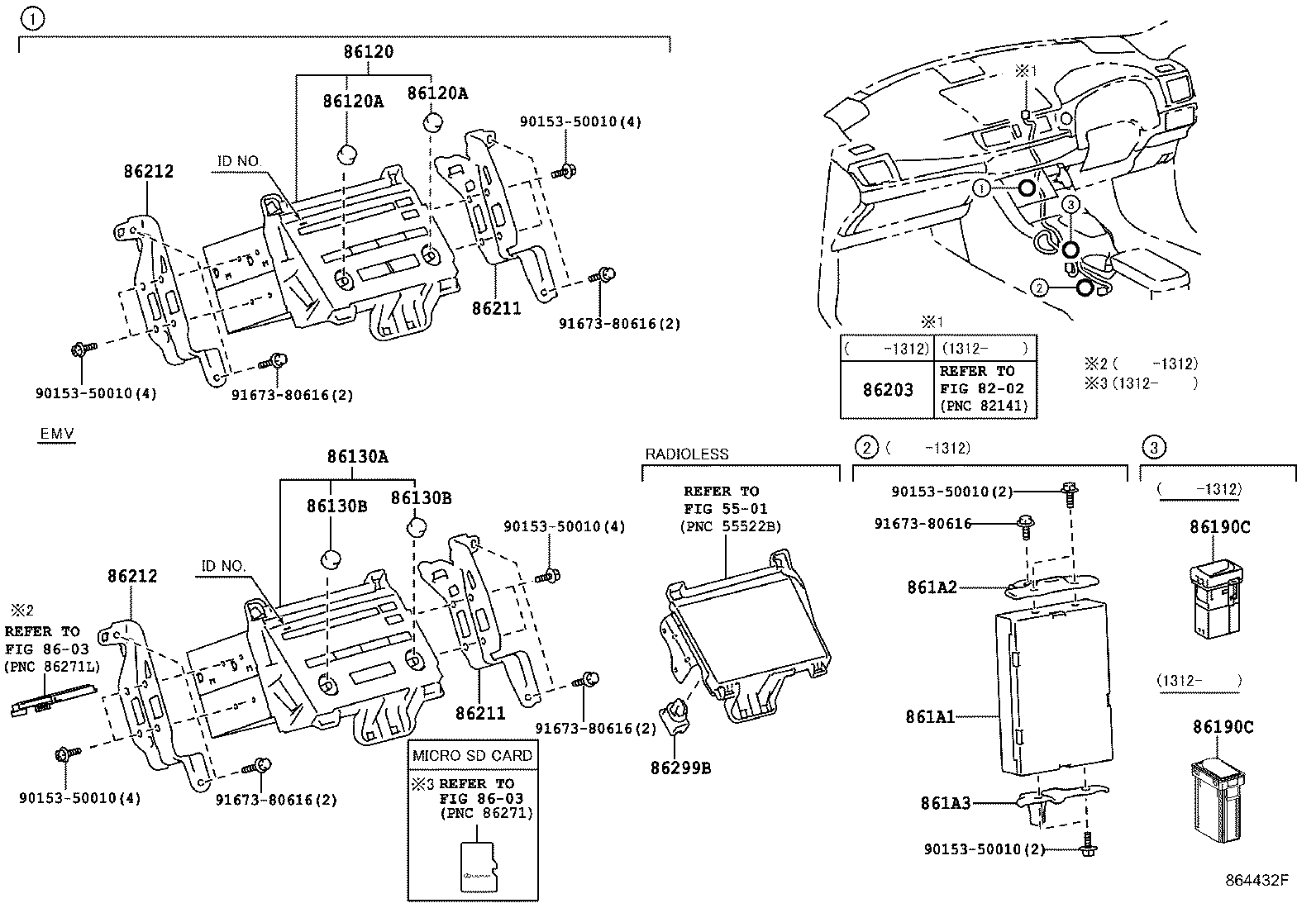

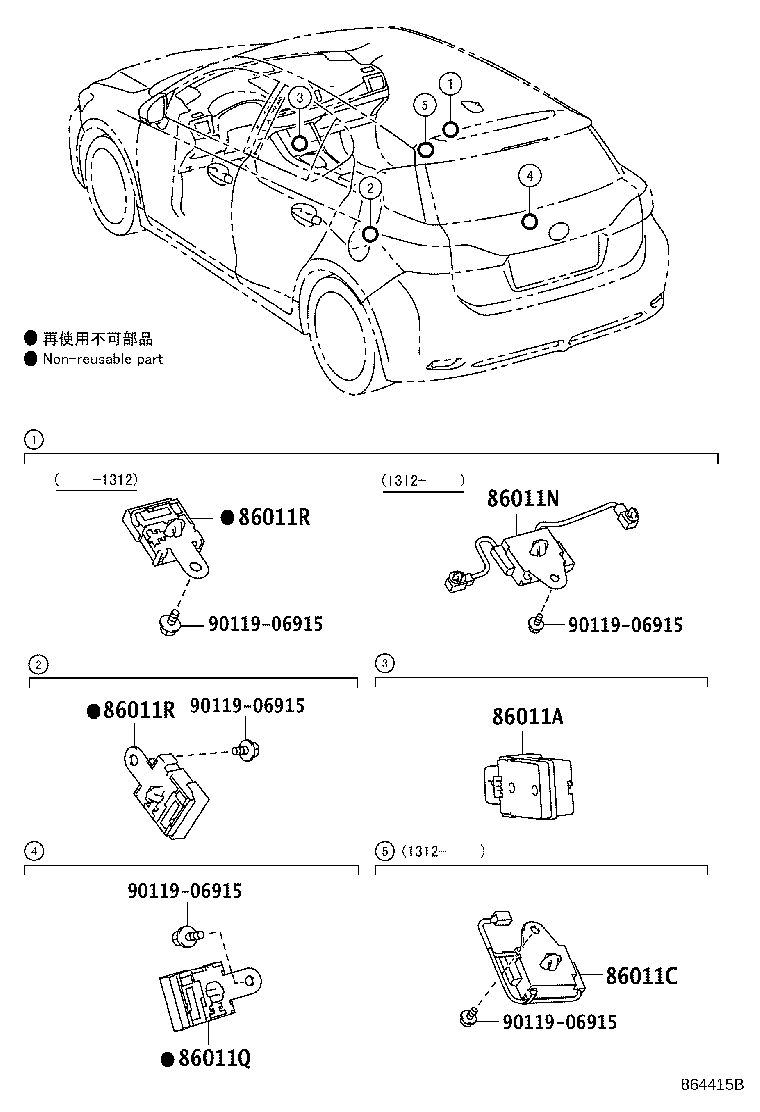

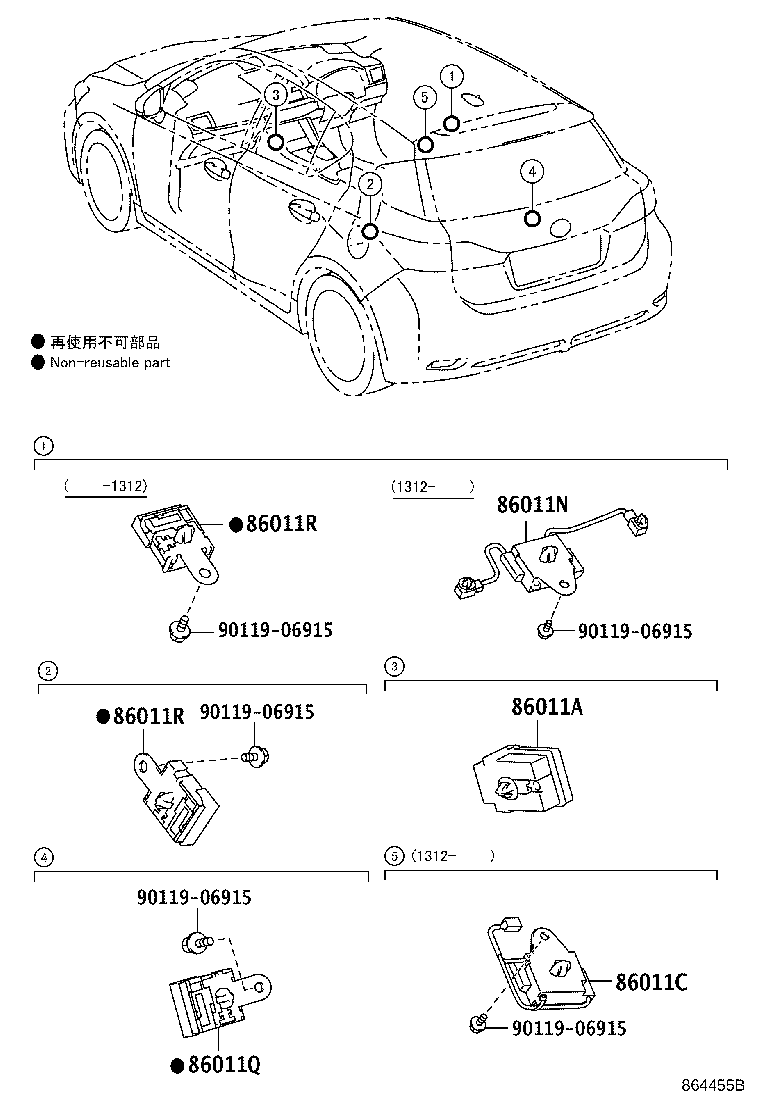

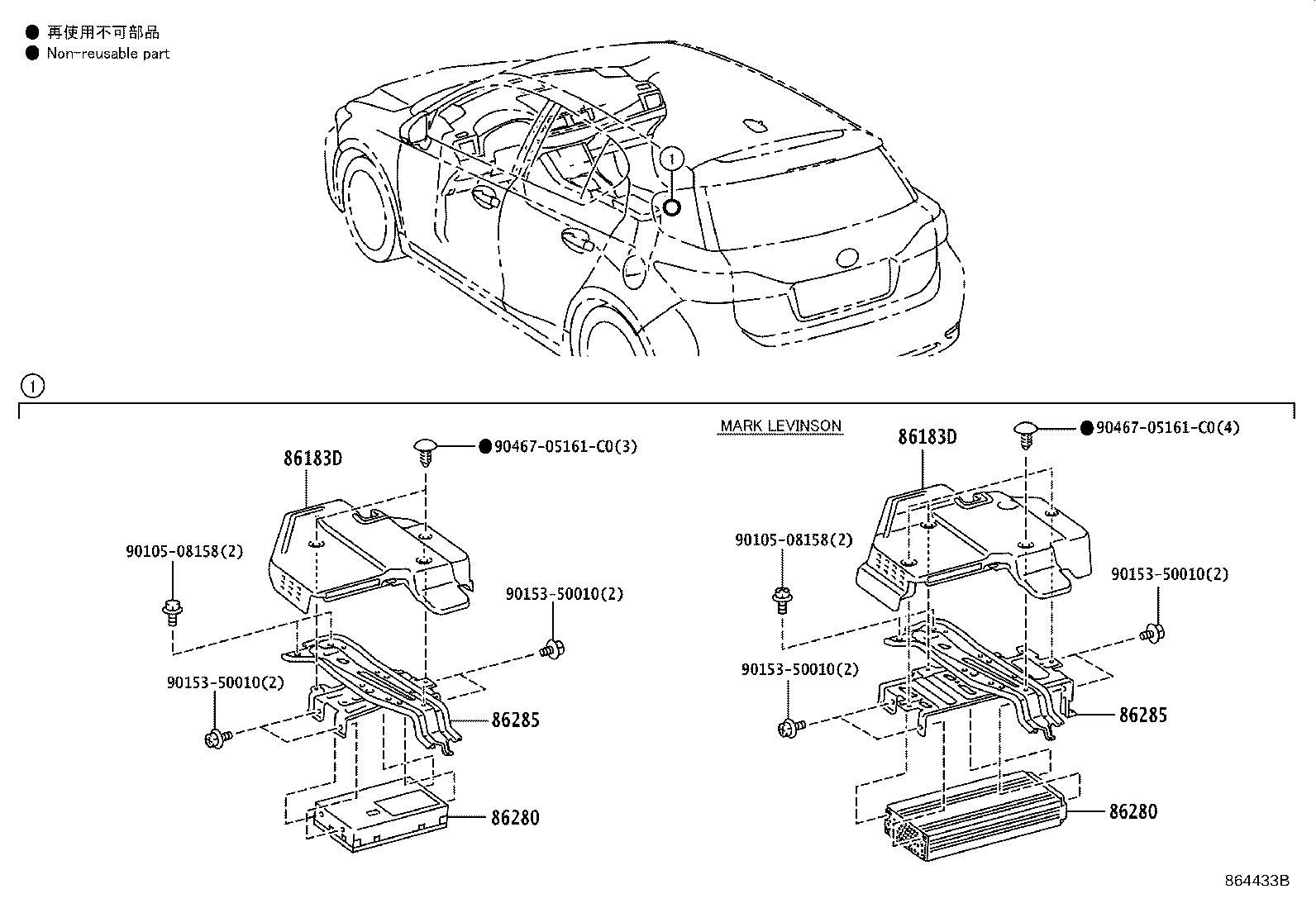

Figure 864431F 864431F 2010-12 → — Figure 864432F 864432F 2010-12 → — Figure 865611 865611 2010-12 → — Figure 864433B 864433B 2010-12 → — Figure 864415B 864415B 2010-12 → — Figure 864455B 864455B 2010-12 → — Figure 865634 865634 2013-12 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011C Filter, Noise
86011N Filter, Noise
86011Q Condenser, Radio Setting
86011R Condenser, Radio Setting
86120 Receiver Assy, Radio
86120A Knob, Radio Receiver Switch
86130A Receiver Assy, Multi-media Module
86130B Knob, Receiver Switch
86183D Cover, Audio Amplifier
86190C Adapter Assy, Stereo Jack, NO.1
861A1 Computer, Multi-media Interface
861A2 Bracket, Multi-media Interface, NO.1
861A3 Bracket, Multi-media Interface, NO.2
86203 Wire, Radio
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86280 Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
86299B Clip, Radio TO Antenna Wire
86723C Wire, Mobilephone
86730C Microphone Assy, Telephone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
