Toyota Lexus CT200H

2010-12 → present · chassis ZWA10 · catalogue 232510 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

8 part groups · 2 illustrations

Illustrations

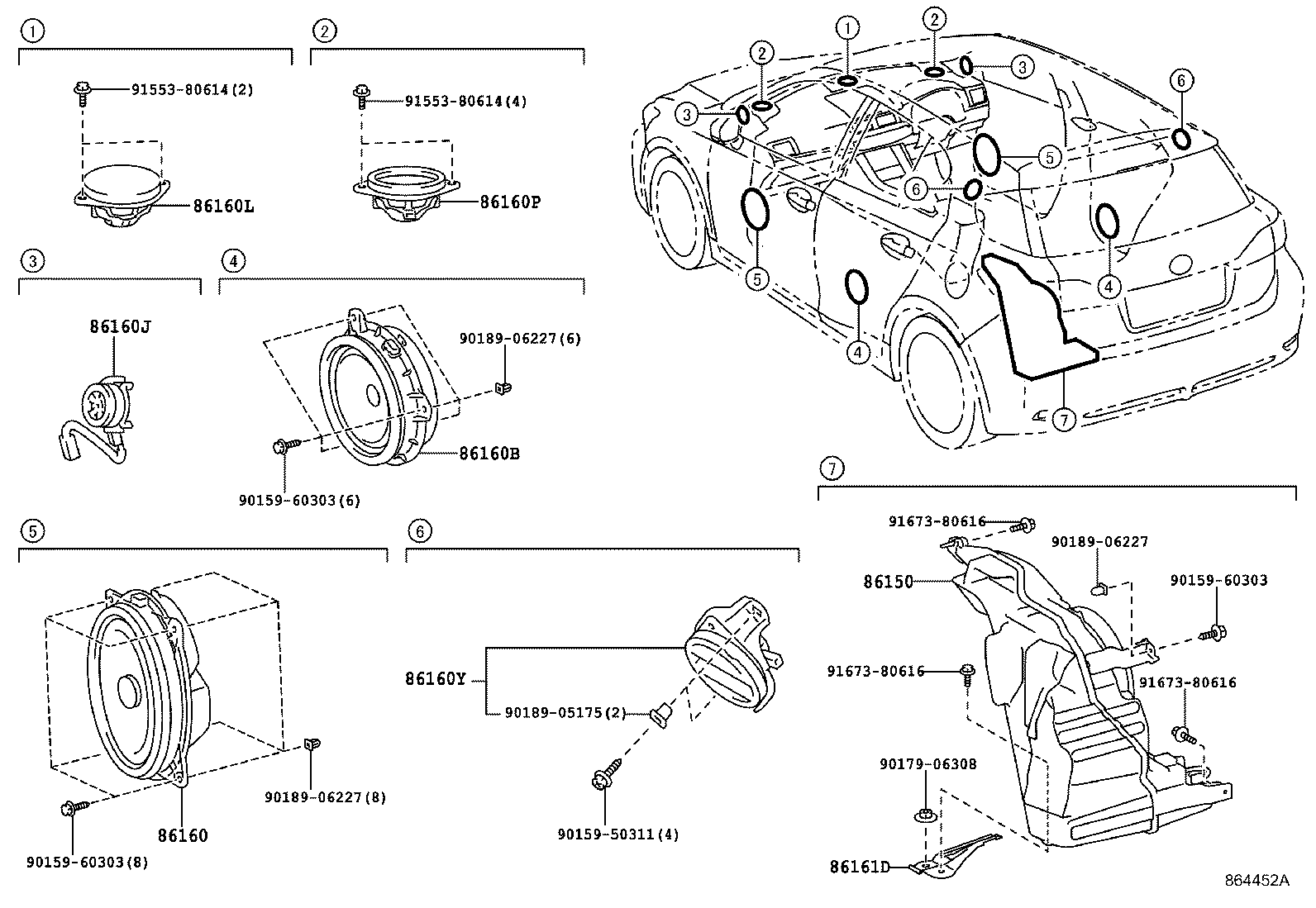

Figure 864407A 864407A 2010-12 → — Figure 864452A 864452A 2010-12 → —

Part groups

PNCDescription
86150 Speaker Assy, W/Box, NO.1
86160 Speaker Assy, Front NO.1
86160B Speaker Assy, Rear
86160J Speaker Assy, Front NO.3
86160L Speaker Assy, Front NO.4
86160P Speaker Assy, Front NO.2
86160Y Speaker Assy, Rear NO.2
86161D Bracket, Speaker Mounting, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
