Toyota Lexus CT200H

2010-12 → present · chassis ZWA10 · catalogue 232510 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

32 part groups · 12 illustrations

Illustrations

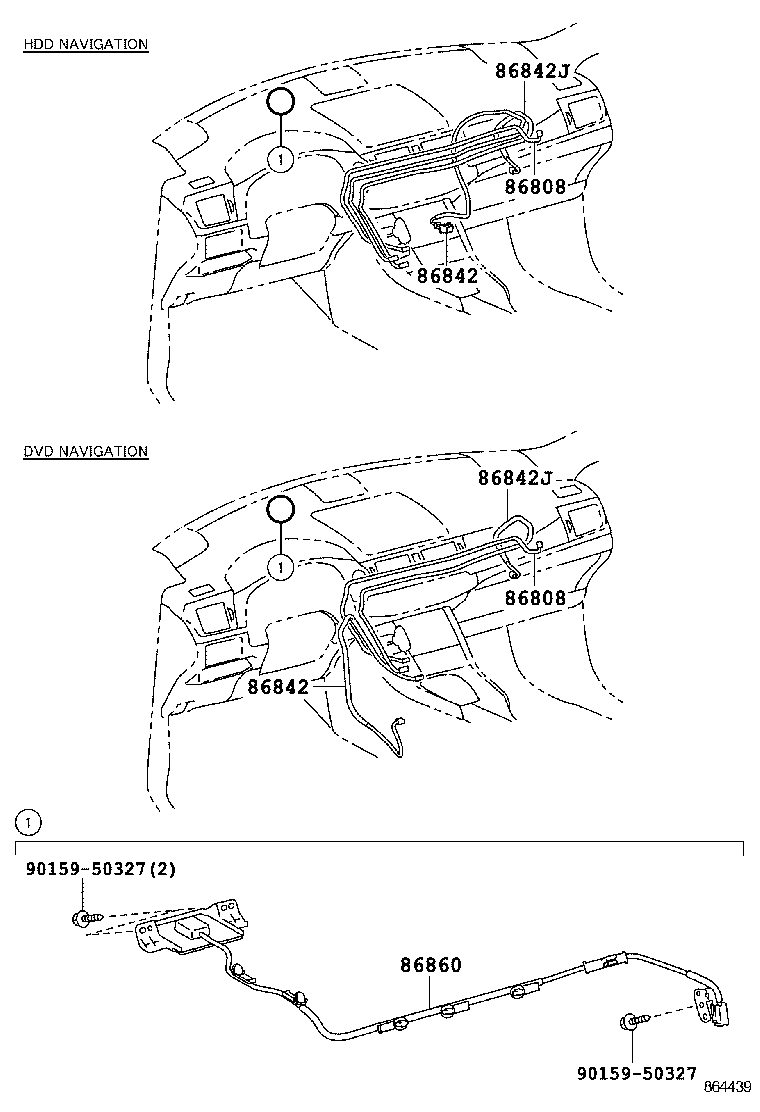

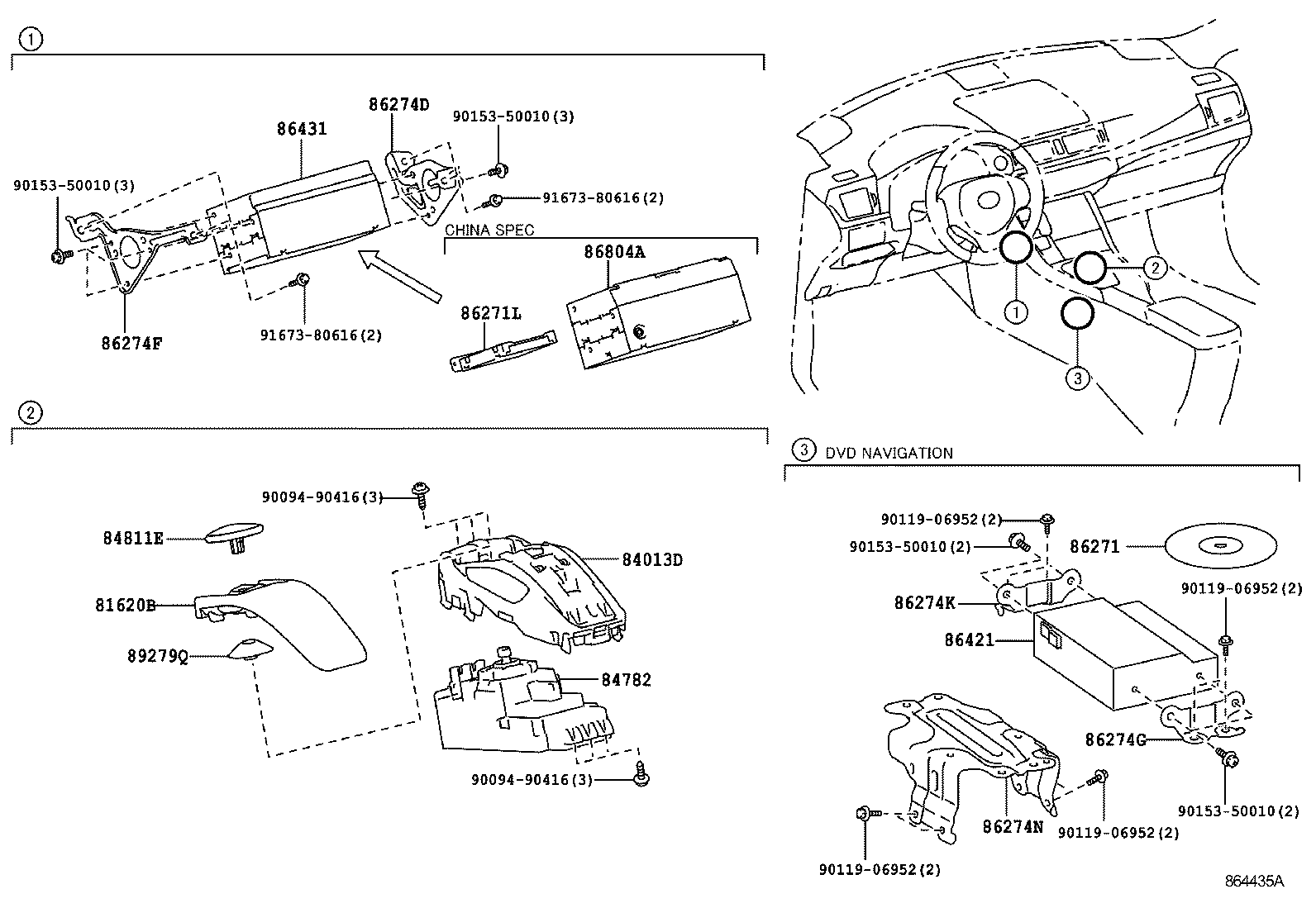

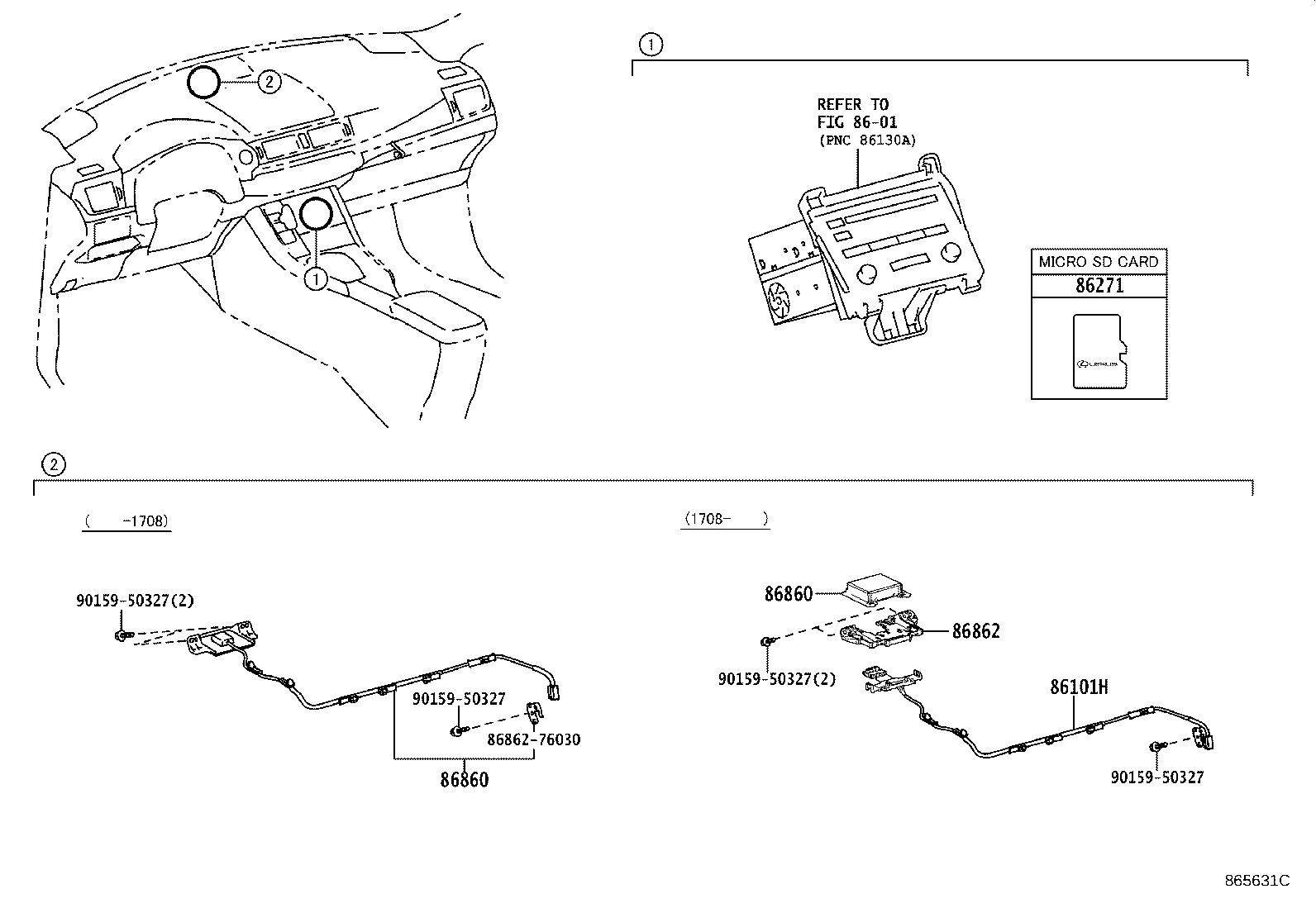

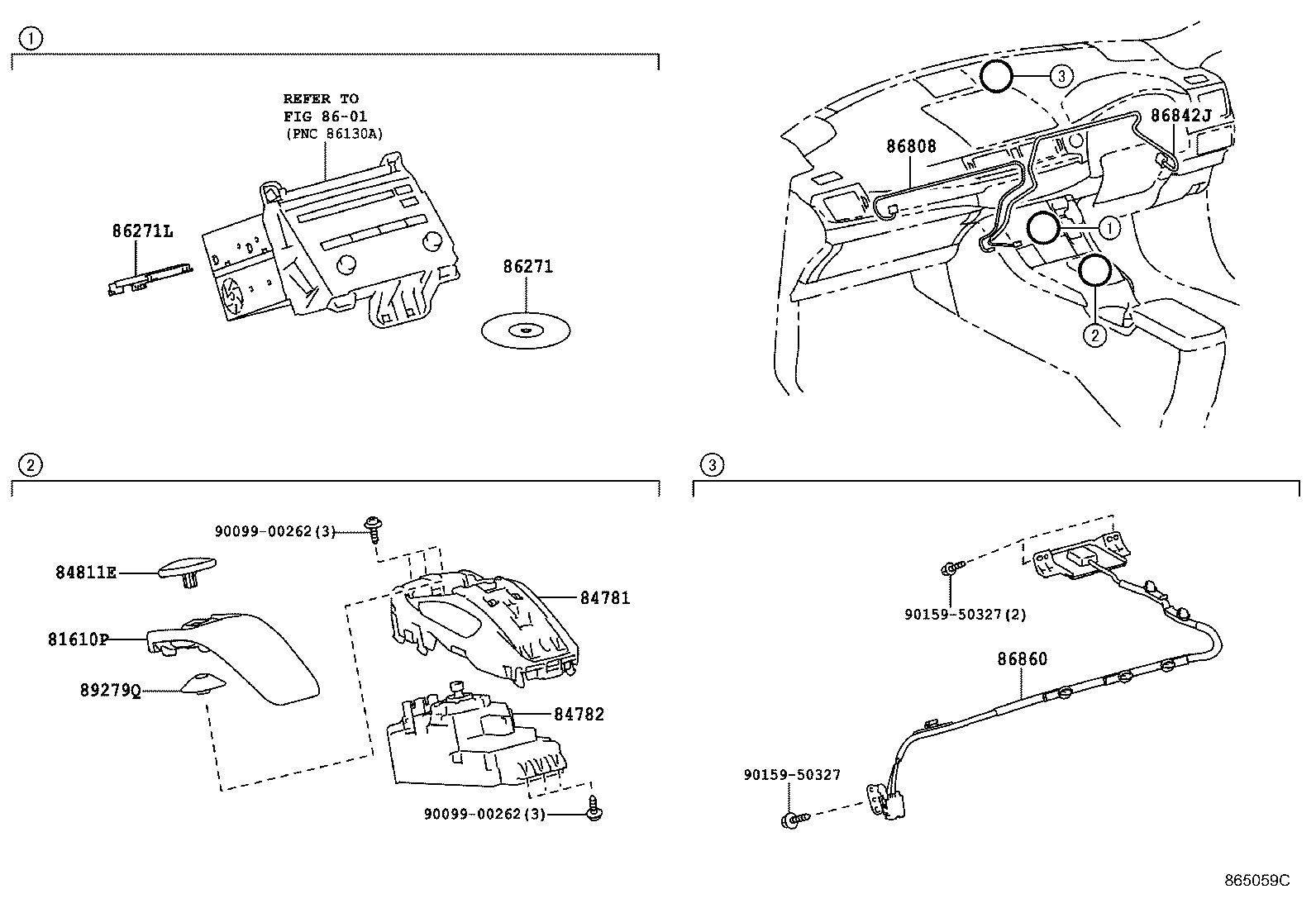

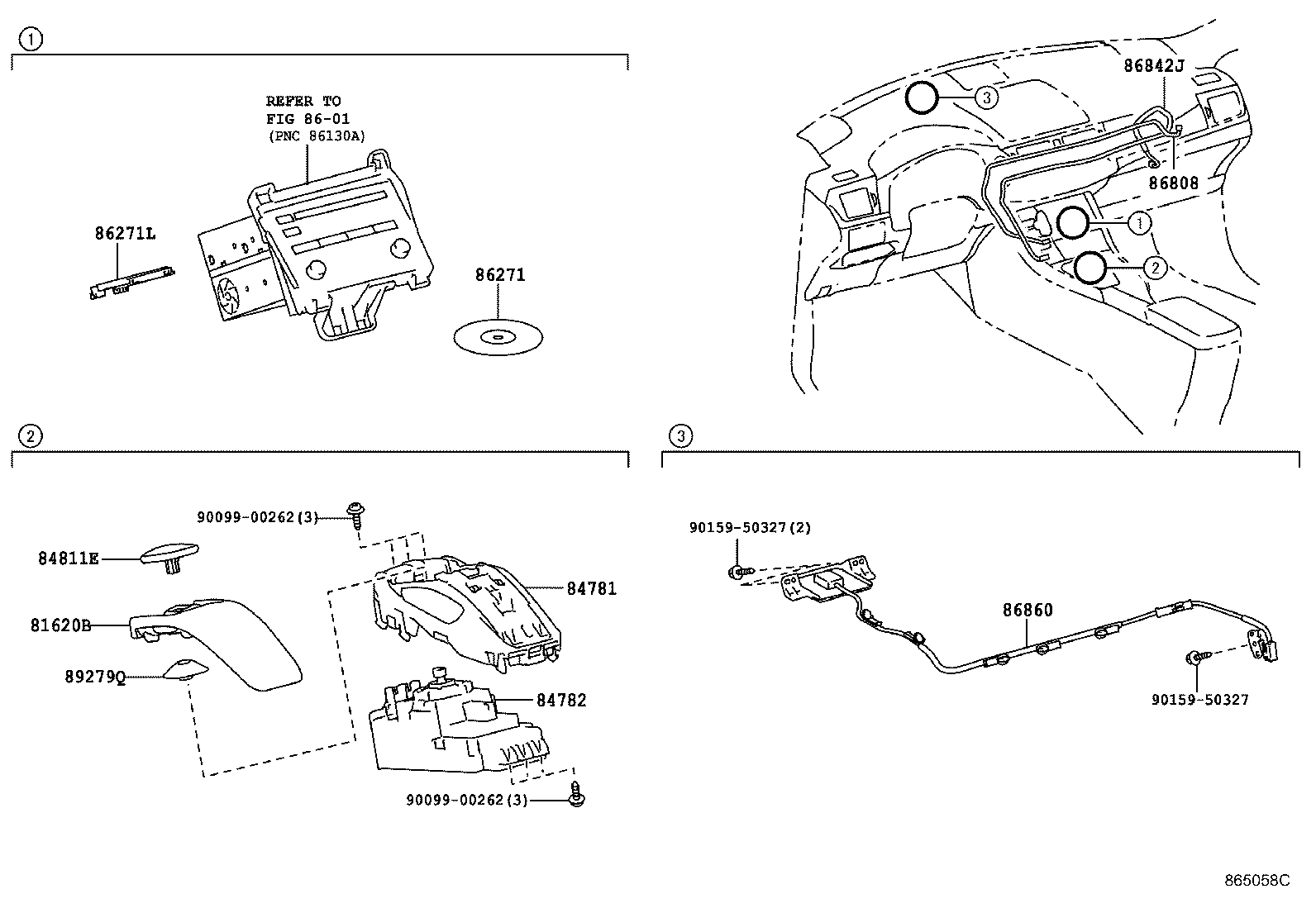

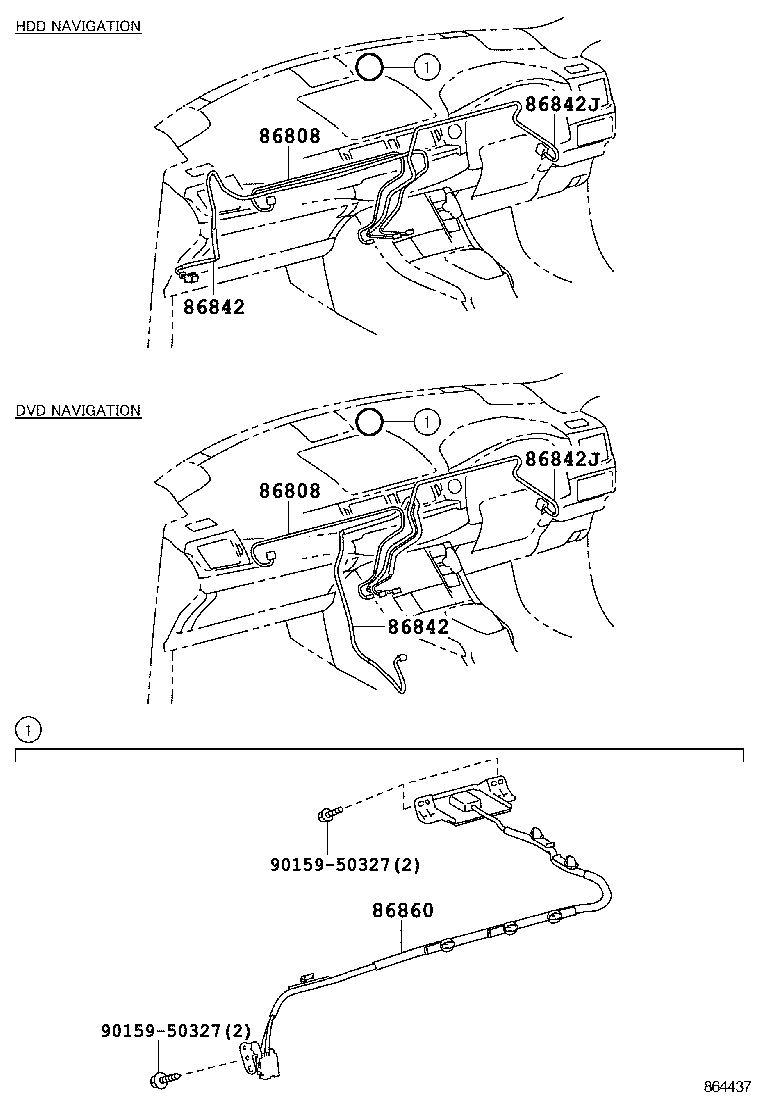

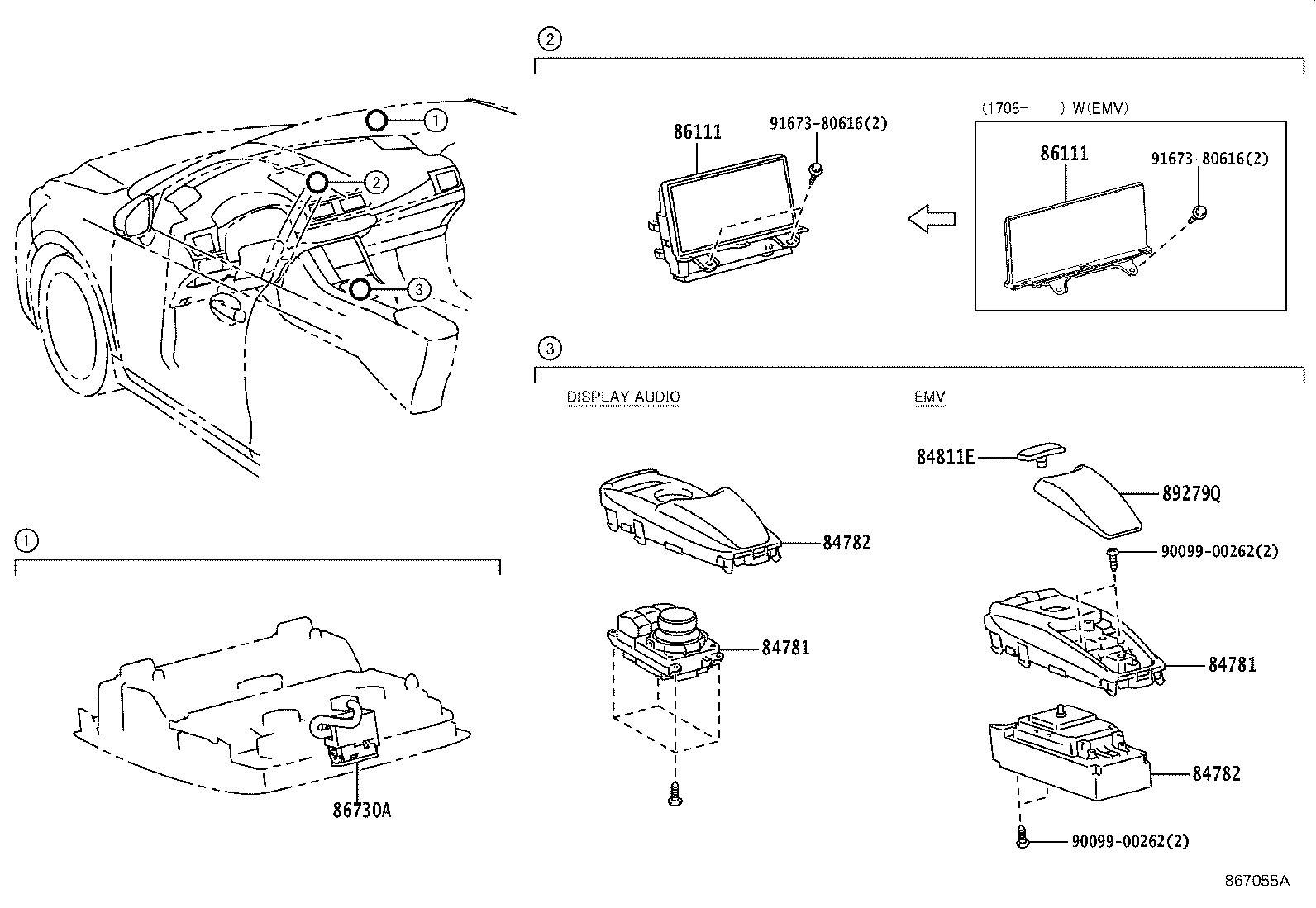

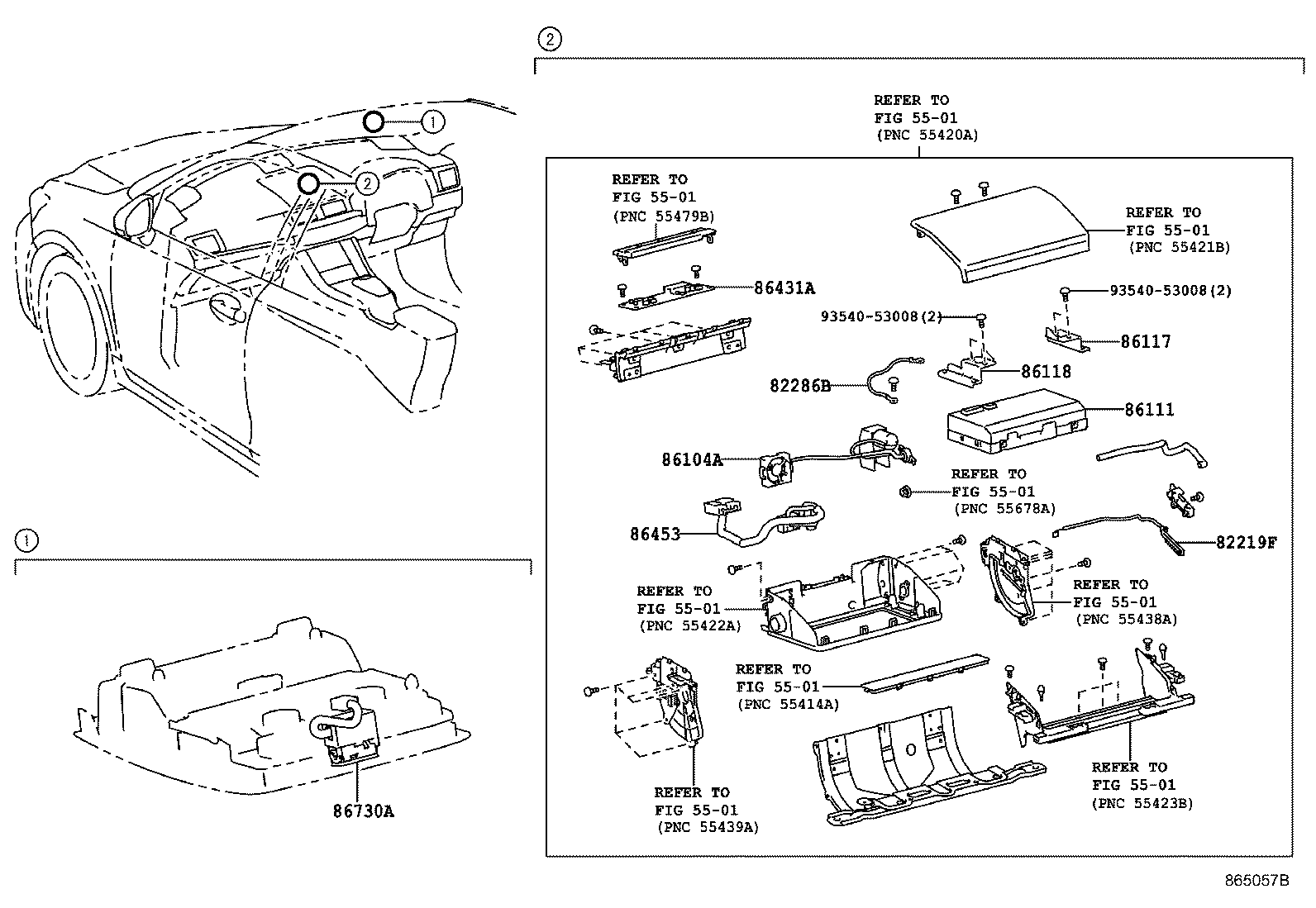

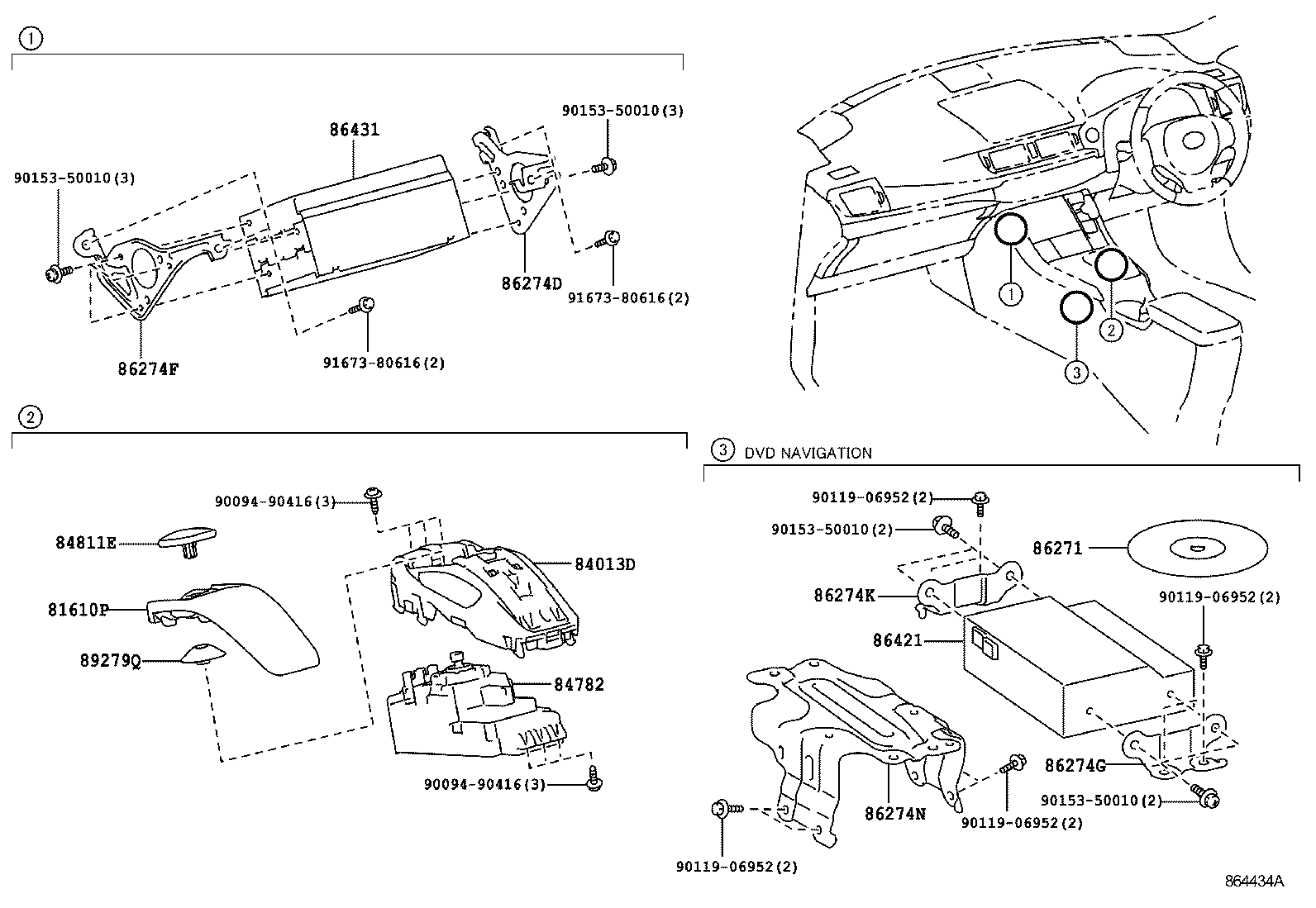

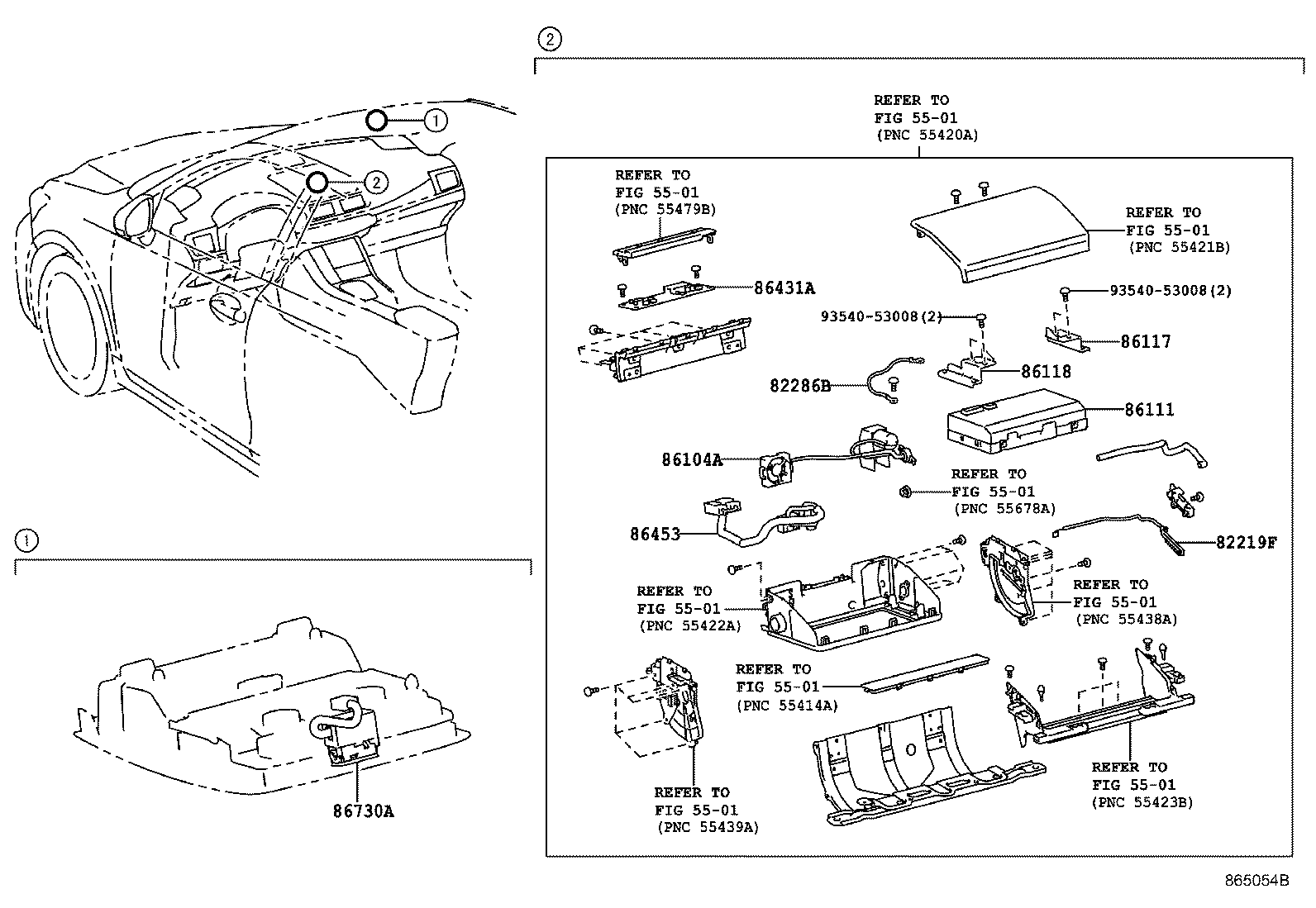

Figure 864490C 864490C 2010-12 → 2012-08 Figure 864491C 864491C 2010-12 → 2012-08 Figure 865054B 865054B 2012-08 → 2013-12 Figure 865057B 865057B 2012-08 → 2013-12 Figure 867055A 867055A 2013-12 → — Figure 864435A 864435A 2010-12 → 2012-08 Figure 864434A 864434A 2010-12 → 2012-08 Figure 865058C 865058C 2012-08 → 2013-12 Figure 865059C 865059C 2012-08 → 2013-12 Figure 865631C 865631C 2013-12 → — Figure 864439 864439 2010-12 → 2012-08 Figure 864437 864437 2010-12 → 2012-08

Part groups

PNCDescription
81610P Cover Assy, RH
81620B Cover Assy LH
82219F Wire, Sensor
82286B Wire, Earth, NO.2
84013D Panel Sub-assy, Integration
84781 Switch, Remote Operation
84782 Board, Remote Operation
84811E Knob, Switch
86101H Cord Sub-assy, Antenna
86104A Controller Sub-assy, Multi-display
86111 Multi-display
86117 Bracket, Multi-display Controller, A
86118 Bracket, Multi-display Controler, B
86271 Disc, Disc Player
86271L Hard Disc
86274D Bracket, Disc Player
86274F Bracket, Disc Player, NO.2
86274G Bracket, Disc Player, NO.3
86274K Bracket, Disc Player, NO.4
86274N Bracket, Disc Player, NO.5
86421 Board, Navigation Module
86431 Display, Display & Navigation Module
86431A Board, Display Module
86453 Wire, Multi-media Module
86730A Microphone Assy, Telephone
86804A Sub-assy, Navigation Computer
86808 Cord Sub-assy, Navigation Antenna, NO.1
86842 Wire, Navigation, NO.1
86842J Wire, Navigation, NO.2
86860 Antenna Assy, Navigation
86862 Bracket, Navigation Antenna
89279Q Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
