Toyota Lexus CT200H

2010-12 → present · chassis ZWA10 · catalogue 232510 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

15 part groups · 3 illustrations

Illustrations

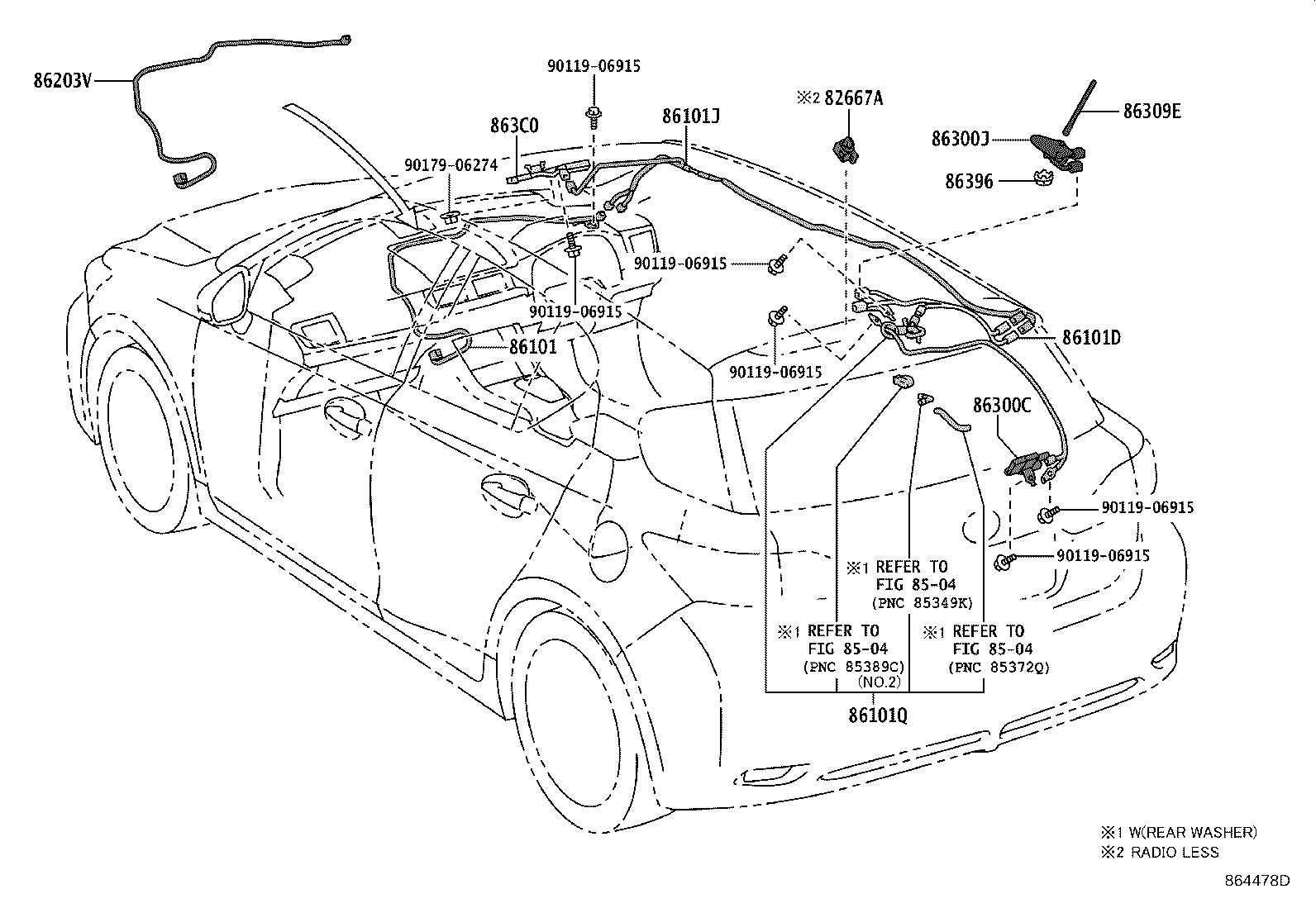

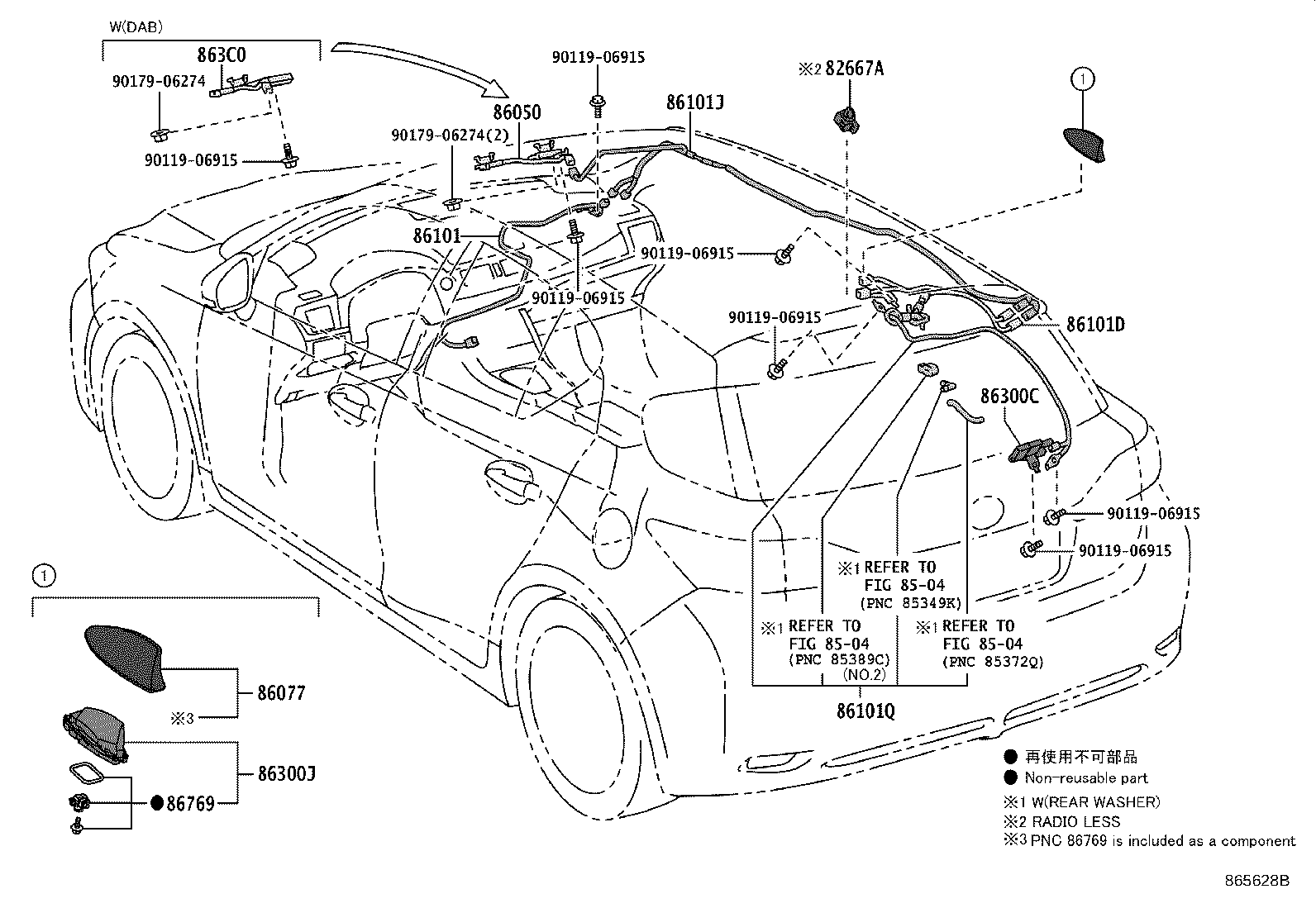

Figure 864477D 864477D 2010-12 → 2013-12 Figure 864478D 864478D 2010-12 → 2013-12 Figure 865628B 865628B 2013-12 → —

Part groups

PNCDescription
82667A Holder, Connector
86050 Antenna Assy, Television
86077 Cover Kit, Antenna
86101 Cord Sub-assy, Antenna
86101D Cord Sub-assy, Antenna, NO.3
86101J Cord Sub-assy, Antenna, NO.2
86101Q Cord Sub-assy, Antenna, NO.4
86101T Cord Sub-assy, Antenna
86203V Wire Sub Assy, Radio
86300C Antenna Assy, Amplifier, NO.2
86300J Antenna Assy, Roof
86309E Pole Sub-assy, Roof Antenna
86396 Nut, Antenna
863C0 Antenna Assy, Digital Audio Broadcasting
86769 Housing, Roof Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
