Heating & Air Conditioning - Control & Air Duct

26 part groups · 5 illustrations

Illustrations

Figure 87B715A 87B715A 2010-12 → — Figure 87B667A 87B667A 2010-12 → — Figure 87B717A 87B717A 2010-12 → — Figure 87B668B 87B668B 2010-12 → — Figure 87B669B 87B669B 2010-12 → —

Part groups

PNCDescription

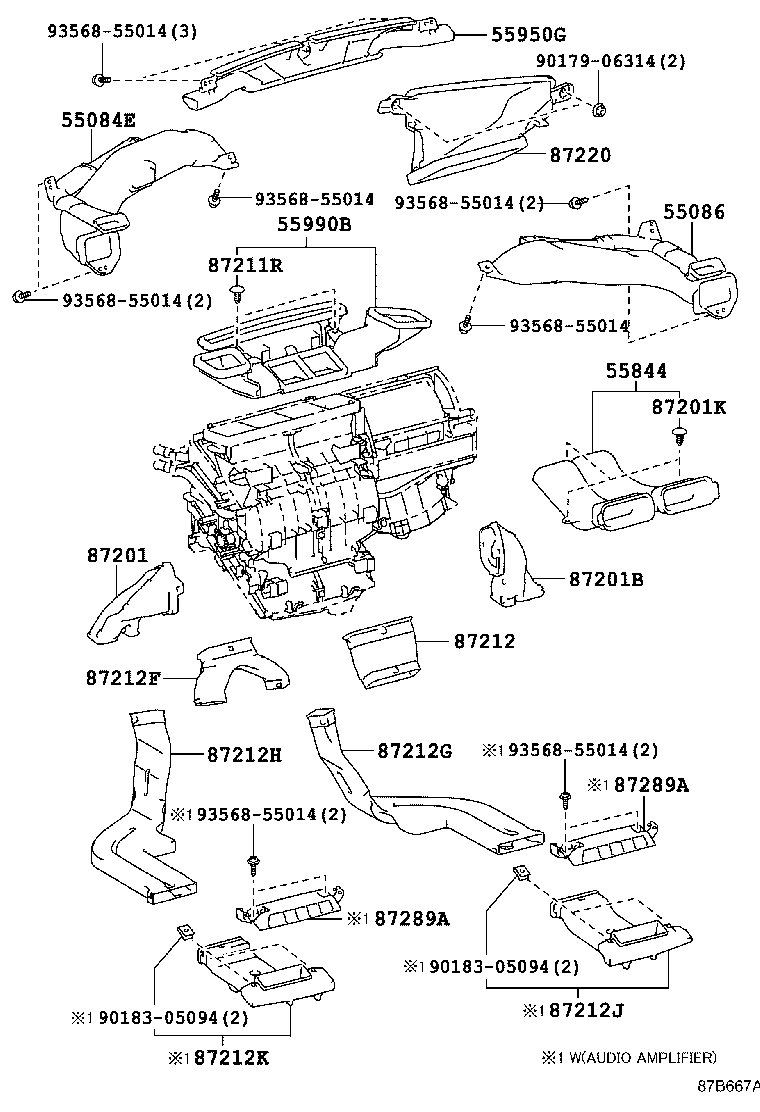

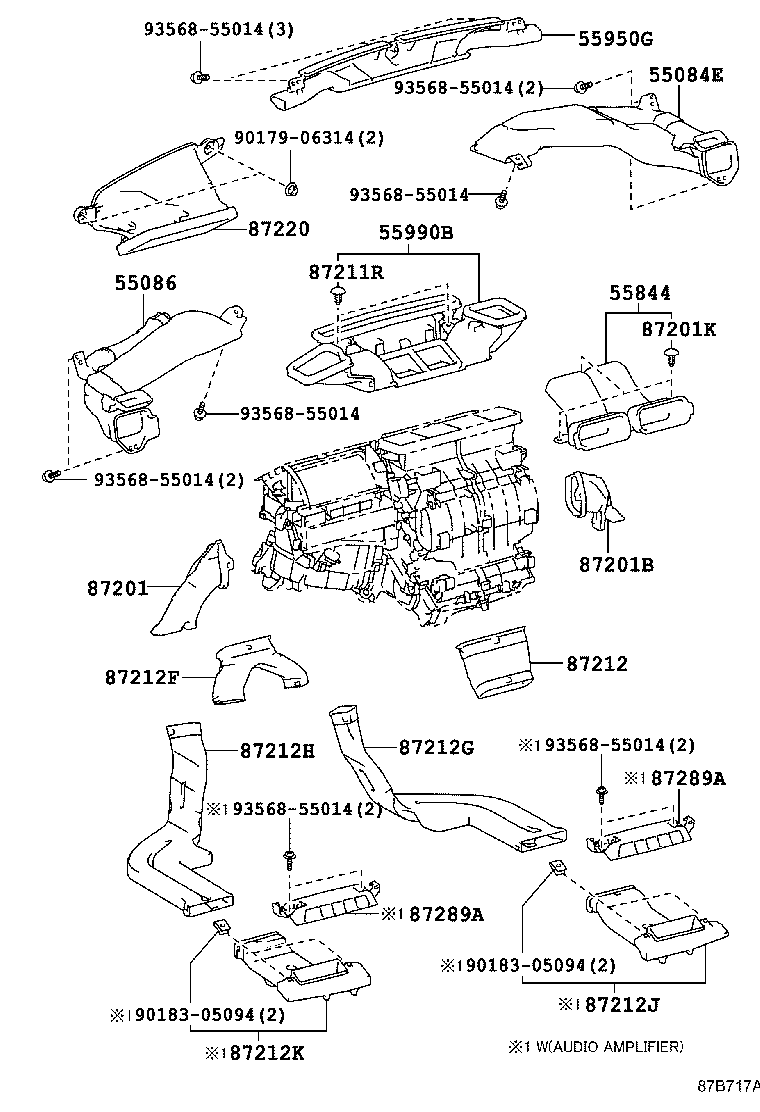

55084E Duct Sub-assy, Heater TO Register, NO.1
55086 Duct Sub-assy, Heater TO Register, NO.3
55844 Duct, Heater TO Register, NO.2
55905J Knob Sub-assy, Control
55912E Base, Heater Control, Lower
55935A Circuit, Center Cluster Module
55950G Nozzle Assy, Defroster
55990B Nozzle Assy, Defroster, Lower
87201 Duct Sub-assy, Air, NO.1
87201B Duct Sub-assy, Air, NO.2
87201K Clip (FOR AIR DUCT)
87211R Clip, Air Duct
87212 Duct, Air, Rear NO.1
87212F Duct, Air, Rear NO.2
87212G Duct, Air, Rear NO.3
87212H Duct, Air, Rear NO.4
87212J Duct, Air, Rear NO.5
87212K Duct, Air, Rear NO.6
87220 Duct Assy, Air
87268W Protector
87289A Bezel, Rear Heater Register, NO.1

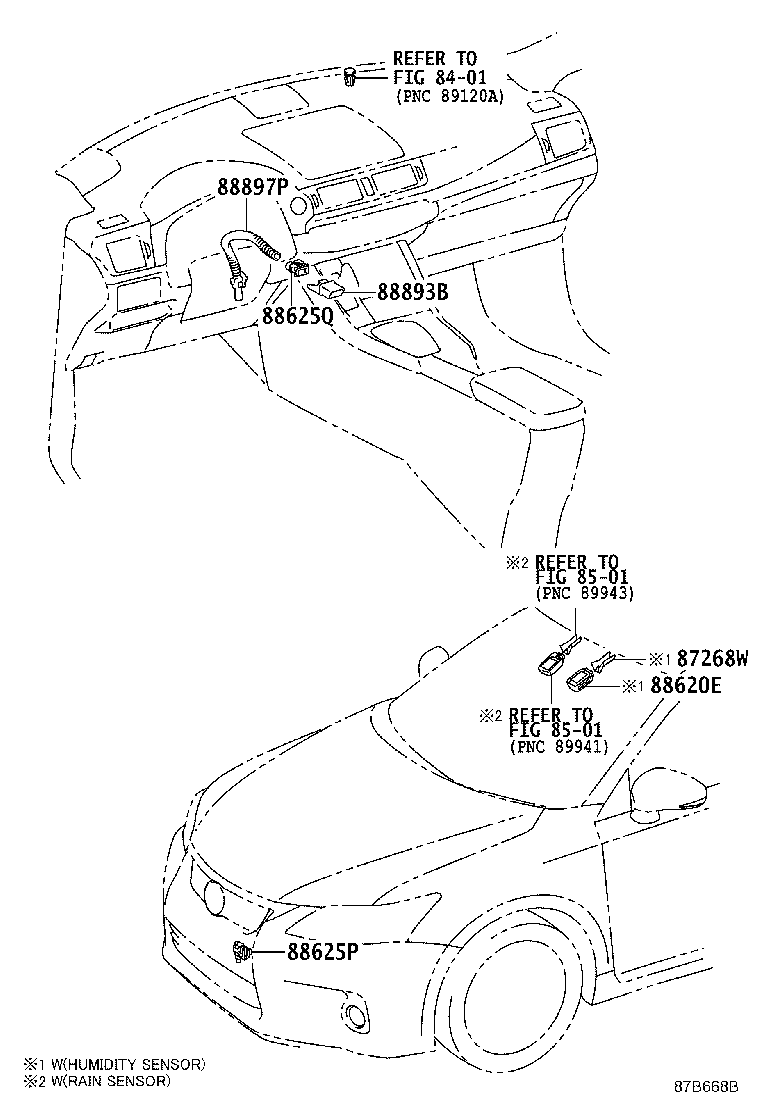

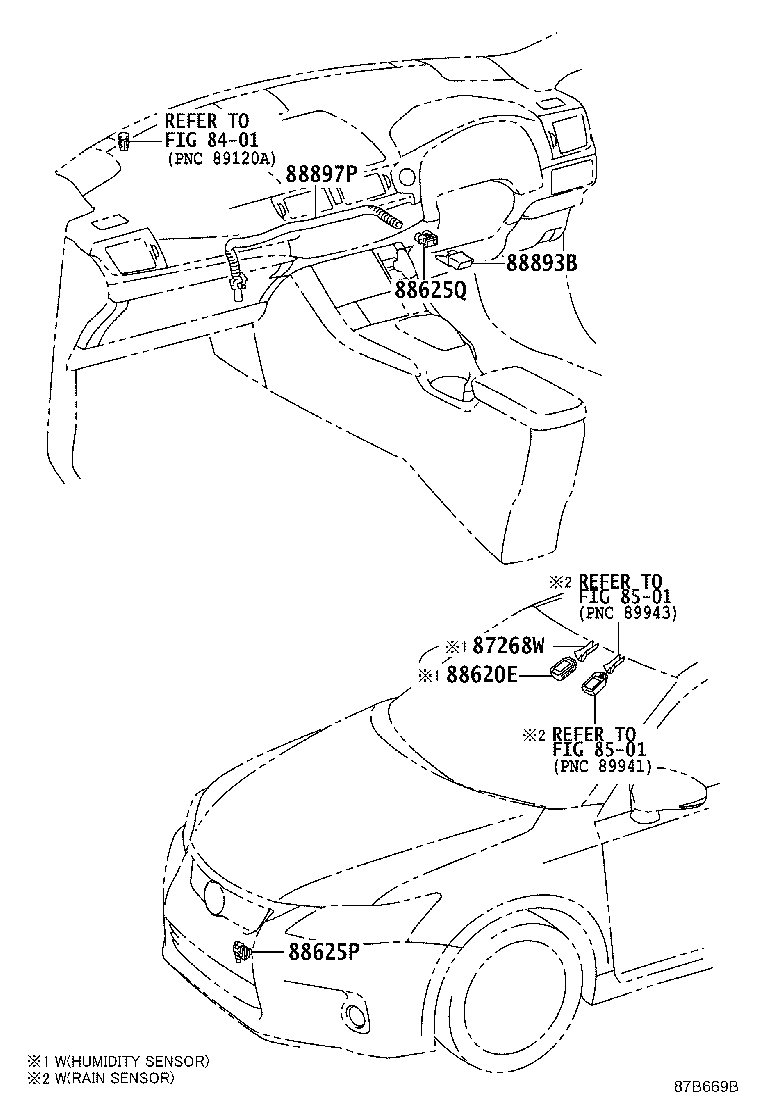

88620E Thermistor Assy, Air Conditioner (HUMIDITY SENSOR)
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88893B Clamp (FOR COOLER AIR HOSE)
88897P Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
