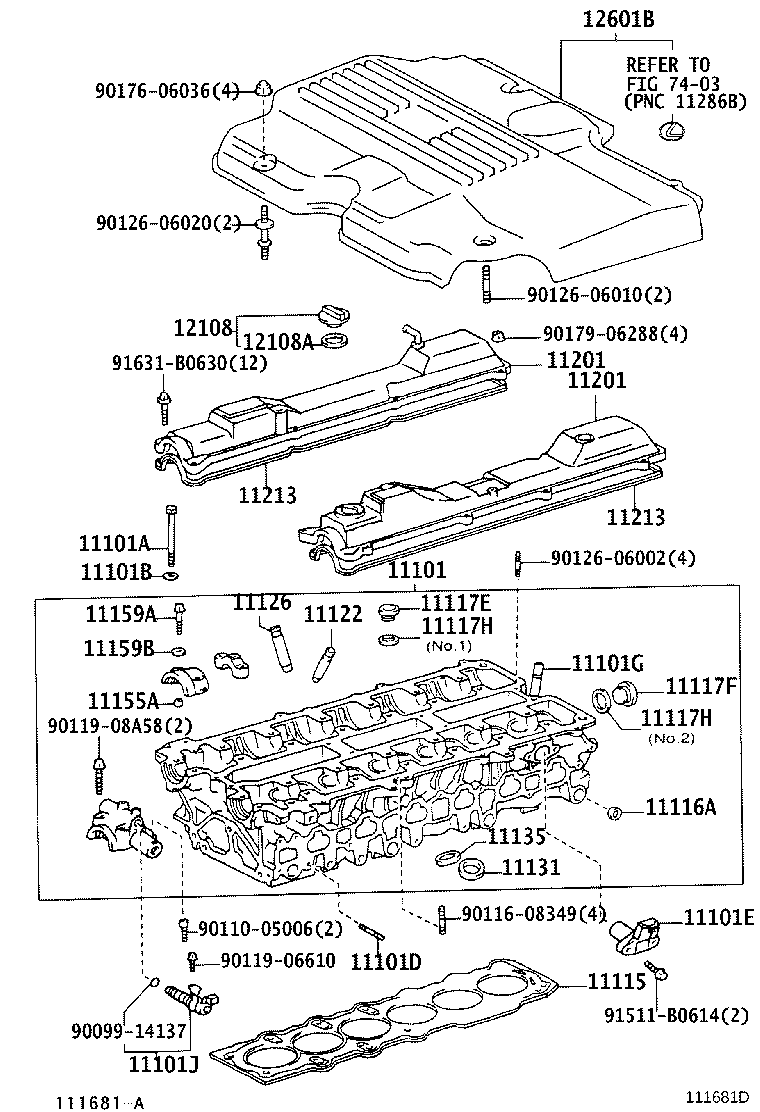

Exploded illustration 111681D 9017606036 — not listed in this catalogue 9012606020 — not listed in this catalogue 12108 — CAP SUB-ASSY, OIL FILLER (3 parts) 12108A — GASKET(FOR OIL FILLER CAP) (3 parts) 91631B0630 — not listed in this catalogue 12601B — COVER SUB-ASSY, ENGINE, NO.1 (1 parts) 9012606010 — not listed in this catalogue 9017906288 — not listed in this catalogue 11213 — GASKET, CYLINDER HEAD COVER (4 parts) 11101A — BOLT(FOR CYLINDER HEAD SET) (3 parts) 11101B — WASHER, PLATE(FOR CYLINDER HEAD SET) (4 parts) 11201 — COVER SUB-ASSY, CYLINDER HEAD (6 parts) 11201 — COVER SUB-ASSY, CYLINDER HEAD (6 parts) 11213 — GASKET, CYLINDER HEAD COVER (4 parts) 9012606002 — not listed in this catalogue 11101 — HEAD SUB-ASSY, CYLINDER (3 parts) 11159A — BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) (9 parts) 11159B — WASHER, SEAL(FOR HEAD TO CAMSHAFT BEARING CAP) (1 parts) 11155A — PIN, RING W/HEAD (3 parts) 9011908A58 — not listed in this catalogue 11126 — BUSH, EXHAUST VALVE GUIDE (6 parts) 11122 — BUSH, INTAKE VALVE GUIDE (6 parts) 11117E — PLUG, W/HEAD STRAIGHT SCREW, NO.1 (1 parts) 11117H — GASKET(FOR WATER HOLE) (2 parts) 11117H — GASKET(FOR WATER HOLE) (2 parts) 11117F — PLUG, W/HEAD STRAIGHT SCREW, NO.2 (1 parts) 11101E — SENSOR, CAM POSITION (3 parts) 11101G — UNION(FOR CYLINDER HEAD) (1 parts) 11135 — SEAT, EXHAUST VALVE (6 parts) 11131 — SEAT, INTAKE VALVE (6 parts) 11116A — PLUG, TIGHT, NO.1 (3 parts) 91511B0614 — not listed in this catalogue 11115 — GASKET, CYLINDER HEAD (4 parts) 9011608349 — not listed in this catalogue 11101D — BOLT, STUD(FOR WATER OUTLET) (3 parts) 9011005006 — not listed in this catalogue 9011906610 — not listed in this catalogue 11101J — VALVE ASSY, CAMSHAFT TIMING OIL CONTROL (3 parts) 9009914137 — not listed in this catalogue 7403 — not listed in this catalogue
111681D · 27 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
85 parts on this figure
Part number Description Fitment Price
11101 — Head Sub-assy, Cylinder
11101-79245 Head Sub-assy, Cylinder
1999-01 → 2001-07 ended
1GFE GXE10 —
11101-49377 Head Sub-assy, Cylinder
2001-07 → 2005-07 ended
2JZGE JCE10 —
11101-79245 Head Sub-assy, Cylinder
2001-07 → 2005-07 ended
1GFE GXE10 —
11101A — Bolt(FOR CYLINDER HEAD SET)
90910-02133 Bolt(FOR CYLINDER HEAD SET)
1999-01 → 2001-07 ended
1GFE GXE10 —
90910-02102 Bolt(FOR CYLINDER HEAD SET)
2001-07 → —
2JZGE JCE10 —
90910-02133 Bolt(FOR CYLINDER HEAD SET)
2001-07 → —
1GFE GXE10 —
11101B — Washer, Plate(FOR CYLINDER HEAD SET)
90201-10050 Washer, Plate(FOR CYLINDER HEAD SET)
1999-01 → 2001-07 ended
1GFE GXE10 —
90201-10050 Washer, Plate(FOR CYLINDER HEAD SET)
2001-07 → —
1GFE GXE10 —
90201-11018 Washer, Plate(FOR CYLINDER HEAD SET)
2001-07 → 2001-10 ended
2JZGE JCE10 —
90201-11034 Washer, Plate(FOR CYLINDER HEAD SET)
2001-10 → —
2JZGE JCE10 —
11101D — Bolt, Stud(FOR WATER OUTLET)
90116-08304 Bolt, Stud(FOR WATER OUTLET)
1999-01 → 2001-07 ended
1GFE GXE10 —
90116-08304 Bolt, Stud(FOR WATER OUTLET)
2001-07 → —
1GFE GXE10 —
90116-08348 Bolt, Stud(FOR WATER OUTLET)
2001-07 → —
2JZGE JCE10 —
11101E — Sensor, Cam Position
90919-05026 Sensor, Cam Position
1999-01 → 2001-07 ended
1GFE GXE10 —
90919-05007 Sensor, Cam Position
2001-07 → —
2JZGE JCE10 —
90919-05026 Sensor, Cam Position
2001-07 → 2005-07 ended
1GFE GXE10 —
11101G — Union(FOR CYLINDER HEAD)
90406-17017 Union(FOR CYLINDER HEAD)
2001-07 → —
2JZGE JCE10 —
11101J — Valve Assy, Camshaft Timing Oil Control
15330-70010 Valve Assy, Camshaft Timing Oil Control
1999-01 → 2001-07 ended
1GFE GXE10 —
15330-46010 Valve Assy, Camshaft Timing Oil Control
2001-07 → —
2JZGE JCE10 —
15330-70010 Valve Assy, Camshaft Timing Oil Control
2001-07 → —
1GFE GXE10 —
11115 — Gasket, Cylinder Head
11115-70061 Gasket, Cylinder Head
1999-01 → 2001-07 ended
1GFE GXE10 —
11115-46045 Gasket, Cylinder Head
2001-07 → —
2JZGE JCE10 —
11115-70061 Gasket, Cylinder Head
2001-07 → 2003-03 ended
1GFE GXE10 —
11115-70062 Gasket, Cylinder Head
2003-03 → —
1GFE GXE10 —
11116A — Plug, Tight, NO.1
96411-41800 Plug, Tight, NO.1
1999-01 → 2001-07 ended
1GFE GXE10 —
96411-41800 Plug, Tight, NO.1
2001-07 → —
1GFE GXE10 —
96411-42000 Plug, Tight, NO.1
2001-07 → —
2JZGE JCE10 —
11117E — Plug, W/Head Straight Screw, NO.1
90341-24010 Plug, W/Head Straight Screw, NO.1
2001-07 → —
2JZGE JCE10 —
11117F — Plug, W/Head Straight Screw, NO.2
90341-36001 Plug, W/Head Straight Screw, NO.2
2001-07 → —
2JZGE JCE10 —
11117H — Gasket(FOR WATER HOLE)
90430-24010 note Gasket(FOR WATER HOLE)
2001-07 → —
2JZGE JCE10 —
90430-36003 note Gasket(FOR WATER HOLE)
2001-07 → —
2JZGE JCE10 —
11122 — Bush, Intake Valve Guide
11122-21010 note Bush, Intake Valve Guide
1999-01 → 2001-07 ended
1GFE GXE10 —
11123-21010 note Bush, Intake Valve Guide
1999-01 → 2001-07 ended
1GFE GXE10 —
11122-21010 note Bush, Intake Valve Guide
2001-07 → 2005-07 ended
1GFE GXE10 —
11122-74030 note Bush, Intake Valve Guide
2001-07 → 2005-07 ended
2JZGE JCE10 —
11123-21010 note Bush, Intake Valve Guide
2001-07 → 2005-07 ended
1GFE GXE10 —
11123-74030 note Bush, Intake Valve Guide
2001-07 → 2005-07 ended
2JZGE JCE10 —
11126 — Bush, Exhaust Valve Guide
11122-21010 note Bush, Exhaust Valve Guide
1999-01 → 2001-07 ended
1GFE GXE10 —
11123-21010 note Bush, Exhaust Valve Guide
1999-01 → 2001-07 ended
1GFE GXE10 —
11122-16010 note Bush, Exhaust Valve Guide
2001-07 → 2005-07 ended
2JZGE JCE10 —
11122-21010 note Bush, Exhaust Valve Guide
2001-07 → 2005-07 ended
1GFE GXE10 —
11123-16010 note Bush, Exhaust Valve Guide
2001-07 → 2005-07 ended
2JZGE JCE10 —
11123-21010 note Bush, Exhaust Valve Guide
2001-07 → 2005-07 ended
1GFE GXE10 —
11131 — Seat, Intake Valve
11131-70030 note Seat, Intake Valve
1999-01 → 2001-07 ended
1GFE GXE10 —
11132-70030 note Seat, Intake Valve
1999-01 → 2001-07 ended
1GFE GXE10 —
11131-46060 note Seat, Intake Valve
2001-07 → 2005-07 ended
2JZGE JCE10 —
11131-70030 note Seat, Intake Valve
2001-07 → 2005-07 ended
1GFE GXE10 —
11132-46060 note Seat, Intake Valve
2001-07 → 2005-07 ended
2JZGE JCE10 —
11132-70030 note Seat, Intake Valve
2001-07 → 2005-07 ended
1GFE GXE10 —
11135 — Seat, Exhaust Valve
11135-70040 note Seat, Exhaust Valve
1999-01 → 2001-07 ended
1GFE GXE10 —
11136-70040 note Seat, Exhaust Valve
1999-01 → 2001-07 ended
1GFE GXE10 —
11135-46050 note Seat, Exhaust Valve
2001-07 → 2005-07 ended
2JZGE JCE10 —
11135-70040 note Seat, Exhaust Valve
2001-07 → 2005-07 ended
1GFE GXE10 —
11136-46050 note Seat, Exhaust Valve
2001-07 → 2005-07 ended
2JZGE JCE10 —
11136-70040 note Seat, Exhaust Valve
2001-07 → 2005-07 ended
1GFE GXE10 —
11155A — Pin, Ring W/Head
90253-10006 Pin, Ring W/Head
1999-01 → 2001-07 ended
1GFE GXE10 —
90253-10006 Pin, Ring W/Head
2001-07 → —
1GFE GXE10 —
90253-11021 Pin, Ring W/Head
2001-07 → —
2JZGE JCE10 —
11159A — Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
90105-06221 note Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
1999-01 → 2001-07 ended
1GFE GXE10 —
90105-07004 note Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
1999-01 → 2001-07 ended
1GFE GXE10 —
90105-07006 note Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
1999-01 → 2001-07 ended
1GFE GXE10 —
90119-07009 note Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
1999-01 → 2001-07 ended
1GFE GXE10 —
90105-06221 note Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2001-07 → —
1GFE GXE10 —
90105-07004 note Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2001-07 → —
1GFE GXE10 —
90105-07006 note Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2001-07 → —
1GFE GXE10 —
90119-07009 note Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2001-07 → —
1GFE GXE10 —
90119-08890 Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2001-07 → —
2JZGE JCE10 —
11159B — Washer, Seal(FOR HEAD TO CAMSHAFT BEARING CAP)
90210-08033 Washer, Seal(FOR HEAD TO CAMSHAFT BEARING CAP)
2001-07 → —
2JZGE JCE10 —
11201 — Cover Sub-assy, Cylinder Head
11201-70080 note Cover Sub-assy, Cylinder Head
1999-01 → 2001-07 ended
1GFE GXE10 —
11202-70030 note Cover Sub-assy, Cylinder Head
1999-01 → 2001-07 ended
1GFE GXE10 —
11201-46064 note Cover Sub-assy, Cylinder Head
2001-07 → —
2JZGE JCE10 —
11201-70080 note Cover Sub-assy, Cylinder Head
2001-07 → —
1GFE GXE10 —
11202-46033 note Cover Sub-assy, Cylinder Head
2001-07 → —
2JZGE JCE10 —
11202-70030 note Cover Sub-assy, Cylinder Head
2001-07 → —
1GFE GXE10 —
11213 — Gasket, Cylinder Head Cover
11213-70040 Gasket, Cylinder Head Cover
1999-01 → 2001-07 ended
1GFE GXE10 —
11213-46030 note Gasket, Cylinder Head Cover
2001-07 → —
2JZGE JCE10 —
11213-70040 Gasket, Cylinder Head Cover
2001-07 → —
1GFE GXE10 —
11214-46011 note Gasket, Cylinder Head Cover
2001-07 → —
2JZGE JCE10 —
12108 — Cap Sub-assy, Oil Filler
12180-55010 Cap Sub-assy, Oil Filler
1999-01 → 2001-07 ended
1GFE GXE10 —
12180-20030 Cap Sub-assy, Oil Filler
2001-07 → —
2JZGE JCE10 —
12180-55010 Cap Sub-assy, Oil Filler
2001-07 → —
1GFE GXE10 —
12108A — Gasket(FOR OIL FILLER CAP)
90430-37140 Gasket(FOR OIL FILLER CAP)
1999-01 → 2001-07 ended
1GFE GXE10 —
12195-20020 Gasket(FOR OIL FILLER CAP)
2001-07 → —
2JZGE JCE10 —
90430-37140 Gasket(FOR OIL FILLER CAP)
2001-07 → —
1GFE GXE10 —
12601B — Cover Sub-assy, Engine, NO.1
12601-46030 Cover Sub-assy, Engine, NO.1
2001-07 → —
2JZGE JCE10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
