Toyota Lexus IS200/300

1999-01 → 2005-07 · chassis GXE10,JCE10 · catalogue 242210 · Europe

Discontinued model Data version 2006-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

22 part groups · 2 illustrations

Illustrations

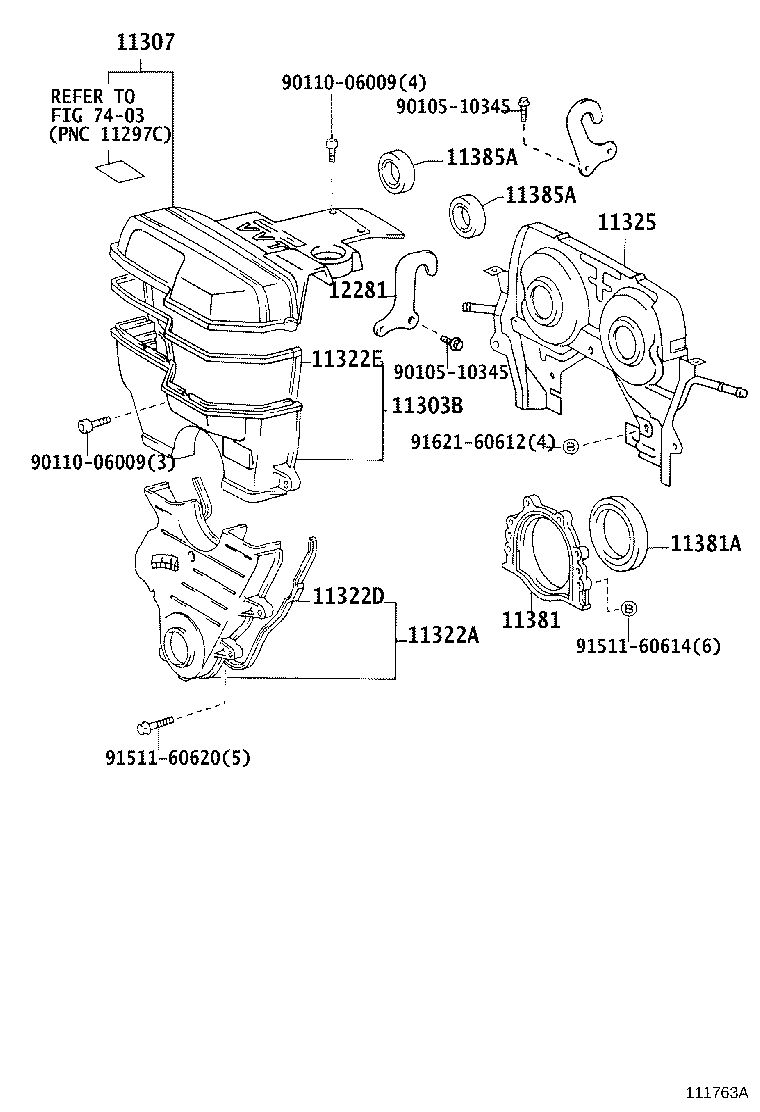

Figure 111143G 111143G 1999-01 → — Figure 111763A 111763A 2001-07 → —

Part groups

PNCDescription
11301 Case Sub-assy, Timing Gear
11301A Pin, Straight(FOR TIMING GEAR CASE)
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11303 Cover Sub-assy, Crankshaft Gear OR Pulley
11303B Cover Sub-assy, Timing Belt, NO.2
11307 Cover, Sub-assy, Timing Belt, NO.3
11309 Cover Sub-assy, Timing Belt, NO.4
11312 Gasket, Front End Plate
11322A Cover, Timing Belt, NO.1
11322D Gasket, Timing Belt Cover, NO.1
11322E Gasket, Timing Belt Cover, NO.2
11325 Cover, Timing Belt, NO.4
11328 Gasket, Timing Gear OR Chain Cover
11329A Gasket, Timing Belt OR Chain Cover, NO.2
11354 Seal, Flywheel Housing Dust
11355 Plate, Rear End
11355A Plug, Hole(FOR REAR END PLATE)
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11383 Gasket, Engine Rear Oil Seal Retainer
11385A Seal, Oil(FOR CAMSHAFT)
12281 Hanger, Engine, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
