Toyota Lexus IS200/300

1999-01 → 2005-07 · chassis GXE10,JCE10 · catalogue 242210 · Europe

Discontinued model Data version 2006-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camshaft & Valve

24 part groups · 2 illustrations

Illustrations

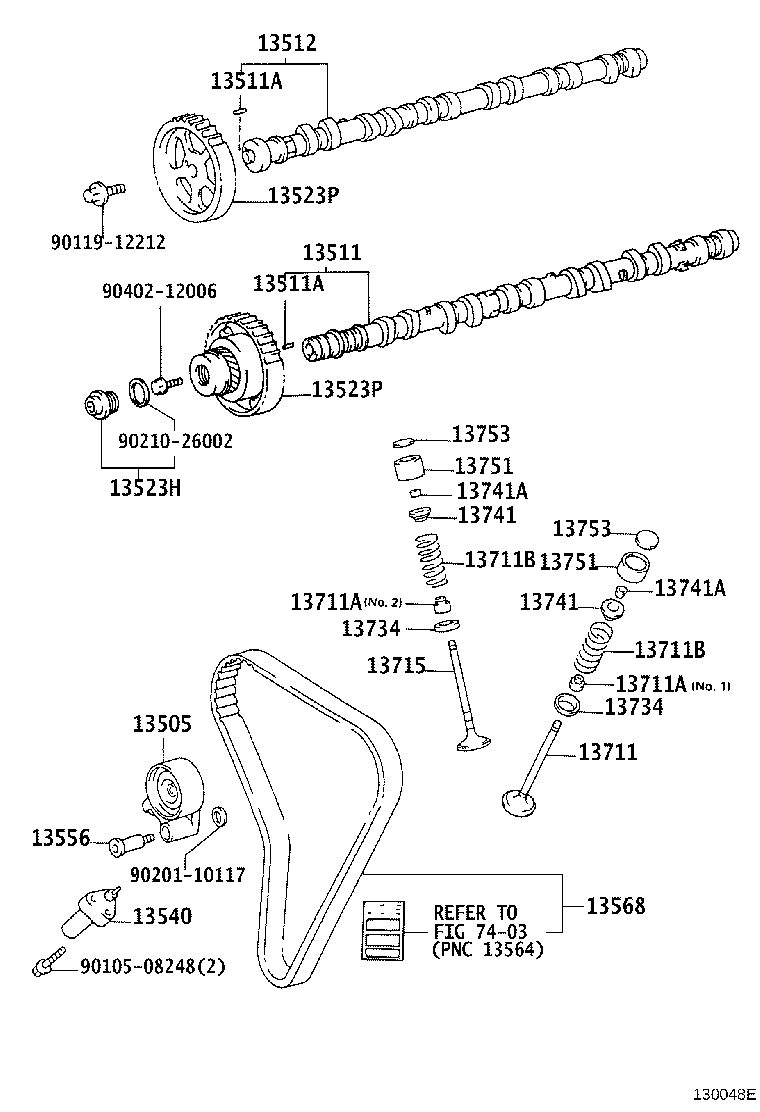

Figure 131636A 131636A 1999-01 → — Figure 130048E 130048E 2001-07 → —

Part groups

PNCDescription
04139 Bolt Kit, Camshaft Timing Pulley
13050 Gear Assy, Camshaft Timing
13502 Idler Sub-assy, Timing Belt, NO.2
13505 Idler Sub-assy, Timing Belt, NO.1
13511 Camshaft
13511A Pin, Straight(FOR CAMSHAFT KNOCK)
13512 Camshaft, NO.2
13522P Pulley, Pump Drive Shaft
13523H Plug, Straight Screw W/Head(FOR CAMSHAFT TIMING PULLEY)
13523P Pulley, Camshaft Timing
13529 Gear, Camshaft Sub
13540 Tensioner Assy, Chain, NO.1
13556 Shaft, Timing Belt Idler
13568 Belt, Timing
13579 Washer, Camshaft Timing Gear Bolt
13711 Valve, Intake
13711A Seal OR Ring, O(FOR VALVE STEM OIL)
13711B Spring, Compression(FOR INNER)
13715 Valve, Exhaust
13734 Seat, Valve Spring
13741 Retainer, Valve Spring
13741A Lock, Valve Spring Retainer
13751 Lifter, Valve
13753 Shim, Valve Adjusting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
